Summary of Contents for GenX Mobile GNX-10

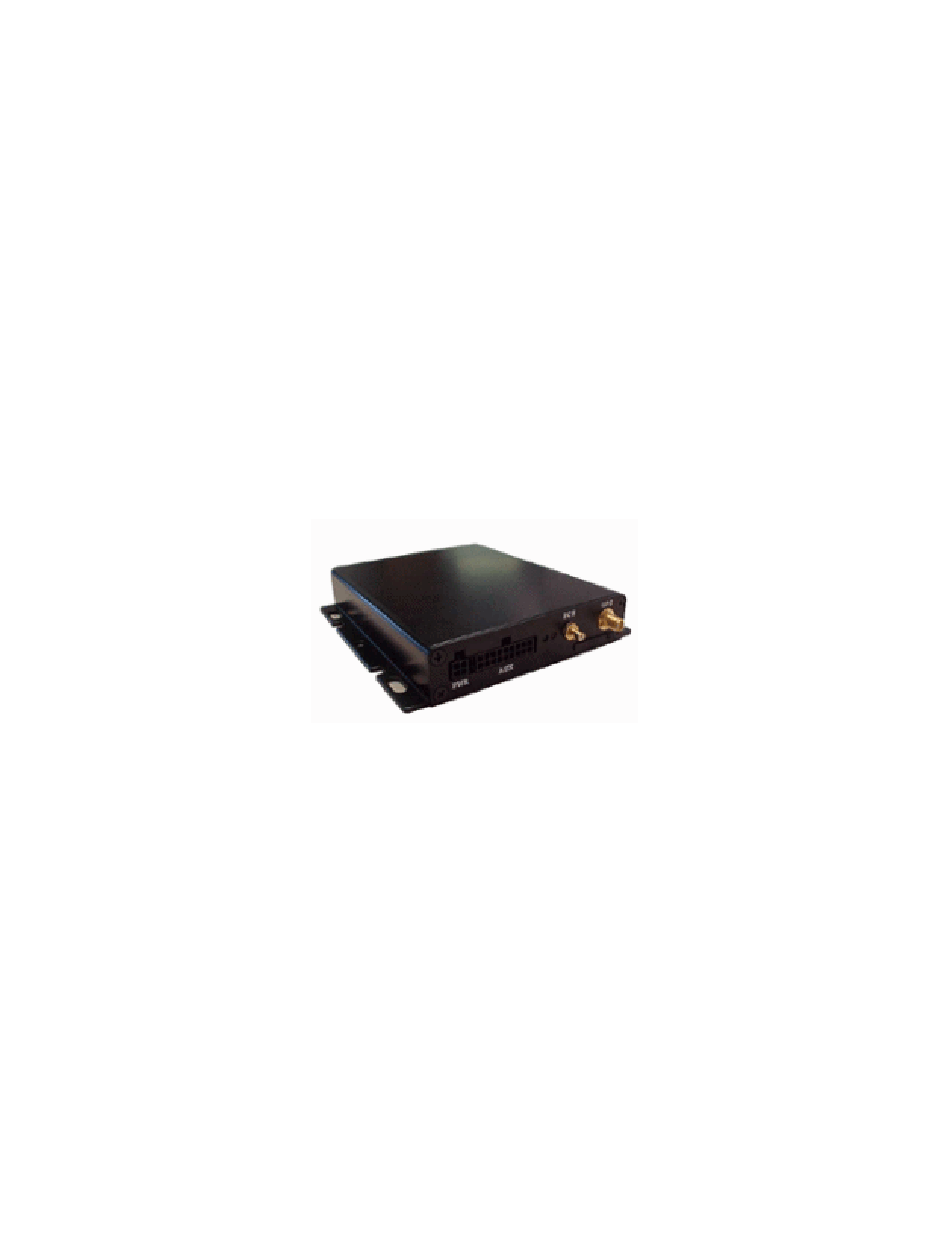

- Page 1 GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 GNX-10 Installation Guide (For Professional Installers Only) Confidential and Proprietary 10/28/2004 All Rights Reserved Page 1 of 1...
-
Page 2: Please Read
GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 GNX-10 Installation Guide PLEASE READ! FCC Compliance This device complies with part 15 of the FCC rules Operation and is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Hardware Overview
GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 Hardware Overview Feature Highlights 10 Base-T Wired Ethernet port Network connection in the field via laptop computer, PDA, 802.11 or other • Ethernet compatible equipments Dual stacked protocol to automatically accommodate dynamic wireless network •... - Page 4 GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 GNX-10 Specifications Location Technology: GPS L1 C/A code Accuracy: 5 meter CEP Wireless Networks: • GSM/GPRS (850/1900) • CDMA 1xRTT (800/1900) •802.11 through Ethernet Port Size: 5.15” x 4 .15” x 0.95”...
-
Page 5: Pre-Installation Procedures
GenX Mobile, Incorporated Version 1.01 PRE-INSTALLATION PROCEDURES 1. VERIFY INSTALLATION CONTENTS You must have the proper tools before installing the GNX-10 device. Please ask your manufacturer if they provide a full installation kit. Tools • Standard crimping tool (not included) •... - Page 6 GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 • Butt Connectors • Tie Wraps • Star Washers 2. VERIFY VEHICLE DETAILS Note all important vehicle details, including vehicle #, VIN #, vehicle model and year in the VEHICLE ADMINISTRATION WORKSHEET. (See Vehicle Administration Worksheet towards end).
- Page 7 GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 Power sources must be properly identified before installation. Identify Constant Power Source. With ANY vehicle, remove any covering around the steering column and use a digital voltmeter to identify wiring and voltage.
-
Page 8: Performing The Installation
GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 PERFORMING THE INSTALLATION 1. Connect Wiring Harness and Secure Device Connect wiring harness to device. Place device into an acceptable location and secure using self-tapping screws and 2 or more wraps. It is preferable to secure device in a hidden, secure location away from moving parts. - Page 9 GenX Mobile, Incorporated Version 1.01 Antenna types: Connect wiring to GNX-10 device. • If device is installed towards front of vehicle (i.e.-beneath steering column or dash) run wiring harness through vehicle head liner so that wires are not exposed or easily tampered with.
- Page 10 GNX-10 Installation Guide GenX Mobile, Incorporated Version 1.01 • Route antenna wiring through vehicle head liner to area where antenna will be mounted. • Apply silicone sealant around exterior antenna area. Secure antenna accordingly. 5. Test Equipment for Functionality Any GREEN light indicates that the device is functioning properly. Any RED light indicates a malfunction.
