Summary of Contents for Morrisons GBC1436BMO

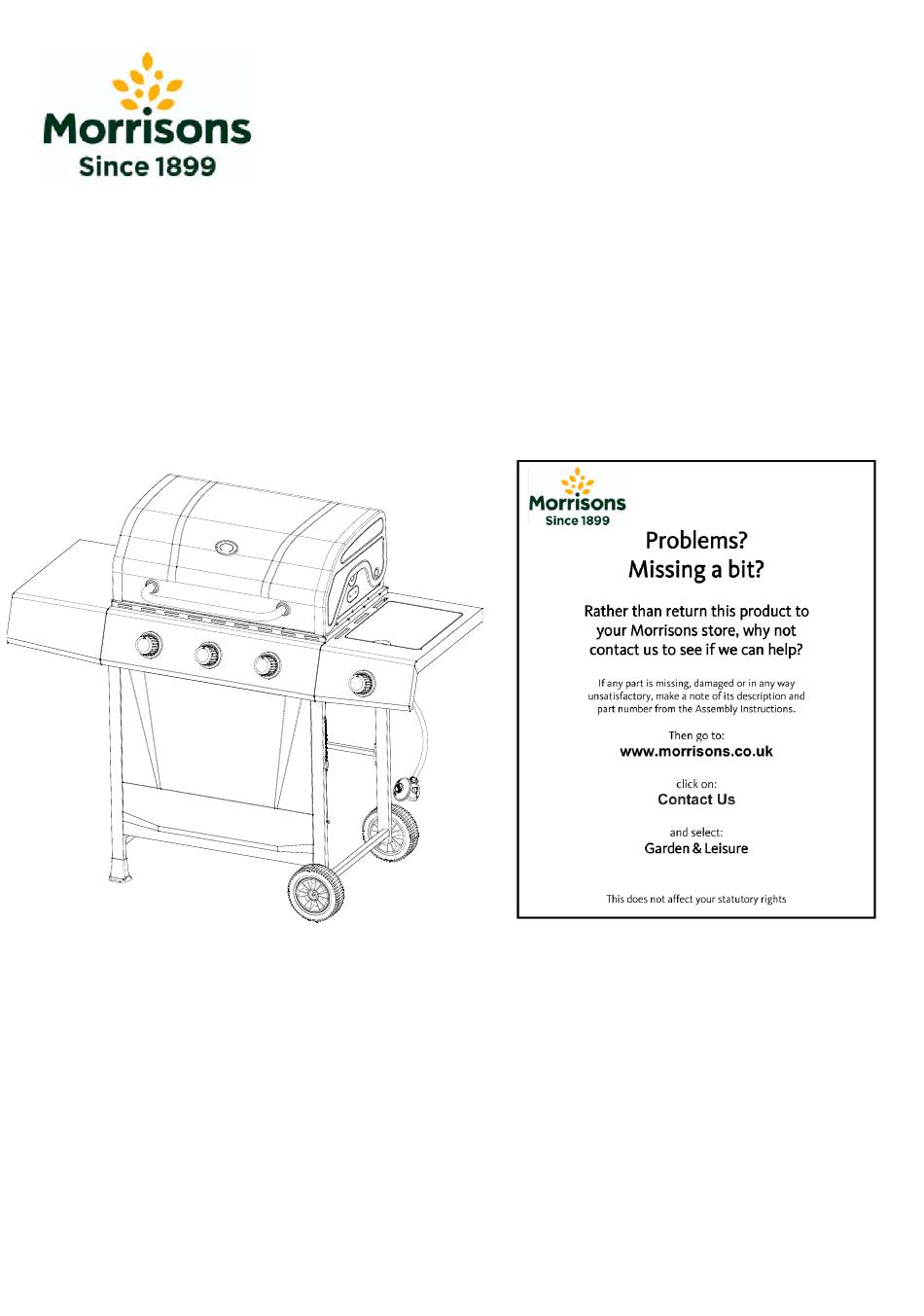

- Page 1 3 Burner Gas Barbecue Assembly and Safety Use Instructions (Model No.: GBC1436BMO) IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE 0359-19...
-
Page 2: Expanded View
Expanded View... -
Page 3: Parts Supplied
Parts Supplied Please check parts against the list below before assembling your Barbecue Grill. Take a few moments to familiarise yourself with the contents. Check that all holes are clear of paint before assembly, if you find a blockage, please use a screw driver to clear the blocked hole. Lid handle Grease cup Grease tray... -
Page 4: Fittings Supplied
Fittings Supplied Screw ST4.8x10 Wing nut M6 Washer 6 Screw M4x10 Bolt M6x16 Lock washer 6 Screwdriver Wing M6x10 bolt Nut M10 Wrench M6 & M10 Screwdriver (included), wrench (included) and plastic head hammer (not included) are required to assemble the Barbecue. Dispose of all polythene packing carefully and keep out of the reach of children Please read the section on barbecue safety prior to using your Barbecue. - Page 5 Assembly Please read all instructions thoroughly before proceeding. Find a large, clean area in which to assemble your barbecue. Please refer to parts list and assembly diagram as necessary. Assembly of the barbecue involves many large components, it is advisable to have two people assemble the unit. STEP 1: A: Attach end cap of left cart frame (21) to left cart frame (15) ((A) Screw 2Pcs).
- Page 6 STEP 3: A: Attach upper front panel (22) and lower front panel (23) to the assembled cart frame ((C) Bolt 8Pcs). Note: Make sure the left and right cart frame are in the correct orientation as shown in below diagram.. (22) (23) STEP 4:...
- Page 7 STEP 5: A: Attach lighting hook (17) onto right cart frame ((D) Wing bolt 1Pc). B: Hang the lighting hook onto wing bolt. (17) (17) STEP 6: A: Attach lid handle (1) onto lid & fire-bowl assembly (5) ((G) Washer 2Pcs / (H) Lock washer 2Pcs / (F) Wing nut 2Pcs). B: Attach temperature gauge (2) onto lid &...
- Page 8 STEP 7: A: Attach lid & fire-bowl assembly onto the assembled cart frame ((C) Bolt 4Pcs / (H) Lock washer 4Pcs / (G) Washer 4Pcs). (H) (C)
- Page 9 STEP 8: A: Fix 2 bolts (C) into the upper bolt hole of left cart frame and leave 5mm space for hanging the left side shelf (11) ((C) Bolt 2Pcs). B: Hang the side shelf (11) onto 2 upper bolt heads. C: Fix another 3 bolts (C) into the remaining bolt hole of left cart frame ((C) Bolt 3Pcs).
- Page 10 STEP 9: A: Fix 2 bolts (C) into the upper bolt hole of right cart frame and leave 5mm space for hanging the right side shelf for side burner (14) ((C) Bolt 2Pcs). B: Hang the right side shelf for side burner (14) onto 2 upper bolt heads. C: Fix another 3 bolts (C) into the remaining bolt hole of right cart frame.
- Page 11 STEP 10: A: Fix 2 screws (B) on front control panel of side burner and leave 5mm space for hanging control knob plate (9) ((B) Screw 2Pcs). B: Hang the control knob plate (9) onto 2 screw heads. There have 2 pairs of hanging holes included, please use the shortest hole distance pairs for hanging.
- Page 12 STEP 12: A: Attach control knob (10) onto main valve stem and side burner valve stem. (10) (10) (10) (10) STEP 13: A: Place heat plate (6) into fire-bowl assembly. B: Place cooking grid (4) into fire-bowl assembly.
- Page 13 STEP 14: A: Place warming rack (3) onto hole of fire-bowl assembly. STEP 15: A: Place grease tray (13) onto grease tray support. B: Attach grease cup (12) onto grease tray. (13) (12)
-
Page 14: General Safety Warnings
General Safety Warnings Important: Read all the safety warnings and assembly instructions before use and retain all information for future reference. • Read assembly instruction enclosed & all the safety warning before using the appliance. Failure to follow instructions could result in death, serious body injury or property loss. •... -
Page 15: Installing The Gas Cylinder
Installing the Gas Cylinder To operate you will need (1) precision-filled gas cylinder between 11kg and 15kg. Your barbecue will perform better if propane gas cylinder is used. CAUTION: Gas cylinder must be properly disconnected and removed prior to moving this grill. Specification of Gas Cylinder（not included）. - Page 16 Connect Gas Cylinder 1. Make sure control knobs are “OFF’’ position. 2. Make sure the regulator rubber hose and regulator are properly and securely connected. 3. Make sure the regulator handle is in the “OFF’’ position. (Figure C). 4. Remove the seal cap from the automatic valve on the gas cylinder. 5.
-
Page 17: Checking For Leaks
Checking for Leaks Burner Connections 1. Make sure the regulator valve and hose connections are securely fastened to the burner and the gas cylinder. Visually check the connection between the burner venturi pipe and orifice. Make sure the burner venturi pipes fit over the orifice. - Page 18 5. To turn regulator ON, turn the regulator valve handle counterclockwise to the “ON” position. (Figure D) Caution: If you are unable to turn the regulator valve handle to the “ON” position, your regulator is not properly connected. Do not force the regulator valve handle to open. Remove the regulator and repeat “Connect Gas Cylinder” section.
-
Page 19: Operating Side Burner
1. Open lid and ignite the desired burners per “Lighting Instruction” section. 2. Close lid and preheat grill on “HIGH”. 3. Wear protective gloves and use long handle tongs to place food onto cooking grids above the un-lit burners. 4. Adjust controls to desired flame height. 5. - Page 20 CO Warning: 1. Carbon Monoxide (CO) is a colourless, odourless, highly poisonous gas that can kill in minutes. Carbon Monoxide poisoning can be caused by ANY fuel that burns or smoulders. The carbon monoxide from a badly adjusted barbecue can kill. Make sure exhaust from generators is properly vented away from occupied areas.
-
Page 21: Cleaning And Care
Cleaning and Care CAUTION: 1. All cleaning and maintenances should be done when grill is cool and with the fuel supply disconnected. 2. DO NOT clean any grill part in a self cleaning oven. The extreme heat will damage the finish. 3. -
Page 22: Technical Specification
Technical Specification Model Number: GBC1436BMO Gas Category: I 3+(28-30/37) Type of Gas: Propane Gas Pressure: 37 mbar Connection of Regulator: 27mm (Press on type) Weight of Gas Cylinder: 11kg - 15kg Pin Number: 0359CR01494 Injector Size (Main Burner): 0.95mm & Injector Size (Side Burner): 0.92mm Total Heat Input: 15.52kW...
