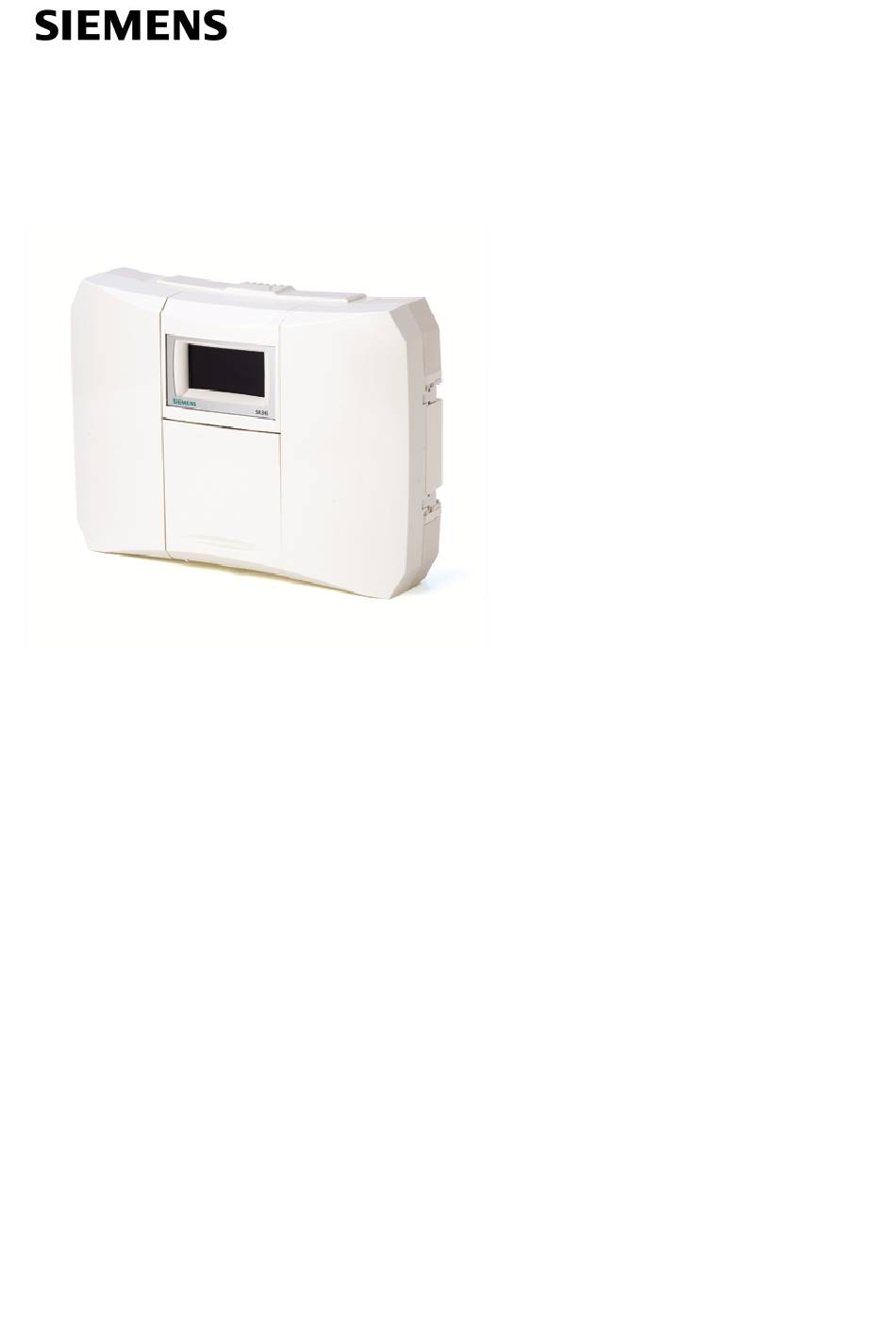

- Page 1 Access Control SR35iA Aperio Controller Configuration Manual Siemens AB Security Products...
- Page 2 Data and design subject to change without notice. / Supply subject to availability. © 2015 Copyright by Siemens AB We reserve all rights in this document and in the subject thereof. By acceptance of the document the recipient acknowledges these rights and undertakes not to publish the document nor the subject thereof in full or in part, nor to make them available to any third party without our prior express written authorization, nor to use it for any purpose other than for which it was delivered to him.
-
Page 3: Table Of Contents
Content 1 About this document 2 Introduction 2.1 Prerequisites 2.2 System capacity 2.3 System limitations 2.3.1 Unlocking commands 2.4 System overview 2.5 Wirings 3 Configuration 3.1 Aperio™ configuration 3.2 Bewator Entro configuration 3.2.1 SR35iA Aperio Controller setup 3.2.2 Bewator Entro card parameters 3.2.3 Configure doors 3.3 Omnis configuration 3.3.1 Omnis special notes when using Aperio™... -
Page 4: About This Document
Omnis Security system. More information can be obtained from the separate reference manuals supplied with each of the systems: ASSA ABLOY Aperio™ Bewator Entro Omnis Different information might be useful dependent of which system you are familiar with. Siemens AB 2015-05-05 Security Products... -
Page 5: Introduction
SR35iA Aperio Controller Maximum number of Aperio readers 8 readers/doors. (Recommended by ASSA (doors) per Aperio™ hub is 4). Maximum number of doors per SR35iA SR35iA/8 SR35iA/16 SR35iA/32 Aperio Controller (regardless of number of hubs) Maximum RS485 cable length 1200 m 5 m (typical) Maximum distance between Aperio™... -
Page 6: System Limitations
With this version of the Aperio™ lock, it will contact the hub at least every ten seconds. Any commands for unlocking (or locking) will take effect much quicker. System overview Following picture shows the system layers. Note that three different system concept co-operate (Omnis, Bewator Entro and Aperio™). Siemens AB 2015-05-05 Security Products... -
Page 7: Wirings
Each SR35iA Aperio Controller can connect to maximum 15 hubs on the RS485 bus. Note that the RS485 bus must be terminated in each end and this is done by setting a DIP switch in the actual hub. Siemens AB 2015-05-05 Security Products... -
Page 8: Configuration
Technically the SR35iA Aperio Controller communicates with the Aperio™ hubs via the ASSA-ABLOY Device protocol (wired to the Local RS485 Communication terminal). See "Wirings" on page 7. The software configuration is done in the PC where the Bewator Entro installation software is installed. Siemens AB 2015-05-05 Security Products... -
Page 9: Sr35Ia Aperio Controller Setup
If an existing Aperio™ lock is replaced, the basic addressing must be performed again with the PAP software. And the new Aperio address must be applied manu- ally in the Door properties of the Bewator Entro program. Siemens AB 2015-05-05 Security Products... -
Page 10: Omnis Configuration
(no communication between SR35iA Aperio Controller and the Aperio Hub). These 10 card/codes is configured via the ASSA Aperio™ PAP configuration tool, which is the same tool used for setting up the Aperio wireless network. Siemens AB 2015-05-05 Security Products... -
Page 11: Omnis Functions Not Supported With Aperio
Not possible for graphic status indication of Aperio doors. Alarm control Not possible to have Aperio readers in alarm zones. Anti-passback Not possible to have global anti-passback with Aperio door. Personal code No personal code (instead of cards) can be used. Siemens AB 2015-05-05 Security Products... - Page 12 Issued by Siemens AB Industry Sector Security Products International Headquarter © 2015 Copyright by Siemens AB Englundavägen 7 Data and design subject to change without notice. SE-171 24 Solna Supply subject to availability. Tel. +46 8 629 0300 www.siemens.com/securityproducts Document Nr...
