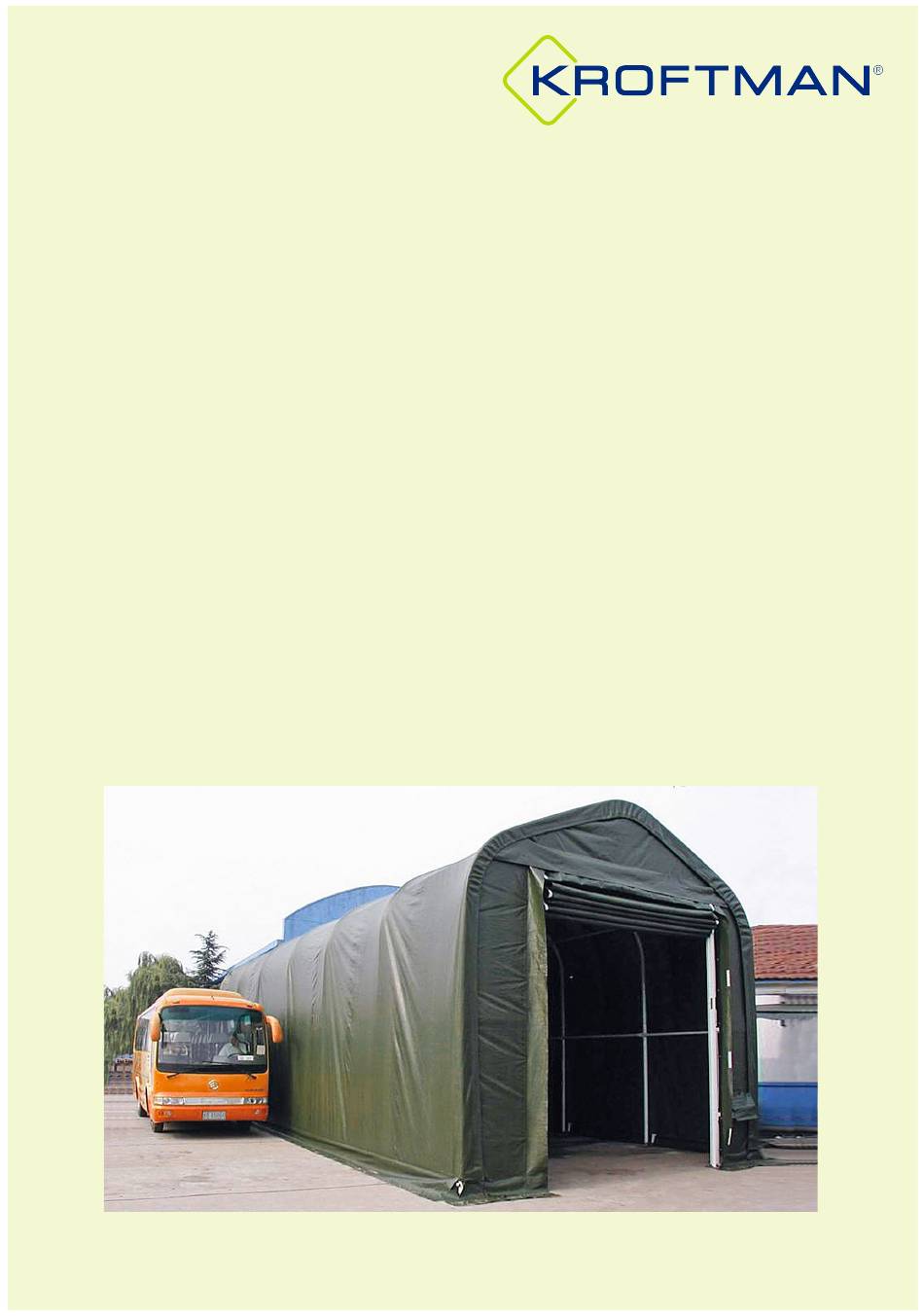

- Page 1 Opslagtent/Lagerzelt/Storage tent/Abri de stockage Kroftman T515 (5,50 x 15 m) Montagehandleiding (Engels) Montageanleitung (Englisch) Installation manual Manuel de montage (Anglais) V03.00KR 180822...
- Page 2 Congratulations on your purchase of our instant shelter. This unit is a combination of excellent manufacturing and design. It is comprised of a rigid frame and a durable cover. For easy assembly, we have marked all the parts with codes. With proper installation, use and maintenance, your unit will provide many years of good and suitable service.
-
Page 3: Assembly Procedure
ASSEMBLY PROCEDURE 1. Prepare location and place all unit boxes near location sight. Perform an inventory check before beginning, to be certain all components are available for installation. 2. Assemble every group of arch including base plates and lay them on the ground. 3. - Page 4 Part List of Model#Thij-515 Part Code Description Quantity Curved roof tube Curved side roof tube Curved side roof tube in front panel Curved side roof tube in back panel Sidewall Tubes Sidewall Tubes at right of front panel Sidewall Tubes at left of front panel Sidewall Tubes at back panel Horizontal wall and roof purlin Base flange of four corners...
- Page 5 Tensioning tube(in the bottom) for front cover M10x75 bolt for door track connection M10x60 bolt for front panel connection M10x100 bolt for rear panel standing leg connection Door cover Door dropping tube Bottom door dropping tube Double pulley and frame Single pulley and frame Winch Winch handle...
