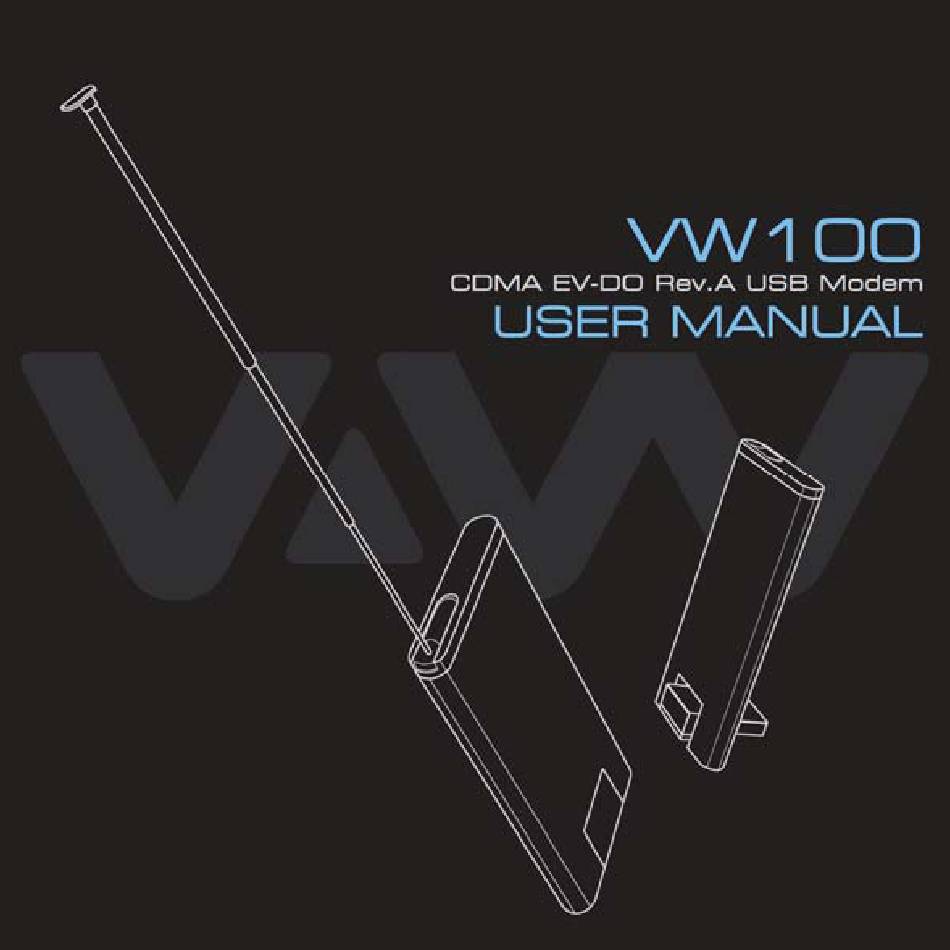

Vertex Wireless VW 100 User Manual

Cdma ev-do rev.a usb modem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VW 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vertex Wireless VW 100

  • Page 3: Table Of Contents

    System Requirements Features Hardware Overview 2. Installation Installing VW 100 Manager on to PCs (Window XP) Installing VW 100 Manager on to PCs (MAC) Checking the proper installation of the Driver To Uninstall the USB Modem application 3. Connection Manager Operation Guide...

  • Page 4: Technical Specification

    Technical Specifications Standards Operating temperature CDMA EVDO 1X 450 MHz -20 °C ~ +60 °C 800 MHz 1900MHz Humidity 5 ~ 95% CDMA Frequency Range VW110 Dimension Rx: 463 ~ 468MHz 37(W) x 76(D) x 7.5(T)mm Tx: 453 ~ 458MHz Interface Type VW140 Rx: 869.70 ~ 893.31MHz...

  • Page 5: Product Overview

    Section 1. Product Overview Package Contents USB Modem (Model No. VW 100) CD (For MAC & Linux Users) User Manual...

  • Page 6: System Requirements

    System Requirements The system requirements for using this software are summarized below: ● Recommended Specifications CPU: Pentium III 550Mhz or higher, IBM PC-Compatible RAM: 256MB or more VGA: Video card with1024 x I 768 resolution and 65536 or more colors HDD: 200MB or more hard disk space OS: Microsoft Windows 2000 or higher (Compatible with Vista version), MAC OS, Linux ●...

  • Page 7: Hardware Overview

    Hardware Overview VW-100 has stylish compact and slim form factor to appeal design-oriented customers and young opinion leaders. 1) Retractable Antenna 2) External Antenna Port : Able to improve signal reception and transmission with External Antennna 3) LED Status Display : Show Status of the Modem. 4) RUIM Slot : USIM Card is inserted into this slot.
  • Page 8 Hardware Overview The Modem LED provides a quick check of its status. Activity Description Modem is off Blinking Red Modem is connected to the PC but no service area as per system selection configuration Blinking Purple 1x Mode, idle state Solid Purple 1x mode, modem is connected to the 1x network, dormant/traffic...

  • Page 9: Installation

    Section.2 Installation Installing VW 100 Manager onto PCs (Window Users) The entire process will take approximately 10 minutes to complete. (Take Windows XP as an example) 1) Please insert the modem into the PC. Once the modem is plugged, the installation will be started automatically.

  • Page 10: Installing Vw 100 Manager On To Pcs (Mac)

    Installing VW 100 Manager onto PCs (Mac Users) The entire process will take approximately 10 minutes to complete. (Take MAC Tiger as an example) 1) Insert CD and wait for the CD device icon to be appeared on your desktop.
  • Page 11 Installing VW 100 Manager onto PCs (Mac Users) 3) Installing “Vertex Wireless _ Serial port Installer” and then restart your computer. 4) Insert your USB modem into any available USB port, and wait for the VWMF icon to be appeared on your desktop.
  • Page 12 Installing VW 100 Manager onto PCs (Mac Users) 5) Go to “System Preference” -> Click “Network” 6) -> “Show” setting Vertex wireless Multi-Function. -> “PPP Options” Check each Option...
  • Page 13 Installing VW 100 Manager onto PCs (Mac Users) 7) -> “Modem “ Select “ Vertex Wireless Multi-Function” 8) Go to PPP and configure connection parameters as below. 1)Service Provider : Enter the name to be displayed on the “Profile Name”...
  • Page 14 Installing VW 100 Manager onto PCs (Mac Users) 9) Modem icon will be displayed on the taskbar at the upper right corner. Indicating that the connection manager is launched and ready to use.

  • Page 15: Checking The Proper Installation Of The Driver

    Checking the proper installation of the Driver If the Driver has been installed properly, it is possible to check the proper operation from Control Panel (the example below is for Windows XP) 1) Start Control Panel...
  • Page 16 Checking the proper installation of the Driver 2) Select “System” 3) Select “Device Manager” from Hardware Tab...
  • Page 17 Checking the proper installation of the Driver 4) As shown in below with boxes that shows “Vertex Wireless CDMA USB Modem” and “Vertex Wireless CDMA USB Serial Device”, the Driver has been successfully installed.

  • Page 18: To Uninstall The Usb Modem Application

    To Uninstall the USB Modem Application 1) To Uninstall VW 100 Modem Driver, Click “Control Panel” And click “ADD or Remove Programs”...
  • Page 19 To Uninstall the USB Modem Application 2) Find VW 100 Connection Manager Program. Click Change / Remove (Remove the VW100 Modem from the USB Port) 3) Once uninstall is completed, you must restart computer before the new setting will take effect.

  • Page 20: Connection Manager Operation Guide

    Operation Guide Getting Started After plug the modem into the PC and run “Connection Manager”, the following window is appeared. Connection Manager allows browsing internet, modifying modem configurations. 1.1 Basic User Interface 1) Connect / Disconnect Button : Connect to the communication connection / Disconnect from the communication connection.
  • Page 21 Getting Started 1.2 Security (UIM Version Only) 1) Pin Control You can enable or disable the PIN from the setting (please refer to “PIN Control” in Setting section). If Pin is enabled, the PIN is requested each time the Connection Manager is run.

  • Page 22: Connecting To The Internet

    2.1 Connect First, connect the modem into the PC then double-click the Connection Manager icon on the PC. If VW 100 is inserted correctly, the LED on the Modem is blinking from Red to Blue. Once the modem is ready, CONNECT button will be enabled.

  • Page 23: Sms

    You can create, send, receive, view, edit and organize short message in this section. SMS Manager is composed of Inbox for keeping received messages, Sent Box for saving messages that have been sent out and Outbox for saving messages that have not yet been sent. Message memory is available up to 500 INBOX, 100 SENT MSG, 20 OUTBOX MSG.
  • Page 24 4.3 Reply Message If you click the Reply button in the window, a new window is appeared for you to edit the message and send it to the sender. 4.4 Reply Call After selecting a received message from the message box, click “Call” button to make a call to the message sender.

  • Page 25: Phone Book

    Phone Book Click Phone Book Icon to open the Phone book window. By using Phone Book, you are able to manage the contact data in the PC or UIM (UIM version only). Phonebook memory is available up to 500 in the PC. 5.1 Using Phonebook You can enter/change/erase the name, type, telephone numbers.
  • Page 26 Phone Book 4) Delete Click the “Delete” button to delete a phonebook from the PC or UIM. 5) Import / Export “Export” is to send out the Phone Book data from the Connection Manager and save it as CVS format file on the PC. “Import”...

  • Page 27: Call

    Call Click to “Call” Icon to open the call window. 6.1 Making Call 1) Dialing Use the mouse cursor on the dial pad or Type numbers directly on the LCD box. 2) CLR Press CLR button to erase last number enters, or END Button to clear all numbers. 3) SEND/END Press the Send button to make a call to the number displayed on the LCD box.
  • Page 28 Call 6.2 Accept Call When a call comes in, Phone call window is popped up with Caller ID displayed in the LCD. Press any button (except the END key) to receive the incoming call. Press END button to hang up the call. 6.3 Reject Call If you don’t want to answer the call, click the END button to reject a call.

  • Page 29: Setting

    Setting Click “Setting” to open the setting window to set various items. 7.1 General You can change basic function in this section.
  • Page 30 Setting 7.2 Information You can check the software version of Firmware and Manager.
  • Page 31 Setting 7.3 Pin Control You can enable or disable the PIN feature or change the PIN number in this section. The PIN number should be 4~5 digits numbers.
  • Page 32 Setting 7.4 Profile Manager You can create new profile by pressing New button or delete existing profile by pressing Delete button. 1) Profile Name : Enter the name to be displayed on the “Profile Name” 2) Dial No. : Specify the phone number to which modem will connect. 3) ID : If required, enter the User ID for the network provider.
  • Page 33 Setting 7.5 SMS Setting 1) Auto save : when Auto Save is enable, outgoing messages will be automatically saved. 2) Auto erase : When Auto Erase is enabled, the oldest received messages in inbox will be automatically deleted in case of full inbox. 3) Default destination to save SMS : You can select where to be saved from UIM or PC using drop down menu.

  • Page 34: Trouble Shooting

    Section 4. Troubleshooting Below is a list of common error and possible solutions regard the use of your Wireless Modem. Error Solution - If this condition appears, please right click the Connection Manager icon on your system tray and click “Exit”. Then Initialization Fail remove and reinsert the modem and wait until your computer “beeps”...
  • Page 35 SAR INFORMATION THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
  • Page 36 Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID: XAVVW140.
  • Page 37 Information to the User “Changes or modifications not expressly approved by Vertex Wireless could void the user’s authority to operate the equipment.” “NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 38 FCC Compliance Information This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received. Including interference that may cause undesired operation.
