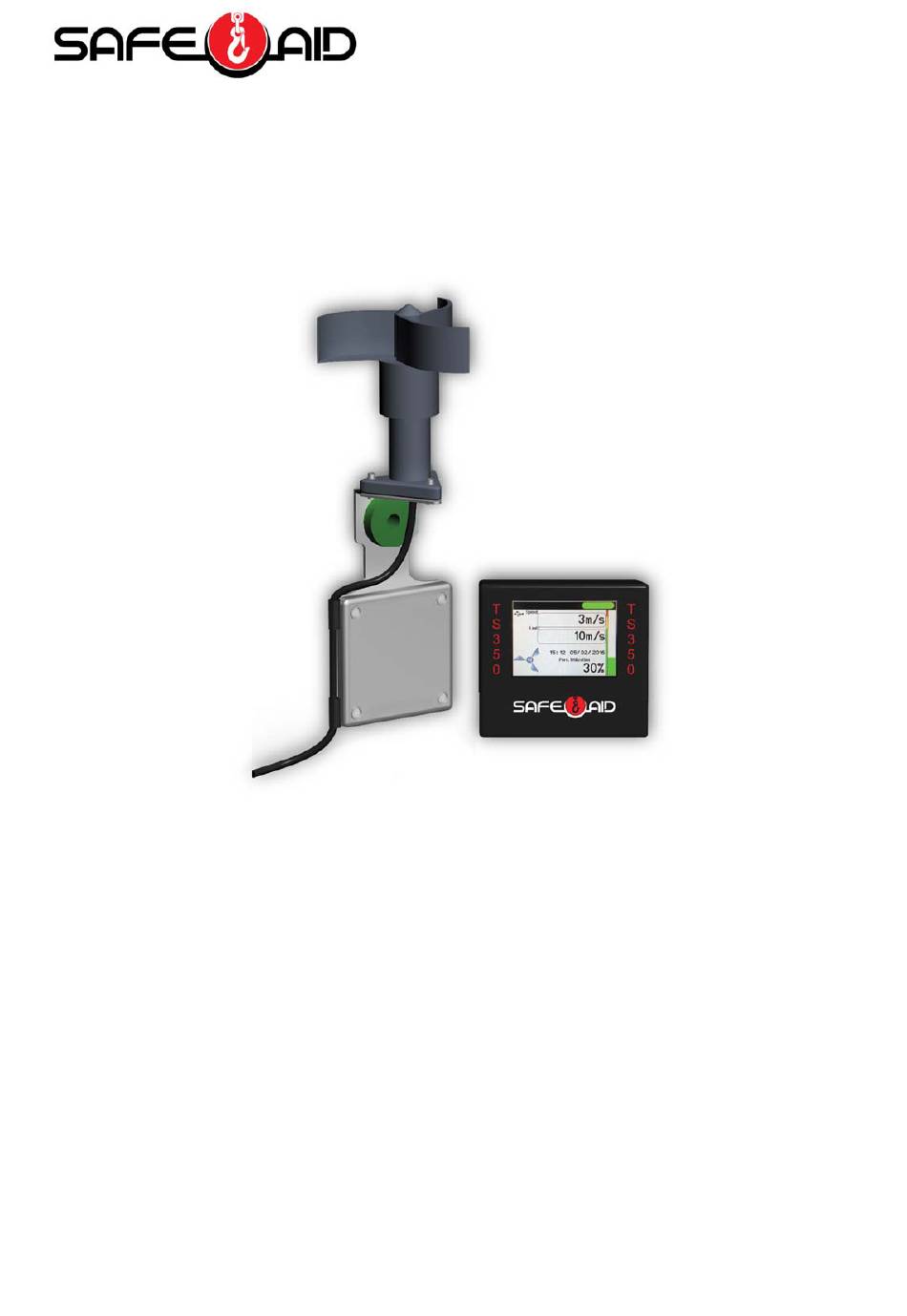

TS350 WIRED ANEMOMETER
Installation & Setup Manual
Version 1
THE COMPLETE TS350 WIRELESS WIND SPEED SYSTEM HAS BEEN PRE-ASSEMBLED AND THE
FOLLOWING MANUAL WILL AID IN THE INSTALLATION & SETUP PROCESS
! WARNING !
THE PURPOSE OF THIS MANUAL IS TO PROVIDE THE CUSTOMER WITH THE OPERATING
PROCEDURES ESSENTIAL FOR THE PROMOTION OF PROPER MACHINE OPERATION FOR ITS
INTENDED USE. THE IMPORTANCE OF PROPER USAGE CANNOT BE OVERSTRESSED. ALL
INFORMATION IN THIS MANUAL SHOULD BE READ AND UNDERSTOOD BEFORE ANY
ATTEMPT IS MADE TO OPERATE THE MACHINE.
SINCE THE MANUFACTURER HAS NO DIRECT CONTROL OVER MACHINE APPLICATION AND
OPERATION, CONFORMANCE WITH GOOD SAFETY PRACTICE IN THIS AREA IS THE
RESPONSIBILITY OF THE USER AND HIS OPERATING PERSONNEL.
ALL PROCEDURES ARE BASED ON THE USE OF THE SYSTEM UNDER PROPER OPERATING
CONDITIONS, WITH NO DEVIATIONS FROM THE ORIGINAL DESIGN. ALTERATION AND OR
MODIFICATION OF THE EQUIPMENT IS STRICTLY FORBIDDEN WITHOUT PRIOR WRITTEN
APPROVAL.
