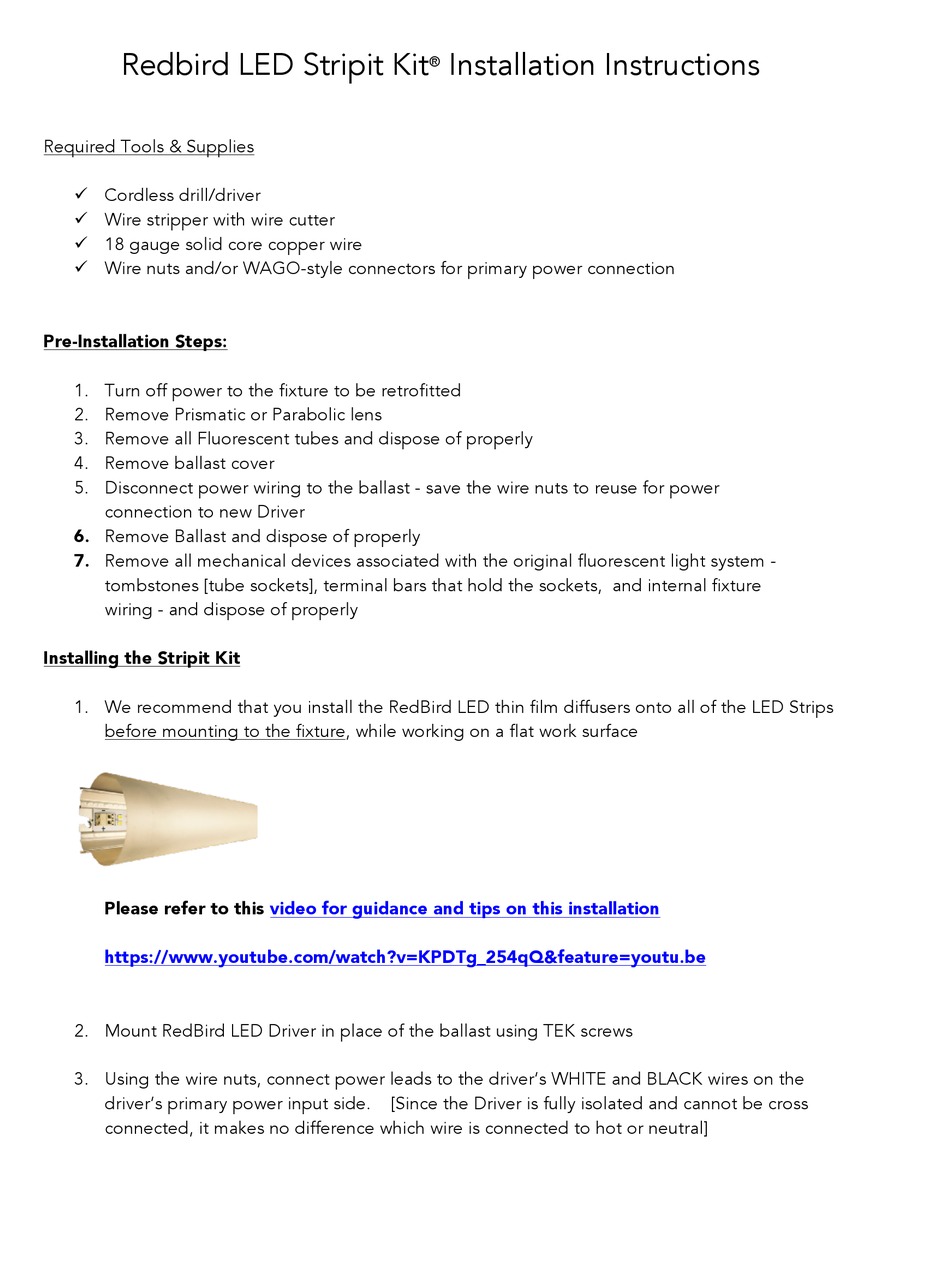

Redbird LED Stripit Kit Installation Instructions

Hide thumbs
1
2
3

Advertisement

Table of Contents

Redbird LED Stripit Kit
Required Tools & Supplies
ü Cordless drill/driver
ü Wire stripper with wire cutter
ü 18 gauge solid core copper wire
ü Wire nuts and/or WAGO-style connectors for primary power connection

Pre-Installation Steps:

1. Turn off power to the fixture to be retrofitted
2. Remove Prismatic or Parabolic lens
3. Remove all Fluorescent tubes and dispose of properly
4. Remove ballast cover
5. Disconnect power wiring to the ballast - save the wire nuts to reuse for power
connection to new Driver
6. Remove Ballast and dispose of properly
7. Remove all mechanical devices associated with the original fluorescent light system -
tombstones [tube sockets], terminal bars that hold the sockets, and internal fixture
wiring - and dispose of properly

Installing the Stripit Kit

1. We recommend that you install the RedBird LED thin film diffusers onto all of the LED Strips
before mounting to the fixture, while working on a flat work surface
Please refer to this
https://www.youtube.com/watch?v=KPDTg_254qQ&feature=youtu.be
2. Mount RedBird LED Driver in place of the ballast using TEK screws
3. Using the wire nuts, connect power leads to the driver's WHITE and BLACK wires on the
driver's primary power input side.
connected, it makes no difference which wire is connected to hot or neutral]
®
video for guidance and tips on this installation
[Since the Driver is fully isolated and cannot be cross
Installation Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED Stripit Kit and is the answer not in the manual?

Questions and answers

Summary of Contents for Redbird LED Stripit Kit

  • Page 1 - and dispose of properly Installing the Stripit Kit 1. We recommend that you install the RedBird LED thin film diffusers onto all of the LED Strips before mounting to the fixture, while working on a flat work surface...
  • Page 2 Please note: If you are using a Dimmable driver, but are not deploying the Dimming feature, to guarantee full power is being delivered by the driver, the DIM + [yellow] lead should be connected to the Vcc Aux power [blue] lead. The White DIM - lead should be terminated using electrical tape or a wire nut.
  • Page 3 12. Replace the ballast cover, which now covers the RedBird LED driver 13. Replace the Prismatic or Parabolic lens onto the fixture 14. Turn main power on – and enjoy the energy savings and high light output of RedBird LED’s Stripit Kits!
