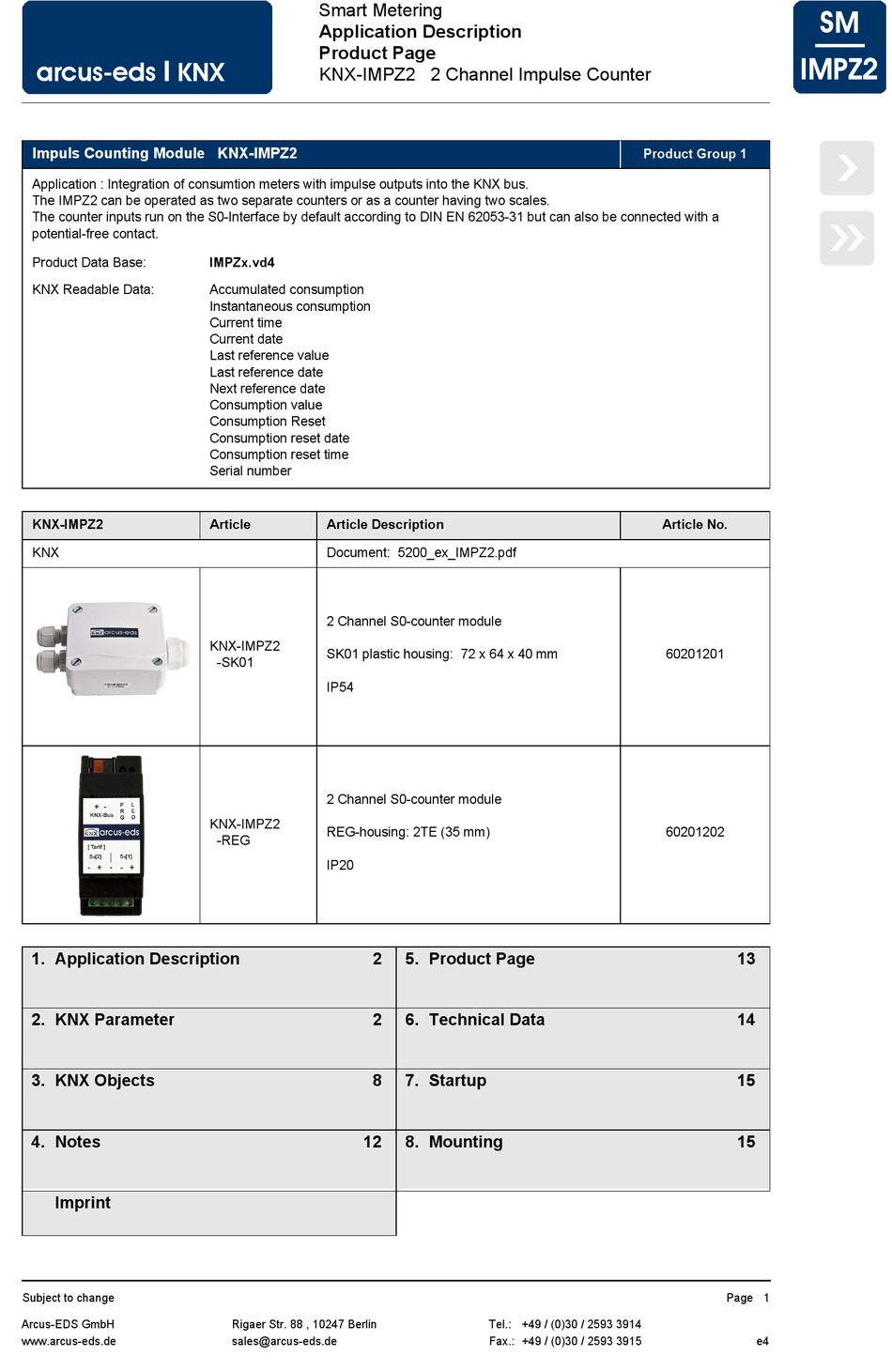

Seite 1
arcus-eds
Impuls Counting Module KNX-IMPZ2
Application : Integration of consumtion meters with impulse outputs into the KNX bus.
The IMPZ2 can be operated as two separate counters or as a counter having two scales.
The counter inputs run on the S0-Interface by default according to DIN EN 62053-31 but can also be connected with a
potential-free contact.
Product Data Base:
KNX Readable Data:
KNX-IMPZ2
KNX
1. Application Description
2. KNX Parameter
3. KNX Objects
4. Notes
Imprint
Subject to change
Arcus-EDS GmbH
www.arcus-eds.de
I
KNX
IMPZx.vd4
Accumulated consumption
Instantaneous consumption
Current time
Current date
Last reference value
Last reference date
Next reference date
Consumption value
Consumption Reset
Consumption reset date
Consumption reset time
Serial number
Article
KNX-IMPZ2
-SK01
KNX-IMPZ2
-REG
Rigaer Str. 88 , 10247 Berlin
x
sales@arcus-eds.de
Smart Metering
Application Description
Product Page
KNX-IMPZ2 2 Channel Impulse Counter
Article Description
Document: 5200_ex_IMPZ2.pdf
2 Channel S0-counter module
SK01 plastic housing: 72 x 64 x 40 mm
IP54
2 Channel S0-counter module
REG-housing: 2TE (35 mm)
IP20
2
5. Product Page
2
6. Technical Data
8
7. Startup
12
8. Mounting
Tel.: +49 / (0)30 / 2593 3914
Fax.: +49 / (0)30 / 2593 3915
SM
IMPZ2
Product Group 1
»
Article No.
60201201
60201202
13
14
15
15
Page 1
e4
›
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Arcus-EDS KNX-IMPZ2-SK01
- Page 1 12 15 4. Notes 8. Mounting Imprint Subject to change Page 1 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de Fax.: +49 / (0)30 / 2593 3915...
-
Page 2: Application Description
» Operating Principles and Areas of Application The consumption counter by Arcus-EDS GmbH consists of a counter module with a backup battery for data storage and a KNX bus coupler for remote reading and monitoring of consumption data. The counter inputs are specified with DIN EN 62053-31 S0-interfaces but can also be connected with a potential-free contact. -
Page 3: General Settings
No.2. Send value “zero“ Use Limit Profile Limits are (not) used. Subject to change Page 3 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de Fax.: +49 / (0)30 / 2593 3915... - Page 4 Example: A consumption of 12.553 cbm and 1 imp/l equal a correction value of 12553. Subject to change Page 4 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de...
- Page 5 Use of limit 2 Settings for limit value 2 limit 2 [Exponent] Subject to change Page 5 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de Fax.: +49 / (0)30 / 2593 3915...
- Page 6 Impulse value must be set to the counter. The value to be set can be calculated from the impulse value of the counter. See 4 Notes “Settings the Pulse Rating” Subject to change Page 6 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de...
- Page 7 Settings for limit 2 scale 2 Limit 2 Scale 2 scale 2 [ Exponent ] Subject to change Page 7 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de Fax.: +49 / (0)30 / 2593 3915...
- Page 8 3 Byte Reset date Alarm Profile 1.001 Switch 1 Bit Select time Subject to change Page 8 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de Fax.: +49 / (0)30 / 2593 3915...
- Page 9 If the setting is “ONE", the parameterized “Limit 2" will actuate the setting of the object “Limit alarm". Subject to change Page 9 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de...
- Page 10 Reference value scale 1 Meter reading on the last reference date at 0:00 am. Reference value scale 2 Subject to change Page 10 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de...
- Page 11 When setting “Selected scale" = “ONE", limit 1/2, scale 2 is in use. Following Objects can be Sent to Subject to change Page 11 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de...
- Page 12 1 Imp. / 0,001m 1 Imp. / 0,01m 1 Imp. / 0,025 m Subject to change Page 12 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de Fax.: +49 / (0)30 / 2593 3915...
-
Page 13: Product Page
The device has an integrated bus coupling unit and needs no auxiliary power. ‹ The Counter-Module KNX-IMPZ2-SK01 is delivered in an impact-resistant glass-ball reinforced plastic housing with seal and meet the protection class IP54. The Counter-Modul KNX-IMPZ2-REG is suitable for DIN rail mountingand meet... -
Page 14: Technical Data
Casing Dimensions REG 2 TE ( 35 mm ) Article Number REG 60201202 Subject to change Page 14 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de Fax.: +49 / (0)30 / 2593 3915... - Page 15 Be careful not to damage the electronic parts with tools and cable ends. The Counter Module KNX-IMPZ2-REG is intended for DIN rail mounting. It conforms to protection class IP20. Subject to change Page 15 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de...
- Page 16 The module is ready for new configuration now. If you release the programming button too early, repeat the procedure. Subject to change Page 16 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de...
-
Page 17: Warranty
The choice of the devices and the assessment of their suitability for a specified purpose lie solely in the responsability of the buyer. Arcus-EDS does not take any liability or warranty for their suitability. Product specifications in catalogues and data sheets ‹...
