Summary of Contents for Grafco Tera TENS

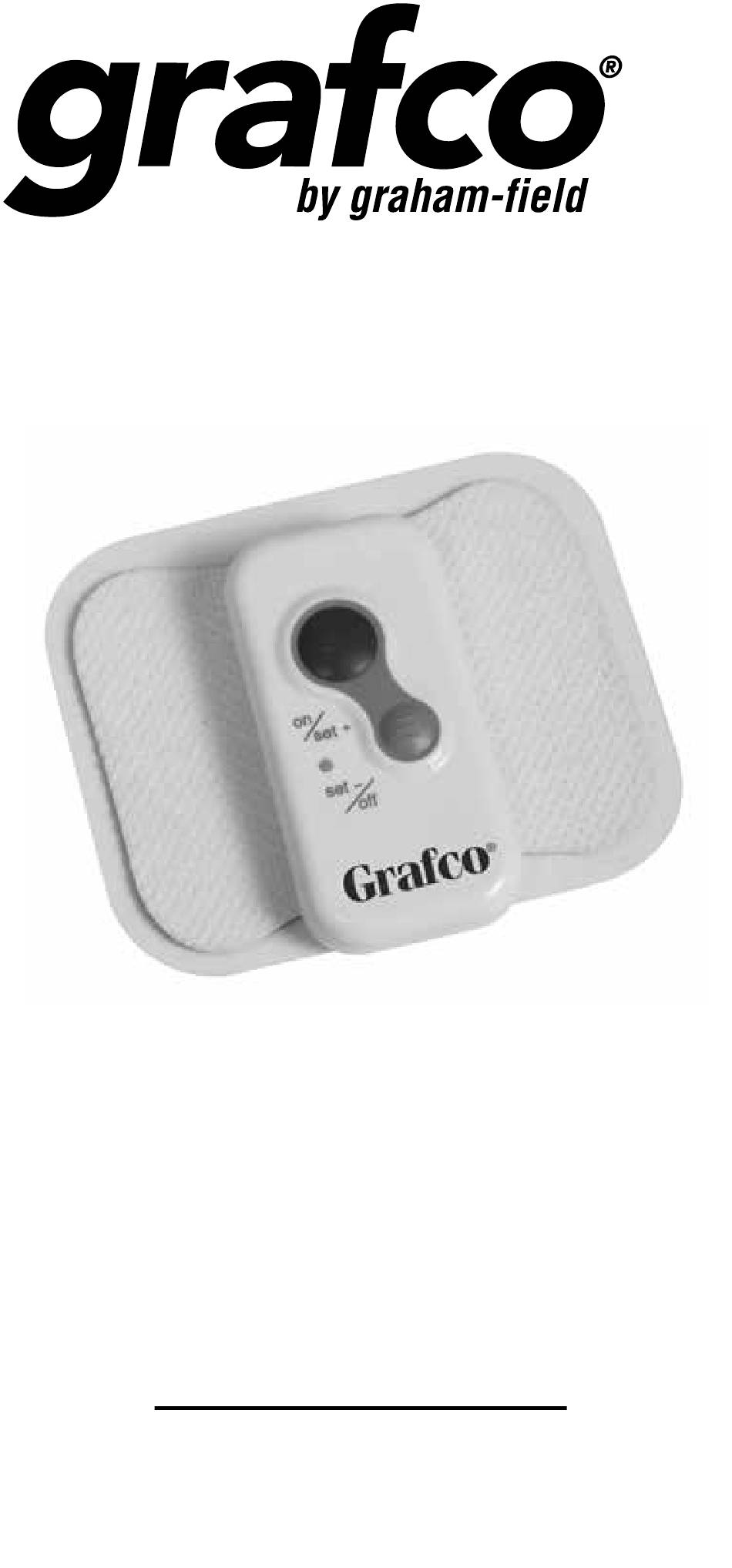

- Page 1 Tera TENS Model GF-TT5 Operation Manual Read this manual before operating your Tera TENS. Save this manual for future use. The most current version of this manual can be found online at www.grahamfield.com. GF-TT5-INS-LAB-RevA18...
-
Page 2: Table Of Contents
CONTENTS 1 INTRODUCTION......3 TENS DESCRIPTION ..... 3 TENS CONTRAINDICATIONS . -
Page 3: Introduction
Important safety, operating, and maintenance instructions that warrant your attention are included in this operation manual. Read the entire manual carefully before using your Tera TENS, and refer to it whenever necessary during use. TENS DESCRIPTION TENS, Transcutaneous Electrical Nerve Stimulation, is a treatment whereby electrical impulses are applied to nerves through electrode pads placed on the skin. -
Page 4: Tens Contraindications
TENS CONTRAINDICATIONS WARNING: Do not use this device if you have a cardiac pacemaker, implanted defibrillator, or other implanted metallic or electronic device. Such use could cause electric shock, burns, electrical interference, or death. WARNING: Do not use this device in the presence of or in proximity to cancerous or other lesions. -
Page 5: Safety
2 SAFETY Always follow basic safety precautions. Please note the following special statements, used throughout this manual, and their significance: WARNING: Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in death or serious personal injury. CAUTION: Indicates a potential hazard or unsafe practice that, if not avoided, could result in minor or moderate personal injury. -
Page 6: Warning Statements
WARNING STATEMENTS WARNING: Keep this device out of reach of children. WARNING: Do not use this device with patients who are noncompliant or noncommunicative. WARNING: If you have had medical or physical treatment for your pain, consult your healthcare professional before using this device. WARNING: If your pain does not improve, becomes more than mild, or continues for more than five days, stop using this device and consult... - Page 7 WARNING: Do not use this device at the same time as other equipment which sends electrical pulses to your body. WARNING: Do not use this device in the vicinity of shortwave or microwave therapy equipment, since this may affect the output power of the TENS. WARNING: Do not use this device in the eye area.
-
Page 8: Caution Statements / Possible Adverse Reactions
CAUTION STATEMENTS / POSSIBLE ADVERSE REACTIONS CAUTION: TENS is not effective for pain of central origin including headache. CAUTION: TENS is not a substitute for pain medications and other pain management therapies. CAUTION: TENS is a symptomatic treatment and, as such, suppresses the sensation of pain that would otherwise serve as a protective mechanism. -
Page 9: Notice Statements
NOTICE: Check the electrode connections before each use to ensure they are in good working order. s NOTICE: The Tera TENS should be used only with the electrode recommended by GF Health Products, Inc. GF-TT5-INS-LAB-RevA18... -
Page 10: Features
3 FEATURES COMPONENTS (INCLUDED WITH DEVICE) ITEM DESCRIPTION QUANTITY GF-TT5 Tera TENS Unit Electrode pad, self-adhesive 2.83 in. x 2.24 in. (72 mm x 57 mm) Battery, 3V CR2032 Operation Manual GF-TT5-INS-LAB-RevA18... -
Page 11: Tens Unit Front And Rear Panels
TENS UNIT FRONT AND REAR PANELS front panel rear panel ON + (increase intensity) button OFF - (decrease intensity) button Function display LED (red LED) Contact plug / snap Battery compartment Serial number GF-TT5-INS-LAB-RevA18... -
Page 12: Surfaces
ELECTRODE SNAP AND ADHESIVE SURFACES snap surface adhesive surface Electrode pad Contact plug / snap Electrically conductive adhesive surface Insulated surface Protective backing GF-TT5-INS-LAB-RevA18... -
Page 13: Setup
4 SETUP SKIN PREPARATION AND CARE To avoid skin irritation, especially if you have sensitive skin, follow these suggestions: WARNING: Never apply the electrode to irritated or broken skin. 1. Wash the skin where you will be placing the electrode with mild soap and water, rinse soap off thoroughly, and dry skin well. -
Page 14: Check / Replace The Battery
CHECK / REPLACE THE BATTERY If using the device for the first time, install a new 3V CR2032 battery as described below (a battery is included with the device). To ensure the function of the device, you must occasionally replace the battery as described below. battery battery cover 1. -
Page 15: Electrode Placement
ELECTRODE PLACEMENT WARNING: Never apply the electrode to irritated or broken skin. WARNING: Do not power on the device until after the electrode has been applied. Electrode placement can be very important to achieving success with therapy. Consult your healthcare professional for electrode placement suggestions. -
Page 16: Electrode Removal
ELECTRODE REMOVAL WARNING: Before removing or moving the electrode, power off the device in order to avoid irritation. WARNING: Remove the electrode from the skin with a moderate pulling motion in order to avoid injury to sensitive skin. WARNING: If irritation occurs, discontinue use and consult your healthcare professional. -
Page 17: Operation
5 OPERATION Refer to picture below. on + button (increase intensity) - off button (decrease Function Display intensity) LED (red) TURN THE DEVICE ON Before using the device for the first time, take careful note of the contraindications in Section 1, INTRODUCTION, and the safety measures detailed in Section 2, SAFETY. -
Page 18: Maintenance And Storage
6 MAINTENANCE AND STORAGE CARE AND CLEANING TENS Unit Care WARNING: Remove the battery from the device before cleaning. s NOTICE: There are no serviceable components inside the TENS case. Contact your authorized GF distributor for repair. s NOTICE: Ensure that no water or other liquid penetrates the device. -
Page 19: Storage
STORAGE s NOTICE: Remove the battery from the unit if it will not be used for an extended period of time. s NOTICE: Do not place heavy objects on the device. Store the device in a cool, dry, well-ventilated room and do not expose it to heat, sunlight or moisture. -
Page 20: Troubleshooting
7 TROUBLESHOOTING If the device does not seem to be operating correctly, refer to the chart below to determine what may be wrong. Should none of these measures correct the problem, the device should be serviced. Problem Cause Remedial Action LED fails to No battery in the Replace battery... -
Page 21: Specifications And Symbols
8 SPECIFICATIONS AND SYMBOLS GF-TT5 PRODUCT SPECIFICATIONS Device name Tera TENS Model GF-TT5 Channel Single Channel Output voltage 0~30V ±20% (at 500 Ohm load) Pulse Intensity Adjustable from 0 ~ 60mA ±20% Width 150 ~ 250uS Rate 30 ~ 60Hz... -
Page 22: Limited Warranty
9 LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and... - Page 23 6) Any labor or shipping charges incurred in the replacement part installation or repair; 7) Costs and expenses of regular maintenance and cleaning; 8) Representations and warranties made by any person or entity other than GF. ENTIRE WARRANTY, EXCLUSIVE REMEDY AND CONSEQUENTIAL DAMAGES DISCLAIMER THIS WARRANTY IS GF’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR...
- Page 24 The most current and complete product information can be found on our website. www.grahamfield.com © 2018, GF Health Products, Inc. All Rights Reserved. Graham-Field and Grafco are trademarks of GF Health Products, Inc. GF Health Products, Inc. is an ISO 13485 Certified Company.
