Kenton PRO CV to MIDI Operating Manual

High specification single synth cv to midi converter
Hide thumbs

Advertisement

Quick Links

Download this manual
PRO CV to MIDI
High specification single synth CV to MIDI converter
Operating Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO CV to MIDI and is the answer not in the manual?

Questions and answers

Related Manuals for Kenton PRO CV to MIDI

Summary of Contents for Kenton PRO CV to MIDI

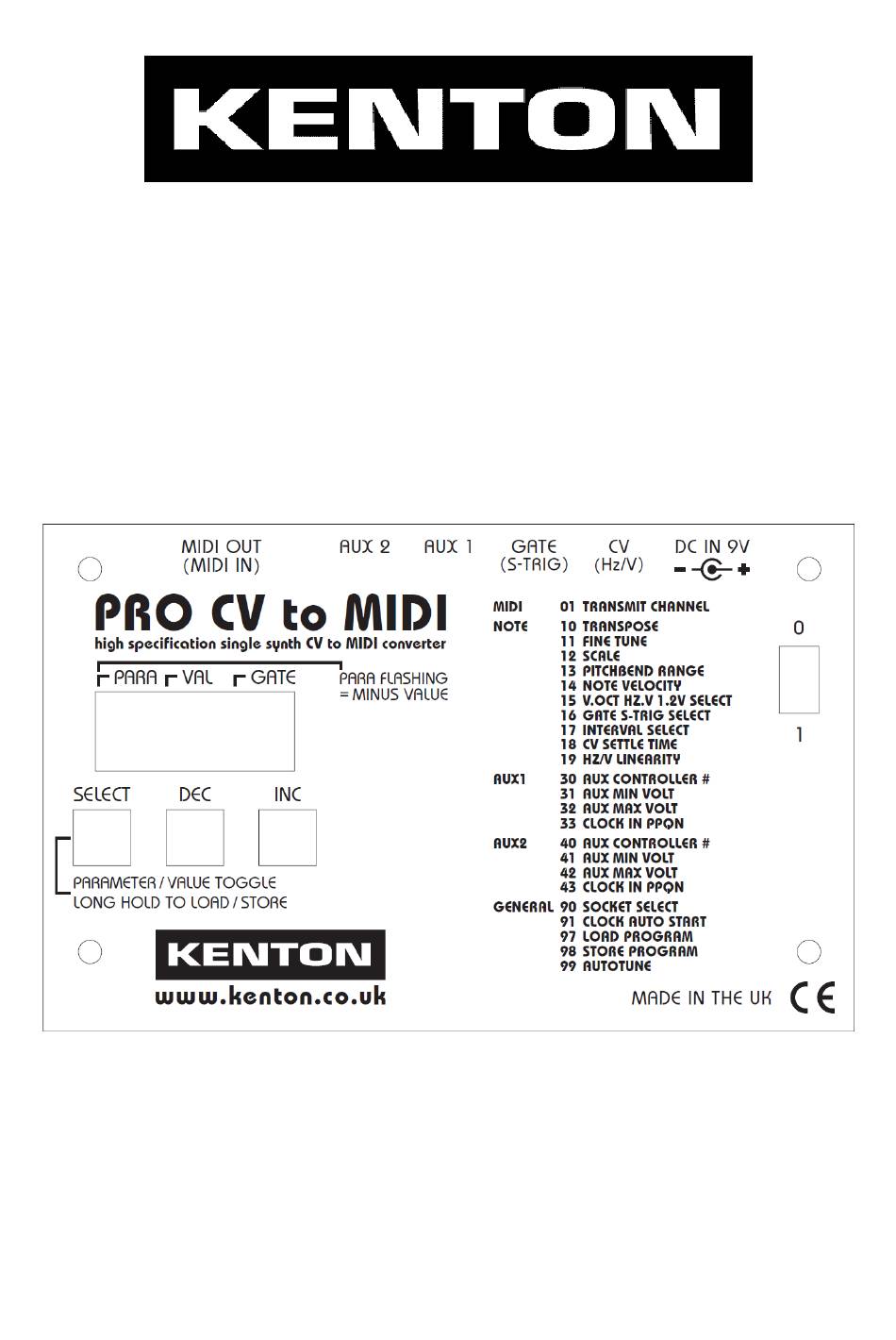

  • Page 1 PRO CV to MIDI High specification single synth CV to MIDI converter Operating Manual...
  • Page 2 This page intentionally left blank.
  • Page 3 FCC Statement for PRO CV to MIDI NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 100mA and have 2.1mm centre +ve plug. WARNING: Do not use an adaptor with an output voltage higher than 9V. The PRO CV to MIDI must not share an adaptor with any other device. Failure to observe this will invalidate your warranty, and will probably damage the other device, the PRO CV to...

  • Page 5: Changing Values

    EDITING THE PRO CV to MIDI Switching On When the PRO CV to MIDI is switched on, the words ‘KENTON PRO CV TO MIDI’ scroll across the display. The Display The display has 3 digits, each with a dot above.
  • Page 6 PARAMETERS Below is a list of parameters available to edit. The letters in square brackets show what will be shown in the value display, where applicable. Menu number Parameter (default value) MIDI transmit channel (default :1) Range 1 to 16 Sets the MIDI transmit channel.
  • Page 7 Gate / S-Trig select (default: gat) The following can be selected; Gate [gat] S-Trig [Str] Switches the Gate type between Gate (also known as V-Trig) or S-Trig. For more information about the various Gate types, see page 11. Interval select (default: Stn) The following can be selected;...
  • Page 8 Aux 1 maximum voltage (default: 100) = approx. 0 to 10Volts – so each step of one is approx. 100mV Range 0 to 100 These two parameters set the minimum and maximum expected voltages for Aux 1. The MIDI output data will be zero for the minimum and below, and 127 for the maximum and above.
  • Page 9 Auto tune The PRO CV to MIDI includes an auto tune function, which can set up all of the scale, signal type and tuning parameters for you. It works by having you play a series of notes, from which it works out the required settings.
  • Page 10 RESETTING THE PRO CV to MIDI TO FACTORY DEFAULTS If you wish to reset your PRO CV to MIDI to its default settings, you can do so by turning the unit on whilst holding down all three push buttons. When this has been completed [Fd] (factory defaults) will be displayed.
  • Page 11 A point to watch for; unless you know the synth, it will not always be clear what type of CV and GATE signals are required to play the synth. For instance, the Korg MS-20 requires an S-TRIG signal, but the input is labelled TRIG. For more information about the various CV and Gate systems, please visit: http://www.kenton.co.uk/info/midi-cv-info.shtml...

  • Page 12: Specifications

    12 bit ADCs for Auxes 1 & 2 Non-volatile memory EEPROM (no back-up battery required) WARRANTY The PRO CV to MIDI comes with a 12 month (from purchase date) back to base warranty, (i.e. customer must arrange and pay for carriage to and from Kenton Electronics). www.kenton.co.uk...
