Austral Lock HD16H plus Fitting Instructions

HD16 PLUS
Fitting instructions
46 mm
10 mm
10 mm
46 mm
Figure 1
Product code [A]
HD16Hplus 610 mm
HD16Lplus
766 mm
HD16Pplus 313 mm
HD16Splus 313 mm
Tolerance +/- 2 mm
75 mm
[A] +/- 2mm
COUPLER
HOOK THE DRIVE BOX
ONTO THE LOCK BODY
[B] +/- 2mm
MAIN BEAK
75 mm
PUSH LOCK TO THE SIDE WHEN
FITTING THE TOP REMOTE
[B]
790 mm
634 mm
1079 mm
331mm
Door Cutout (Figure 1)

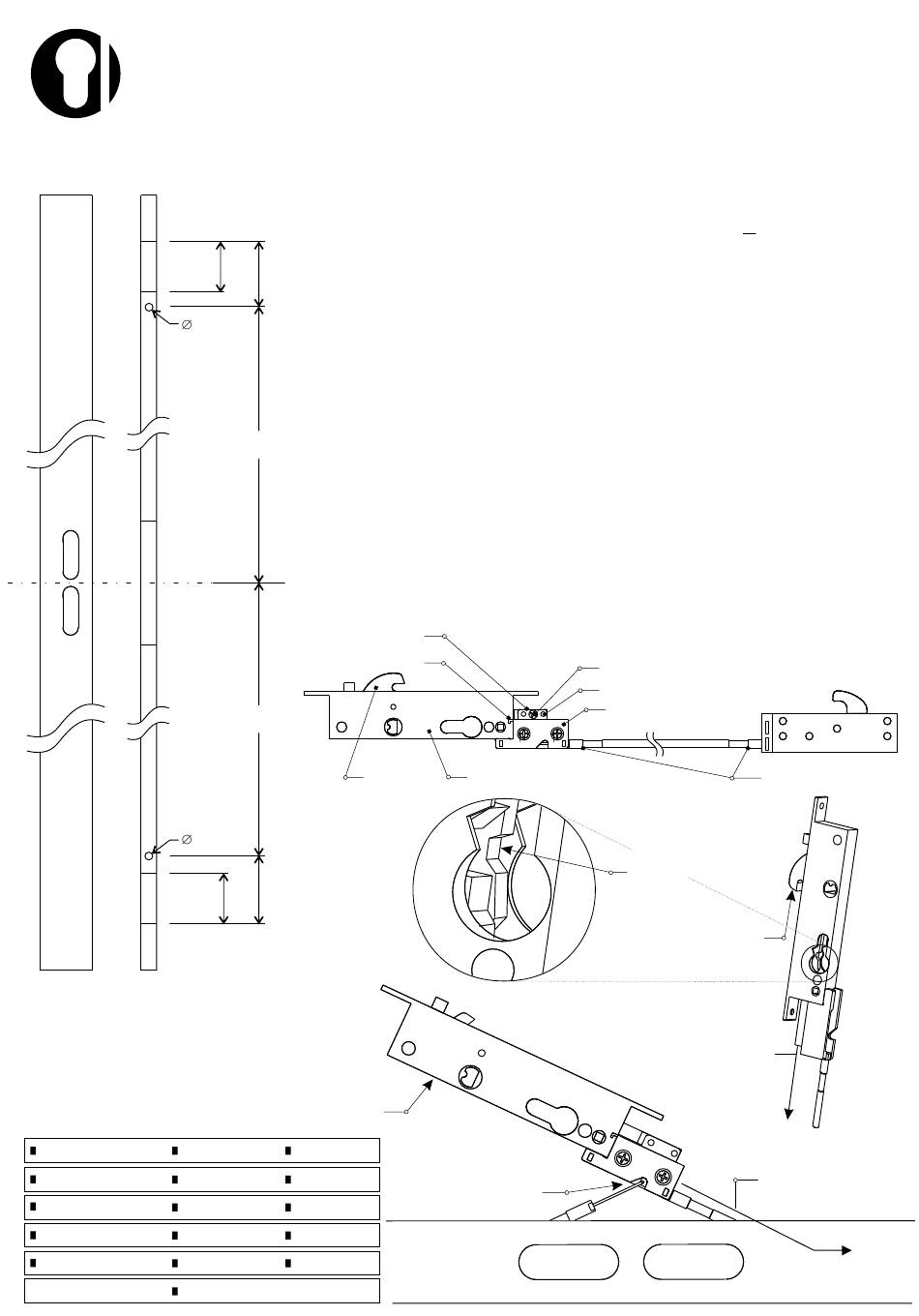

1 Prepare the cutouts in the section using the diagram and chart.
NOTE: ADHERE TO THE DIMENSION TOLERANCES
Installing the BOTTOM Lock (Figures 2 & 3)
1 Attach the bottom lock assembly drive box to the HD8 centre
lock, ensure the coupler fits over the location pins (Figure 2).
NOTE: place a support directly beneath the couple and slide.
Fasten the coupler in place doing both or either of the following:
a) Fit the #6x6mm screw supplied (if applicable).
b) Firmly rivet over both location pins.
2 Unlock the lock by pressing on the rocker arm and pulling the
slide down from the centre lock until it stops (Figure 3).
NOTE: to assist in preventing locking while assembling, retract
the main beak.
3 Select the bottom lock/centre lock assembly. Slide it down into
the section via the centre lock cutout, leaving the centre lock out of
the section.
Installing the TOP Lock (Figures 4 & 5)
1 While holding the centre lock aside, slide the top lock into the
section and hook the drive wire into the remaining wire hole in
the drive box coupler (Figure 4).
2 Carefully guide the whole assembly into the section, then using a
screwdriver, clip the collar lugs into the drive box. (Figure 5
over page)
NOTE: Ensure that the collar lugs are firmly in place.
COUPLER FIXING SCREW
COUPLER/SLIDE LOCATION PIN X 2
HD8 CENTRE LOCK
Figure 4
FIT THE TOP REMOTE
DRIVE WIRE TO THE
REMAINING WIREHOLE
DRIVE BOX
BOTTOM LOCK ASSEMBLY
Figure 3
PRESS THE ROCKER
ARM DOWN
RETRACT MAIN BEAK
TO ASSIST INSTALLATION
PULL THE
SLIDE DOWN
SLIDE THE BOTTOM LOCK
ASSEMBLY INTO THE
SECTION FIRST
Figure 2
HD16 Plus Instructions 04.cdr
