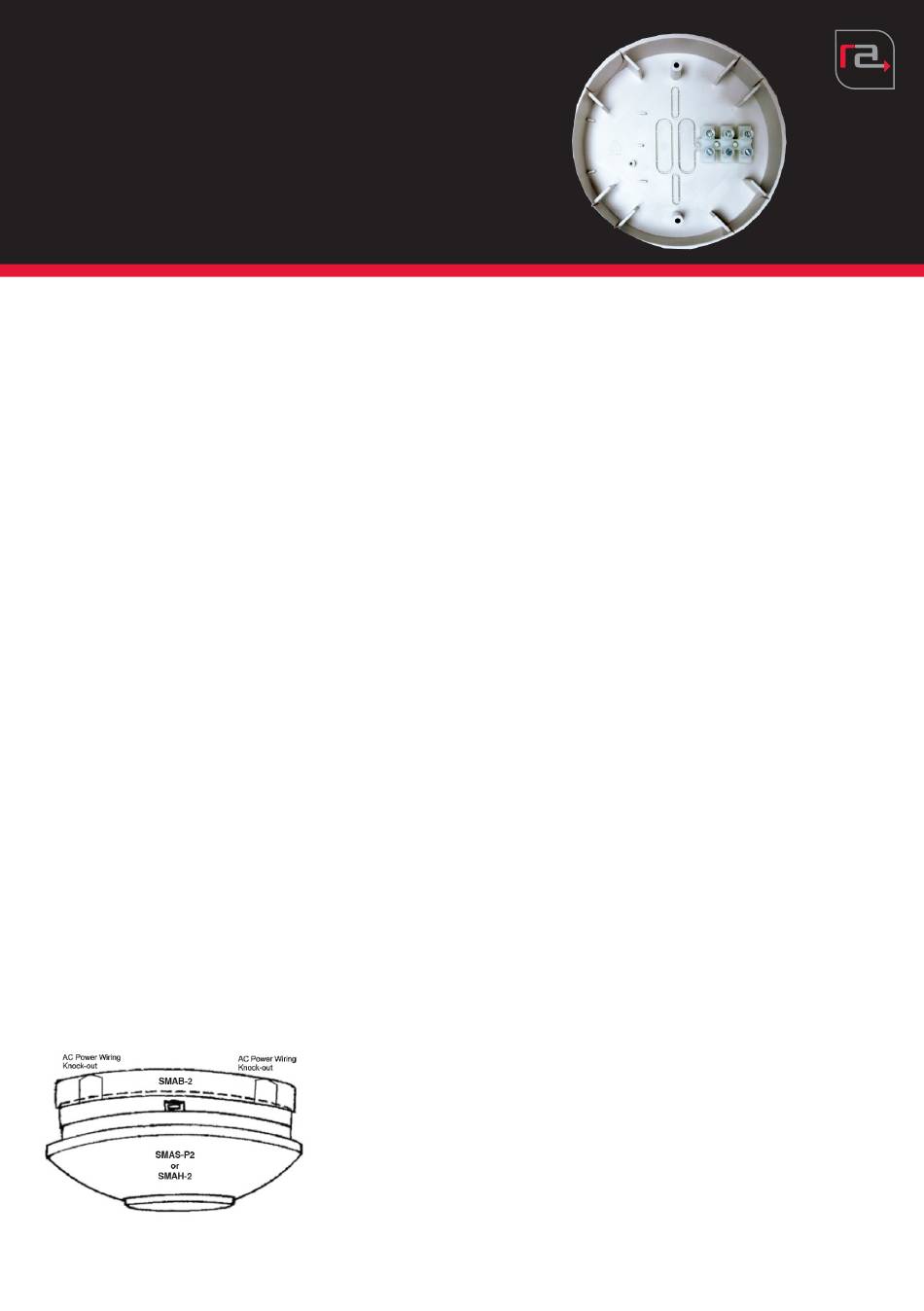

Red Arrow Trading SMAB-2 Installation Instructions

Smoke Alarm Patress
Installation
Instructions P .1.
For models: SMAB-2
This installation must be carried out by an electrician.
Please read these instructions carefully before installation.
Leave a copy for the user/maintenance engineer for future reference.

Main Features

• Knock-outs provide flexibility of cable entry.
• Easy installation.
• Robust ABS design.
• Supplied with wall plugs & screws.
This instruction leaflet contains important information on the
correct installation and operation of your smoke alarm. Read
this leaflet fully before attempting installation and retain for
future reference.

Specification

Power Source: AC 220-240V 50Hz
Dimension: 110mm (D) x 22mm (H)
Knock-outs: 2 x 20mm, 2 x 28mm

Product Description

This pattress box is an accessory for use only with specific Red
Arrow smoke or heat alarms and is used to activate auxiliary
devices. All devices to be activated must be 220-240V, 50Hz.

Application

This pattress box is designed with universal surface mounting
facility matched with Red Arrow smoke alarm (SMAS-P2) or
heat alarm (SMAH-2).

Read This First

• Switch off the mains before commencing installation and
remove the appropriate circuit fuse.
• Disconnect the base / detector from the electrical circuit
before insulation / mega testing.
• Do not connect to a circuit which also has inductive loads
connected as spikes generated switching inductive loads may
damage electronic components within your detector.
• Suitable for indoor use only.
• Before making fixing hole(s), check that there are no
obstructions hidden beneath the mounting surface such as
pipes or cables.
• The chosen location of your new base should allow for the
product to be securely mounted (e.g. to a ceiling joist) and
safely connected to the mains supply (lighting circuit).
• Do not attach to surfaces which are damp, freshly painted or
otherwise electrically conductive (e.g. metallic surfaces).
• If the location of your new fitting requires the provision
of a new electrical supply, the supply must conform with
the requirements of the Building Regulations. Smoke alarms
and heat alarms must be mounted at least 300mm from light
fittings or other obstructions, see the alarms instructions.
• Make connections to the electrical supply in accordance with
the following code:
Live - Brown or Red
Neutral - Blue or Black
Interconnect - Must only interconnect with other alarms and is
not to be connected to earth.

Installing the Pattress

WARNING - This is designed for installation by a qualified
electrician, in accordance with the the current IEE regulations
for Electrical Installations (BS7671). Failure to install
correctly may result in a fatal shock or fire hazard.
