Summary of Contents for Bias 0693

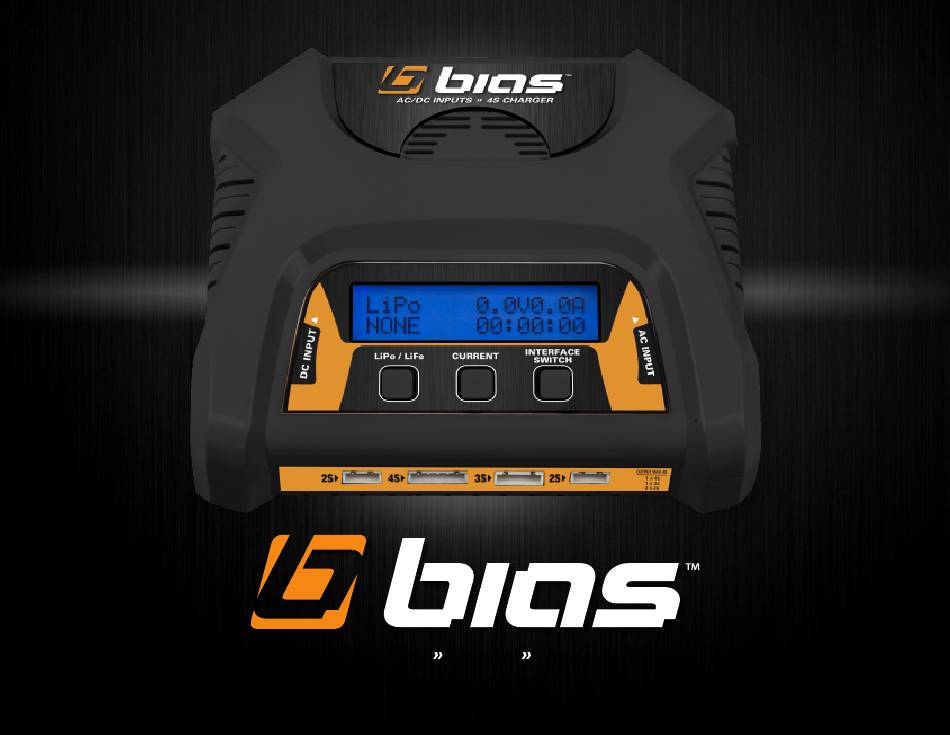

- Page 1 2-4 Cell LiPo / LiFe AC/DC Balance Charger MANUAL...
- Page 2 Welcome, Thank you for purchasing the Bias 0693 2-4 Cell AC/DC LiPo Balance Charger. Please make sure you read and fully understand the entire manual before beginning the charging process. If you read the manual and still are unsure how to use this product, please contact our Customer Service Department for assistance.
-
Page 3: Table Of Contents
CONTENTS FEATURES ..................CHARGER OVERVIEW..............SPECIFICATIONS ................EXTERIOR DESCRIPTION .............. HOW TO USE YOUR NEW CHARGER .......... WARNINGS & ERROR MESSAGES ..........LiPo BATTERY SAFETY GUIDELINES ......... WARRANTY & SERVICE INFORMATION ........ -
Page 4: Features
CHARGER OVERVIEW The Bias 2-4 Cell AC/DC LiPo Balance Charger is an easy to use charger designed to charge 2 to 4 cell LiPo and LiFe batteries using an AC or DC input. This charger allows the user to charge up to a maximum of 4 cells at a time. -
Page 5: Specifications
SPECIFICATIONS 1. Charger Power: 40W 2. Supports JST-XH2.5 battery connector (standard balance plug) 3. Current rate range: 0.1-3.0A 4. Supports simultaneous charging of two, 2S packs, or a single 3S or single 4S LiPo or LiFe battery. 5. Supports AC or DC power: AC 100-240V, DC 10-18V EXTERIOR DESCRIPTION DC INPUT BUTTON 1... -
Page 6: How To Use Your New Charger
How To Use Your Charger MENU 1 1. Use the DC input or AC input to power up the charger. LiPo 0.0V0.0A 2. Choose the correct battery type (LiPo / LiFe) by pressing NONE 00:00:00 Button 1. Please refer to your battery charging guidelines. 3. -
Page 7: Warnings & Error Messages
Charger Warning & Error Messages Input Voltage Error: LiPo 0.0V0.0A When using DC power the charger input voltage must be between 10 and 18 volts to operate properly. If input 00:00:00 PW Err voltage is lower or higher then you will get a “PW Err”... -
Page 8: Lipo Battery Safety Guidelines
LiPo Battery Safety Guidelines 1. This charger is specifically designed for Lithium Polymer batteries. Never use NiCD or NiMH type chargers to charge LiPo batteries. Doing so will damage the batteries and may cause fire and personal injury. 2. Always charge batteries in a fire proof container, in the open and away from flammable materials. Do not charge batteries on or near wood, cloth, carpet, in your model, or on or near any other flammable material. -
Page 9: Lipo Battery Safety Guidelines
LiPo Battery Safety Guidelines Cont. 9. Do not charge at over 1C current. C= battery pack mAh capacity ÷ 1000. Divide the battery mAh capacity by 1000 to determine the proper charge rate. Example: 1200mAh ÷ 1000 = 1.20 Amps Charge Rate for LiPo Battery Packs, example: a. -
Page 10: Warranty & Service Information
If any component is faulty or was made incorrectly, Bias will at its sole discretion repair or replace it free of charge within 90 days of the original purchased date. All Bias products must be registered on the Atomik RC website to qualify for warranty support. - Page 11 Charging and discharging batteries has the potential for serious injury to persons and damage to property. In purchasing this product, the user agrees to accept responsibility for all such risks, and will not hold Bias™, it’s affiliates, manufacturers, distributors, or retail partners responsible for any accident, injury to persons, or damage to property resulting from the use of this product.
- Page 12 Bias Power Customer Service 14028 N. Ohio Street For Customer and Warranty Services Rathdrum, Idaho 83858 USA please visit: www.atomikrc.com and click the support tab.
