PagePac V-5323006 Manual

Voice-paging system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PagePac
®
by
INTRODUCTION

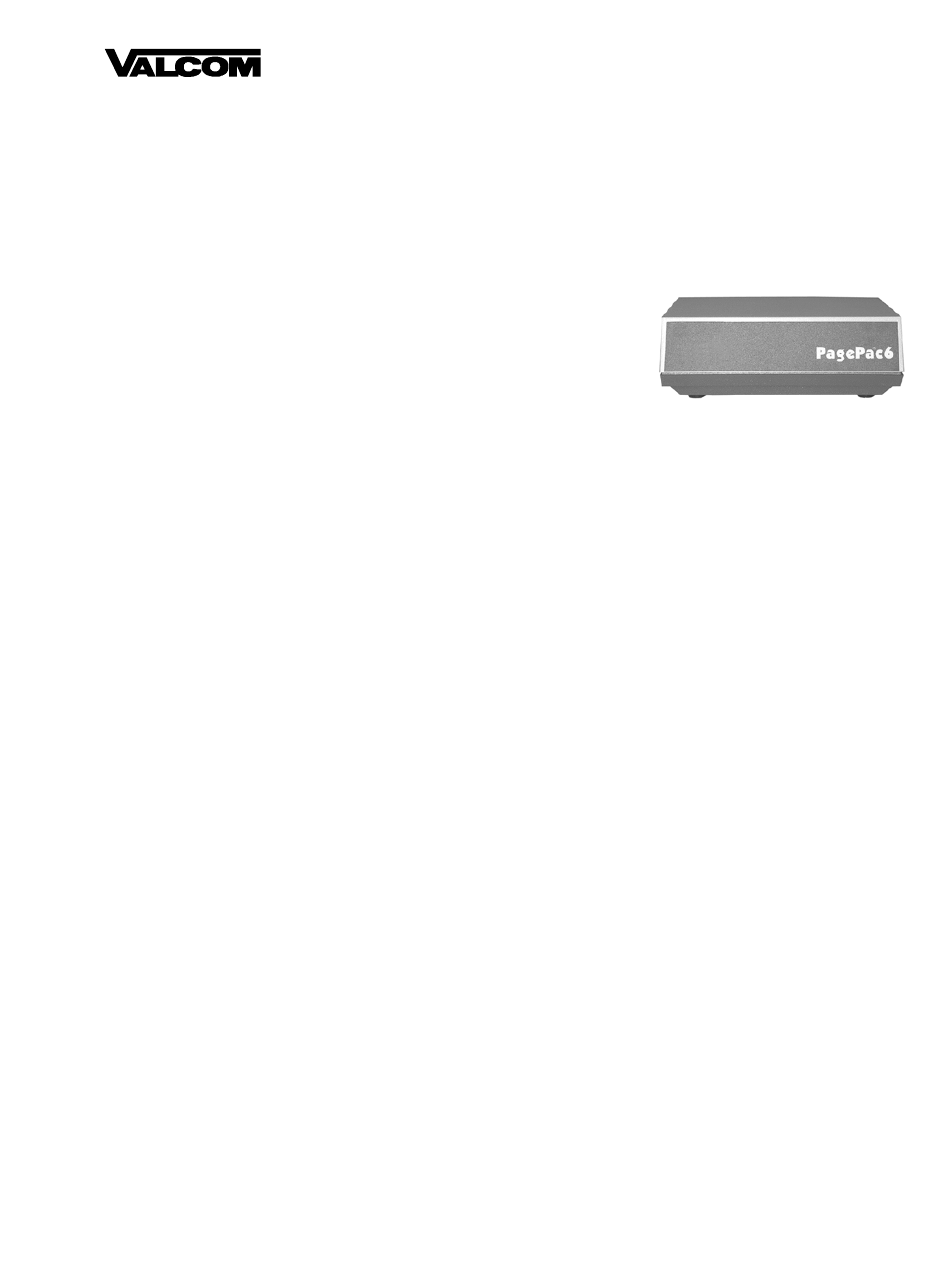

PagePac 6 is a compact, 6 Watt, voice-paging system that
integrates single-zone paging capability to your telephone
system.
Dimensions/Weight
• 6.00"W x 2.50"H x 3.30"D
(15.2cm x 6.4cm x 8.3cm)
• 2.0lbs. (0.9 kg)

SPECIFICATIONS

FEATURES
• Connects to telephone system through standard modular telephone cords.
• Connects to voice coil speakers or horns.
• Provides a 6-Watt, voice coil output.
• Controls background music provided from a line level source.
• Includes 12VAC power supply that plugs into any standard 120VAC, 60 Hz outlet.
• Connects directly to telephone system page port (Page port must provide a dry
contact closure).
• Requires separately purchased adapters for telephone systems without page port
connections (Trunk Adapter & Page Pal).
INSTALLATION
There are several ways to connect PagePac 6 to your telephone system.
• For telephone systems equipped with a page port that has a contact closure, the
PagePac 6 connects directly to the page port (see Figure 1).
NOTE: For those telephone systems not equipped with a page port, a choice of adapters
is available.
PAGEPAC 6
V-5323006
1
ISSUE 3
947176

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-5323006 and is the answer not in the manual?

Questions and answers

Summary of Contents for PagePac V-5323006

  • Page 1: Specifications

    (Trunk Adapter & Page Pal). INSTALLATION There are several ways to connect PagePac 6 to your telephone system. • For telephone systems equipped with a page port that has a contact closure, the PagePac 6 connects directly to the page port (see Figure 1).
  • Page 2 6 TO A PAGE PORT WITH A CONTACT CLOSURE INSTALLATION PROCEDURE • PagePac 6 can be placed on a desk or shelf or wall-mounted using the keyhole slot in the bottom of the unit. • Circled numbers in Figure 2 correspond to the steps in the following installation procedures.
  • Page 3 INSTALLATION PROCEDURE After selecting a convenient location: NOTE: Trunk Adapter connects PagePac 6 to vacant CO line port of telephone system. Circled numbers in Figure 3 correspond to the steps in the installation procedure.Note: 1. Connect the Trunk Adapter modular cord to the PagePac 6 PAGE jack.
  • Page 4 Figure 4. Connections to a PagePac 6 Using a PagePal CONNECTING SPEAKERS TO PAGEPAC 6 Both standard speakers (indoor cone-type) and horn speakers may be used with PagePac 6. For best performance, use only the type speaker recommended for your situation (see Table 1) and do not exceed the number of speakers or speaker run length maximums shown in Table 2.
  • Page 5 300 Feet (22 AWG Copper Wire) Notes: 1. A run is a line of one or more speakers that connects directly to PagePac 6. If using both horns and standard speakers, each horn counts as four standard speakers. In some situations you may be able to extend a run farther than 100 feet, by using fewer speakers and/or...

  • Page 6: Installation Procedure

    INSTALLATION PROCEDURE 1. Connect audio output of music source (see Figure 6) to the PagePac 6 MUSIC IN terminals. 2. Turn on the music source. 3. Select a station and set the volume control on the music source, then use the MUSIC VOL control on the PagePac 6 to adjust the volume, as described in Operation Section.

  • Page 7: Operation

    This will prevent loud noises from being heard over the paging system. ADJUSTING PAGE AND MUSIC VOLUME Volume controls on the rear of PagePac 6 allow you to adjust the volume of paging and background music independently. To adjust paging volume, turn the PAGE VOL control clockwise to increase or counterclockwise to...

  • Page 8: Maintenance

    Adjust volume control on music source. Tune music source to strong station. Check all connections. If, for any reason, you need to know the pinouts for the modular jacks on the PagePac 6, pinout information is given in Tables 4.

  • Page 9: Technical Assistance

    • Reorient the radio or TV receiving antenna. • Relocate the PagePac with respect to the radio or TV receiver or vice-versa • Plug the PagePac 6 into a different outlet so that it and the radio or TV receiver are on different branch circuits.
  • Page 10 FCC (PART 68) This equipment is registered with the Federal Communications Commission (FCC) in accordance with Part 68 of its Rules. The FCC requires that the manufacturer provide you with the following information: 1. Connection and Use with Nationwide Telephone Network The FCC requires that you connect your telephone equipment to the nationwide telephone network through a modular telephone outlet or jack.
  • Page 11 Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas. CAUTION: User should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority or electrician, as appropriate SECONDARY CIRCUIT PROTECTION...

  • Page 12: Safety Information

    SAFETY INFORMATION • The secondary circuit protector is used when connecting paging equipment directly to telephone lines that may be exposed to high voltage power lines. • Never install telephone wiring during a lightning storm. • Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
