PagePac
by
INTRODUCTION

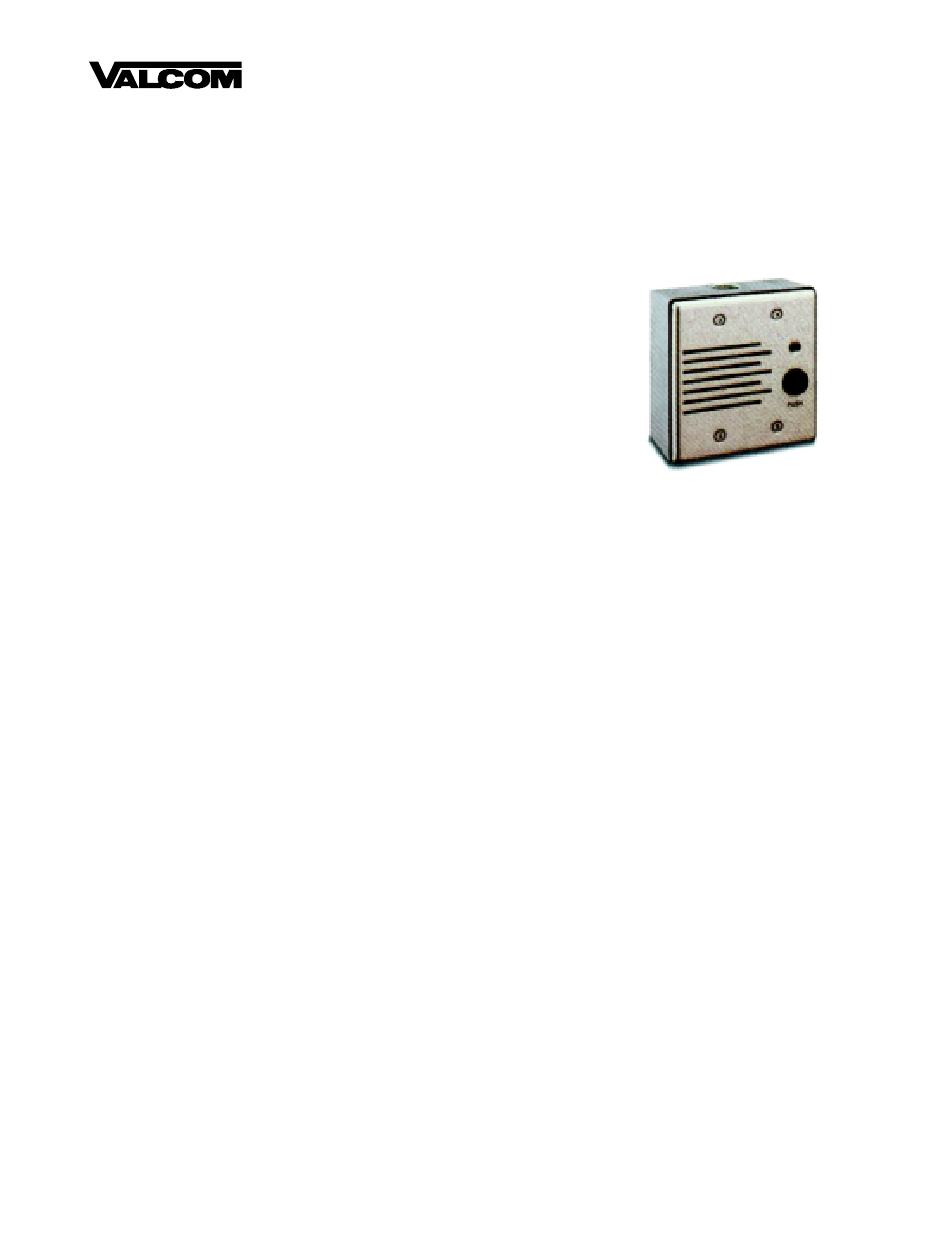

The Station Door Phone is specifically designed to
communicate with a telephone system that pro-
vides Primeline, Off-hook ring-down, Hotline and
Elevator Call capabilities.
The Station Door Phone connects to a standard
telephone system analog station port to allow the
caller at the door speaker to have a two-way con-
versation with someone inside the building. The
weather resistant enclosure is ideal for indoor or
outdoor environments.
SPECIFICATIONS
FEATURES
• Push Button - to initiate signalling
• LED - lights up to indicate activation
• Two-way handsfree voice communication
• Volume Control - adjusts speaker volume
• No external power required
• Stainless steel faceplate with tamper resistant
hardware
• Weather resistant enclosure
• VOX circuit - to turn unit off with lack of voice
activity
• Turns off if button is depressed a second time
• Alert tone emits from speaker when accessed
Dimensions/Weight
• 4.63"W x 4.63"H x 1.75"D
(11.76cm x 11.76cm x 4.45cm)
• 1.52 lbs. (0.68 kg) with gang box
• 0.72 lbs. (0.32 kg) without gang box
OPERATION
Off-Hook Ring-down, Hotline, Primeline
The Station Door Phone operates much like a
telephone without a dial-pad. It connects to an
analog station port on a telephone system. When
the Station Door Phone push button is pressed,
STATION DOOR PHONE
V-5324004
this unit provides an off-hook condition to the tele-
phone system analog station port, the faceplate
LED lights, and an alert tone beeps at the
speaker.
Some telephone systems provide a programma-
ble auto-dial/ring-down feature. When used with
these telephone systems, the phone system will
automatically dial a telephone number (prepro-
grammed into the phone system software) when
the Station Door Phone push button is pressed.
The person answering the ringing phone inside is
automatically connected to the caller at the Station
Door Phone.
To call the Station Door Phone from a telephone,
dial the extenstion number, just as you would dial
a telephone extension.
NOTE: See Figure 5 for normal default Dip Switch
settings.
Auxiliary Alert
The Station Door Phone can be used to activate
an Auxiliary Alert device (such as a door bell or
chime) instead of ringing a telephone.
VOX Operation
The Station Door Phone is equipped with a VOX
(voice activated switch) circuit. This feature is pro-
vided to automatically drop communications to the
1
Issue 1
947174
Advertisement
Table of Contents
Summary of Contents for PagePac V-5324004
-
Page 1: Specifications
® PagePac Issue 1 STATION DOOR PHONE V-5324004 INTRODUCTION The Station Door Phone is specifically designed to communicate with a telephone system that pro- vides Primeline, Off-hook ring-down, Hotline and Elevator Call capabilities. The Station Door Phone connects to a standard... - Page 2 door speaker when there is no audio detected, for 2. Place the dip switch in the position shown in more than 24 seconds, from the telephone exten- Figure 5 (factory default setting). Program your sion within the building. Visitors talking into the telephone system for the phone number(s) to door speaker will not affect the VOX circuit.
-
Page 3: Technical Assistance
When calling, have a VOM and a telephone test (signaling) unit. set available and call from the job site. Call (800) 782-5266 for PagePac Technical Sup- 1. Connect Station Door Phone to existing door port, or visit our websites at alert push button so that existing button is in http://www.pagepac.com and www.valcom.com. - Page 4 Figure 3. Attach Station Door Phone and Faceplate STATION DOOR PHONE PHONE SYSTEM TWISTED PAIR PHONE WIRE T & R DOOR BELL/CHIME BUTTON EXISTING DOOR BELL BUTTON CUSTOMER PROVIDED OR EXISTING DOOR NOTE: .2 AMPS MAXIMUM ALERT (SIGNALING) UNIT Figure 4. Wiring Diagram for Customer Provided or Existing Alerters DIP SWITCH SHOWN IN ALERT RING...
