Summary of Contents for Rohde & Schwarz RT-ZF6

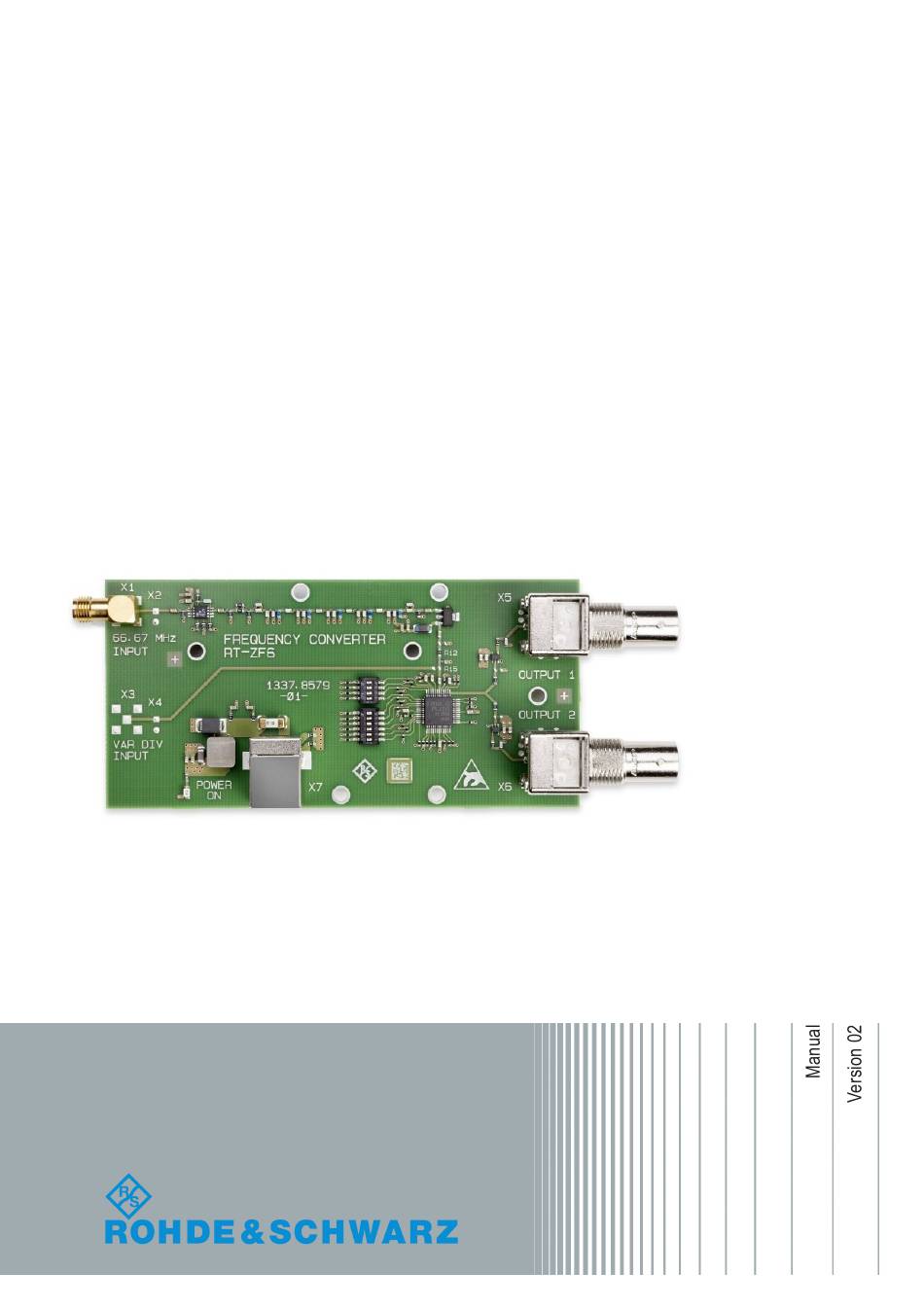

- Page 1 ® R&S RT-ZF6 Frequency Converter Manual (=JUÎ2) 1326376402...
- Page 2 This manual describes the R&S RT-ZF6 frequency converter board (1337.8579.02) for 1000BASE-T1 compliance tests. © 2019 Rohde & Schwarz GmbH & Co. KG Mühldorfstr. 15, 81671 München, Germany Phone: +49 89 41 29 - 0 Fax: +49 89 41 29 12 164 Email: info@rohde-schwarz.com...
-
Page 3: Safety Information
® Safety Information R&S RT-ZF6 Safety Information The product documentation helps you to use the product safely and efficiently. Keep the product documentation nearby and offer it to other users. Safety information warns you about the potential dangers and gives instructions how to prevent personal injuries or damage caused by dangerous situations. -
Page 4: Product Description
Electromagnetic interference (EMI) can affect the measurement results. To avoid any impact, use only USB cables shorter 3 m. Product Description The R&S RT-ZF6 frequency converter is a product for compliance testing of the 1000BASE-T1 standard. It is used in combination with: ●... - Page 5 ® Connecting the Board R&S RT-ZF6 Board Description The frequency converter is used in test cases that require an ARB generator. The converter divides the 125 MHz clock signal of the 1000BASE-T1 PHY by 12.5 so that it can be used as clock reference signal. The reference clock syn- chronizes the oscilloscope and the ARB generator.
- Page 6 ® Connecting the Board R&S RT-ZF6 4. Connect the USB port X7 of the frequency converter to a USB port type A of the R&S RTO/R&S RTP, or generator, or PC. A yellow LED lights up if the board is supplied with power.
