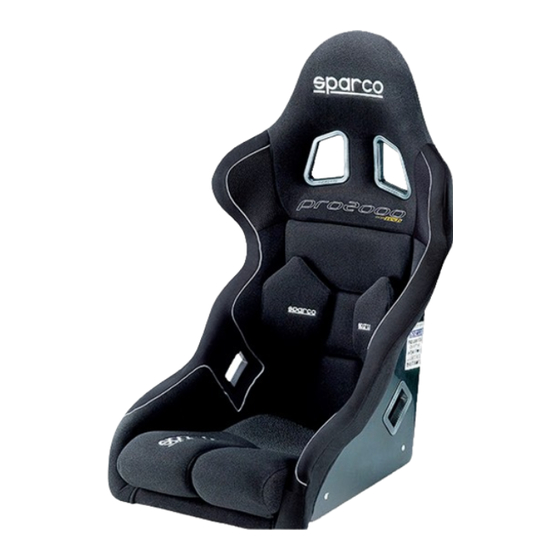

Summary of Contents for FANATEC Sparco Pro 2000

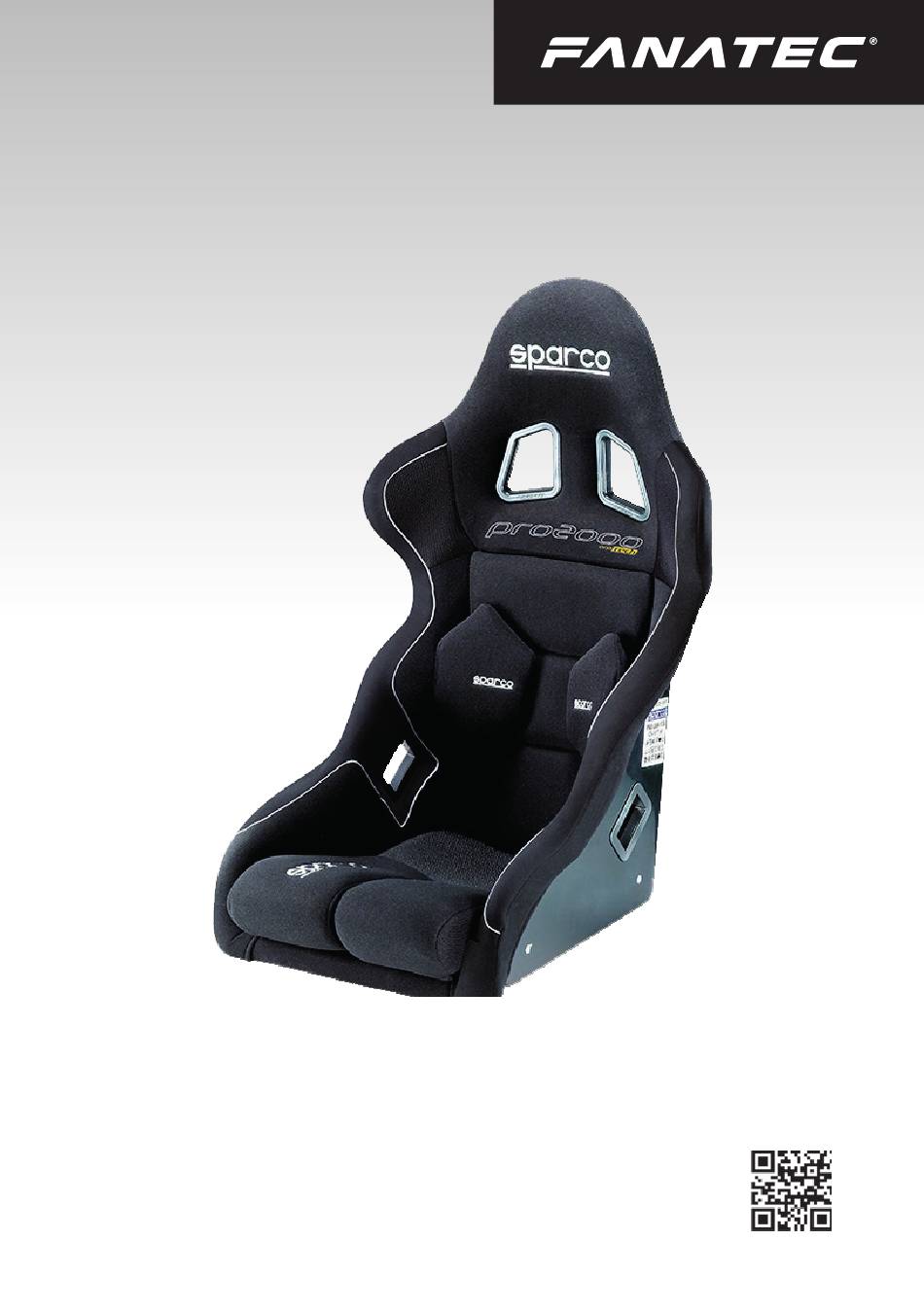

- Page 1 Sparco Pro 2000 Seat QuickGuide www.fanatec.com...
- Page 2 Thank you for choosing This Quickguide explains the assembly of the Sparco Pro 2000 seat to the Fanatec RennSport Cockpit V2. ATTENTION Please mount the seat rails to the RennSport Cockpit V2 seat plate first. This will provide you easier mounting than assembling the rails to the...
- Page 3 Sparco Pro 2000 Seat MOUNTING THE RAILS TO THE SEAT PLATE Mount the seat rails to the base plate with the broad side of the rails facing up- wards and the end with two mounting holes in the upper side facing forward in sitting direction (see picture below).
- Page 4 Sparco Pro 2000 Seat After the assembly of the two screws in the front, adjust the rails forward and mount the two screws in the rear: ASSEMBLY OF THE SEAT ADJUSTMENT BAR For mounting of the seat adjustment bar, be sure both rails are in the same position.
- Page 5 Sparco Pro 2000 Seat IMPORTANT: Make sure that the bar is securely positioned on the posts of the rails as shown below. You might need to use a hammer to get the bar attached on the rails properly. ASSEMBLY OF THE SIDE PANELS TO THE SEAT Now mount the side panels to the side assembly points of the seat.
- Page 6 Sparco Pro 2000 Seat MOUNTING THE RAILS TO THE SEAT PLATE Put the seat onto the rails and mount the two screws in the front first. Use the inner holes as marked below. For the last step, adjust the seat fully backwards and mount the two screws in...
- Page 7 Fanatec is a registered trademark of Endor AG ® Designed and developed by Endor AG in Germany 04/2016...
