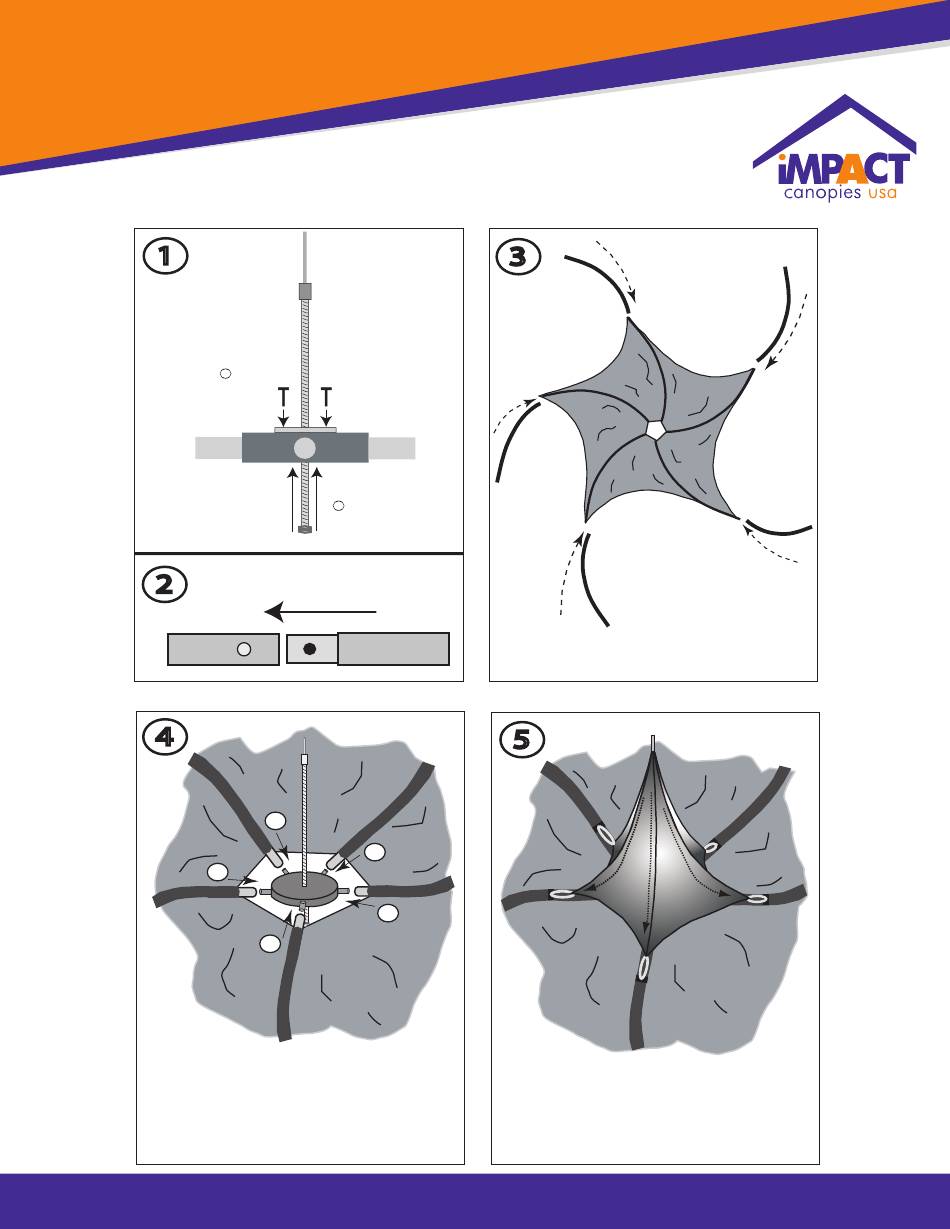

stick the Aluminium-pipes together
2
and secure it with the snap buttons.
4
3
place the cupola hub with the fixed cupola shaft
into the center opening of the fabric. (the long
part of the shaft on upper side). Then connect the
frame legs to the cupola hub. Please mind to do
this according to No. 1 - 5. Sliding the fabric inward
towards the center opening will ease the legs
connection to the hub.
598 Crane St, Lake Elsinore, CA 92530
22600 Temescal Canyon Road, Corona, CA 92883
bolt the cupola
2
shaft to cupola
hub
stick the cupola shaft
1
through the hole in the
cupola hub
5
2
4
1
3
place a plastic-sheet on the ground and spread fabric on
the sheet (tunnels upside). Then push the pipes into the
tunnels (small plastic part on the backside). Please walk
on fabric without shoes and take care about a clean ground.
5
place the cupola fabric over the shaft and snap to
the webbing loop along the tunnels.
if applicable: place the cupola flag onto cupola
shaft.
