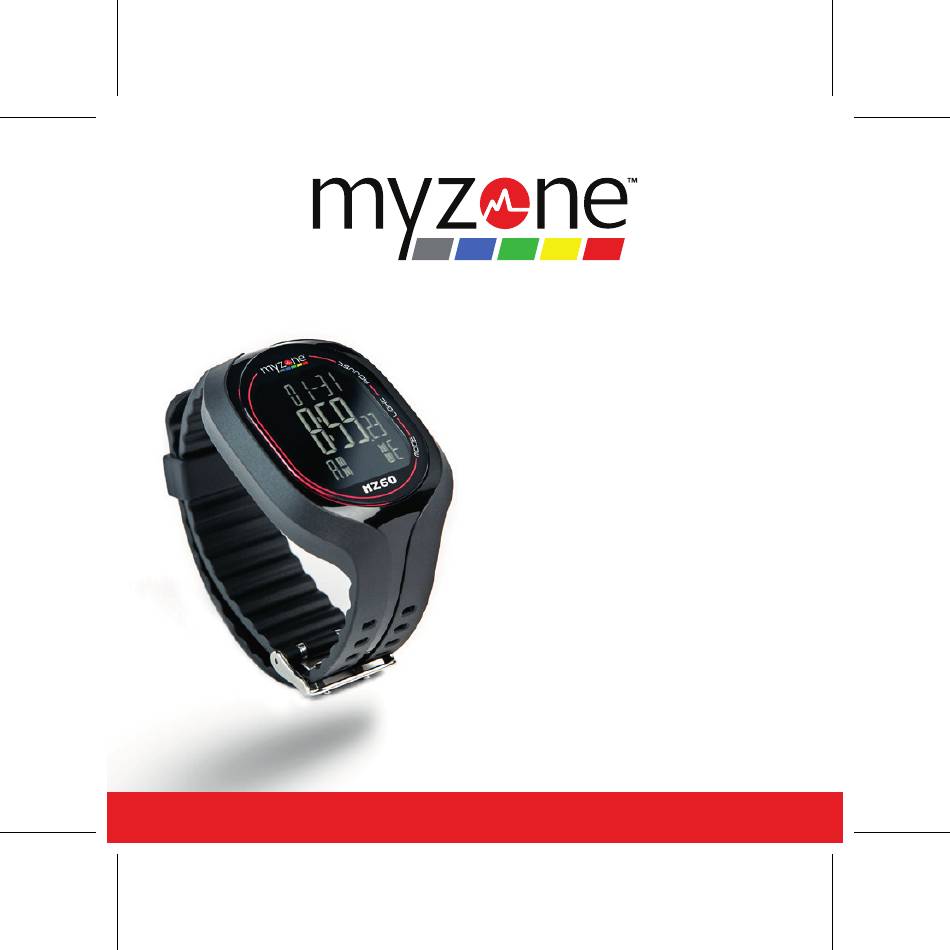

- Page 1 MZ-60 Setup & Operating Instructions...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Functions & Summary............... 2. Quick Start - Keys & Functions..........3. Quick Start - Wearing the Belt..........4. Belt Pairing................4 & 5 5. Time - Set Time..............6 & 7 6. Heart Rate Monitor - HRM Operation........7. -
Page 3: Functions & Summary
FUNCTIONS & SUMMARY • Set Time • Set Date 12/24 Hour Time Format • Set Year • Set Beep on/off -------------------------------------------------------------------------- Heart Rate • Pairing • Calorie • MEPs Monitor • Heart • Max Heart • Timer Rate Rate% -------------------------------------------------------------------------- Alarm Stopwatch •... -
Page 4: Quick Start - Keys & Functions
QUICK START Keys & Functions 1. ADJUST • Escape from current screen to last ‘Function Screen’. • Increases variable in setting sequence. 2. LIGHT • Activates back light. • Press and hold to lock/unlock display. 3. MODE • Advance through the functions •... -
Page 5: Quick Start Wearing The Belt
QUICK START Wearing the Belt Below is a step by step guide to using your Myzone Physical Activity Belt effectively; 1. Adjust your Myzone Physical Activity Belt so that it fits comfortably across the center of your chest, with the Myzone logo facing away from your chest. -
Page 6: Belt Pairing
Open settings by taping on the red Myzone logo and then tap on the cog in the top left corner. Once in settings, scroll down to pair MZ-60 Watch. - Page 7 BELT PAIRING Press your MZ-60 ‘mode’ button until you are in the HRM screen. Press and hold the ‘mode’ button. When you see the ‘PAIR’ flashing, click PAIR the Pair button on the app.
- Page 8 TIME Set Time Follow steps 1. through 4. to set the time and date. 1. Scroll to ‘TIME’ mode. 2. Press and hold Mode for 2 Sec. To enter time set up mode. 3. Press Adjust to change digit up. Press and hold Adjust to move digit faster.
- Page 9 TIME Set Time In time mode 1. Press Adjust to Switch between 12 hour and 24 hour. 12 Hour Clock 24 Hour Clock Locking the Display 1. To lock the display in the current screen, press and hold the light button.
-
Page 10: Heart Rate Monitor Hrm Operation
HEART RATE MONITOR HRM Operation In HRM mode, you can change Main Display once your belt is paired. Max Heart Heart Rate MEPs Rate 1. Press and hold Adjust to scroll to next display %HR, BPM, MEPs and Kcal. In HRM mode, stopwatch, countdown timer or interval time can be displayed at the top of the screen. -
Page 11: Stopwatch - Operation
STOPWATCH Operation 1. Scroll to STW screen using Mode. 2. Press Adjust to start/stop stopwatch. 3. When the stopwatch is in the stopped position, press ‘ADJUST’ and hold 2 sec to clear. 4. Press Mode to exit. Start Stop... -
Page 12: Countdown - Setup
COUNTDOWN Setup 1. Scroll to COUNTDOWN screen using Mode. 2. Press and hold Mode for 2 sec to set up. 3. Press Adjust to change digit up. Press and hold Adjust to move digit faster. 4. Press Mode to confirm digit and move to next. -
Page 13: Countdown Operation
COUNTDOWN Operation In COUNTDOWN mode, 1. Press Adjust to Start. 2. Press Adjust to Stop. 3. Press Mode to Exit. START STOP * Audible beeps will sound for each of the last three seconds. 11 |... -
Page 14: Interval Timer - 3 Memory Positions Setup
INTERVAL TIMER 3 Memory Positions Setup 1. Scroll to INTERVAL TIMER mode. 2. Press and hold Mode for 2 sec to set up. 3. Press Adjust to change digit up. Press and hold Adjust to move digit faster. 1 2 4 4. -
Page 15: Interval Timer - Operation
INTERVAL TIMER Operation 1. Press Adjust to choose Memory Position. 2. Press and hold Adjust for 2 sec. to enter chosen memory position. 3. Press Adjust to to start/stop. 4. Press Mode to Exit and leave Interval timer. Memory Position Interval Timer * If an interval is over 10 seconds long, beeps will sound for the last 5 seconds of the interval. -
Page 16: Alarm - Set Alarm
ALARM Set Alarm In alarm mode, press ADJUST key to turn on/off the alarm. To set alarm, 1. Scroll to ALM screen using Mode. Press and hold Mode for 2 sec to enter alarm set up mode. 2. Press Adjust to change digit up. Press and hold Adjust to scroll digit faster. -
Page 17: Personal Info - Setup
PERSONAL INFO Setup DoB, Gender, Unit, Weight, Height, Max HR, Resting HR, %MAX / %KAV. 1. Scroll to Personal Info Set-up mode. 2. Press and hold Mode for 2 sec. to set up. 3. Press Adjust to change digit up. Press and hold Adjust to move digit faster. -
Page 18: Personal Info Personal Info Screens
PERSONAL INFO Personal Info Screens 16 |... -
Page 19: Battery Replacement
BATTERY REPLACEMENT WE STRONGLY RECOMMEND TAKING YOUR WATCH TO A LOCAL JEWELER TO HAVE BATTERY REPLACED TO AVOID POSSIBILITY OF PERMANENTLY DAMAGING OF THE WATCH. - Unscrew the battery compartment cover on the backside of the unit using a small screwdriver and remove the cover. - Remove the exhausted battery from the unit, and insert a new battery (be sure to place the positive (+) side of the battery is visible, facing toward the battery compartment cover). - Page 20 myzone.org...
Need help?
Do you have a question about the MZ-60 and is the answer not in the manual?
Questions and answers
How to start and finish a workout
To start a workout with the Myzone MZ-60:
1. Put on the belt, ensuring it fits comfortably.
2. Wet the two heart rate pickup pads on the strap.
3. Attach the plastic module to the strap.
4. Open the Myzone app and go to the workout screen to confirm the belt is transmitting a signal.
5. Press the MZ-60 ‘mode’ button until you reach the HRM (Heart Rate Monitor) screen.
6. Press and hold the ‘mode’ button until “PAIR” flashes, then tap “Pair” in the app.
To finish a workout:
- Stop the activity as usual.
- Remove the belt.
- The workout data will be saved and synced to the app.
This answer is automatically generated
