Summary of Contents for YDI Link CX-24

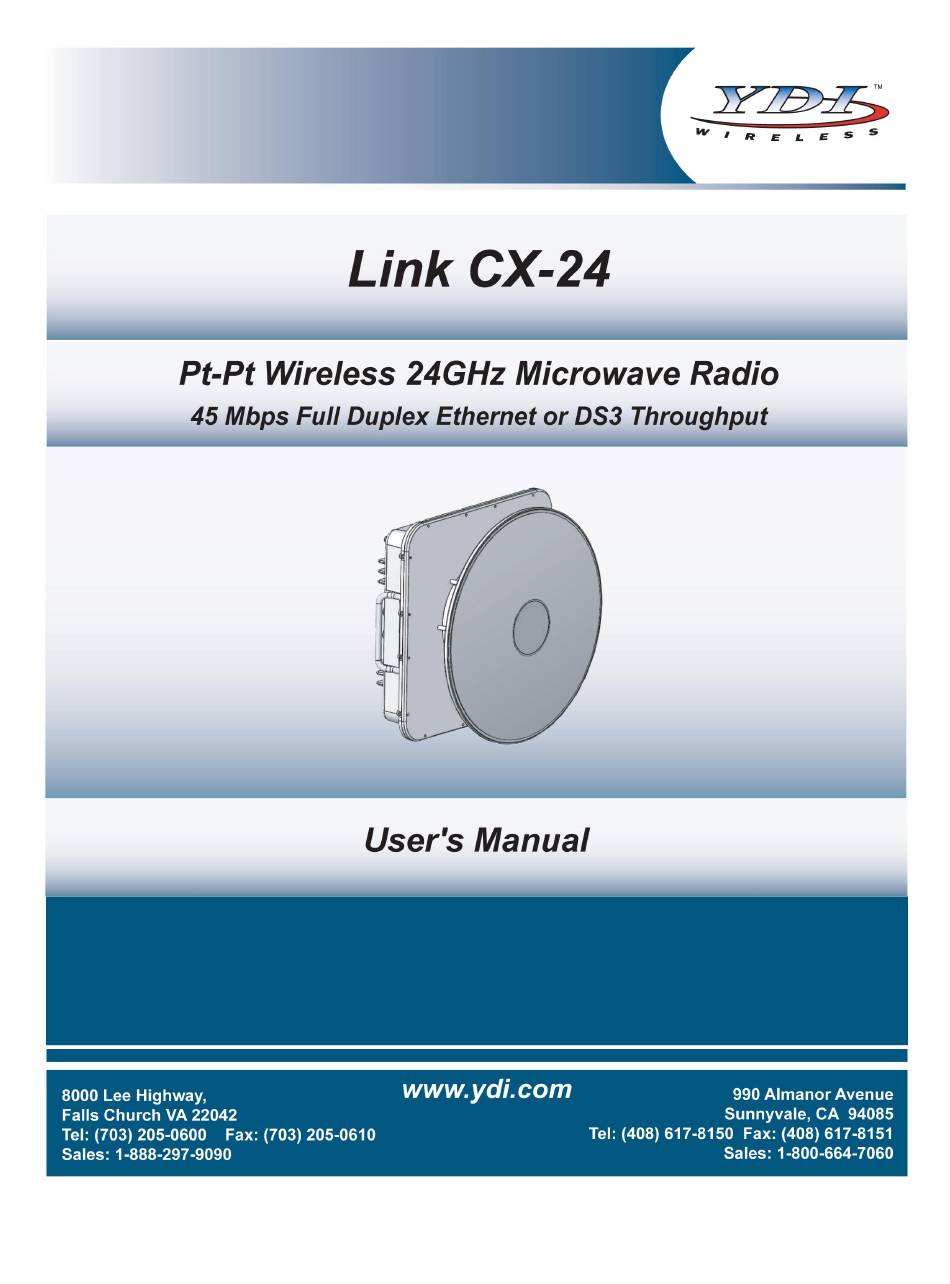

- Page 1 Version 1.0 MNL-500224-001 February 2004...
- Page 2 Link CX-24 User’s Manual This document applies to the YDI Wireless (YDI) release of the Link CX-24 product line and to all subsequent versions and releases of the hardware or software unless otherwise indicated in a new version or an update package for this edition. The products described in this document are products of YDI Wireless or its licensers.
- Page 3 These products are labeled with one of the following FCC ID numbers: FCC ID: NM5-CX-DS3-ETH-24 © 2004 YDI Wireless. All Rights Reserved. No part or parts of this document may be reproduced, translated, stored in any electronic retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopied, recorded or otherwise, without the prior written permission of YDI Wireless.
-
Page 4: Table Of Contents
Appendix B - Technical Specifications Appendix C - Using the Web-Based GUI User Interface C-1 Web Browser Requirements......................52 C-2 Connecting A Web Browser......................52 C-3 Accessing the Link CX-24 Web Pages ..................52 C-4 Link CX-24 Web Pages........................52 Version 1.0 Page iii... - Page 5 Figure 2.6 – Typical Ethernet Link CX-24 Monitor Web Page.............. 25 Figure 2.7 – Typical DS-3 Link CX-24 Commission Radio Web Page..........25 Figure 2.8 – Typical Ethernet Link CX-24 Commission Radio Web Page ........... 26 Figure 2.9 – Typical DS-3 Link CX-24 Commission Manager Web Page ..........27 Figure 2.10 –...
- Page 6 Link CX-24 User’s Manual Figure 2.13 – Setting the Link CX-24 Polarization – Vertical Polarization Shown ....... 31 Figure 2.14 – Detail Showing Assembly of Pole Mounting Bracket to Unit (Vertical Polarization) ..32 Figure 2.15 – Attaching the Link CX-24 Unit to the Pole..............33 Figure 2.16 –...
- Page 7 Table A.4 – 10/100 Ethernet Crossover Cable..................48 Table A.5 – RS-232 CLI Craft PC Cable ....................48 Table B.1 – Link CX-24 DS-3 or Ethernet Version (24 GHz) ............... 49 Table B.1 – Link CX-24 DS-3 or Ethernet Version (24GHz) (continued) ..........50 Table B.2 –...
-
Page 8: Overview
1.2.1 FCC Compliance The Link CX-24 is FCC certified for use in the 24 GHz unlicensed band in the United States. 24GHz (24.05-24.250 GHz) When deployed in an area regulated by the FCC, Link CX-24 radios operate under the FCC Part 15.249 band regulations for intentional radiators in a point-to-point configuration. -
Page 9: Applications
Competitive Local Exchange Carriers (CLECs). System Overview Each Link CX-24 consists of a Link CX-24 radio, with integral antenna as shown in Figure 1.2, along with external power and data cabling. In a typical installation, the Link CX-24 radio with integral antenna is mounted outdoors, usually on a tower or building. -
Page 10: Figure 1.2 - Typical Radio Link Configurations
Figure 1.2 – Typical Radio Link Configurations Because the Link CX-24 offers both high and low channels in a single band, and can be installed with horizontal or vertical polarization, up to four Link CX-24 radios can be mounted at each hub, or node, to form part of a star or mesh network. -
Page 11: Features
1.7.2 Data Stream The DS-3 or Ethernet data signals enter the Link CX-24 and are modulated into the RF data stream. The RF radio signal radiates from the local antenna and propagates to the remote antenna. At the remote terminal, the received signal is demodulated and de-multiplexed, separating the payload data and the overhead management data. -
Page 12: Figure 1.4 - Link Cx-24 Interface Connectors And Indicators
To ensure proper mounting and antenna alignment, YDI sells a mounting bracket designed for use with the Link CX-24. The single bracket mounts one Link CX-24. The bracket is designed to provide rugged mounting for the Link CX-24, while allowing fine adjustment for antenna alignment. -
Page 13: Table 1.2 - Link Cx-24 Interface Connectors And Indicators
Link CX-24 User’s Manual Table 1.2 – Link CX-24 Interface Connectors and Indicators Name Component Description From Note Male 4-Pin Power input POWER Circular Power Supply Accepts ±21 to ±60 VDC plug Connector Female 4-Pin 1200 to 115,200 baud, RS-232... -
Page 14: Figure 1.5 - Integral Antenna And Link Cx-24 Radio
100 m (328 ft.) lengths. • A 6 m (19.7 ft.) Ethernet cable is available to route the Ethernet signal between two Link CX-24 in the same location, or when you are configuring the Link CX-24 from a Craft PC. - Page 15 The five interfaces are: • A built-in web server GUI hosted by the Link CX-24, which can be accessed by any local or remote computer equipped with a web browser. This is the interface most operators will use to interact with the Link CX-24. The web browser can access the Link CX-24 built-in web server through either the ETHERNET 1 or ETHERNET 2 port.
- Page 16 Refer to Appendix C for Link CX-24 GUI operating instructions. Configuration Management The NMS software can be used to configure the parameters of the Link CX-24 radio, although this is normally done using a web browser GUI. This includes the setup of templates with predetermined default values, relating to both the parameters of common element types and the validation of parameter values.
- Page 17 Note that the ‘local’ system is the Link CX-24 you are logged into, and the ‘remote’ Link CX-24 is the one at the far end of the radio link. Thus, when you are logged into the far end Link CX-24 on a radio link that terminates at your current physical location, the far end Link CX-24 is ‘local’...
-
Page 18: Typical Applications
The simplicity of the Link CX-24 installation makes it easy for the user to implement Link CX-24 in a variety of applications. It also means that the user can conveniently move a previously installed Link CX- 24 to a new location to meet the requirements of a changing system. -
Page 19: Installation
Generally, the common points to consider when planning a Link CX-24 network are: Line of Sight: Unlike some frequency bands, the Link CX-24 radios must be within line of sight of each other. That is, the far-end antenna must be visible from the near-end antenna. If there are trees, buildings, mountains, or other obstructions between the two antennas, the Link CX-24s on each end of the radio link will be unable to communicate with each other. -
Page 20: Site Planning
Link CX-24. Mounting Point: The Link CX-24 is usually mounted on a vertical mast or pole mounted on a building or a tower. The Link CX-24 mounting bracket can accommodate a 4.5 to 7.6cm (1.75” to 3” OD) diameter mast or pole. -
Page 21: Planning Element And Network Management Ethernet Links
EMS and/or NMS Ethernet links. The cable run from the Ethernet switch or router to the Link CX-24 must be 100 m (328 ft.) or less, and can be straight-through or crossover, because the Link CX-24 Ethernet ports automatically detect the transmit and receive pairs and switch them if necessary. -
Page 22: Planning Ds-3 Links
Section 1.7.6. Power Planning YDI sells 25 m (82 ft.), 50 m (14 ft.), and 100 m (328 ft.) power cables with the correct connectors for Link CX-24 power, as described in Section 1.7.6. -
Page 23: Radio Link Planning
Radio Link Planning As described in Section 1.7, each radio link requires a Link CX-24 at each end of the link. Before you start installing the Link CX-24s, make a copy of Table 2.2 and fill in the information for both ends of the radio link: Table 2.2 –... -
Page 24: Table 2.2 - Radio Link Planning Worksheet (Continued)
Link CX-24 User’s Manual Table 2.2 – Radio Link Planning Worksheet (continued) Link CX-24 - High Band Link CX-24 - Low Band Channel 1 High Band, Channel 1 Low Band, Tx– 24.212GHz/ Tx– 24.072GHz/ Rx– 24.072GHz (default) Rx– 24.212GHz Radio Link Channel and Band Center... -
Page 25: Before Installing
Link CX-24 installation instructions have been written for such personnel. Since Link CX-24 is easy to install, a previously installed Link CX-24 can be conveniently moved to a new location. Re-deployment allows the user to meet the requirements of a changing system with minimal effort and expense. - Page 26 Link CX-24 parts. YDI suggests that the user retain at least one (1) of each packing carton with all its packing materials. In the event that it is necessary to return a unit, the user will have the required packing material for safe shipment.
-
Page 27: Figure 2.3 - Link Cx-24 Orderable Parts
One Power Cable (see Table A.3) 164 ft (50 m), or 328 ft (100 m) Link CX-24 to-Link CX-24 10/100 Ethernet Crossover Cable (see Table A.4) 20 ft (6 m) Optional RS-232 CLI Craft PC 4-pin Circular-to-DB9 Cable (see Table A.6) -
Page 28: 2.10 Initial Configuration
Lightning arrestors. 2.10 Initial Configuration YDI strongly recommends that the installer configure the Link CX-24 at a depot or on-site before it is mounted in its final location. This section includes instructions on how to configure the Link CX-24 before it is installed. -
Page 29: Figure 2.4A - Link Cx-24 Configuration Setup
Ethernet switch will auto-detect transmit and receive pairs, and you should detect an Ethernet connection within a few seconds of port activation. The Link CX-24 is now powered on and transmitting RF, and the Craft PC is now ready to log onto the Link CX-24 internal web main page. -
Page 30: Figure 2.4B - Link Cx-24 Positive-Ground Power Connections
Link CX-24 User’s Manual Figure 2.4b – Link CX-24 Positive-Ground Power Connections To Craft PC White Black Red Wire is Connected to Ground White Figure 2.4c – Link CX-24 Negative-Ground Power Connections To Craft PC White Wire is Connected to Ground... -
Page 31: Figure 2.5 - Typical Ds-3 Link Cx-24 Monitor Web Page
After you have connected and powered up the Link CX-24 and the Craft PC as described in Section 2.10.1, use the web browser on the Craft PC to log into the Link CX-24 built-in web server as follows: Launch the web browser per the manufacturer’s instructions. -
Page 32: Figure 2.6 - Typical Ethernet Link Cx-24 Monitor Web Page
11 On the Monitor page, select the link for the Commission Radio page. The web browser displays the Commission Radio page, similar to the samples shown in Figure 2.7 and Figure 2.8. Figure 2.7 shows a typical DS-3 Link CX-24 Commission Radio page, while Figure 2.8 shows a typical Ethernet Link CX-24 Commission Radio page. -
Page 33: Figure 2.8 - Typical Ethernet Link Cx-24 Commission Radio Web Page
16 Click Submit Changes to upload changes to the Link CX-24. If you are commissioning a DS-3 Link CX-24, continue with Step 17. If you are commissioning an Ethernet Link CX-24, continue with Step 21. -
Page 34: Figure 2.9 - Typical Ds-3 Link Cx-24 Commission Manager Web Page
Link CX-24 User’s Manual Figure 2.9 – Typical DS-3 Link CX-24 Commission Manager Web Page Version 1.0 Page 27 February 2004... -
Page 35: Figure 2.10 - Typical Ethernet Link Cx-24 Commission Manager Web Page
18 On the Test page, select the BERT + Radio Loop-back test, and select One Minute. Select Start Test to verify the internal Link CX-24 circuitry before installation. When the BERT + Radio Loop-back test is complete, the Link CX-24 has been configured, and the internal signal generation, transmit, receive, and detecting circuitry of the Link CX-24 has been tested. -
Page 36: Figure 2.11 - Typical Link Cx-24 Ds-3 Test Web Page
22 Use the external Ethernet device to Ping the Link CX-24 at the local Ethernet address configured in Step 12. Verify that the Link CX-24 responds to the Ping. When the Ping test is complete, the Link CX-24 has been configured, and the internal Ethernet circuitry of the Link CX-24 has been tested. -
Page 37: Mounting The Link Cx-24
2.11.1 Installing the Link CX-24 Adapter Bracket The Link CX-24 unit is installed by using an “X”-shaped adaptor bracket that is secured to the pole with a pole mounting bracket and a pole clamp. Figure 2.12 shows the components provided to mount the Link CX-24 unit. - Page 38 Install the pole-mount bracket as described below a) Fit the adaptor bracket (X) to the back of the Link CX-24 unit noting polarization requirements as discussed above, by aligning the four mounting studs on the back of the unit with the adaptor bracket holes and securing to the unit using four M5 nuts, flat washers, and lock washers, as shown in Figure 2.14.
- Page 39 Attach the Link CX-24 to the pole as described below: a) Fasten the Link CX-24 unit to the pole using pole clamp (B) and two M8 x 70 bolts, lock washer, and flat washer, as shown in Fig 2.15. It may be necessary to use two M8 x 40L bolts if you are fastening the Link CX-24 to a 1.75”...
-
Page 40: 2.13 Completing The Link Cx-24 Installation
3 m (10 ft.) intervals. Leave a minimum of 38 cm (15 inches) of service loop in the cables where they attach to the Link CX-24 and the lightning arrestor. Avoid tight bends during cable routing and fastening. - Page 41 Link CX-24 User’s Manual the Link CX-24, it starts transmitting. 36 Connect the power, DS-3 and/or Ethernet cables to the Link CX-24. See Figure 1.3 and Table 1.2 for the locations and descriptions of the Link CX-24 connectors. 37 Check the LEDs for proper operation. See Figure 1.3 and Table 4.2 for the locations and descriptions of the Link CX-24 LEDs: •...
-
Page 42: 2.14 Aligning The Antenna
Contact YDI with any questions. ii) When you apply power to the Link CX-24, it starts transmitting. Do not stand within 2 m (79 in.) of the front of the antenna during Link CX-24 operation to avoid harmful RF radiation. - Page 43 47 Disconnect the hand-held voltmeter and BNC test lead from the RSSI port. 48 Rotate the RSSI port cap about 90 degrees to seal the Link CX-24 case. 49 Recheck the Link CX-24 LEDs. See Figure 1.3 and Table 4.2 for the locations and descriptions of the Link CX-24 LEDs.
-
Page 44: 2.15 Acceptance Testing
The Link CX-24 is now mounted and aligned. Continue with Section 2.15 for acceptance tests. 2.15 Acceptance Testing This section describes the tests used to verify that the Link CX-24 data input circuitry, near-end Link CX- 24 radio, radio link, and far-end Link CX-24 radio are installed properly and operating correctly.
