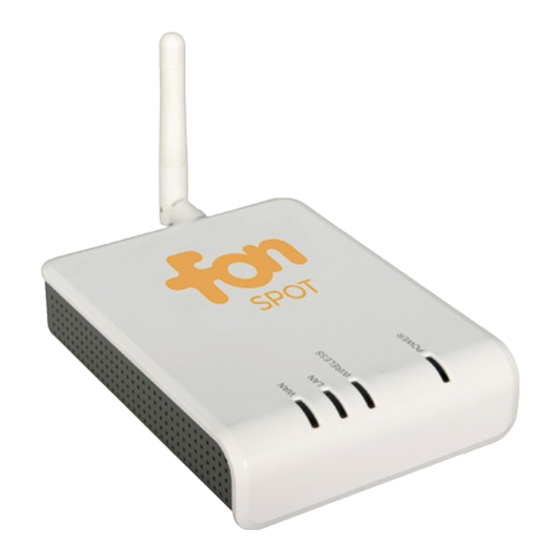

Fon LA FONERA + User Manual

2 ethernet ports
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LA FONERA
+
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LA FONERA + and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fon LA FONERA +

Summary of Contents for Fon LA FONERA +

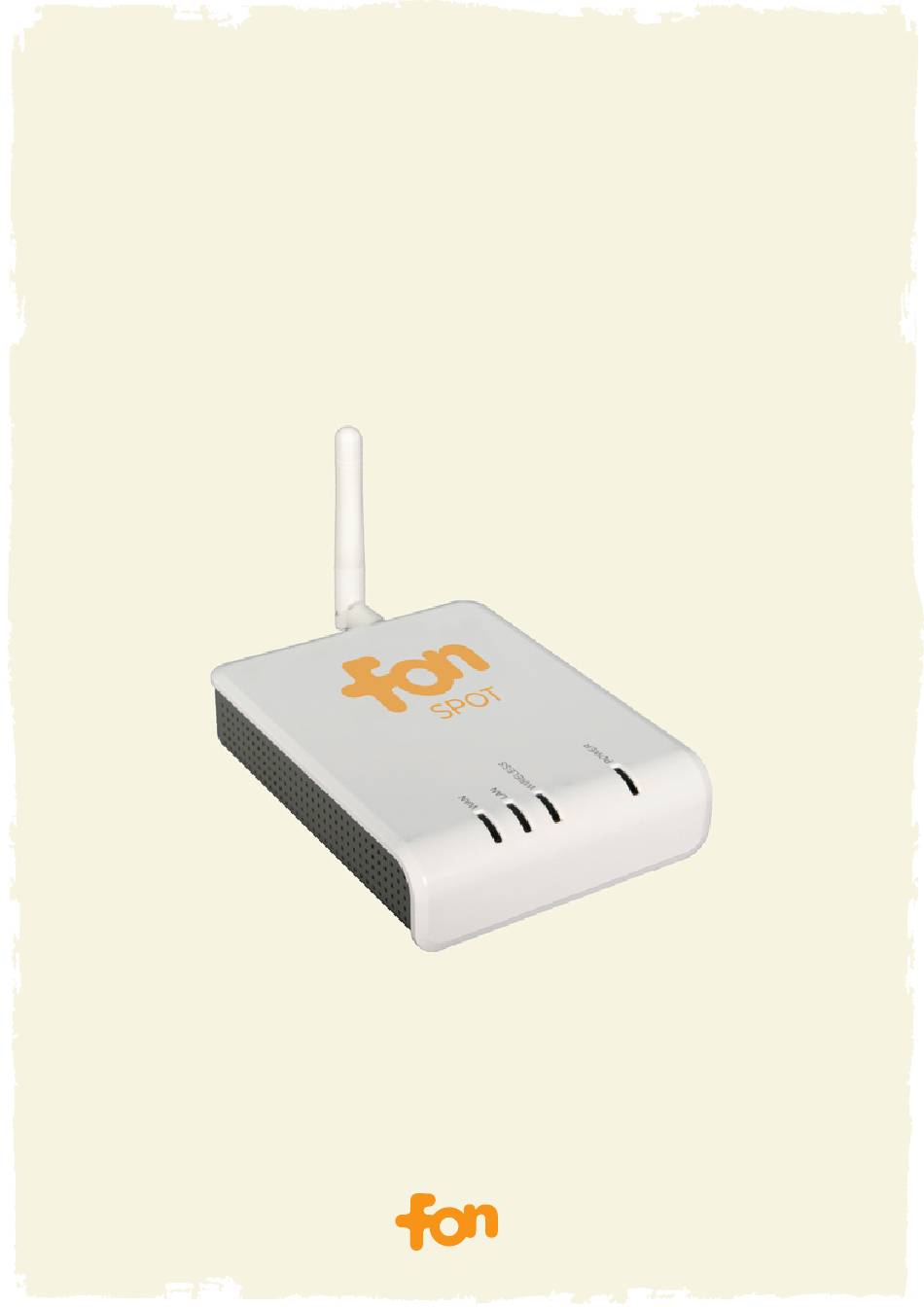

  • Page 1 LA FONERA User Manual...

  • Page 2: Table Of Contents

    5. Your Fonero profile 5.1. Forgot your password? 5.2. My Personal Info 5.3. My Piggy Bank (Bills) 5.5. My Visits 5.7. Configure your FON Router 5.9. FON Services 5.10. My Router Log A. Configure La Fonera A.1. Introduction A.2. How to access the interface A.3.
  • Page 3 Index C. GLOSSARY SPECIFICATIONS WARRANTY STATEMENT SAFETY NOTICES CERTIFICATION NATIONAL RESTRICTIONS USER LICENSE OF THE FON SOFTWARE...
  • Page 4 Document Information DOCUMENT INFORMATION Developed by © FON Wireless Limited Departments of Customer Operations and Marketing If you have any comments about this manual, please send an email to: manual@fon.com Document file Name: LA FONERA+ USER MANUAL First Version Date: July 26th, 2007 Current Version: 1.0...

  • Page 5: What's Fon

    What’s FON 1. What’s FON FON is the largest WiFi community in the world. FON is a Community of people making WiFi universal and free. Our vision is WiFi everywhere made possible by the members of the Community, Foneros. We share some of our home Internet connection and get free access to the Community’s FON Spots worldwide!

  • Page 6: Join Fon

    WiFi signal there’s a good chance you can make a bit of “dinero”. FON will pay you some of the net revenues that we get every time a visitor pur- chases a FON Pass through your FON Spot! FON also gives you the option to personalize your FON Spot and maximize your coverage by up to 5 times with our long range antenna, the La Fontenna.
  • Page 7 Chapter once you have made your decision. To join the FON Community you must first register through our website, fon.com, where you’ll find our registration form. The first screen you’ll see is our home...
  • Page 8 Join FON To register, simply click Join FON in the main area. You will need to tell us a bit about yourself. Don’t worry, we hate spam too, and won’t share any of your perso- nal information with anyone. Fill in some personal information through the form...
  • Page 9 Join FON If you don’t fill in the mandatory information (those fields marked with an aste- risk), an alert like the one shown in the figure will appear.
  • Page 10 Join FON Before completing the “Access information for FON Services” process, you’ll see a screen showing all the information you have provided. Double check the details and make changes if you wish to do so by clicking “back to form”. Enter the secu-...
  • Page 11 Fonero number that’s assigned to you. It will also provide you with status and profile information for the FON Community. You’ll be an Alien by default, but you can change your status after you register your La Fonera+ in our system. Remem- ber that Aliens using laptop computers or similar devices can connect to any FON Spot by purchasing FON Passes.

  • Page 12: What´s La Fonera

    The La Fonera+ can also be personalized so you can tell other Foneros about your- self when they log on to your FON Spot. Tell people a bit about yourself, your local area, or just say ‘hi’ to your fellow Foneros.

  • Page 13: La Fonera+ Description

    3.2. La Fonera+ description 3.2.1. Lights The La Fonera+ is specifically designed for use in the FON Community. It has 4 lights which show a different status depending on what is happening. We will give a short description of how they behave.
  • Page 14 CONSTANT. This means that there is a Fonero connected to your La Fone- ra+. If he is an Alien he has used a FON Pass, or it could also be a Linus or a Bill. 3.2.2. Ports The La Fonera+ has two ports so that you can keep your usual wired network with those ISP routers that only have one port.
  • Page 15 (not provided), as well as if you want to connect an external wired device. 3.2.3 WiFi WiFi is, in one word, freedom. And FON is the best way to experience that free- dom. WiFi lets you to connect any wireless device (PC, laptop, PDA…) to each other without having messy cables all around.
  • Page 16 Is it complicated to connect to a FON Spot? Using a wireless device to connect to a FON Spot is easy. You just need a compa- tible wireless device (or a card or USB connection that you can buy in our Shop shop.fon.com) and your user name and password to connect to the FON Spot.

  • Page 17: Install La Fonera

    You must have a DSL Router or cable modem to use the broadband connec- tion. USB modems can’t be used with the La Fonera+. To experience the most that FON has to offer, connect to the La Fonera+ with a WiFi enabled device.

  • Page 18: Install La Fonera

    Install La Fonera+ 4.3. Install La Fonera+ The La Fonera+’s installation is a quick and simple process. You don’t need to make any changes to your current connection, unless you are using a single port router. In that case your installation will have one additional step. NOTE: You will need to take one thing into consideration: you won’t be able to use the La Fonera+ with a USB modem/router, regardless of whether it is from a cable or DSL provider.
  • Page 19 Install La Fonera+ 4.3.1. Only WiFi installation Connect one end of the white network cable to the La Fonera+’s white port (WAN). Connect the other end of the network cable to one of your ISP router’s LAN Ethernet Ports Plug the AC adapter into the La Fonera+ 4.3.2.
  • Page 20 (www.fon.com/support). 4.4.1. WiFi configuration The first step you need to take before connecting to the FON WiFi signal is to find your La Fonera+’s SSIDs (the names that identify network connections), that will allow access.
  • Page 21 Install La Fonera+ 1.2. If you can’t find the network icon, click Start>Connect to>Wireless Network Connection, as seen on the left, to open the dialog box shown on the right. Then, click the View Wireless Networks button. If you aren’t connected to a network you won’t need to press anything.
  • Page 22 You will be able to change both net- works’ names later. If you still can’t see the FON signals, check that you’ve insta- lled the La Fonera+ correctly. If you only see the private signal (MyPlace), refer to Section 4.4.3 and check the next steps you need to take.

  • Page 23: Register Your La Fonera

    (WiFi Protected Access) network key. The network password you must type in is the 10 character serial number found on the La Fonera+’s+ base and labelled S/N (Serial Number). Click on “Connect”. In a few seconds you will be connected to FON’s WiFi sig- nal (MyPlace).
  • Page 24 If you have a WiFi enabled device we highly recommend you to use the other option, as it will be helpful in becoming familiar with FON’s networ- 1. Check that you have the wired connections properly configured. Refer to Sec- tion 4.3.2.
  • Page 25 Install La Fonera+ a.1) Look for the Internet Protocol (TCP/IP) item and double click it.
  • Page 26 Install La Fonera+ a.2) If the Obtain an IP address automatically radio button is not selected, write down all the info you see in the Internet Protocol (TCP/IP) Properties on a piece of paper, as you may need it later. If the former option is selected, you can close the window and proceed to Step f.
  • Page 27 Install La Fonera+ Visit the following URL: 192.168.10.1. If you had formerly changed this address or if in your network settings you had the Use the following IP address radio button selected, then use the address that you’ll find in the IP address field. You’ll be prompted to use a username and a password, both of these are “ad- min”.

  • Page 28: Register The La Fonera

    If it still doesn’t work, send us an email with your problem. 4.5. Register the La Fonera+ Open your Web browser (Internet Explorer, Firefox…) and enter registerlafone- ra.fon.com in the Address bar. The Router Status page should appear. Click on the “Register” button to register your La Fonera+.
  • Page 29 La Fonera+’s registration form. This is a key step in the process, since it will allow you to register your FON Spot with the FON Community. You must fill in the form that will appear onscreen to complete the La Fonera+’s regis-...
  • Page 30 You will need to enter information about your router’s location in these fields. This is important since we will be using this data to update the FON Maps. Remember that this information will be used by FON users to locate other Community mem- bers.

  • Page 31: Your Fonero Profile

    In the home page you’ll also find a link called Forgot your password? Click it, en- ter the email address you used to register with FON, and we’ll send you your pas- sword. Just check your email inbox and you’ll find it there. Use it together with your email address to log into the FON Community.
  • Page 32 Your Fonero profile This is also the right place to streamline the location of your FON Spot. You can see how we have located your address and change it if it is not correct. Currently we are showing the location of FON Spots based on the data your have entered when registering your router in the User Zone.

  • Page 33: My Piggy Bank (Bills)

    Your Fonero profile NOTE: The Fonero flag DOES NOT show the location of your FON Spot. It only shows the address you entered in your Fonero profile. Please locate your FON Spot under “Configure your FON Router”. 5.3. My Piggy Bank (Bills)
  • Page 34 FON equally splits the net revenues generated from the purchase of FON Passes through a Bill’s FON Spot: 50% goes to FON and 50% to the Bill (after taxes and other charges). - Transactions Here you can check the last 10 payments you have received through PayPal and the current total accumulated amount.
  • Page 35 Varsavsky’s blog, but we spoke about this with Martin and he told us he won’t be offended if you remove the link to his blog from your FON Spot and use your own blog, videos or pictures. To do so, just enter the link you wish to use in the Web...

  • Page 36: My Visits

    Your Fonero profile If you don’t want to mess with defining a new home page for your FON Spot, you can keep the default one and use a personal message to identify it. Your FON Spot will become more personalized every day as the WiFi world grows.
  • Page 37 Your Fonero profile This link will take you back to the main page of the User Zone.

  • Page 38: Configure Your Fon Router

    Your Fonero profile 5.7. Configure your FON Router...
  • Page 39 La Fonera+ you’ve registered with us. Another interesting feature found in this page is the option to download the latest firmware available for your FON Router. Remember that this process is fully automated in the La Fo- nera+, so it’s one less thing to worry about.
  • Page 40 Who is using my FON Router now? This area will show if a user is presently connected to your FON Spot. You can also see who has connected to your FON Spot in the past by clicking on the History button.

  • Page 41: Fon Services

    Your Fonero profile 5.9. FON Services In this page you’ll find information about our partners and other FON services. 5.10. My Router Log Here you can check who’s been connecting to your FON Spot.

  • Page 42: Configure La Fonera

    Configure La Fonera A. Configure La Fonera A.1. Introduction The Management Console is used for managing the La Fonera+’s configuration parameters. You don’t need to access it unless you wish to make changes or if your network requires manual configuration since it may require you to have some te- chnical knowledge.
  • Page 43 Configure La Fonera 2.2. In the Run dialog box, you must type the command cmd and then press Enter. This will open a Command shell window like the one shown in the figure. 2.3. In this window, you must type the command ipconfig and then press Enter to access your network configuration.

  • Page 44: Router Status

    Configure La Fonera A.3. Router status The next figure shows the Status Screen which you will first see when you connect to the Management Console. It summarizes your La Fonera+’s configuration. You have the option to modify all sections in the Management Console. Nevertheless we’d like to stress you shouldn’t have to make changes you can see both the public and the private signals of your La Fonera+ and can connect to Internet through them.

  • Page 45: Configure Your Public Network

    Configure La Fonera A.3.2. Internet connection This shows how your Internet connection is configured. Because there are several types of connections, this screen may vary from what you’ll see here. You’ll find the detailed meaning of each field in the Advanced section. A.3.3.

  • Page 46: A.5. Configure Your Private Network

    Here you can choose the name other Foneros will see when they connect to your signal. It will always have the “FON_” prefix. Remember that whe- never you wish to connect to the FON Network from some other Fonero’s con- nection, you must search for this prefix.

  • Page 47: Configure Your Private Network

    Configure La Fonera • Name (SSID): This is the name of your private wireless network. To change it you only need to type the name you wish to use in the cell. • Authentication: This section relates to the network’s security. By default, the first time you access you’ll be using WPA/WPA2 –...

  • Page 48: Change La Fonera+'S Password

    Management Console (don’t confuse this with the username and password of your Fonero account used on the FON website). Both the username and the pas- sword are “admin” by default. If you ever forget your password, you can access the Router password section inside My FON Router>Configure your FON Router to...
  • Page 49 Configure La Fonera A.7.1. DHCP (Dynamic Host Configuration Protocol) This protocol will be used by default, as you can see in the previous figure. This protocol should be suitable for most users. In this protocol, there is a server (usually the DSL router) that provides configuration data (IP address, gateway and others) to the devices connected to it (as the La Fonera+ will be).
  • Page 50 Configure La Fonera A.7.2. Static IP If your DSL router’s DHCP server is disabled, it’s possible that you are using a static IP. The difference between a dynamic IP and a static IP is that the former will be automatically assigned to your router (due to the DHCP server), and the lat- ter is defined to always be the same.
  • Page 51 Configure La Fonera Now you’ll find two options. If you use a cable to connect, you’ll have to double click the Local Area Connection icon to show the Status dialog box for that con- nection. If you use a WiFi connection, you should double click the Wireless Net- work Connection icon.
  • Page 52 Configure La Fonera...
  • Page 53 Configure La Fonera You’ll see a screen like the one shown in the figure. Double click on Internet Protocol (TCP/IP), as selected in the figure. At this point you should see a screen like the one shown in the next figure. If the Obtain an IP address automatically button found on the upper side of the dialog box is activated, it means that you have a NON static IP, and you’re probably using DHCP.
  • Page 54 Configure La Fonera If you’ve reached this point, it means you’ve checked that you have a static IP in the previous steps. The previous screen contained some information that we’ll need to be able to configure the La Fonera+ to suit your needs. The easiest thing to do is copy all the information you see in the dialog box onto a piece of paper, as you’ll need to type it in afterwards.
  • Page 55 Configure La Fonera A.7.3. PPPoE (point-to-point protocol over Ethernet) This protocol is very often used by Cable ISPs. If you have this type of connection, you’ll need to enter some information into the available fields. You can get this information from your ISP, so search through the information they’ve sent you or get in touch with your ISP to obtain it.

  • Page 56: Advanced Configuration

    Configure La Fonera A.8. Advanced configuration A.8.1. Network settings In this section you’ll have access to your network’s advanced settings. You don’t need to change the values you see in these pages, as this would have very little effect on your normal performance. This time, the IP Address and Netmask fields are those La Fonera+ uses inside the private network: this is the IP addresses you need to connect to when accessing the La Fonera+’s Management Console.
  • Page 57 Configure La Fonera As you can see in the figure, you have three more options to choose from in the Firewall settings section. This option also has two states, Allow and Deny. By de- fault, only WiFi->WAN port will be enabled. Let’s see their characteristics. Public WiFi / Private WiFi: Disabled by default.
  • Page 58 Configure La Fonera This section describes the La Fonera+’s wireless settings. As you can see in the figure, there are two options you can modify. Let’s see them in detail: Channel: This drop-down menu lets you choose the channel that will be used to emit your WiFi signal.
  • Page 59 Configure La Fonera A.8.4 Port forwarding To forward ports in the La Fonera+ you must first connect to the private SSID (MyPlace). Remember that you may need to type your WEP code if your browser is not storing it. You can find this code on a sticker on the La Fonera+. Once connected to the private signal, you must type the following URL in your browser: 192.168.10.1 If you’re asked for a user and a password you must use admin for both fields.

  • Page 60: Troubleshooting

    Review these common questions, and the solutions to help you solve your problem. If you can’t find an answer here, check the FON support website at www.fon.com/ support, or send us an email to support@fon.com. If you choose to contact us by email, please include the following: •...
  • Page 61 Troubleshooting B.1.2. How do I become a Fonero? To join the FON Community you must sign up through our website, fon.com, whe- re you’ll find our registration form. The first screen you’ll see is our home page.
  • Page 62 Troubleshooting To sign up, simply click on Join FON in the main area. You will need to tell us a bit about yourself. Don’t worry, we hate spam too, and won’t share any of your perso- nal information with anyone. Fill in some personal information through the form...
  • Page 63 Troubleshooting If you don’t fill in the mandatory information (those fields marked with an aste- risk), an alert like the one shown in the figure will appear.
  • Page 64 Troubleshooting Before completing the “Access information for FON Services” process you’ll see a screen showing all the information you have provided. Double check the details and make changes if you wish to do so by clicking back to form. Enter the security...
  • Page 65 It’ll also provide you with status and profile infor- mation for the FON Community. You’ll be an Alien by default, but you can chan- ge your status after you register your La Fonera+ in our system. Remember that Aliens using laptop computers or similar devices can connect to any FON Spot by purchasing FON Passes.
  • Page 66 WARNING: Once you plug your La Fonera into your network, please do not dis- connect it. The router will be immediately updated with the last version of FON and any interruption may damage its software. For more information, please visit www.fon.com/landing/gettingstarted...
  • Page 67 At this point you should see two lights lit on the La Fonera+: the POWER and INTERNET lights, as you can see in the figure. If they’re not lit, check the connec- tions, the power outlet, etc. If you still can’t see the lights, contact us at www.fon. com/support.
  • Page 68 At this point you should see two lights lit on the La Fonera+: the POWER and INTERNET lights, as you can see in the figure. If they’re not lit, check the connec- tions, the power outlet, etc. If you still can’t see the lights, contact us at www.fon. com/support.
  • Page 69 Troubleshooting...
  • Page 70 You will be able to change both net- works’ names later. If you still can’t see the FON signals, check that you’ve insta- lled the La Fonera+ correctly. If you only see the private signal (MyPlace), refer to Section 4.4.3 and check the next steps you will need to take.
  • Page 71 This configuration is shorter than the WiFi one since you don’t have to check for the wireless networks. If you have a WiFi enabled device we highly recommend you to use the other option, as it will be helpful in becoming familiar with FON’s net- works.

  • Page 72: La Fonera

    If you don’t see that alert, you are probably already registered. In any case, check the My FON Router section, and click on your router. If you own a router and you don’t see it in any of these sections, contact our customer support service. Please send us your username and the router’s MAC address (you’ll find it on a sticker on...
  • Page 73 Troubleshooting Connect to the private network of your La Fonera+ (MyPlace). If you still can’t connect, you’ll probably have to make some changes using a directly wired connec- tion between the La Fonera+ and your device. Follow these steps only if you can’t directly connect using WiFi.
  • Page 74 Troubleshooting b.3) Visit the following URL: 169.254.255.1. and skip to Step d. Visit the following URL: 192.168.10.1. If you’ve formerly changed this address or if in your network settings you had the Use the following IP address radio button selected, then use the address that you’ll find in the IP address field. You’ll be prompted to use a user and a password, both of these are “admin”.
  • Page 75 Troubleshooting If the Use the following IP address was selected in your network settings, you’re probably using a static IP. You can also be using PPPoE or PPTP. For the latest configurations, you’ll need to contact your ISP in order to attain the data you’ll need to set up your connection.
  • Page 76 You can check these terms in the sales contract at www.fon.com/images/media/en/en_purchase_conditions.pdf. You can also contact us at www.fon.com/support. Please include the following: Description of the problem, user name, MAC address (you will find it on a sticker under the La Fonera+) and what the specific problem.
  • Page 77 Troubleshooting POWER light – This light has two different colours. - ORANGE: This light means that is the La Fonera+ is performing some kind of task, ie when it is blinking. Just let the La Fonera+ finish its task (it can take up to 20 minutes).
  • Page 78 In this screen you can modify the password you’ll be using to make changes in the Management Console. Both the username and the password are “admin” by de- fault. If you ever forget your password, you can access the Router password section in My FON Router>Configure your FON Router to create a new one.
  • Page 79 Troubleshooting The Router password field allows you to set up your La Fonera+’s new password. You’ll need it to access the Management Console. It must be between five and six- teen characters long, and consist of only letters and numbers. B.2.6.
  • Page 80 Troubleshooting 2.2. In the Run dialog box, you must type the command cmd and then press Enter. This will open a Command shell window. 2.3. In this window, you must type the command ipconfig and then press Enter to access your network configuration. What you see must be similar to the previous figure.

  • Page 81: Management Console

    Troubleshooting Now open your browser and type any URL (for example, wifi.fon.com). You should be able to see the Management console. 4. You will be asked for the Username and Password. The default values are Username=admin, Password=admin. B.3. Management Console 3.1 What is the Management Console?
  • Page 82 Troubleshooting B.3.2. Why am I seeing this page?
  • Page 83 Troubleshooting It seems your La Fonera+ was not able to configure itself with your home network settings. Follow the steps described in the “No network access” page to solve the problem. B.3.3. How can I access the Management Console? To gain access to the Management Console you must first be connected to the pri- vate signal (SSID) which is very easy to recognize.
  • Page 84 You must locate the highlighted area (locate the Wireless Network Connec- tion section and take note of the numbers that appear next to Default gateway). 3. Now open your browser and type any URL (for example, wifi.fon.com). You should be able to see the Management Console.

  • Page 85: Local Users

    Troubleshooting B.4. Local users B.4.1. Can I connect several devices to my connection? Yes, you can connect several devices. They must connect to your private signal (the one called MyPlace) and use the WPA key (you can find this default key on the sticker at the base of your La Fonera+).

  • Page 86: User Zone

    Go to fon.com in your browser and sign-in using the email address and password you used to register with FON. If you’re connecting to the public signal (the one called MyPlace) just type any address in your browser and you’ll see the FON Spot homepage automatically.

  • Page 87: La Fonera

    Address bar. The FON Spot homepage should appear. 2. You need to enter the email address and password you used to register with FON in the fields shown in the figure. Click the Login button to access your User Zone.
  • Page 88 Troubleshooting Right click My Computer and select Properties. In the System Properties dialog box, select the Hardware tab and click Device Manager.
  • Page 89 Troubleshooting Click the plus sign (+) you’ll see in Network adapters and check that you have a wireless device. You can also see if you have a WiFi device by clicking Start>Connect to>Show all connections, and by checking for the “Wireless Network Connections” icon in the window that appears.
  • Page 90 Troubleshooting 1.2. If you can’t find the network icon, click Start>Connect to>Wireless Net- work Connection, to open the dialog box. Then, click the View Wireless Networks button (if you’re not connected to a network, you won’t need to).
  • Page 91 The first one, MyPlace, is your private network’s default name. FON_AP is the public network’s default name. If you still can’t see the FON signal, check to make sure that your La Fonera+ is installed correctly. B.6.3. How can I find FON Spots? Check their locations on the FON Maps you’ll find on FON’s website.
  • Page 92 Troubleshooting B.6.5. Why don’t I see the FON Spot homepage when I try to connect to a FON Spot? When you connect to a FON Spot (beginning with FON_), you should see the FON Spot homepage when you type any web address in your browser. If you don’t, check that you’re connected to the correct network.
  • Page 93 Troubleshooting Click the Refresh network list button to make sure you’re only seeing your La Fonera+’s networks.
  • Page 94 Click the Connect Anyway button to continue. B.6.6. I see a FON Spot in the area. How can I connect to it? Check that your wireless device is using FON’s signal and that it’s strong enough.
  • Page 95 Troubleshooting The Obtain an IP address automatically button found on the upper side of the dialog box must be activated.
  • Page 96 Troubleshooting B.6.7. What happens if my wireless device (laptop, PSP...) doesn’t connect automa- tically or if I have a static IP? If your router’s DHCP server is disabled, it’s possible that you are using a static IP. That may be the reason why your wireless device (laptop, PSP...) doesn’t con- nect automatically.
  • Page 97 Troubleshooting If the Obtain an IP address automatically button found on the upper side of the Internet Protocol (TCP/IP) Properties dialog box is activated, it means that you have a NON static IP, as you’ll probably be using DHCP. In this case, you shouldn’t modify these parameters.
  • Page 98 NOTE: You will need to have the firmware file to install if your La Fonera+ falls in this mode. You can get it in the Downloads area of the FON website. Save it in a location where you can easily find it, as the procedure will ask you to select it.
  • Page 99 Troubleshooting At this point you must type in your browser the address in 192.168.1.1. If you try to access a webpage, you will see the La Fonera+’s administration webpage. This allows you to reflash it with a working firmware. You will need a Username (admin) and a password (the serial number of La Fonera found on the sticker on the base of it) in order to connect to the administration console.

  • Page 100: C. Glossary

    128-bit block data encryption. Alien – A user who wishes to access the FON Community and is not a Fonero. Aliens using laptop computers or similar devices are permitted to access any FON Spot by purchasing FON Passes that can be used to connect to the Internet freely.
  • Page 101 - The programming code that runs a networking device. FON Spot – Each Fonero’s WiFi router is a FON Spot. Each one of them makes up the FON Community. A registered FON Router becomes an active FON Spot that Aliens and other Foneros can use to connect to the Internet. You can find worldwide FON Spots in the FON Maps, found at fon.com.
  • Page 102 - The computers and networking products that make up your local network. Linus – A Fonero with a broadband connection and a FON Router at home. They roam all other WiFi FON Spots within the FON Community for free. MAC (Media Access Control) Address - The unique address that a manufacturer assigns to each networking device.
  • Page 103 - The address of a file located on the Internet. User Zone – A section you can access once you log into the FON website where you can manage all of the features and services available to you as a registered user, such as: personal details, Travel log, Day Passes, Piggy Bank, FON Maps and My FON Router.
  • Page 104 Glossary WLAN (Wireless Local Area Network) - A group of computers and associated devi- ces that communicate with each other wirelessly. WPA (Wi-Fi Protected Access) - a wireless security protocol using TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RA- DIUS server.

  • Page 105: Specifications

    Specifications SPECIFICATIONS 2 Ethernet Ports 1 Ethernet WAN port (10/100 Mbps) for Internet connection 1 Ethernet LAN port (10/100 Mbps) for connecting a computer or other device (network printer, storage, etc). 2 SSIDs, one public (named FON_AP by default) non-encrypted, and one private (named MyPlace by default) encrypted with WPA-PSK IEEE 802.11b/g, up to 54Mbps Automatic Channel support, selects best available wireless channel at boot up...

  • Page 106: Warranty Statement

    FON Wireless Limited reserves the right to revise or update its products, soft- ware, or documentation without obligation to notify any individual or entity. In no event shall FON Wireless Limited liability exceed the price paid for the pro- duct from direct, indirect, special, incidental or consequential damages resulting from the use of the product, its accompanying software, or its documentation.

  • Page 107: Safety Notices

    Safety Notices SAFETY NOTICES First read all of the instructions listed here and/or in the user manual before you operate this equipment. Pay special attention to all safety precautions. Retain the instructions for future reference. All instructions, warning and caution statements (listed here and/or in the user manual) that accompany this equipment and of the computer manufacturer you use must be strictly fo- llowed at all times to ensure the safe use of the equipment.

  • Page 108: Certification

    Compliance information for 2.4-Ghz Wireless Products Relevant to the EU and Other Countries Following the EU Directive 1999/5/EC (R&TTE Directive) This document contains compliance information for FON 2.4-GHz wireless LAN products that is relevant to the European Union and other countries that are fo- llowing the EU Directive 1999/5/EC.
  • Page 109 Certification Declaration of Conformity with Regard to the EU Directive 1999/5/EC (R&TTE Directive)

  • Page 110: National Restrictions

    Certification National Restrictions This product may be used in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Belgium The Belgian Institute for Postal Services and Telecommunications (BIPT) must be notified of any outdoor wireless link having a range exceeding 300 meters.

  • Page 111: User License Of The Fon Software

    User License of the FON Software User License of the FON Software This firmware that FON Wireless Limited is providing for your use is a set of pro- grams [see below] developed under the GPL license, and is now distributed for installation in certain WIFI Linksys router models (i.e.
  • Page 112 WiFi EVERYONE...
