Summary of Contents for Matrix Infinity MA-PWM30A

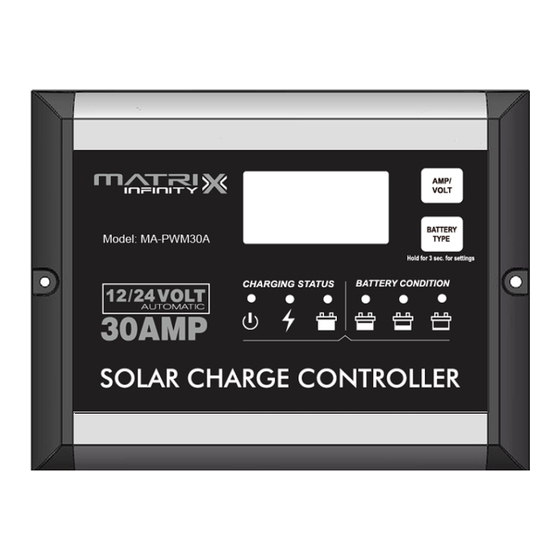

- Page 1 Solar Controller / Battery Charger Nominal Voltage: 12Volts / 24Volts automatic Rated Solar Current: 30Amps Model Number: MA-PWM30A User’s Manual...
- Page 2 FEATURE ●Advanced MCU control pulse width modulated (PWM) technology, high efficiency operation. ●Target for LiFePO4, LTO (Lithium Titanium Oxide), Gel, AGM, Conventional lead-acid (WET) and Calcium Batteries. ●Built in regulator to prevent your battery from being overcharged. Overcharging occurs when the charge voltage is unregulated. This can result in premature battery failure.
-
Page 3: Mounting The Device
WARNING – IMPORTANT PLEASE READ ● This charger is designed for indoor use only and should never be exposed to rain. ● Do not disassemble the controller. Take to a qualified person if the unit requires repairing. ● Lead acid, LiFePO4, LTO batteries can be dangerous. Ensure no sparks or flames are present when working near batteries. -
Page 4: Wiring Connections
WIRING CONNECTIONS To protect the Battery and the Solar Panel, we strongly recommend that you place a 40A inline fuse on the negative wire on both the “Solar” and “Battery” Circuits. (As close to the Battery /Panel as possible) The Solar Controller has 4 terminals which are clearly marked ‘Solar’ and ‘Battery’. There is a (12V/24V) and earth (GND) terminal for each circuit. -
Page 5: Charging Stages
Press BATTERY TYPE button and hold for 3 seconds to go into your battery ty pe selection mode, the battery type you select will be shown on the LCD meter, the default setting is AGM Battery; the controller will automatically memorize your battery type setting. - Page 6 Soft Charge- When batteries suffer an over-discharge, the controller will softly ramps the battery voltage up to 10V for 12V battery, 20V for 24V battery. Bulk Charge-Maximum current charging until batteries rise to Absorption level Absorption Charge-Constant voltage charging and battery is over 85%. Equalization Charge*-Only for WET battery or Calcium battery type, when the battery is deeply drained below 10V (for 12V battery), it will automatically run this stage to bring the internal cells as an equal states and fully complement...
- Page 7 Solar panel abnormal LCD display LED indication LCD backlight mode Solar panel weak Flash Solar panel reverse Flash connection Flash Solar panel over voltage Flash (> 26.5V) Flash Battery abnormal mode LCD display LED indication LCD backlight Battery disconnected or Flash less than 3.0V Flash...
- Page 8 SPECIFICATIONS for MP-19S-30A Electrical Parameters Rated solar panel amps Max. Normal input Solar cell array voltage 15-22 Max. solar cell array voltage (output has no load) Max. he controller lowest operating voltage (solar or battery side ) Maximum voltage drop-Solar panel to battery 0.25 Max.
