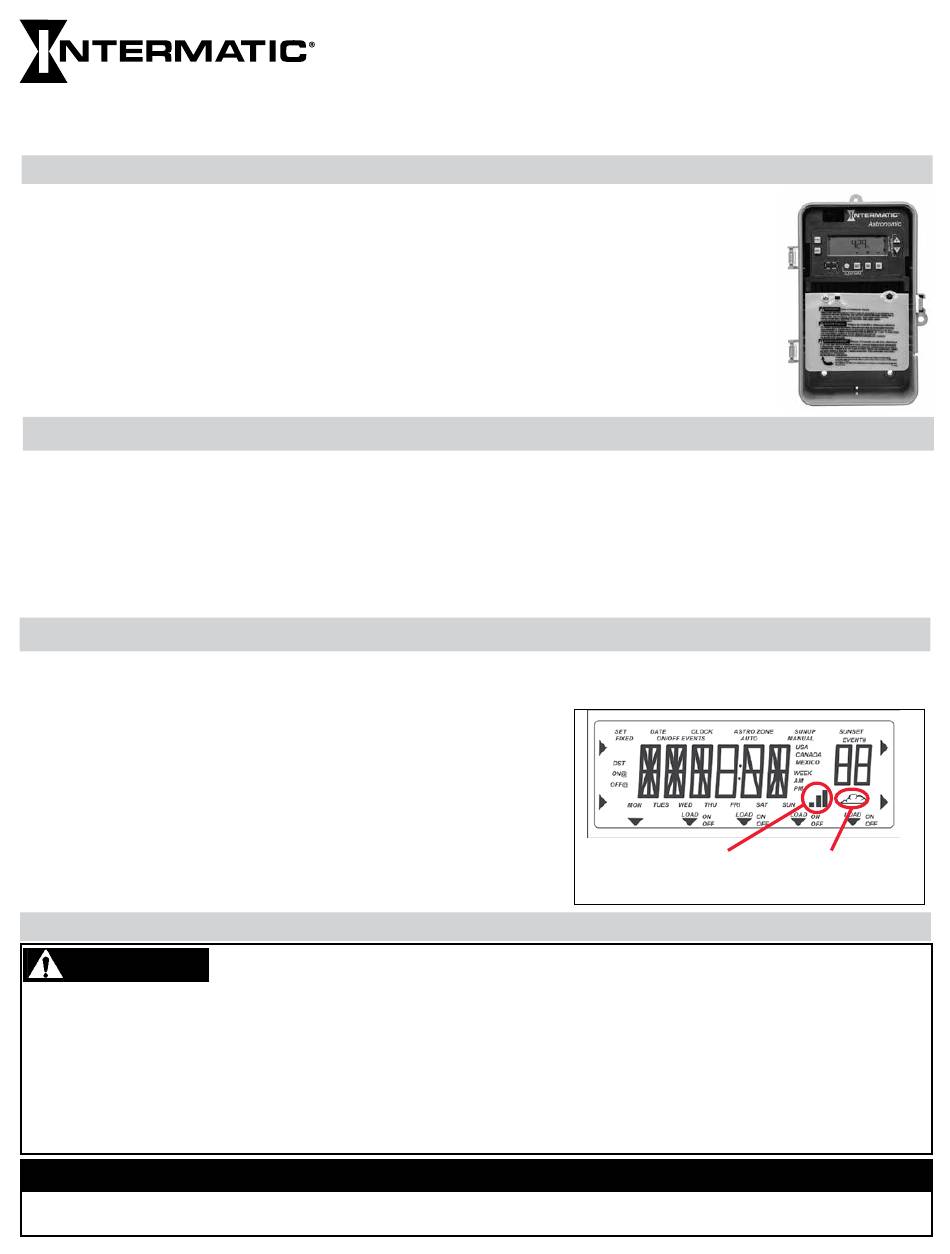

MODEL ET8215B
Installation and Setup Instructions
Description
This document explains the setup and configuration of the Intermatic ET8215B 2-Circuit Electronic Astronomic
7-Day Time Switch. The ET8215B time switch automatically switches loads to a preset weekly schedule. The time
switch can support up to 14 fixed ON and 14 fixed OFF events (28 total) and up to two Astro events. Each fixed
event can be applied to any combination of circuits and days.
The time switch features an LCD and panel-mounted control buttons to set, review, and monitor the time switch
functions, that include enabling or disabling Daylight Saving Time (DST) and configuring DST switchover dates.
Follow these instructions to complete the installation and programming for the ET8215B time switch.
Federal Communications Commission (FCC) Notice for ET8215 Time Switch
This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired opera-
tion. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and radiates radio frequency energy and, if not installed and used in accordance with instruc-
tions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference that requires the user to correct at his or her own expense.
Contains FCC ID: MIVCNN0301
Activating the Cellular Link in the ET8215B
The cellular link needs to be activated before it can be connected to the cellular network. The activation must be done before the device
can be installed. Please allow up to 72 hours for the activation to complete.
Follow this procedure to complete the activate the cellular link in the ET8215B.
1. Type the following linke: http://control.intermatic.com to access the Intermatic
Web Portal.
2. Go to the New Timer page.
3. Complete the required information and then select SAVE.
The activation process begins.
Installation
WARNING
• Disconnect all power before installing the time switch or connected loads.
• Follow local electrical and safety codes, National Electric Code (NEC) and Occupational Safety and Health Act Codes (OSHA).
• More than one disconnect or circuit breaker may need to be turned off to de-energize all conductors.
• If the power disconnect point is out of sight, lock it in the OFF position and tag it to prevent unexpected application of power.
• The time switch must be grounded.
• Do not exceed maximum current carrying capacity.
• Always replace the plastic insulator to its original position before powering the time switch.
• Make sure there is no wire insulation under the terminal plate on time switch connector. Firmly tighten terminal screws.
Do not touch the circuit board components. Contact with the circuit board components can create static discharge, which can
damage the microprocessor.
Risk of Fire or Electric Shock
Electronic Cellular 2 - Circuit
Astronomic 7-Day Time Switch
Cellular Network
Strength Indicator
NOTICE
With Supercapacitor Carryover
Indicates a Data
Session is Established
With Cellular Network
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intermatic ET8215B
Summary of Contents for Intermatic ET8215B
- Page 1 This document explains the setup and configuration of the Intermatic ET8215B 2-Circuit Electronic Astronomic 7-Day Time Switch. The ET8215B time switch automatically switches loads to a preset weekly schedule. The time switch can support up to 14 fixed ON and 14 fixed OFF events (28 total) and up to two Astro events. Each fixed event can be applied to any combination of circuits and days.
- Page 2 Follow these instructions to install the time switch. Tilt top forward Snap out catch 1. Open the time switch enclosure door. 2. Choose a knockout to remove from the enclosure. NOTE: There are five 1/2 inch to 3/4 inch combination knockouts available.
-
Page 3: Initial Setup
Initial Setup The following sections provide instructions for the initial setup of the time switch. Setting The Operational Mode The time switch operational modes enable users to control multiple loads simultaneously (SIM), independently (IND), or with a 2-second pulse (PUL). In PUL mode an ON event or manual override causes the first circuit to turn ON for two seconds, then OFF. An OFF event or manual override causes the second circuit to turn ON for two seconds, then OFF. - Page 4 Setting Astro Zone and Time Zone Mode The Astro Zone command enables users to set the geographical location (country, state or province, and section) of the time switch. Follow this procedure to set the Astro Zone for the time switch. 1.
- Page 5 5. Repeat steps 2 through 4 as needed to configure times for additional loads. 6. When all the loads are set, press MODE to save settings. The time switch displays SET SUNSET at the top of screen and LOAD 1. 7.
-
Page 6: Daily Operation
7. Press ENTER/NEXT to save. NOTE: If you are performing the procedure Setting Astronomic and Fixed Events, return to step 4 of that procedure. 8. Repeat steps 2 through 7 to set the fixed OFF event. After both fixed on and fixed off are set, go to step 9. 9. -
Page 7: Updating Firmware
6. Copy this file also onto the USB stick. 7. Remove the USB memory stick from the computer and then plug it into the USB port on the front panel of the ET8215B timer. 8. Press the reset button. The new software downloads for 3 to 4 seconds and then the ET8215B restarts. - Page 8 LIMITED ONE-YEAR WARRANTY If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This warranty is extended to the original purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use;...
