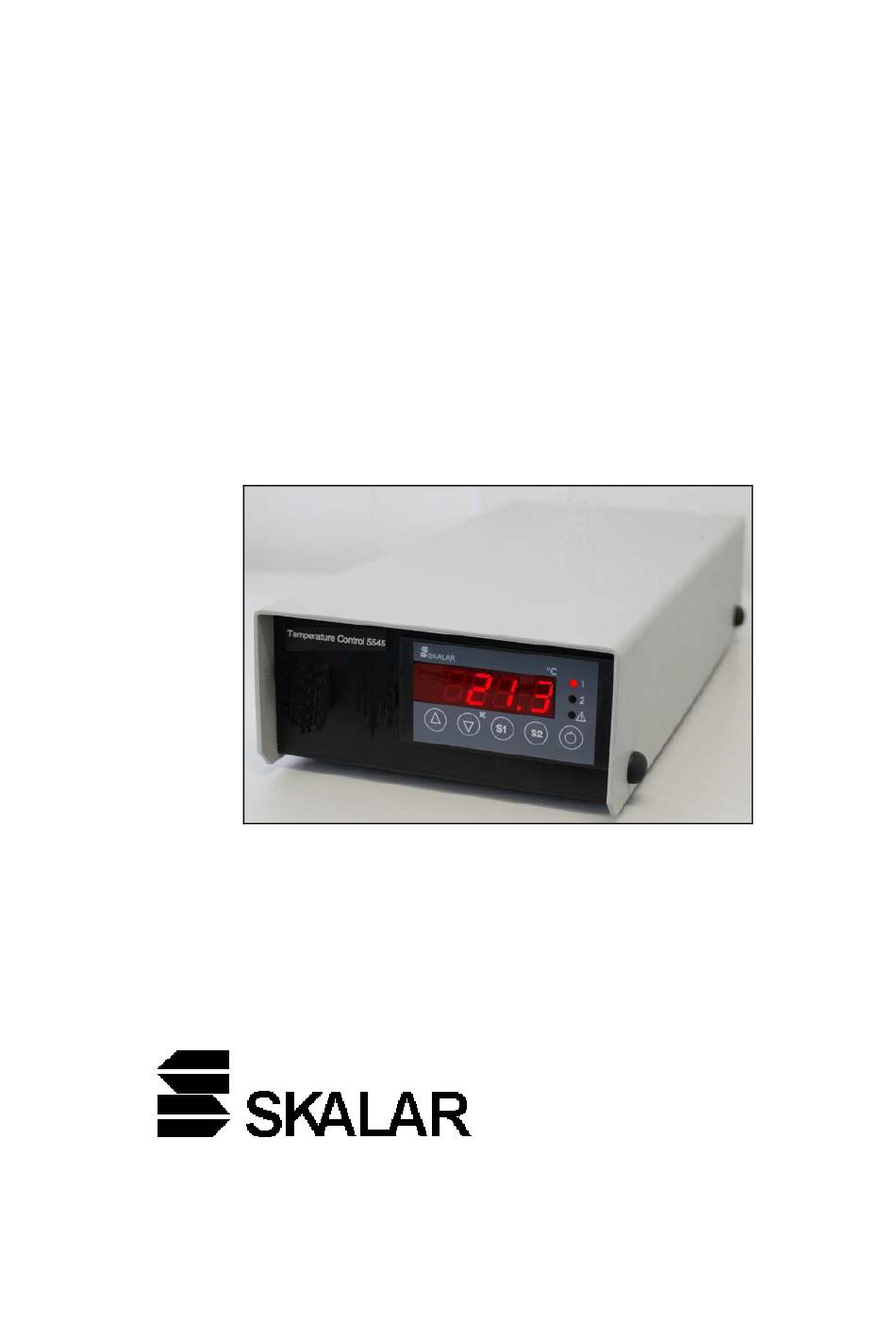

- Page 1 REACTOR CONTROL UNIT SA 5545 USER MANUAL...
- Page 3 Reactor Control Unit SA 5545 User Manual Power supply 220-240 Volt 100-120 Volt Publication no: 0101105A.US Issue date: October 2012 Copyright Skalar Analytical B.V. P.O Box 3237 4800 DE Breda The Netherlands Tel: +31 (0)76 5 486 486 Fax:...
-
Page 4: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..............1-1 Description of the instrument ........... 1-1 Operating principle ..............1-2 Safety precautions ..............1-3 WARRANTY REGISTRATION FORM ........1-5 CUSTOMER ACCEPTANCE FORM ........1-7 UNPACKING AND INSTALLATION ........2-1 Unpacking instructions ............2-1 Location .................. 2-1 Electrical requirements ............ -
Page 7: Introduction
Introduction INTRODUCTION The SA 5545 reactor control unit is an instrument with a high accuracy in temperature control, used for temperature control of one or two reactors. With its wide temperature range it can be used in a large field of chemical applications with different sizes of reactors with glass or metal coils. -
Page 8: Operating Principle
SA 5545 Reactor control unit Chapter 1 Introduction Operating principle The control unit is working according the P.I.D. principle. P.I.D. stands for: proportional integrated differentiation principle. The circuit operates by comparing the actual temperature in volts to a preset value of volts. When the temperature in the reactor is almost reaching the preset value, the heating element increases step by step the temperature to avoid overshoot. -
Page 9: Safety Precautions
The instrument must be disconnected from all electrical sources when a fuse is to be renewed. Skalar Analytical B.V. does not accept liability for any consequences caused by irresponsible use or irresponsible handling of the instrument, nor for the effects and consequences induced by its use. -
Page 11: Warranty Registration Form
Warranty is subject to the following exception(s): Glassware breakage. Consumable products, brokerage and transport costs for the replacement parts replaced under the warranty are to the client’s account. Skalar will not be responsible for malfunctioning of the instrument if third party components are used in the instrument. -
Page 13: Customer Acceptance Form
SA 5545 Reactor control unit Chapter 1 Introduction CUSTOMER ACCEPTANCE FORM Company name: Address: Post code/ZIP code: City: Country: Date: The undersigned authorized officer confirms that the performance of the instrument, as per the purchase order number as mentioned on the warranty registration form, is according to the specifications as submitted by the manufacturer. -
Page 15: Unpacking And Installation
SA 5545 Reactor control unit Chapter 2 Unpacking and installation UNPACKING AND INSTALLATION Unpacking instructions While unpacking do not discard any packing materials, till all parts have been unpacked and checked against the packing list to insure all items are accounted for. -
Page 16: Installation Instructions
Note: If only R2 is connected, the temperature settings must also be set for channel 2 on the controller at the front. Note: The internal settings of the controller are pre-set by Skalar and are not to be changed, except when the control unit is connected to a... -
Page 17: Operation
SA 5545 Reactor control unit Chapter 3 Operation OPERATION Start-up and shutdown Switch on the equipment of which the controller unit is a part. Switch on the control unit with the power switch on the net entry at the back of the unit. When the controller part of the unit is switched off, the display shows OFF. -
Page 18: Switching Off One Reactor
F2: Caused by short circuit or crack in sensor 2. Check if the cable of reactor 2 was properly connected to the required connector in the separation wall between compartment 1 and 2. EP: Lost of parameter settings. The control unit has to be sent to Skalar or your local representative for repair. -
Page 19: Technical Information
SA 5545 Reactor control unit Chapter 4 Technical information TECHNICAL INFORMATION General technical information Specifications Housing: Steel sheet Dimensions 70 x 150 x 315 mm (h x d x w) Weight: 1.9 kg Reactor control: Dual channel controller Power consumption: 320 VA max.
