Summary of Contents for SEIKAKU TECHNICAL GROUP VT-22P

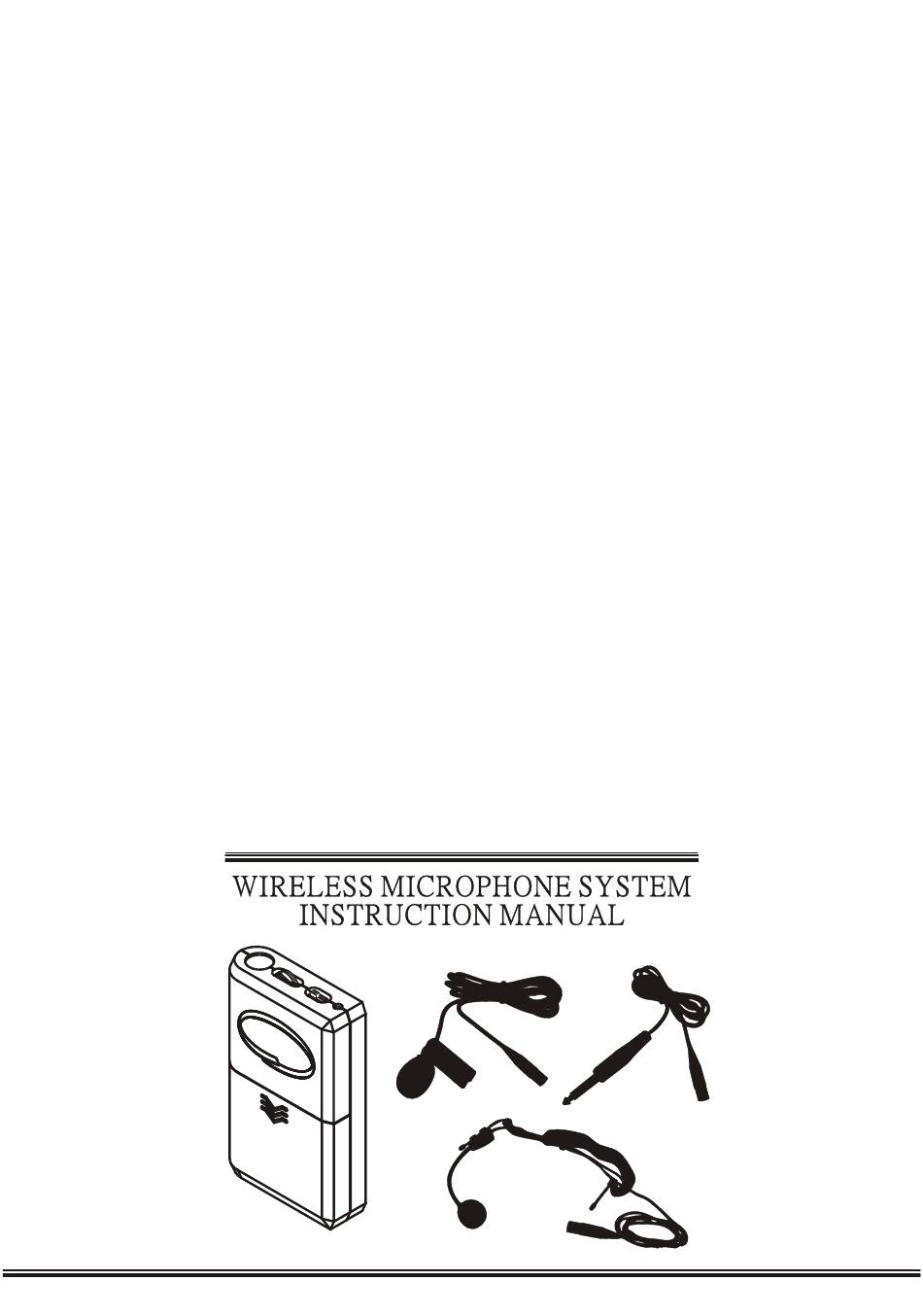

- Page 1 NF00738-1 VT-22P...
- Page 4 FEATURE: SMALL POCKBODY TYPE LIKE A POCKET SIZE. IT IS VERY EASY CARRYING, ANTENNA BUILT-INSIDE. SENS 1 2 3 INTRODUCTION CAUTION 1. BATTERY USE DC9V WE CONGRATULATE YOU FOR THE 2. DO NOT DROP THE MICROPHONE CHOICE OF THIS EXCELLENT PRO- BODY ON THE FLOOR.
- Page 5 DIAGRAM: LM-10/4B LS-16/4B HM-26/4B INSTRUCTION 2. INSTALL BATTERY: 1. AFTER OPERATION THE MICROPHONE MUST BE SWITCHED OFF AS WELL. PLS. MAKE SURE THE POSITIVE/NEGA OTHERWISE THE BATTERIES WILL TIVE BEFORE YOU REPLACEMENT SOON BE EXHAUSTED. BATTERIES. IN ORDER TO AVOID UNTUNEFUL CON- SUPMPTION OF THE INNER BATTERY: IF PILOT LAMP OF THE WIRELESS MICROPHONE (1)REMAINS LIGHTED,...
-
Page 6: Specifications
SPECIFICATIONS Modulation mode FM(F3E) 174MHz~216MHz Frequency band Receiving mode Quartz controlled fixed frequency RF output power 10mW < 20mA Current drain Battery life (alkali) More than 7~8 hours Battery 9V Alkaline Battery Tone frequency 32.768KHz 50Hz~15KHz Audio Frequency response 0.005%/25 Frequency stability 56.3KHz Maximum Deviation...
