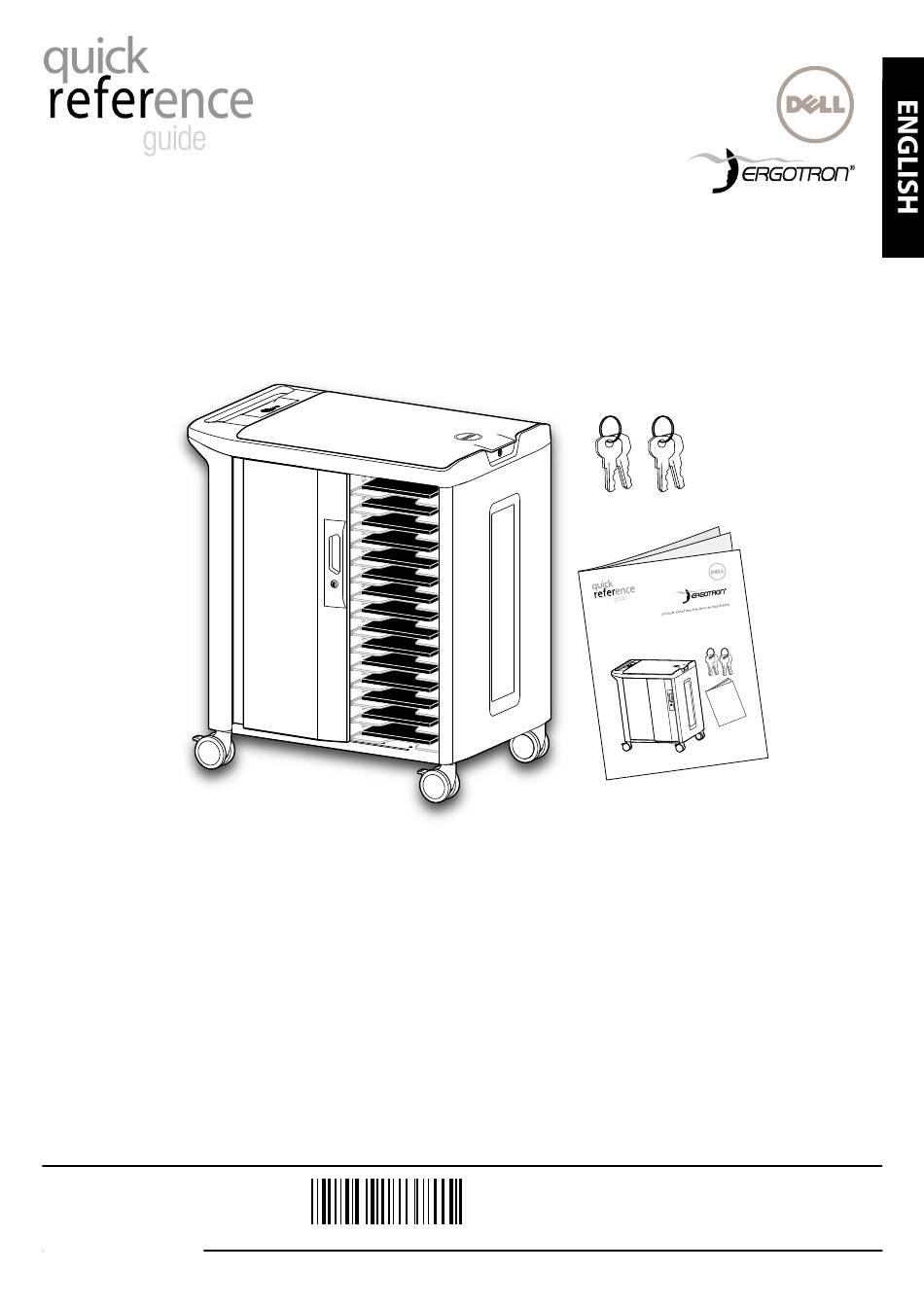

Dell Ergotron ERGITD-001 Quick Reference Manual

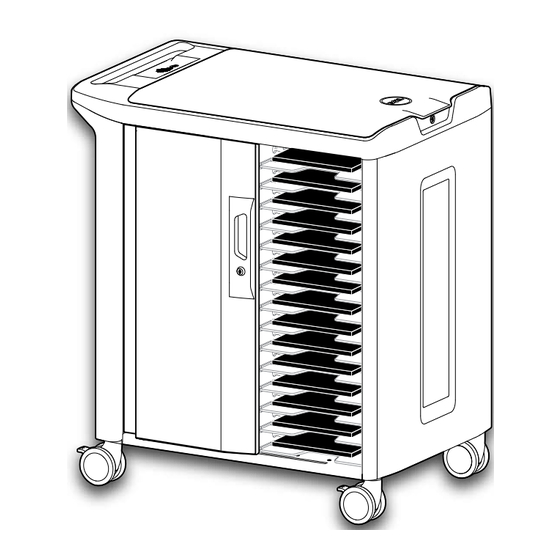

Mobile computing cart, managed and unmanaged-transports, secures, charges, and manages 30 notebooks, netbooks, ultrabooks, or tablets up to 14" in size.
Hide thumbs

Advertisement

Models:
ERGITD-001
ERGITD-002
March 2013
888-24-232-M-00 rev.A • 01/13
Dell Mobile Computing Cart
The Dell Mobile Computing Cart (MCC)–managed and
unmanaged–transports, secures, charges, and manages 30
Notebooks, Netbooks, Ultrabooks, or tablets up to 14" in size.
04N8GH
Custom Solution for Dell
For service, visit www.ergotron.com/Dell
or www.dell.com/support
by Ergotron
1 / 13

Advertisement

Table of Contents

   Related Manuals for Dell Ergotron ERGITD-001

No related manuals

   Summary of Contents for Dell Ergotron ERGITD-001

  • Page 1 Custom Solution for Dell ™ by Ergotron Dell Mobile Computing Cart The Dell Mobile Computing Cart (MCC)–managed and unmanaged–transports, secures, charges, and manages 30 Notebooks, Netbooks, Ultrabooks, or tablets up to 14" in size. Models: ERGITD-001 ERGITD-002 March 2013 For service, visit www.ergotron.com/Dell or www.dell.com/support...
  • Page 2 Dell Mobile Computing Cart Exterior Features Sliding Device Compartment Door Power Adapter Compartment Door Ergonomic Handle Auxiliary Outlets Cooling Fans (Managed Carts Only) Power Management Compartment Cord Wrap Bay Upper Compartment Locks Power/ Fault Status Indicators Casters 888-24-232-M-00 rev.A • 01/13...
  • Page 3 Device Shelves Device Outlets Adapter Shelves Optional Outlets (Managed Carts only) Optional Dell PowerConnect 3548 Ethernet Switch (Managed Carts only) NOTE: Refer to separate product guides for Mobile Devices and optional Dell PowerConnect™ 3548 Ethernet Switch. 888-24-232-M-00 rev.A • 01/13...
  • Page 4 Set-Up and Go Open the power adapter compartment. Place power adapters into adapter shelves. x 15 Route adapter connector into device compartment. 888-24-232-M-00 rev.A • 01/13 4 / 13...
  • Page 5 Plug-in adapters. Insert mobile devices and connect cables. Managed Carts only 888-24-232-M-00 rev.A • 01/13 5 / 13...
  • Page 6 Optional Step for Managed Carts only - Install wireless access point. CISCO NOTE: For Managed Carts, install optional, customer-supplied WAP using the provided Velcro. Verify cart operation Connect the MCC power cable to a dedicated circuit, (one that is not being shared with other mobile devices). Verify that the white light on the Power Indicator near the MCC top surface is lit.
  • Page 7 First-Time battery charge NOTE: Before using the mobile devices for the first time or after they have spent some time in storage, ensure that the mobile devices have a full (100%) charge. Prior to first-time use, allow the mobile devices to charge in the MCC for at least 2-3 hours before removing them for use. Monitoring mobile device power he Power/Fault Status Indicator lights near the MCC top surface communicate the following conditions: Power/Fault Status Indicator...
  • Page 8: Specifications

    CN-020D9K-14941-932-0123 entitlement. Service Tag: ABC1234 Rev X00 Specifications Power System 100/110/120V~, 12A 50/60Hz or 220/230/240V~, 8A 50/60Hz depending on region and model of Dell MCC MCC Physical Dimensions Height 1,060 mm (41.7-inches) Length 940.6 mm (37-inches) Width 640 mm (25.2-inches) Weight (without Mobile Devices) 92 kg (202.8 lb)
  • Page 9 • Do not unplug by pulling on the cable. • Do not use excessive force to make connections. • Use only Dell power adapters that come with Dell systems with this cart. • Do not plug the cable into an extension cable.
  • Page 10 Cleaning and Maintenance WARNING: Failure to observe the following safety notices may result in serious personal injury or equipment damage. Inspect for damage, dirt and debris on a regular basis. All paint and plastic components used in the Cart will withstand cleaning by most commonly used, diluted, non-abrasive solutions such as quaternary ammonia compounds, ammonia enzyme cleaners, bleach, or alcohol solutions.
  • Page 11 Safe Use Recommendations There are specific risks associated with the use of Cart when moving or stationary (for charging or storage). You must be aware of, and avoid these risks when the Cart is located in close proximity to children. WARNING: Failure to observe the following Cart Use Safety notices may result in serious personal injury or equipment damage.
  • Page 12 Dell products in a concentration важност, съдържащи се в изделия на Dell в концентрация над af stor bekymring, og som er indeholdt i Dell-produkter af en 在中国大陆销售的相应电子信息产品 (EIP) 都必须遵照中国大陆《电子信息产品污染控制标识要求》标准 0,1 % обемни процента (w/ w), може да се намери на адрес...
  • Page 13 Unión Europea (UE). La información sobre sustancias de high concern contained in Dell products in a concentration contiennent les produits Dell en concentration supérieure à 0,1 % alto riesgo contenidas en productos Dell en una concentración c . l superior al 0,1% peso por peso (p/p) se puede encontrar en www.dell.com/REACH...
