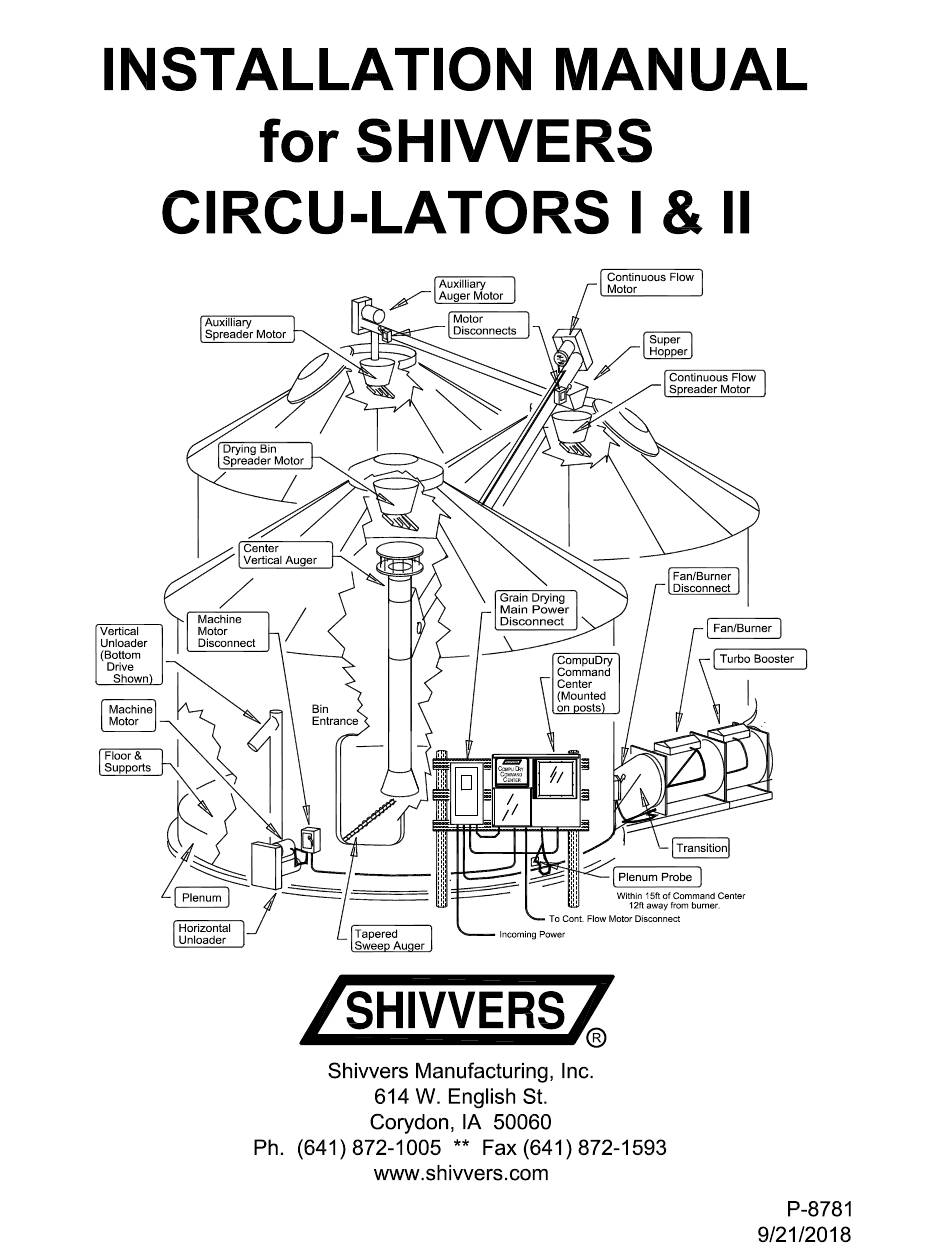

Summary of Contents for Shivvers Circu-Lators II
- Page 38 Before applying decals, make sure the mounting surfaces are clean (not oily) and dry. P-10811 - Field Installed. 1). ON MAIN POWER DISCONNECT SWITCH BOX Put it only on the disconnect that shuts power off to the complete drying system (every motor, fan, and burner). Don't put it on any other disconnect.
- Page 39 P-11035 - Field Installed. 1). OUTSIDE OF OUTER BIN DOOR ENTRANCE 2). OUTSIDE OF INNER BIN DOOR ENTRANCE 3). NEAR MANHOLE ENTRANCE...
- Page 40 P-10125 - Field Installed. 1). INSIDE OF OUTER BIN DOOR ENTRANCE ON ALL BINS 2). NEAR MANHOLE ENTRANCE ON ALL BINS...
- Page 41 Make sure a grain drying main disconnect box is installed and that this padlock works on it. If it doesn't, find one that will or contact Shivvers Manufacturing, Inc. for assistance. Leave the power locked off.
- Page 42 P-11158 - Field Installed. Write the operator’s name on the P-11158 decal. Cover the printing with the clear laminate, then apply the decal to the padlock. These locks can then be used to lock out power sources when working on the drying equipment. Keep the bin entrances locked when operating the equipment to prevent unauthorized access to potential dangers.
- Page 43 Circu-lator Installation Final Check Check that all joints are level and solid, without cracks, in the tapered sweep wheel track, and that the track is pop riveted, not screwed, down. Make certain the tapered sweep wheel(s) do not hit pop rivets in the track. ...
