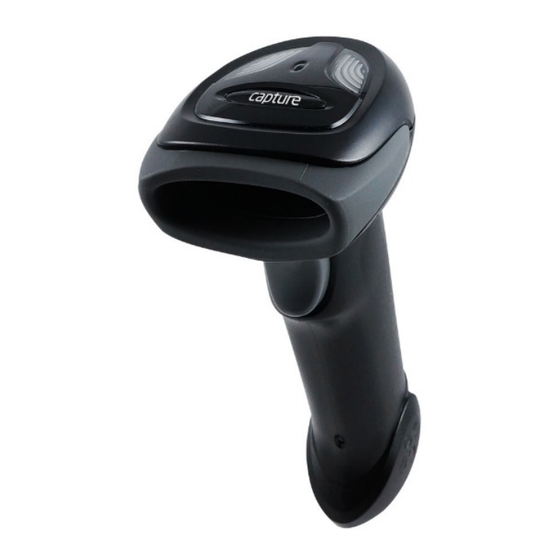

Capture CA-SC-20200B Quick Start Manual

2d barcode scanner

Hide thumbs Also See for CA-SC-20200B:

Quick start manual (16 pages)

Table Of Contents

2D BARCODE SCANNER

CA-SC-20200B

Quick Start Guide

Table of Contents

Need help?

Do you have a question about the CA-SC-20200B and is the answer not in the manual?

Questions and answers

Summary of Contents for Capture CA-SC-20200B

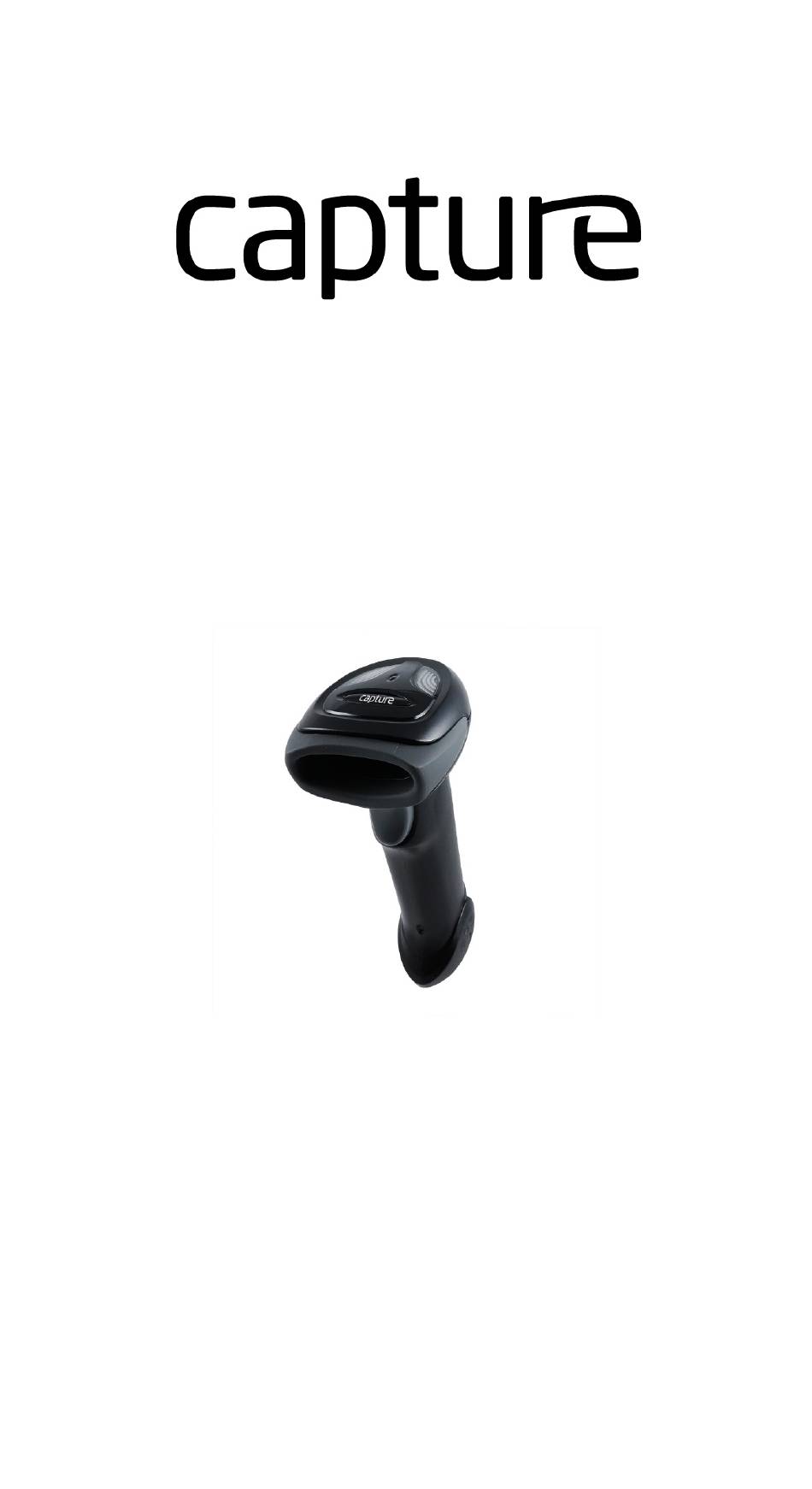

Page 1 2D BARCODE SCANNER CA-SC-20200B Quick Start Guide...
Page 2 Getting Familiar with Your Device Thank you for choosing Capture Bar Code Scanner. All Devices deliver world-class performance for a broad range of applications to unleash your productivity with ease. This document provides an easy reference for installation and operation purpose.
Page 3: Connecting To Your Host
Connecting to Your Host The devices support USB and RS-232 Serial interfaces. Please choose your desired interface cable, plug it into the scanner’s interface port and connect it to the desired port of your host. If you want to remove the cable, simply straighten one end of a paper clip, and insert it into the cable release hole to pull out the cable.
Page 4 Using SmartStand The optional CA-SS-1 SmartStand is specifically designed for hand-free applications to maximize user’s comfort and productivity. You can adjust the scanner holder to desired position for optimized scanning. Thanks to the advanced Auto-sense design, the scanner is capable of switching between presentation...
Page 5: Operation Modes
Operation Modes area imager Capture Area Imager supports various operation modes, including trigger, presentation, alternative, level, force, toggle, diagnostic, low power and multiple read modes. The details of each operation mode are listed below for reference. Trigger Mode When trigger mode is selected, the scanner goes into standby state after scanning the bar code.
Page 6 Alternative Mode When alternative mode is selected, the scanner keeps the light source on till the preset “light source on time” is up. After turning off the light source, you must press the trigger switch to turn on the light source again. After each good read, the timer counter of light source on time is reset.
Page 7 Force Mode When force mode is selected, the light source of the scanner is forced on for a continuing operation without having to press the trigger switch. This mode is convenient for high speed scanning. Toggle Mode When toggle mode is selected, you must press the trigger switch to turn on the scanner’s light source to start scanning.
Page 8 Diagnostic Mode When diagnostic mode is selected, the scanner’s light source is forced on without regard for other programmable parameters, such as reread delay, redundancy, and so on. Low Power Mode When low power mode is selected, the scanner goes into idle state after having scanned the bar code.
Page 9: Keyboard Layout
Keyboard Interface Quick Set - Record Suffix - None RETURN ◆ SPACE ENTER - Keyboard Layout - USA ◆ France Germany United Kingdom-UK Czech Republic Spain (Spanish) Denmark Nertherlands Italy Sweden/Finland Norway...
Page 10: Baud Rate
Serial Interface Quick Set - Record Suffix - None CR ◆ SPACE CRLF - Baud Rate – 115.2K BPS 4800 BPS 19.2K BPS 57.6K BPS 2400 BPS 9600 BPS ◆ 38.4 BPS 1200 BPS - Data Frame - 8, None, 1 ◆ 7, None, 2 8, None, 2 8, Odd, 1...
Page 11: System Commands
System Commands System Information Master Default PowerTool Host Link User Default Factory Default Save User Default Host Interface Quick Set RS232 Serial USB HID Turbo Mode ◆ USB HID Standard Mode USB Com Port Emulation...
Page 12: Option Codes
System Commands PROGRAM (Enter Programming Mode) (Exit Programming Mode) Option Codes FIN (Finish)
Page 13: Keyboard Interface Control
Keyboard Interface Control Command Parameter Selection Option Code Keyboard Layout USA ◆ Latin America France Italy Germany Netherlands United Kingdom-UK Denmark Canadian French Belgium Spain Switzerland-Germany Sweden/Finland Iceland Portugal Japan Norway Czech Record Suffix None ENTER RETURN ◆ User define character SPACE Preamble None ◆...
Page 14: Serial Interface Control
Serial Interface Control Command Parameter Selection Option Code STX/ETX Control Disable STX/ETX transmission ◆ Enable STX/ETX transmission Record Suffix None CR ◆ SPACE User define character CRLF Preamble None ◆ 1-15 characters [00-7F], [FIN] Postamble None ◆ 1-15 characters [00-7F], [FIN] Handshaking Protocol None ◆...
Page 15: Keyboard Function Code Table
Keyboard Function Code Table Ctrl Output No. ANSI ASCII Key Function Ctrl Output No. ANSI ASCII Key Function Ctrl + @ Ctrl + P RESERVED Ctrl + A Ctrl + Q CTRL (Left) Ctrl + B Ctrl + R ALT (Left) Ctrl + C Ctrl + S SHIFT...
