Summary of Contents for RSP Corporation RSP WALL

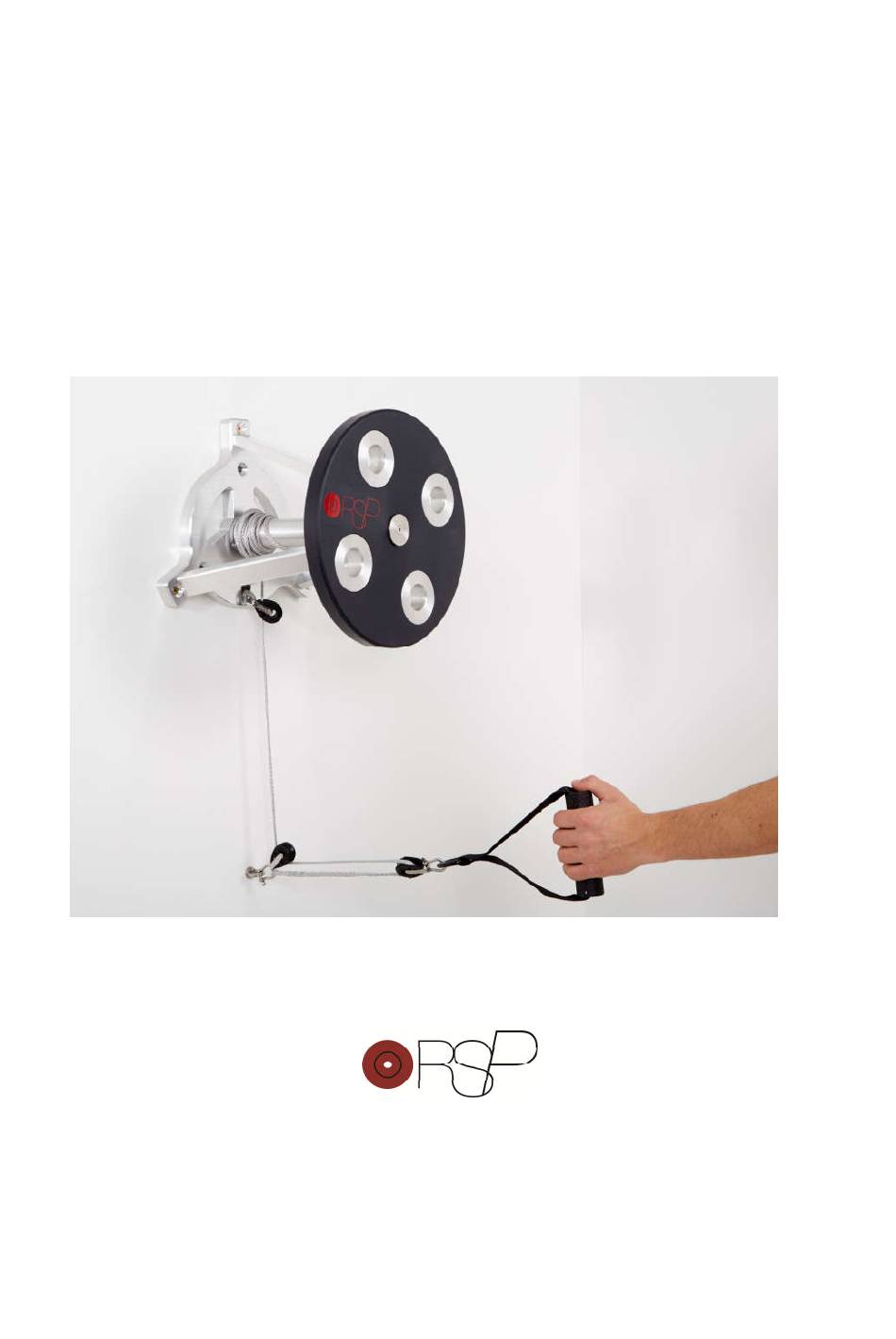

- Page 1 Installation and User Instructions RSP WALL MADE IN SPAIN Inercial Performance S.L. www.einercial.com...
-
Page 2: Table Of Contents
Table of Contents Introduction........................3 Components........................3 Installation........................4-6 Adding Weights to the Flywheel..................7 Technical Specifications....................8 Accessories….……......................8 Use.....…..……......................9 Maintenance.........................9 Warranty…..……….......................10... -
Page 3: Introduction
INTRODUCTION The objective of this machine is to be able to work the upper body training above high intensity, developed for the work of the large muscle groups, drives and combined cycles of push and pull. This machine has a large internal development looking for smooth the peak eccentric minimizing the risk of injury to articulate in the change of cycle. -
Page 4: Installation
INSTALATION Parts of the machine. masses screw flywheel chassis screw screw block ring wall outlet block handle... - Page 5 Place de Machine. 9,07 cm 185 cm 120 cm 5,53 cm The surface where the machine is placed must be installed on a stable and level base. Place the top of the machine to an approximate height of 185 cm from de floor. Block wall outlet stands at 120 cm from the floor.
- Page 6 Set the machine to the wall 8 mm Ø 10 mm Ø Make three holes in the wall to the height indicated, first insert the plugs and screw the three screws into the wall. Then drill a hole for the block wall outlet to the right height, place the big plug and the ringbolt.
-
Page 7: Adding Weights To The Flywheel
FLYWHEEL MASS The mass of the flywheel defines a large range of speed/force curves that can be varied MASS (Flywheel weight) CHANGE INSTRUCTIONS Push from the inside to the outside How to place the masses Place the mass right Press inward Until it is in line with the flywheel The RSP conic flywheel comes with four masses to modify the force/speed parameters. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Developed for the work of high intensity of the upper, tensions, traction. Axis of fixed radius, the speed differences only are provoked by the application of force of the subject. CAD-CAM Technology, numerical control manufactured machine. Made from aluminum. Rope without coefficient of elasticity, which reduces the losses of inertia. -
Page 9: Accessories
ACCESORIES Possibility to build portable aluminum structures with custom wheels. Kit of supplies of ropes and blocks.. Portability kit to attach the machine to goal structures, columns, gym bars… Spare parts: http://einercial.com/en/shop/ Rope always tense. Always work with the rope coiled in the axis to avoid to squash the bearings of the blocks. It's important to do the exercises with a suitable technique and must be supervised by a professional. -
Page 10: Warranty
WARRANTY 1. Inercial Performance, S.L. warrants to the purchaser that RSP conic is free of defects in materials and workmanship under normal use and maintenance, has a limited warranty of 2 years from the date of purchase, subject to the terms and conditions that marks the Spanish law, after 6 months of this period the costumer will have to prove that the fault exists since the origin of the purchase 2. - Page 11 RSP CONIC is manufactured in Spain. www.einercial.com Inercial Performance S.L. Avd. Val Miñor, 46 1ºC 36350 Nigrán (Pontevedra) Telf + 34 659910685 Spain...
