Pyxis SP-710B Operation Manual

Water multimeter
Hide thumbs Also See for SP-710B:
Table of Contents

Advertisement

Quick Links

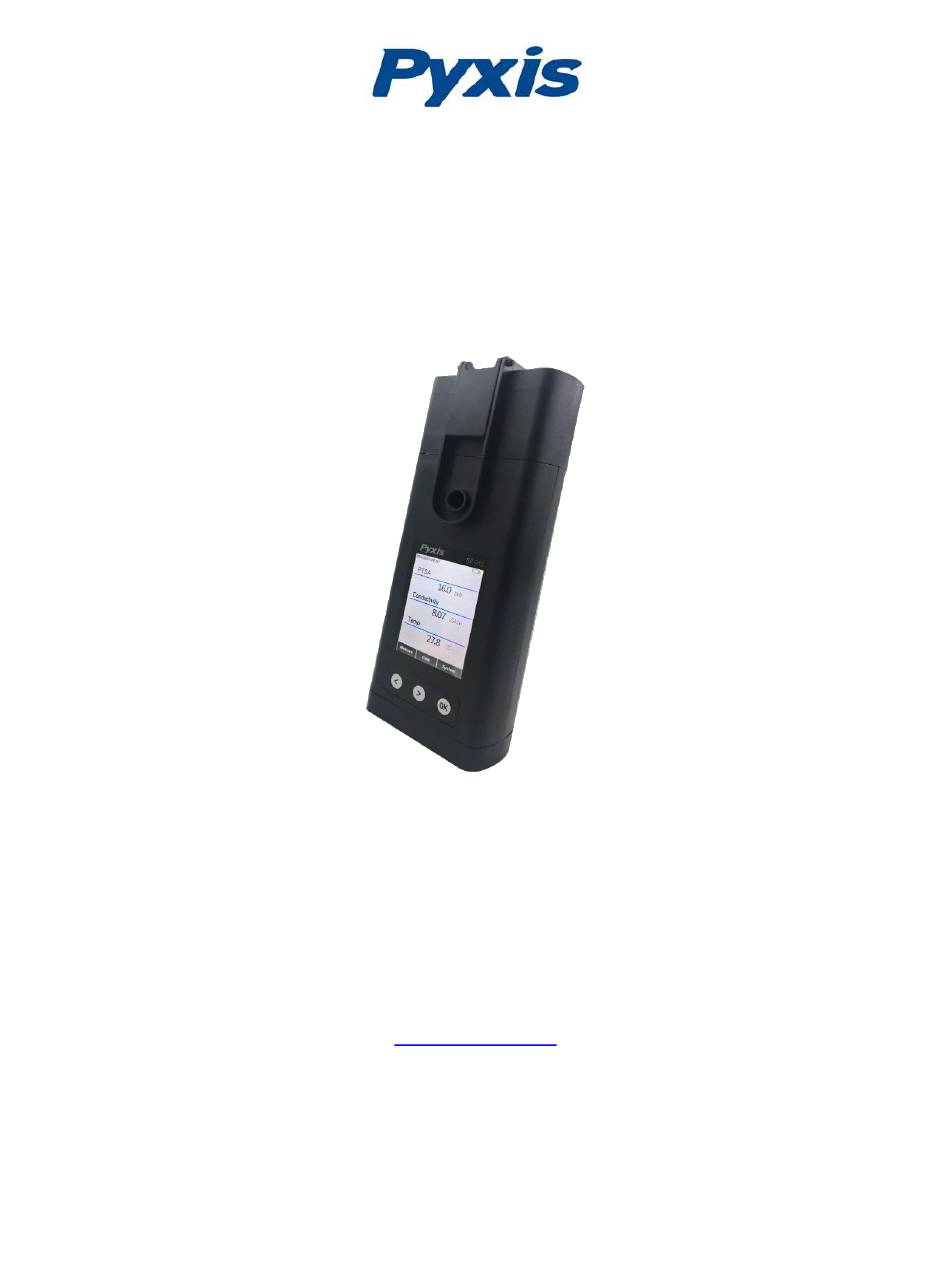

SP-710B Water Multimeter
Operation Manual
Jan. 23, 2019
Rev. A
US Patent: 9612221
Pyxis Lab, Inc.
1729 Majestic Dr. Suite 5
Lafayette, CO 80026 USA
www.pyxis-lab.com
© 2017 Pyxis Lab, Inc.
Pyxis Lab Proprietary and Confidential

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-710B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pyxis SP-710B

Summary of Contents for Pyxis SP-710B

  • Page 1 SP-710B Water Multimeter Operation Manual Jan. 23, 2019 Rev. A US Patent: 9612221 Pyxis Lab, Inc. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com © 2017 Pyxis Lab, Inc. Pyxis Lab Proprietary and Confidential...
  • Page 2 Module Warranty Term The Pyxis warranty term for the pH/ORP module is six (6) months ex-works. This is a consumable module to SP-710 and SP-710B and will require scheduled replacements. Pyxis Lab recommends replacement of this module on a basis of every 9-12 months for preventative maintenance.

  • Page 3: Table Of Contents

    Device Information and Diagnosis ..................... 24 Device Maintenance ......................... 25 Replacing the pH/ORP module (Part #50313)................25 Module Replacement ........................25 Bluetooth Pairing Your pH/ORP Module to SP-710B ..............27 10 Bluetooth Connection of SP-710B to Devices ................27 Pyxis SP-710B Multimeter Operation Manual...
  • Page 4 11 Calibrate ST-500 with SP-710B ....................28 12 REGULATORY APPROVAL ......................30 13 Appendix. Cleaning Kit ......................31 Pyxis SP-710B Multimeter Operation Manual...

  • Page 5: Introducing The Pyxis Sp-710B Multimeter

    1 Introducing the Pyxis SP-710B Multimeter The Pyxis SP-710B is a handheld multimeter that measures five key parameters. It is a cuvette- less device. Less than 5 ml water sample is needed to fill the two sample cells for the measurement.

  • Page 6: Specifications

    Verify that all items listed on the packing slip are included. If any items are missing or damaged, please contact Pyxis Customer Service at service@pyxis-lab.com. During shipping and storage after production, a sponge wetted with the KCl based pH storage solution is placed in the pH/ORP cell.

  • Page 7: Optional Accessories

    The full instrument manual is available for download at www.pyxis-lab.com/support.html 1.5 Optional Accessories The following optional accessories can be ordered from Pyxis Customer Service, order@pyxis-lab.com or Pyxis EStore at www.pyxis-lab.com/shop Accessory Item number Replacement pH/ORP Module - Bluetooth 50315 Carrying Case for SP-710B MA-700 100 ppb PTSA + 1000 S/cm (KCl) combined standard...

  • Page 8: Using The Pyxis Sp-710B

    2 Using the Pyxis SP-710B 2.1 Battery Installation The main module of the SP-710B is powered by four AA alkaline batteries. Typical battery life is 10,000 measurements, or 10 months. When the battery capacity is critically low, the SP-710B displays a LOW BATTERY warning for five seconds, and then automatically turns off.

  • Page 9: Turning The Sp-710B On And Off

    2.2 Turning the SP-710B ON and OFF To turn on the SP-710B: Press the OK key momentarily and release. To turn off the SP-710B: Press and hold the OK key for three seconds. Release the OK key when the LCD display turns off.

  • Page 10: Using The Sp-710B Control Keys

    2.4 Using the SP-710B Control Keys The SP-710B has three control keys, as shown in Figure 3. The left ( < ), right ( > ), and OK keys are used to launch actions indicated on the LCD screen directly above the keys. Note that the LCD screen is not a touch-enabled device;...

  • Page 11: Fluorescein Measurement

    SP-710B had been equilibrated (stored). The values will be displayed in white with a blue background if a stable value is reached (Figure 3). For a sample with conductivity in the range of 100 to 6000 S/cm, the measured value should be stabilized in the range of 98–102 to 5940–6060 S/cm, respectively.
  • Page 12 In this case, please fill the module cell with a pH storage solution to wet the electrode for 30 minutes before use. If these solutions are not available, please use the sample water to hydrate the electrode for 30 minutes. Pyxis SP-710B Multimeter Operation Manual...

  • Page 13: Temperature Measurement

    Ag/AgCl reference electrode. Potassium chloride (KCl) electrolyte filling gel is sealed in the Ag/AgCl electrode. The amount of reference electrolyte in the SP-710B is significantly larger than that used in a common laboratory pH electrode. This reduces the chance of the filling solution being diluted or contaminated and increases the electrode life.

  • Page 14: Orp Measurement Principle

    If the ORP value of the standard is referenced to the standard hydrogen electrode (SHE), the ORP value reported by the SP-710B is SHE-based, i.e., in the unit of Eh. If the ORP value of the standard is referenced to the Ag/AgCl (3M KCl) electrode, the ORP value reported by the SP-710B is referenced to the same, commonly noted as (Ag/AgCl, 3M KCl).

  • Page 15: Ptsa Standalone Calibration (2 Point With Zero)

    Note: In an emergency, “non-PTSA” water, such as city water, can be used. 2. Power the SP-710B on by pressing the OK key. Allow 5-10 seconds for meter to stabilize. 3. A screen like Figure 11 appears. The unit is actively reading and displaying both PTSA and Conductivity.
  • Page 16 Cond (conductivity) calibration. Press OK to start the calibration procedure. The default conductivity calibration screen is the Combined Calibration (Figure 16). This will calibrate both Conductivity (at 1000 µS) and PTSA (at 100 ppb) when using the Pyxis PTSA- 1010C combined standard.

  • Page 17: Standard Conductivity Calibration (500, 1000, 2500, Or 5000 Μs)

    3. Press Calib (the > key) to launch the calibration selection screen (Figure 12). Press Calib again to select Cond (conductivity) calibration. Press OK to start the calibration procedure. A screen like Figure 16 appears. This is the default combined Calibration mode, which requires the Pyxis combined standard.

  • Page 18: User-Defined Conductivity Calibration Procedure

    3. Press Calib (the > key) to launch the calibration selection screen (Figure 12). Press Calib again to select Cond (conductivity) calibration. Press OK to start the calibration procedure. A screen like Figure 16 appears. This is the default combined Calibration mode, which requires the Pyxis combined standard.

  • Page 19: Ph And Orp Calibrations

    Figure Figure 5 pH and ORP Calibrations The commonly used pH 4.00, 7.00, and 10.00 buffer standards can be used to calibrate the SP-710B pH measurement. Unlike the pH calibration, ORP calibration procedure and the calibration standards are not standardized by the industry or government institutions. We recommend that you use Zobell’s ORP standards (or Pyxis ORP-220) to calibrate the SP-710B and pay attention to the reference electrode on which the ORP value is referenced.

  • Page 20: One-Point Calibration

    When the one-point pH 7 calibration is complete, press Exit to exit, or continue to the pH 4 or pH 10 calibration. If a second buffer is added into the cell, the SP-710B automatically determines the buffer pH and displays the determined buffer pH value for confirmation.

  • Page 21: Orp Calibration

    Press + or – to select an ORP value to match your ORP standard. Press Calib to complete the calibration. Figure 29 The ORP scale of the SP-710B depends on the ORP scale of the calibration standard. For example, if the value of 220 mV for the common Zobell’s standard at 25 C is entered in the above calibration, the ORP value reported by the SP-710B after calibration is referenced to the Ag/AgCl(3M KCl) scale.

  • Page 22: Fluorescein Calibration

    1. Rinse sample cell with DI water, and then fill the sample cell with DI water. 2. Power the SP-710B on by pressing OK. Allow 5-10 seconds for meter to stabilize. 3. Press Measure (the < key) until Fluorescein is hightlighted in the measurement selection menu.
  • Page 23 Figure 32, and the message Calibration Succeed will appear. 19. Press Exit to return to the main screen. Figure 25. Select fluorescein Figure 26 Figure 27 calibration Figure 28 Figure 30 Figure 29 Pyxis SP-710B Multimeter Operation Manual...

  • Page 24: Device Information And Diagnosis

    Press the key labeled Diagnosis to switch to the Diagnosis screen where raw measurement data are displayed (Figure 33). (The information has no use for normal operation.) Provide an image of both the device information screen and the diagnosis screen when you contact Pyxis ) for troubleshooting your device or call 1-866-203-8397.

  • Page 25: Device Maintenance

    9 Replacing the pH/ORP module (Part #50313) 9.1 Module Replacement The pH/ORP module in the SP-710B can be replaced when the original module reaches the end of its working life. Pyxis offers a 6-month warranty on the pH/ORP module. Pyxis recommends replacing the module at a frequency of every 9-12 months as a best practice.
  • Page 26 Figure 34. pH/ORP module (Part #51303) replacement Pyxis SP-710B Multimeter Operation Manual...

  • Page 27: Bluetooth Pairing Your Ph/Orp Module To Sp-710B

    10 Bluetooth Connection of SP-710B to Devices The Pyxis SP-710B can be connected to a smart phone or a computer via the built-in Bluetooth Low Energy Connection (BTLE). The uPyxis© app for smartphone is available for free download to both Apple and Samsung devices per QR codes below.

  • Page 28: Calibrate St-500 With Sp-710B

    11 Calibrate ST-500 with SP-710B The SP-710B can be used to verify the result of inline Pyxis ST-500 and other probes by measuring the sample water taken from the inline probe sample line. The SP-710B can then be used to calibrate the inline probes over the Bluetooth connection.
  • Page 29 ST-500 to approach the calibrated reading, and the three verifying readings may not be the same as the value measured by the SP-710B (as demonstrated in Figure 44). Press Read again to take more readings from the ST-500 if necessary.

  • Page 30: Pyxis Sp-710B Multimeter Operation Manual

    12 REGULATORY APPROVAL United States The SP-710B sensor has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 31: Appendix. Cleaning Kit

    13 Appendix. Cleaning Kit Pyxis SP-710B Multimeter Operation Manual...
