If a lamp is to be switched ON when a key or key combination has been activated on the Switch-Control,
event E=4 may be applied. The programming is as follows:
LNCV 1L = 1 S Z 4
Hint: For lamp or key 10, you must enter a "0."
Examples:
Lamp number 2 will be switched ON when the feedback module with address 1055 reports "occupied":
LNCV 12 = 10553
Lamp number 9 will be switched ON when input key number 7 of the Switch-Control is activated:
LNCV 19 = 1774
5.5 Lamp Outputs OFF – LNCV 20-29
The LNCVs 20-29 are used to program the events that will switch OFF lamp outputs 1 to 10. Each output
of the Switch-Control can be individually programmed to react to one of five different events.
For events 0-3, programming is as follows:
LNCV 2L = AAAA E
Hint: For lamp output 10, you must enter a "0." Leading nulls of the address entry will not be shown.
Description of the Events:
E=0: Lamp output OFF when the magnetic accessory is in position "red."
E=1: Lamp output OFF when the magnetic accessory is in position "green."
E=2: Lamp output OFF when the feedback module reports "free."
E=3: Lamp output OFF when the feedback module reports "occupied."
If a lamp is to be switched OFF when a key or key combination has been activated on the Switch-Control,
event E=4 may be applied. The programming is as follows:
LNCV 2L = 1 S Z 4
Hint: For lamp or key 10, you must enter a "0."

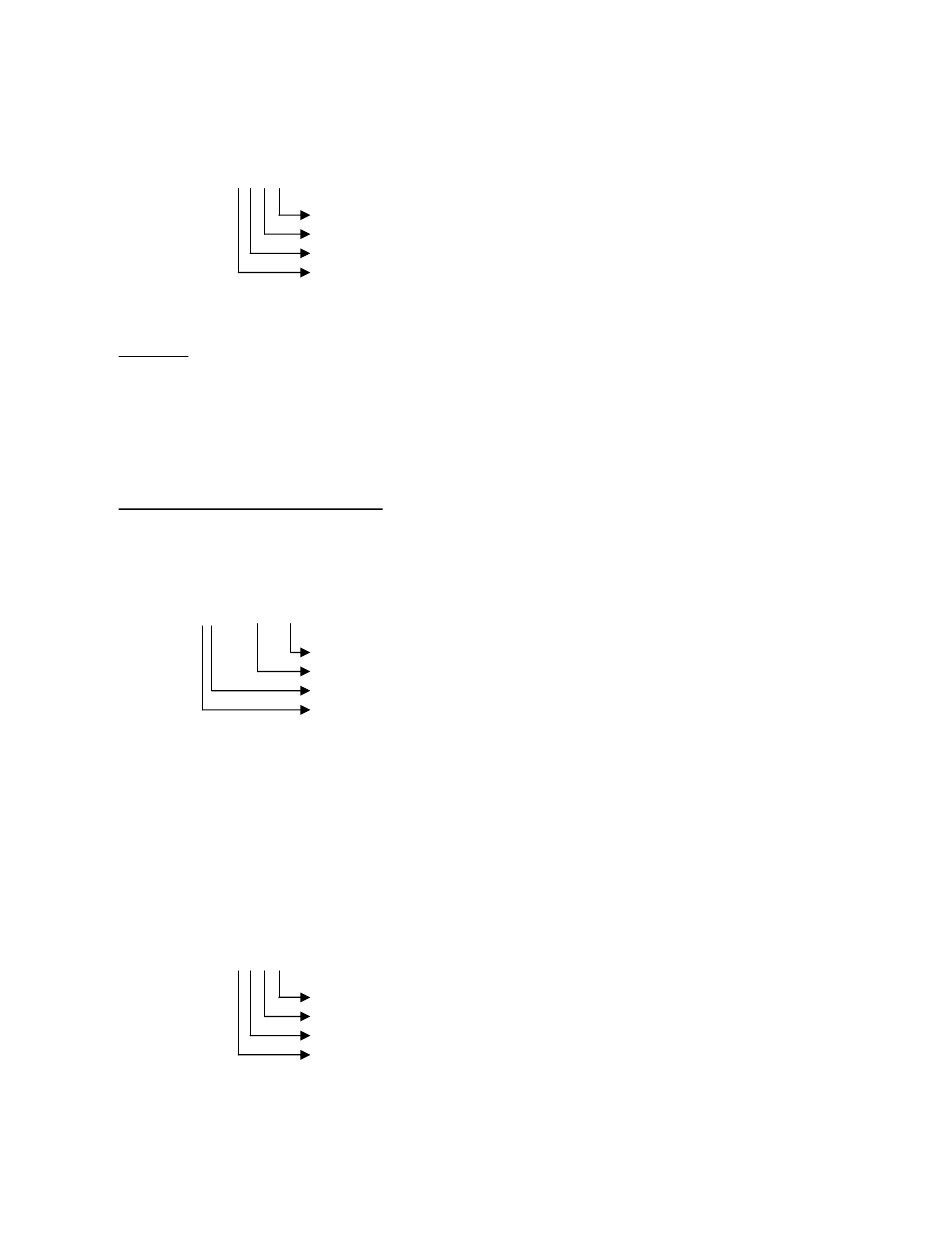

Event 4
End key 1-10
Start key 1-10
Must be set to 1
Event 0-3
Address value 1-2048
Lamp output 1-10
2 = Lamp OFF
Event 4
End key 1-10
Start key 1-10
Must be set to 1
Page 7
User Manual: Switch-Control 63400
