Summary of Contents for VAIO VAIO_7

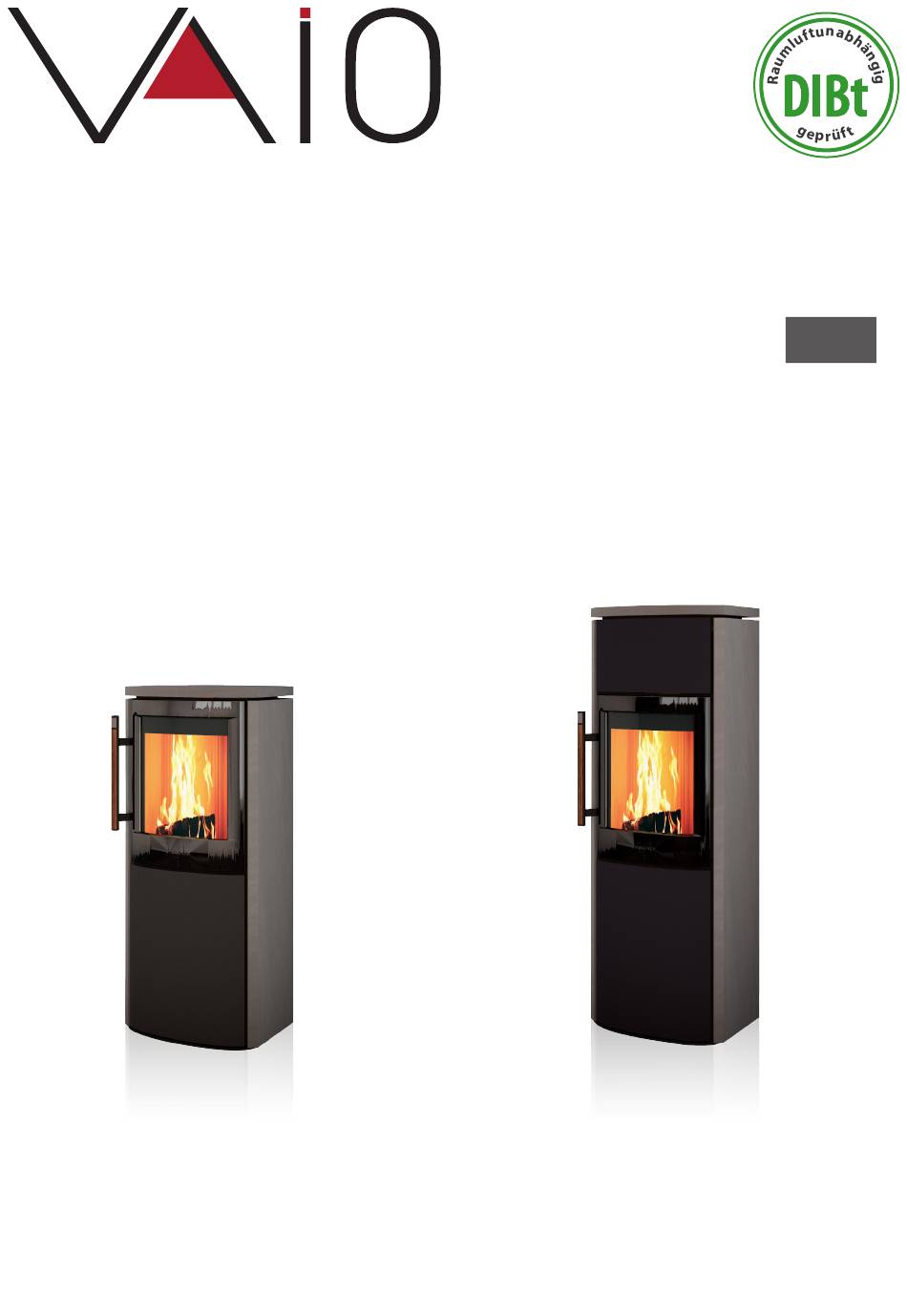

- Page 1 THE NEW VARIETY OF FIRE Operating and installation instructions Dated: March 2019 VAIO_7 VAIO_8...
-
Page 2: Table Of Contents
Natural stone is a natural product In choosing your fireplace, you have opted for a one-of-a-kind product. Your VAIO product is one-of-a- kind because it is clad with natural stone. -
Page 3: General Information
The general warranty conditions apply within the European Union. The warranty period and scope of war- ranty are provided within the framework of these conditions in addition to the statutory warranty peri- od which remains unaffected. CB stone-tec provides a two-year warranty for the basic body of the VAIO wood-burning stove. - Page 4 Prerequisite for effectiveness of the warranty The warranty period starts from the date of delivery to the VAIO dealer. Proof of this must be provided by the certificate or invoice with the VAIO dealer’s proof of delivery. The product’s warranty certificate must be submitted by the claimant to validate the claim.
- Page 5 Your specialist dealer/contracting party will gladly offer you advice and support about these warranty condi- tions and promise of warranty. It is strongly recommended to have your chimney system and wood-burning stove regularly inspected by a stove fitter. VAIO Operating and installation instructions...
-
Page 6: Drawings
VAIO Operating and installation instructions... - Page 7 VAIO Operating and installation instructions...
- Page 8 VAIO Operating and installation instructions...
- Page 9 VAIO Operating and installation instructions...
-
Page 10: Installation Manual
Balanced flue operation The VAIO_7 and VAIO_8 models feed a controlled supply of external air into the stove for combustion pur- poses, and have been specially designed for well-insulated living spaces. The combustion air must be fed into the device from outside via a sealed duct or an air-exhaust chimney system. - Page 11 Distance to flammable material Do not place your VAIO wood-burning stove on a non-flammable base. If the wood-burning stove is instal- led on a wooden floor or similar, (in Germany) the floor must be covered with a non-flammable material, measuring 50 cm in front, and 30 cm on both sides, of the wood-burning stove (facing towards the stove).
-
Page 12: Installing Individual Parts
5. Wall rose. Conceals repairs in the masonry box area. 6. Connecting point. Seal with sealing strip. 7. VAIO wood-burning stove flues. 8. Cover plate on the external rear wall: Removed in the case of a rear smoke outlet. 9. Bolted cover: Bolted on the top cover plate for a rear smoke outlet. - Page 13 Flue gas temperature – measuring point in accordance with EN 13240 260ºC Flue gas temperature – measured in the flue outlet 312ºC Flue gas mass flow 4,1 g/s Efficiency Test results as per NS 3058 Particle emission 2,16 g/kg VAIO Operating and installation instructions...
-
Page 14: Detailed Installation Instructions
If using luggage carts as a transport aid, only ever pick up the heating technology from the back, never ƒ from the door side. Only transport the heating technology with the fire compartment door closed. ƒ VAIO Operating and installation instructions... - Page 15 Mounting the adjustable feet Now push the gasket over the screw from above. You can then adjust the individual adjustable feet with the aid of an Allen key. VAIO Operating and installation instructions...
- Page 16 The handle can now be fastened to the fire compartment door using the raised head screws supplied. * Note: Top inlays made of natural stone are already attached to the door handle in the factory. VAIO Operating and installation instructions...
- Page 17 Mounting the left side section Carefully lift the left side section onto the wood-burning stove. Make sure that the element is parallel to the stove. * Note: The part with the surface treatment should always point forwards. VAIO Operating and installation instructions...
- Page 18 Note: - If the side section wobbles after being mounted or there is a gap, mount it again and screw the coun- tersunk head screws further in. - If the side section is too heavy or cannot be lowered down into the keyholes, mount it again and slightly unscrew the countersunk head screws. VAIO Operating and installation instructions...
- Page 19 Now carefully place the top plate onto the silicon points. Attention: The holes on the bot- tom of the top plate indicate the front of the top plate (see point Assembled natural stone casing This completes the installation. VAIO Operating and installation instructions...
-
Page 20: Heating Instructions - Wood
On the subject fire safety Approved fuels VAIO-wood-burning stoves are EN approved in accordance with standard regulations for burning wood only. We recommend using dried wood with a maximum residual moisture content of 18%. If wood with a higher moisture content is used, this can result in the accumulation of soot, harmful emissions and inefficient fuel economy. - Page 21 Do not open the ash pan during the heating phase. It should always remain closed when the stove is in operation as otherwise the automatic controller for the flow of air could become damaged. Only open the door when lighting the stove, adding more wood and cleaning the stove. VAIO Operating and installation instructions...
-
Page 22: General Information About Lighting The Stove
After heating up the stove, make sure that the flames are kept alive in the wood. If this is not the case, the air supply has been reduced too far and you must turn the handle to the right (clockwise), to increase the supply of air. VAIO Operating and installation instructions... - Page 23 Briquettes emit a great deal of heat. Certain types expand greatly which can lead to uncontrollable burning. The wood-burning stove is only approved for igniting with EN 13240 wood. Never burn chipboard, pain- ted, varnished or waterproof timber, plastic or rubber. VAIO Operating and installation instructions...
-
Page 24: Maintenance
When the temperature increases or drops, it should not move more slowly. The sliders should be dry and clean and should slide easily into each other. The control rods and sliders may be lubricated with WD40 (never use oil). VAIO Operating and installation instructions... -
Page 25: Operational Disruptions
In the event of operational disruptions that you are not able to resolve yourself, please contact the place of purchase. 11. Declaration of performance Download the declaration of performance from our website via the following links: www.vaio-fire.com VAIO Operating and installation instructions... -
Page 26: Commissioning Certificate
Ä Attention: Keep in a safe place. Store the instructions together with their valid and clearly dated proof of purchase, and keep the documents ready for our installers in the event of any servicing work. VAIO Operating and installation instructions... -
Page 27: Product Data Sheets In Accordance With Regulation Eu 2015/1186
VAIO_7 VAIO_8 -80% -60% -40% -20% ENERGIA · ЕНЕРГИЯ · ΕΝΕΡΓΕΙΑ · ENERGIJA · ENERGY · ENERGIE · ENERGI ENERGIA · ЕНЕРГИЯ · ΕΝΕΡΓΕΙΑ · ENERGIJA · ENERGY · ENERGIE · ENERGI 2015/1186 2015/1186 VAIO Operating and installation instructions... - Page 28 We wish you a lot of fun and cozy hours with yours VAIO stove. CB stone-tec GmbH Behaimweg 2 DE-87781 Ungerhausen www.vaio-fire.com Dated: March 2019...
