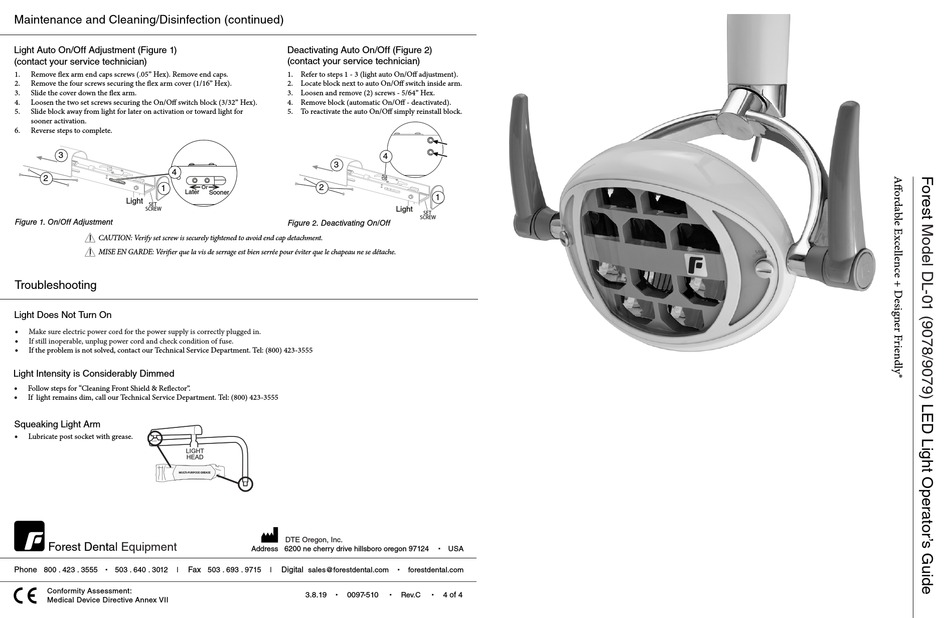

Forest DL-01 Operator's Manual

Maintenance and Cleaning/Disinfection (continued)
Light Auto On/Off Adjustment (Figure 1)
(contact your service technician)
1. Remove flex arm end caps screws (.05" Hex). Remove end caps.
2. Remove the four screws securing the flex arm cover (1/16" Hex).
3. Slide the cover down the flex arm.
4. Loosen the two set screws securing the On/Off switch block (3/32" Hex).
5. Slide block away from light for later on activation or toward light for
sooner activation.
6. Reverse steps to complete.
3
4
2
1
Later
Light
SET
SCREW
Figure 1. On/Off Adjustment
CAUTION: Verify set screw is securely tightened to avoid end cap detachment.
MISE EN GARDE: Vérifier que la vis de serrage est bien serrée pour éviter que le chapeau ne se détache.

Troubleshooting

Light Does Not Turn On
•
Make sure electric power cord for the power supply is correctly plugged in.
•
If still inoperable, unplug power cord and check condition of fuse.
•
If the problem is not solved, contact our Technical Service Department. Tel: (800) 423-3555
Light Intensity is Considerably Dimmed
•
Follow steps for "Cleaning Front Shield & Reflector".
•
If light remains dim, call our Technical Service Department. Tel: (800) 423-3555
Squeaking Light Arm
•
Lubricate post socket with grease.
MULTI-PURPOSE GREASE
Forest Dental Equipment
Phone 800 . 423 . 3555  503 . 640 . 3012 | Fax 503 . 693 . 9715
Conformity Assessment:
Medical Device Directive Annex VII
Deactivating Auto On/Off (Figure 2)
(contact your service technician)
1. Refer to steps 1 - 3 (light auto On/Off adjustment).
2. Locate block next to auto On/Off switch inside arm.
3. Loosen and remove (2) screws - 5/64" Hex.
4. Remove block (automatic On/Off - deactivated).
5. To reactivate the auto On/Off simply reinstall block.
3
2
Or
Sooner
Figure 2. Deactivating On/Off
DTE Oregon, Inc.
Address 6200 ne cherry drive hillsboro oregon 97124
| Digital sales@forestdental.com
3.8.19  0097-510
4
1
Light
SET
SCREW
 USA
 forestdental.com
 Rev.C  4 of 4
