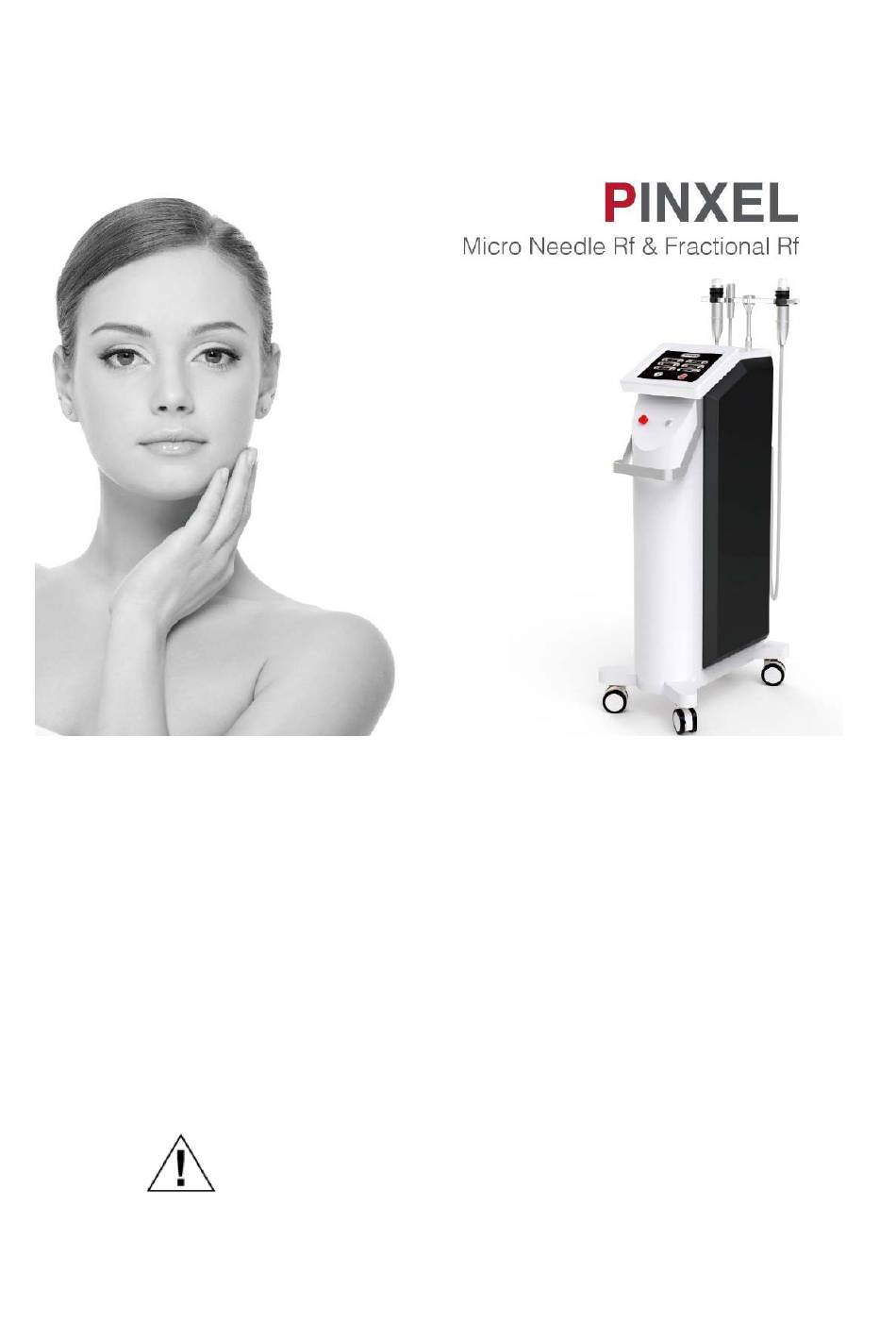

Operation Manual
BEIJING SANHE BEAUTY reserves the right to make changes to its products or specifications to improve
performance, reliability, or manufacturability. Information furnished by BEIJING SANHE BEAUTY is believed to
be accurate and reliable. However, BEIJING SANHE BEAUTY assumes no responsibility for its use. In any of
case, specifications are subject to change without notice.
CONVENTIONS Used in this Manual
The following conventions in the form of notes, cautions and warnings are used in this manual:
Note
The content of this Note offers general information that is important to keep in mind.
Caution
A Caution alerts the user to the possibility of a problem with the device associated with its use or
misuse. Such problems include system malfunction, failure, and damage to the system or other
1
Advertisement
Table of Contents
Summary of Contents for Beijing Sanhe Beauty S & T Co,.Ltd PINXEL
- Page 1 Operation Manual BEIJING SANHE BEAUTY reserves the right to make changes to its products or specifications to improve performance, reliability, or manufacturability. Information furnished by BEIJING SANHE BEAUTY is believed to be accurate and reliable. However, BEIJING SANHE BEAUTY assumes no responsibility for its use. In any of case, specifications are subject to change without notice.
-
Page 2: Table Of Contents
property. The caution statement includes a precautionary action that should be taken to avoid the hazard. Warning A Warning alerts the user to the possibility of injury, death, or serious adverse reactions associated with the use or misuse of the system. Table Contents Table... -
Page 3: Before Use
- deeper dermis - without damage of epidermis. The fractional RF is useful for minimal invasive epidermal rejuvenation. RF energy does not target pigment-making cells in the skin. Pinxel cures and improves wrinkle, scar, skin rejuvenation, and skin tightening safely and efficiently with minimized PIH,... -
Page 4: System Composition
Special features of Pinxel ; a) Minimizing downtime b) Available to treat both epidermis and dermis layers c) It is suitable for all skin types d) Lesser risk of PIH and side effects e) RF Fractional and RF micro-needle technologies are in one platform. -

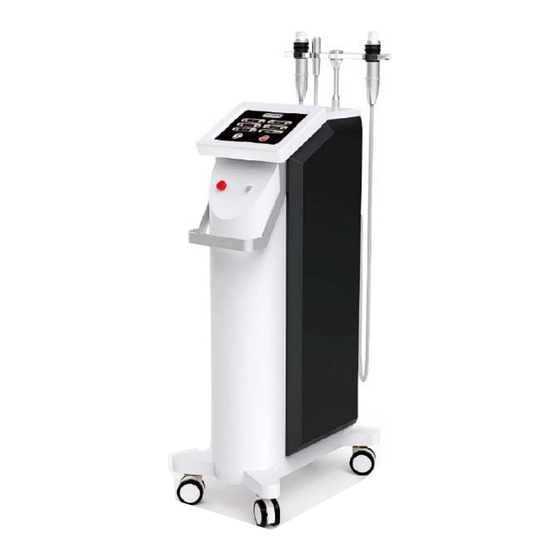

Page 5: Main Unit
Description LED Screen Key Switch Emergency off Button Main unit RF fractional hand piece Earth grounding bar RF micro-needle hand piece Holder for hand pieces Holder screw. * Back view... - Page 6 Description Holder neck Ventilation windows RF Micro needle hand piece connecter Grounding bar connecter. RF fractional hand piece connecter Power code connecter. Foot switch connector...
- Page 7 System Composition [ RF fractional hand piece ] [ RF micro-needle hand piece ] Grounding bar Foot switch Power cord 4. Control Panel...
-
Page 8: Operating Instruction
Description Displaying operation status Key switch: Main power switch. Used for on/off of equipment. Emergency stop switch : Switch for operation halt at emergency 5. Operating Instruction A. Preparation 1) Connect power cable into the appropriate socket, Identify safety. 2) Make sure air cooling tube is securely connected on main unit. 3) Check the using voltage and connect the power cord. -
Page 9: Operation Procedure
We recommend starting with low level first then increasing gradually!! C. Operation procedure 1) Make sure power cord is securely connected, and fuse is equipped in right position on main body. 2) Turn power ‘on’ position, then power switch on front side of main unit will be activated. 3) Make sure grounding bar and foot switch are properly connected. - Page 10 6) Set each parameters in prior to operation in accordance to the following description. Items Descriptions To determine output level (1∼10 level) intensity Polar set To select Mono-polar or Bio-polar To set the time between first shot and next shot Interval Single/0.5/1.0/1.5/2.0/2.5/3.0 sec.) Active pulse...
-
Page 11: Specification
To set the time between first shot and next shot Interval Single/0.5/1.0/1.5/2.0/2.5/3.0 sec.) Active pulse To set continuance of output time per each shot (10~300 msec.) Shot count To count out put on each mode. Back To return to initial screen Standby To select standby and ready mode. -
Page 12: Mechanical Specification
Output (micro needle mode) : max. 30 watt, 250 V , 200Ω Output (Fractional RF mode) : max. 20 watt, 300 V , 200Ω Mode : Micro needle RF (mono or bi polar) / Fractional RF Grounding bar : Ø20 x 110mm, SUS-303 4) Display : LED Screen C. - Page 13 the operation. Check whether the other instruments are normal and work safely. 6) A bunch of cords can be a cause of overheat. Do not use cables in a state of that. 7) Do not step on plugs or give strong impact on them. 8) Do not use inflammables or fire.
- Page 14 1, wear anesthesia cream on the treatment area (Anesthesia is suitable for about 45-55 minute) After clean up anesthesia cream from face. 2, Perform an operation with the Pinxel (Refer to basic protocol for the energy setting) 3, The treatment as the sequence of the followings:...
- Page 15 Under eyes cheek Around lips Chin and under chin Jaw lines 4, After operation, strong cooling is essential for about 20 minutes. 5, Then perform the cooling and moisturizing care. C, Cautions when and after performing operations Every treatment should be done as one passing of full face according to basic protocol. •...
- Page 16 Stretch marks 2.0-3.0mm 100-200ms 2-3 3-4 Neck 0.5-1.0mm 50-100ms 1-2 3-4 Wrinkle/Fine line 1-1.5mm 150-200ms 2-3 3-4 10, Question and Answer 1, What is the difference of Fractional RF and Fractional Co2 laser? Fraction RF is better than Fractional Co2 laser, Since Fractional laser is single wavelength, the indications is small range, and only have limitation on skin color.
- Page 17 9, How long time the result can be kept? According to different skin property, single treatment could keep 2-6 month. 3-10 years can kept after one whole course. 9，Contact Details Company： Beijing Sanhe Beauty S & T Co,.Ltd Adds: 3rd floor, #6E Building, Liando U Valley, Tongzhou District, Beijing, China Tel: +8610 81597649 / 81596921 Web:...
