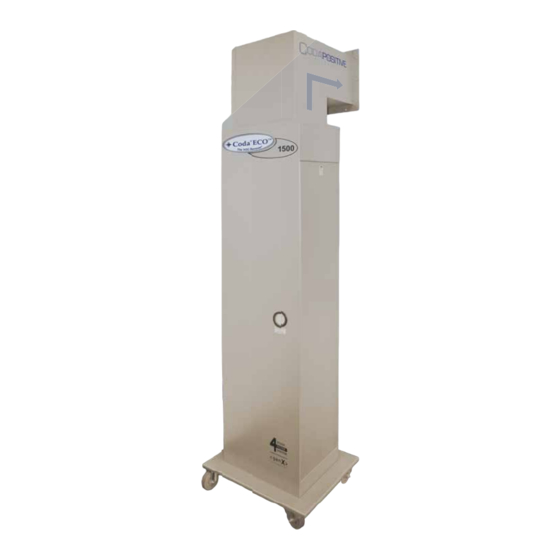

Summary of Contents for Coda Positive Pressure Unit Series
- Page 1 Coda ® User Manual 115V & 230V...
-
Page 2: Table Of Contents
® ..............5 Manufacturing Information ....................6 Safety Instructions ........................6 Supply Voltage ........................6 Packaging ..........................7 Positioning and Placement of the Coda Positive Pressure Unit .........7 ® Installation and Care ......................8 Initial Inspection ........................8 Installation..........................8 Filter Replacement......................12 Mounting the Positive Pressure Unit to the Wall ..............13 Cleaning the Coda Positive Pressure Unit ...............13... -
Page 3: Symbols
Atmospheric Pressure Limitation Canadian Standards Association Consult Instructions For Use RX Only By Prescription Only GS1 DataMatrix Barcode EC REP Authorized Representative in the European Community Manufacturer M-CODA-PP User Manual Coda Positive Pressure Unit V2 – October 18, 2017 Page 3 ®... -
Page 4: General Information
General Information Indication For Use: The Coda Air Purification System may be used as an accessory item during assisted reproductive procedures. Please familiarize yourself with this manual before using the device. The Coda Positive Pressure Unit is a proven technology in IVF and ART to purify the air in your ®... -
Page 5: Warning & Caution
Attention: Des dommages au Coda Positive Pressure Unit se produiront si l’appareil est mis dans ® une zone humide, dans l’eau ou sous une fenêtre ouverte. N’utilisez pas le Coda Positive Pressure ® Unit s’il semble avoir été tombé ou endommagé. Le droit fédéral (États-Unis) restreint la vente, la distribution ou l’utilisation de ce dispositif par un médecin agréé... -
Page 6: Manufacturing Information
This manual describes the operation and intended use of the Coda Positive Pressure Unit. It is ® imperative that you familiarize yourself with the manual before you begin using the Coda Positive ® Pressure Unit. Failure to follow these instructions may result in injury to the individual. Incorrect usage of the device may cause the device to break. -
Page 7: Packaging
Packaging The packaging has been designed to maximize safe transportation of the Coda Positive Pressure ® Unit and its accessories. After unpacking, keep all packaging for transportation of the device in case of return. Positioning and Placement of the Coda Positive Pressure Unit ®... -
Page 8: Installation And Care
Check the unit for any damage. Report any damage to Customer Service immediately. You will need to install a Coda Positive Pressure Unit Annual Filter Kit. ® Installation Step 1: Secure metal top to the Coda Positive Step 2: Before doing any measuring or ® Pressure Unit using the screws provided. The... - Page 9 Using a pencil trace the inside of the template. This will be your cut mark. Remove the template. (see Figure 4) 77.5" Figure 4 M-CODA-PP User Manual Coda Positive Pressure Unit V2 – October 18, 2017 Page 9 ®...
- Page 10 Figure 5) metal top to the wall using wood screws if using a stud or hollow wall anchors. (see Figure 6) Figure 6 Figure 5 M-CODA-PP User Manual Coda Positive Pressure Unit V2 – October 18, 2017 Page 10 ®...
- Page 11 Step 6: On the inside of the laboratory place Step 7: Plug the Coda Positive Pressure into a ® rubber adhesive gasket against grill. Then slide properly grounded electrical outlet. (see Figure the grill into the hole and secure to the wall with wood screws if using a stud or hollow wall anchors.
-
Page 12: Filter Replacement
Filter Replacement Make sure the unit is off. Unplug the power cord. Push the top portion of the latch on the side of the Coda Positive Pressure Unit and pull the bottom of ® the latch outward. Then turn the latch and release the side panel. Remove the panel. (see Figure 9) Carefully remove the appropriate filters and dispose of them in accordance with facility procedures. - Page 13 2. Loop the cable end through a bracket slot then secure the wall mount brackets to the wall. Use the oversize washers with the anchoring hardware as shown. 3. Attach the two long close eye bolts to the rear of the Coda Positive Pressure Unit.
- Page 14 17” (43.18 cm) 1 1/4” (3.175 cm) 71 1/8” (180.66 cm) Figure 2 M-CODA-PP User Manual Coda Positive Pressure Unit V2 – October 18, 2017 Page 14 ®...
-
Page 15: Warranty
This warranty shall not apply if it is shown by LifeGlobal Group, LLC that the defect or malfunction was caused by damage, due to negligence, while the product was in the possession of the consumer. Only purchase Coda Positive Pressure Unit filters direct or from a representative to ensure ®... -
Page 16: Technical Specifications
Guidance and manufacturer’s declaration – Electromagnetic emissions The Coda Positive Pressure Unit is intended for use in the electromagnetic environment specified below. The customer ® or user of a Coda Positive Pressure Unit should assure that it is used in such an environment. ® EMISSIONS TEST COMPLIANCE ELECTROMAGNETIC ENVIRONMENT –... -
Page 17: Electromagnetic Immunity
Guidance and manufacturer’s declaration – Electromagnetic emissions The Coda Positive Pressure Unit is intended for use in the electromagnetic environment specified below. The customer ® or user of a Coda Positive Pressure Unit should assure that it is used in such an environment. ® IMMUNITY TEST... - Page 18 Positive Pressure Unit is used exceeds the applicable ® RF compliance level above, the equipment should be observed to verify normal operation. If abnormal operation is observed, additional measures may be necessary, such as reorienting or relocating Coda Positive Pressure Unit. ®...
-
Page 19: Troubleshooting
Troubleshooting Why is my Coda Positive Pressure Unit not working? ® – Make sure the power cord is connected properly. If it is still not working, try using another standard power cord. – Make sure the power is ON. Why is my Coda Positive Pressure Unit making unusual sounds? ®... - Page 20 Coda ® User Manual T: 1-800-720-6375 F: 1-519-826-6947 Intl.: 001-519-826-5800 ¿ sales@LifeGlobal.com ¿ www.LifeGlobalGroup.com ¿ ¿ M-CODA-PP User Manual Coda Positive Pressure Unit V2 – October 18, 2017 ©2017 LifeGlobal Group, LLC ®...
