INSTRUCTION MANUAL

CabKing-6V3

Table of Contents

Need help?

Do you have a question about the 6V3 and is the answer not in the manual?

Questions and answers

Summary of Contents for CabKing 6V3

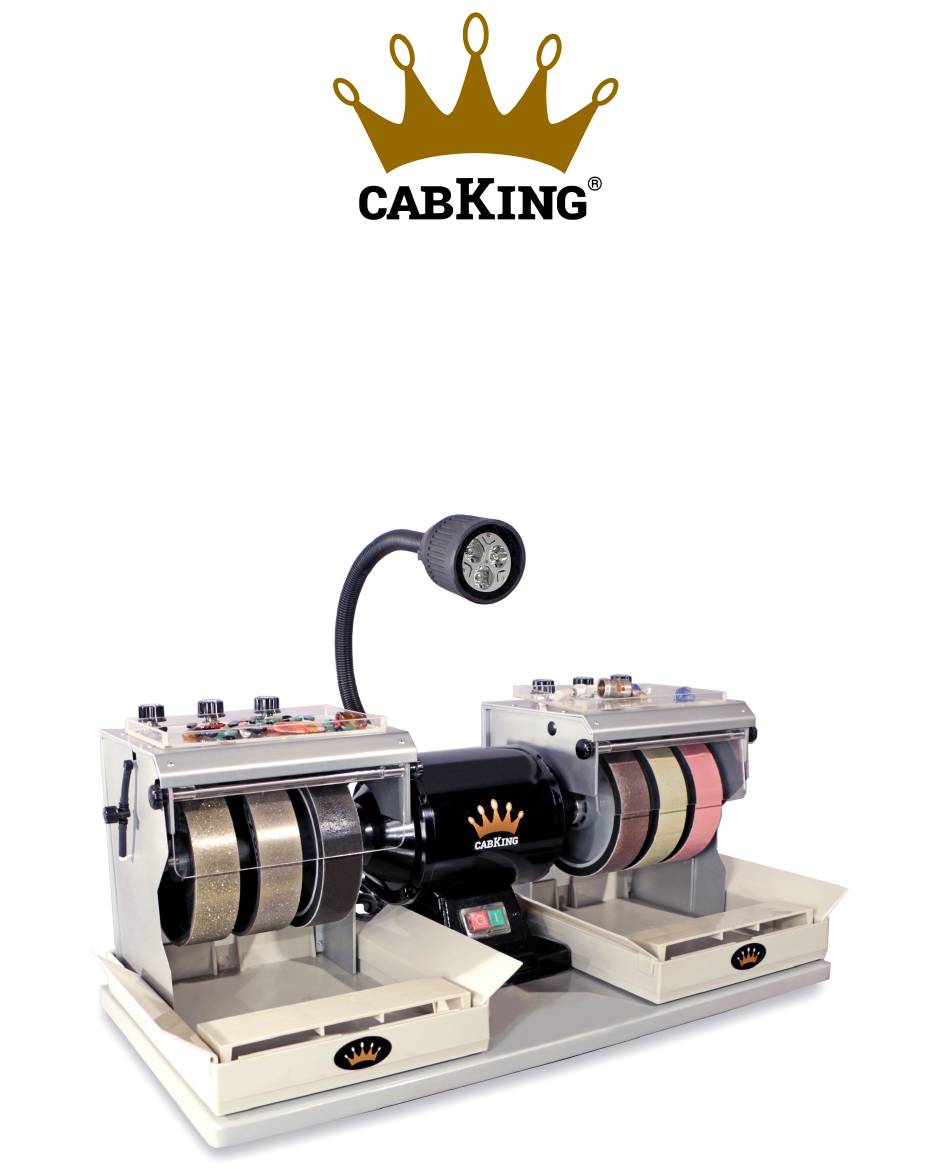

Page 1 INSTRUCTION MANUAL CabKing-6V3...
Page 2: Safety Instructions
A guard or other part that is damaged must be properly replaced through the manufacturer of this machine to avoid risk of injury.  USE ONLY IDENTICAL CABKING PARTS FOR REPLACEMENT PARTS. Use of any other parts may create a hazard or cause product damage.
Page 3 ELECTRICAL SAFETY  USE ONLY GROUNDED OUTLET OR GFCI OUTLET. The electrical outlet you plug the machine into must be securely grounded and away from the machine. Do NOT use an extension cord without a ground. Connect motor power cord to a surge protected outlet or preferably a GFCI (Ground Fault Circuit Interrupter) outlet.
Page 4  NEVER RUN WHEELS DRY. Make sure there is adequate water used while grinding so that rock dust is not formed. This dust may contain chemicals that can be hazardous to your lungs if inhaled and is known to cause cancer, birth defects or other reproductive harm.
Page 5: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS …………………………………….. PARTS LIST…………………………………………………… ASSEMBLY INSTRUCTIONS……………………………….… SETTING UP THE WATER SYSTEM…………………………. FINAL ASSEMBLY…………………………………………….. MACHINE USAGE…………………………………………….. THE ART OF CABBING…………………………………………. MAINTENANCE…………………………………………………. WATER SYSTEM PARTS……………………………………….. TROUBLESHOOTING…...………………………………………. OPTIONAL ACCESSORIES……..………………………………. WARRANTY INFO………………………………………………...
Page 6: Parts List
MACHINE DETAILS & PARTS What you see below is exactly what the PART # DESCRIPTION CABKING-6V3 looks like out of the box. MOTOR LAMP WATER CONTROL KNOB HOOD LAP ADAPTER 3/4″ ALUMINUM SPACER 1″ ALUMINUM SPACER WHEEL SPLASH GUARD SIDE SPRAY TUBE...
Page 7 MACHINE DETAILS & PARTS What you see below is everything included in the CABKING-6V3 accessory box. 80# grinding wheel 360# full face lap 220# grinding wheel Apron Canvas polishing pad 14,000 mesh diamond paste Safety goggles Flange wrench Allen wrench...
Page 8: Assembly Instructions
1. Refer to FIG. A for assembly. Determine a suitable, well lit location to place your CabKing-6V3. The machine weighs about 45lbs. You need a sturdy table or stable surface that has 3 feet width by 2 feet depth of clear space.
Page 9: Setting Up The Water System
FIG. B SETTING UP THE WATER SYSTEM The CabKing-6V3 water system is single-pass, meaning not re-circulating. DO NOT SET-UP THE WATER SYSTEM AS A RE-CIRCULATING SYSTEM. Read further about the CabKing water system on page 16 after set-up.
Page 10: Final Assembly
NEVER RUN WHEELS DRY. To use the side spray for the canvas pad or diamond disc, turn the black arrow on the side valve to the right. 16. You are now ready to begin using the CabKing-6V3. PLEASE READ THE REST OF THIS INSTRUCTION MANUAL, ESPECIALLY THE SAFETY INSTRUCTIONS, BEFORE USE TO AVOID RISK OF INJURY.
Page 11: Machine Usage
(FIG. G). FIG. G You can use the CabKing-6V3 to grind and polish all kinds of shapes and designs out of rock, synthetic rock, glass and metal. The most popular use of the CabKing-6V3 is making cabochons.
Page 12 Important notes: The supplied CabKing resin wheels are formulated to be used exclusively together in sequence. To avoid scratching or uneven grinding/polishing, do not mix and match other brands of resin wheels with the CabKing resin wheels. PLEASE READ THE RESIN WHEEL NOTICES DOCUMENT THAT IS INCLUDED WITH YOUR INSTRUCTION MANUAL.
Page 13: The Art Of Cabbing
The CabKing-6V3 is designed as a maintenance-free unit. There are no belts, pulleys, gears or other parts to actively maintain. However, all parts should be cleaned manually.
Page 14 BEFORE REMOVING EITHER WHEEL ASSEMBLY, TURN OFF MACHINE AND WAIT FOR THE WHEELS TO COAST TO A STAND STILL. Slide the clear splash guards into the up position and move the drip pans backwards to remove the hoods. Use the included flange wrench to secure the metal motor shaft flange located on the inside part of the left and right shaft, closest to the motor (FIG.
Page 15 LED light bulb directly through us at cabking.com. The LED light bulb installed in the CabKing lamp is specially designed for this machine and can’t be found elsewhere. Written and visual instructions on how to change the LED light bulb will be provided with the replacement bulb.
Page 16: Water System Parts
CABKING WATER SYSTEM PARTS One of the key features to the CabKing-6V3 is the single pass, contamination-free water system. The water system will remain trouble-free as long as you use a fresh, clean supply of water. Do this by using a separate intake water bucket from the drainage bucket. A fresh supply of water will protect you from cross-contamination of grit which can occur in re-circulating systems that use a bubbler or geyser.
Page 17: Troubleshooting
RECOMMENDED SOLUTION CONTACT US DIRECTLY BY CALLING (630) 366-6129 OR SEND US AN PARTS ARE MISSING OR DAMAGED EMAIL AT INFO@CABKING.COM. THIS IS NORMAL. BY DESIGN, THE MOTOR IS TOTALLY ENCLOSED AND NON-VENTILATED SO IT PRODUCES HIGH TEMPERATURES. THE MOTOR IS HOT TEMPERATURE RANGE IS 190°F - 220°F.
Page 18: Optional Accessories
6″ Full Face Diamond Laps These full face diamond laps are used on the right shaft of the CabKing-6V3 to give you a flat surface for grinding and pre-forming your material. Each lap comes with a 1/4″-20 thread in a variety of different grits. This is the 360# full face lap that originally came with your unit.
Page 19: Warranty Info
ONE YEAR LIMITED WARRANTY The CabKing-6V3 is warranted by the manufacturer to be free from defect for the period of one year from the date of purchase. What does this warranty cover? This warranty covers all parts of the CabKing-6V3, excluding the light bulb and wheels.
Page 20: Book
Manufactured Using Foreign & Domestic Parts By: Reentel International Inc. 808 Burr Oak Dr. Westmont, IL 60559 - USA CabKing Helpline: (630) 366-6129 Email: info@cabking.com Website: cabking.com Facebook.com/TheCabKing Pinterest.com/TheCabKing Twitter.com/TheCabKing...
