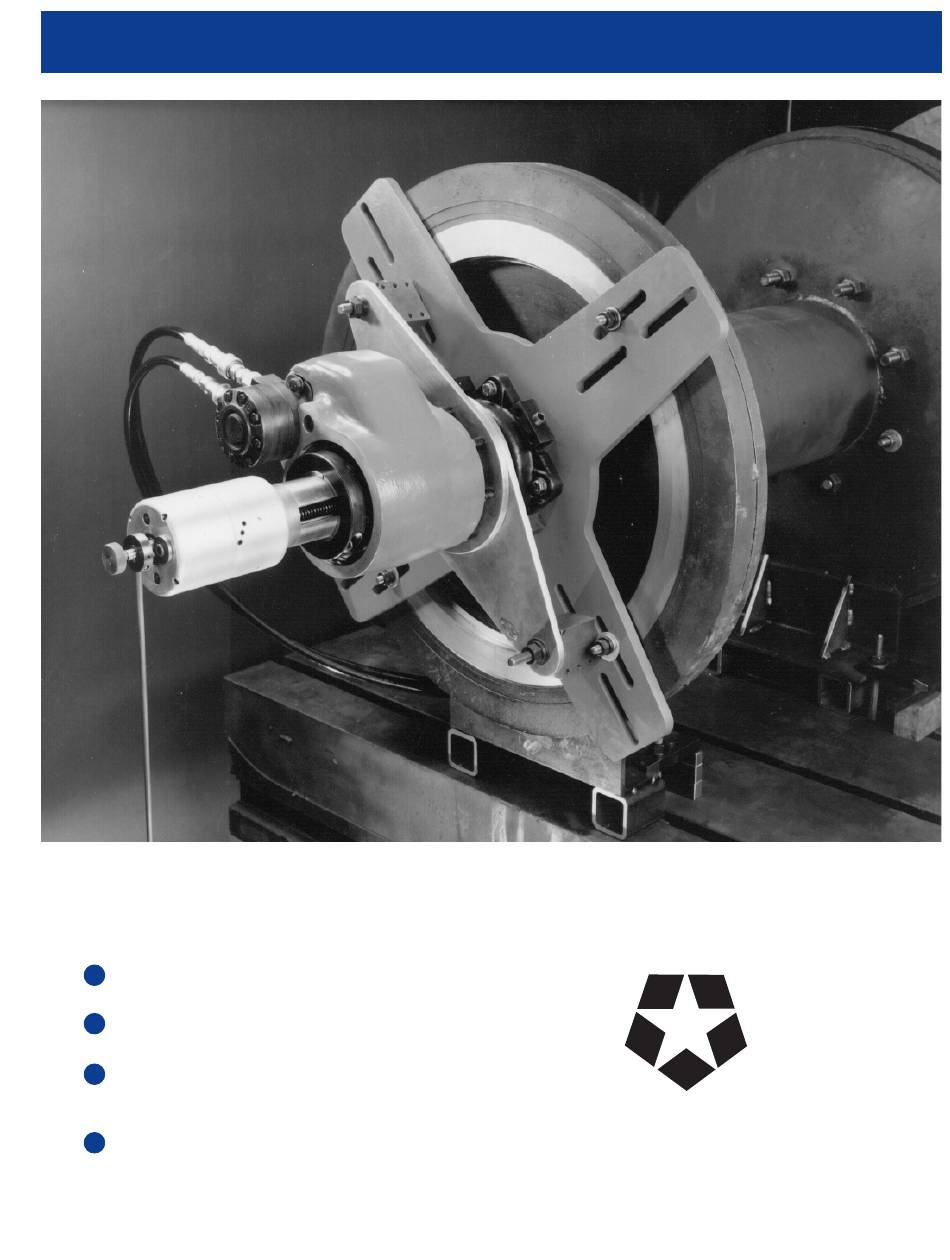

- Page 1 Model BB6000 Portable Boring Bar Machine Features Setup & Operation Components & Accessories C L I M A X Technical Data Portable Machine Tools, Inc. 11/99...
- Page 2 The Model BB6000 requires a minimum 5 hp hydraulic power unit. Compact Rugged, practical design The Model BB6000 is the smallest in our line of • Support fixtures feature ball bearings rather than traveling head portable boring bars (the smaller bronze bushings.
-
Page 3: Setup And Operation
There are several ways to set up the Model BB6000 depending on the application and clearances around the work area. If you have to mount one of the bearing supports on the surface that needs boring, weld standoffs on the workpiece to allow access for tool adjustment. -
Page 4: Components And Accessories
Way wipers are provided for carrier and bar you need for your application. protection. A threaded key The Model BB6000 Portable Boring Bar is drives the carrier along bar designed in modules for as wide a range of during boring operations. If applications as possible. - Page 5 Hydraulic motor Model BB6000 Portable Boring Bar To accommodate a wide range of applications, the Model BB6000 is sold as a com- bination of components. To get a complete machine, you must specify: Axial feed assembly Boring bar/leadscrew assembly...
- Page 6 BB6000 Worksheet Components, continued: Component packages: Components, continued: Component packages include: rotational Component Part number Component Part number drive unit, axial feed assembly, two three-arm end-mount bearing support Tool carrier assembly : 22377 ____ Hydraulic power unit - 10 hp: assemblies, tool carrier assembly, 6"...
- Page 7 BB6000 Components Description Description Hydraulic drive motors 23222 BB6000 component package - 6" to Reversible motors with SAE 2-bolt mounting 24" (152.4 to 609.6mm) diameters flange to mount to the rotational drive housing. Component package includes: Motor ports are 7/8-14 SAE O-ring type. For 50 Hz rotational drive unit, axial feed power units, reduce the bar rpm by 15%;...
- Page 8 Bar is held in place by a self-aligning Fittings are included with every bearing. Center the bar by adjusting Climax hydraulic power unit. the four jacking screws. At least two bearing support assemblies are 25492 Hydraulic motor fitting kit - 3/8"...
- Page 9 22771 Tool kit Pumps 5gpm (19.0 l/min). Full load Complete set of tools needed to 15.4 amps.* operate the BB6000 Portable boring bar. *Full load amp rating cannot be used to determine required generator size. Contact your generator manufacturer/dealer to determine required generator size.
- Page 10 BB6000 Components Description Description Remote pendant (motor rpm control Remote pendant (motor rpm control only) for 5 hp (3.73 kW) hydraulic only) for 10 hp (7.46 kW) electric power unit powered hydraulic power unit Multifunction pendant replaces Multifunction pendant replaces standard pendant.
- Page 11 BB6000 Technical Information Specifications in inches (mm) Specifications subject to change without notice. For precision dimensions consult your factory representative. Boring diameter: Boring bar: Standard 6 (152.4) min Ship weight (approx.): 36 (914.4) max. 3.5" dia x 5 ft bar (22107): 175 lb (80 kg) 3.5"...
- Page 12 BB6000 Operational Dimensions Specifications in inches (mm) Specifications subject to change without notice. For precision dimensions consult your factory representative. 27.25 (692.2) 11.0 (279.4) 3.5 (88.9) 10.0 (152.4) (254.0) 13.7 (347.9) 24.0 (609.6) 13.25 (336.6) Rotational Drive Assembly (228.6) 5.0 (127.0) dia.
- Page 13 BB6000 Operational Dimensions Specifications in inches (mm) Specifications subject to change without notice. For precision dimensions consult your factory representative. 20.0 (508.0) 12.0 (304.8) Three-Arm End-Mount Bearing Support Assembly 10.0 (254.0) (152.4) 38.0 (965.2) 18.0 (457.2) Four-Arm End-Mount Bearing Support...
- Page 14 BB6000 Operational Dimensions 12.0 (304.8) minimum dia. Specifications in inches (mm) 14.53 (369.1) maximum dia. Specifications subject to change without notice. For precision dimensions consult your factory representative. ID-Mount Bearing Support Assembly (small chuck) 14.53 (369.1 minimum dia. 22.53 (572.3) maximum dia.
- Page 15 BB6000 Operational Dimensions Specifications in inches (mm) Specifications subject to change without notice. For precision dimensions consult your factory representative. Maximum recommended unsupported bar length is 5 ft. (1.5 m) 7.25 Standoff Standoff (184.2) (127.0) (127.0) Axial feed Rotational drive...
- Page 16 CLIMAX Portable Machine Tools, Inc. 2712 E. Second St., P .O. Box 1210 Newberg, OR 97132-8210 U.S.A. Worldwide Tel. 503/538-2185 FAX 503/538-7600 Call toll free 800/333-8311 Visit our web page at http://www.cpmt.com TD20-.5M10600 Printed in USA 6/00...
