Et system Umpetha User Manual

Sliding gate motor
Hide thumbs

Advertisement

Table of Contents

Enlarged version
UMPETHA U 082009/072010.012

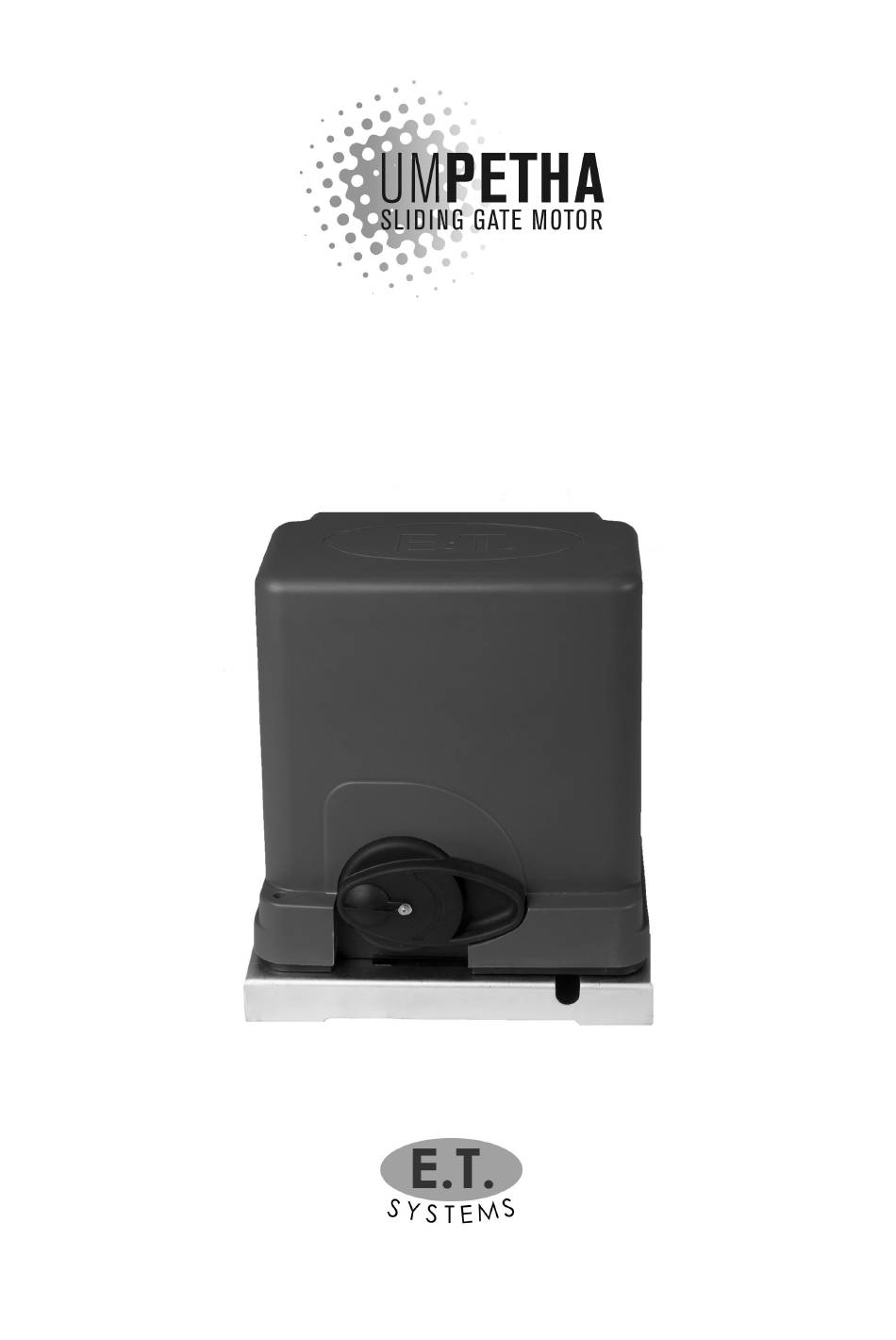

Domestic sliding gate operator by ET SYSTEMS.
USER GUIDE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Umpetha and is the answer not in the manual?

Questions and answers

Summary of Contents for Et system Umpetha

  • Page 1 UMPETHA U 082009/072010.012 Domestic sliding gate operator by ET SYSTEMS. USER GUIDE...

  • Page 2: Table Of Contents

    UMPETHA U 082009/072010.012 Table of contents Page Description Safety obligations and general warnings M anual ov erride How to mov e the gate by hand. Manual override Operating mode options. Standard mode Simple auto-close mode Condominium mode PIRAC auto-close mode...
  • Page 3 UMPETHA U 082009/072010.012 GENERAL SAFETY OBLIGATIONS TO THE INSTALLER AND END USER.  Caution! It is important for personal safety to follow all the instructions carefully. Incorrect installation or misuse may cause serious personal harm.  Keep the instructions in a safe place for future reference.

  • Page 4: Simple Auto-Close Mode

    UMPETHA U 082009/072010.012 OPERATING MODE OPTIONS. For further information about how your UMPETHA has been configured please refer to your service provider/installer. Mode Standard (Four step logic) When the motor is activ ated using any BT input the gate w ill open or close and can be stopped in mid cycle using any BT input again.

  • Page 5: Safety Sensing System

    It will however stop at the point of impact with the closed catch and emit a 5sec long beep tone. At the next valid opening trigger the UMPETHA will re-emit the 5sec long beep tone and only open the gate by ±1 meter.
  • Page 6 UMPETHA U 082009/072010.012 REGISTERING ADDITIONAL REMOTE USERS ON YOUR UMPETHA. Learning a TX button for BT (Full opening) operation using the RX Master remote: - (25 user memory) The RX M aster remote can only be learnt into memory using the RX pins! The RX M aster remote is the first remote learnt into the BT memory and it must be able to operate the PED function of the built-in RX as w ell.

  • Page 7: Auto-Close Ov Erride/Party Mode

    UMPETHA U 082009/072010.012 Auto-close override P arty mode Av ailable in all but Complex Auto-close mode. Action Response With the gate at any open position Press and hold any TX (transmitter) After 5sec unit will emit Multiple rapid beeps to BT (full opening) button confirm.

  • Page 8: Buzzer Indications

    UMPETHA U 082009/072010.012 Buzzer indications Program Response Table Beeps Gate status Action Condition Solution Jumper Motor ref: 5 x Rapid Momentary BT Holiday lock- Full closed None Toggle off pg 26 beeps or Ped input out active Continuou Gate Holiday lock-...

  • Page 9: Warranty

    UMPETHA U 082009/072010.012 WARRANTY: All goods manufactured by G&C Electronics cc T/A ET Systems carry a 12 month factory warranty from date of invoice. All goods are warranted to be free of faulty components and manufacturing defects. Faulty goods will be repaired or replaced at the sole discretion of ET Systems free of charge.
