Wireless gaming adapter

Advertisement

Quick Links

Wireless Gaming Adapter Manual
You must have at least the following
• A Wireless Access Point (AP) or wireless Router (with Broadband Internet
Connection)
• A Computer with an Ethernet Adapter
• An Ethernet Cable (included)
• A CD-ROM (with Manual and quick installation guide)
1. Hardware installation:
1-1
Connect one end of power adapter to power port on Wireless Gaming Adapter
and connect the other end into an available electrical outlet. Once connected,
push Adapter's power button to turn Adapter ON.
1-2 Connect Ethernet cable between computer and Gaming Adapter's Ethernet port.
2. Software installation:
2-1 IP address setting
You must assign your computer a static IP address within the same range as the IP
address of the Gaming Adapter. The Gaming Adapter's default IP address is
with a Subnet mask of 255.255.255.0. Please see the detailed information below:

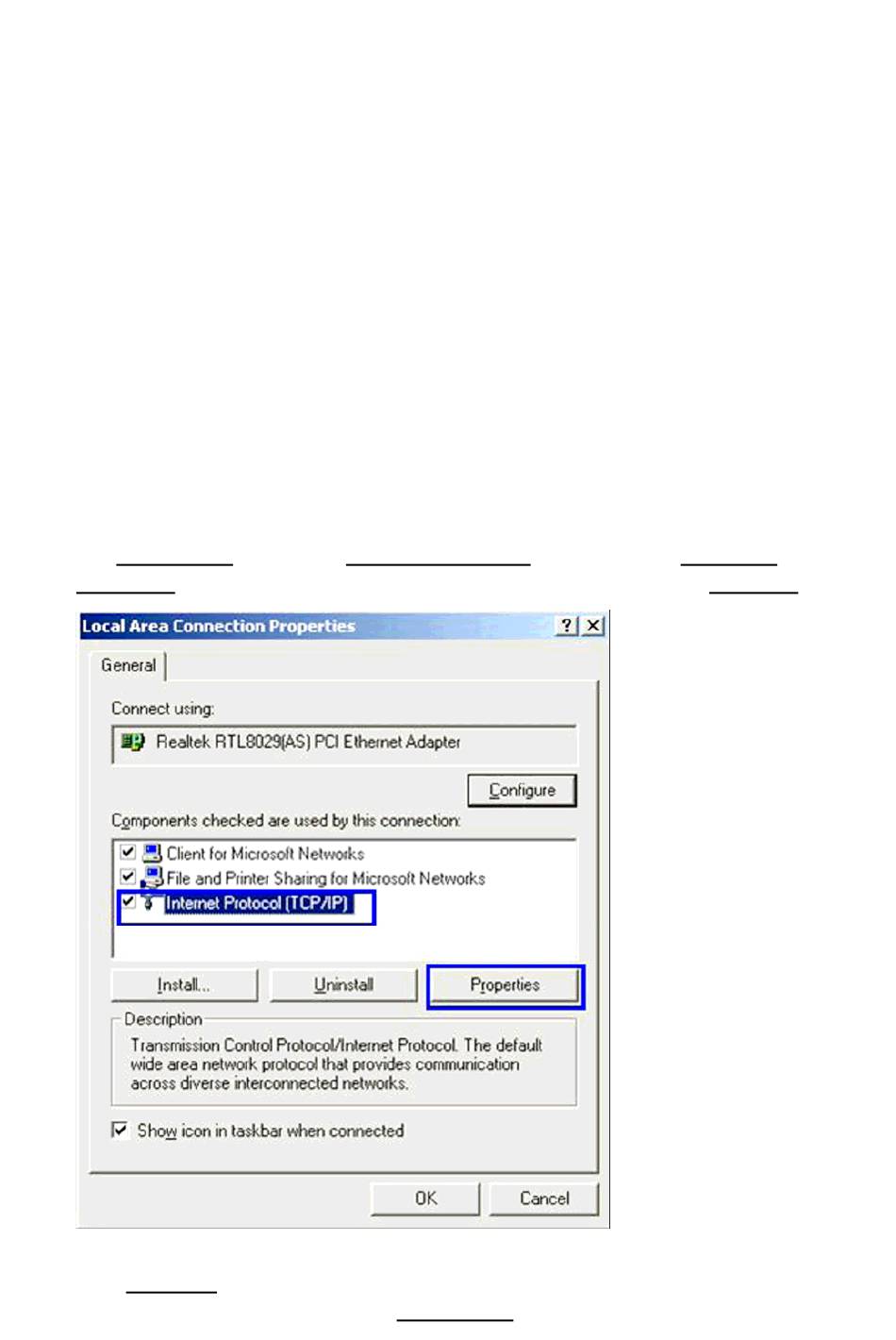

2-1-1 Click the Start button (it should be located at the lower-left corner of your monitor), then
click Control Panel. Double-click Network Connections, then double-click Local Area
Connection, Local Area Connection Status window will appear, and then click "Properties"
2-1-2 Set the IP address of your Ethernet adapter to a specific IP address.
In the IP address field, enter the address 10.10.10.x(x should be replaced by a number
between 2 and 253,such as 101). In the Subnet mask field, enter 255.255.255.0.
equipment
before you begin setup:
and CD-ROM drive
10.10.10.254

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4704 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mad Catz 4704

  • Page 1 Wireless Gaming Adapter Manual You must have at least the following equipment before you begin setup: • A Wireless Access Point (AP) or wireless Router (with Broadband Internet Connection) • A Computer with an Ethernet Adapter and CD-ROM drive • An Ethernet Cable (included) •...
  • Page 2 NOTE: If numbers are already present in the IP address, Subnet Mask and/or Default gateway fields, be sure to write them down as you will need to re-enter them so your PC can access the Internet once WGA configuration is complete. 2-2 Gaming Adapter setting You have two ways to connect the Gaming Adapter to your WAP/Router: (1).
  • Page 3 Click 'NEXT,' you will be prompted to connect the included Ethernet cable as pictured below: Click 'NEXT,' you will be prompted to assign a static IP address to your computer as pictured below:"...
  • Page 4 Click 'NEXT,' you will be prompted to check the Wireless Gaming Adapter's LED status as outlined below: Click NEXT to view the two ways you can connect your Wireless Gaming Adapter to a wireless AP/Router as outlined below:...
  • Page 5 2-2-3 Connect the Wireless Gaming Adapter to a wireless AP/Router. 2-2-3-1 Wi-Fi Protected Setup (WPS) method Click the WPS button to use the WPS method. There are two WPS methods for connecting the Wireless Gaming Adapter to a wireless AP/Router as outlined below: 2-2-3-1-1 Push Button (Recommended) Press the WPS button on your wireless AP/Router:...
  • Page 6 B. Within 2 minutes of pressing the WPS button on your wireless AP/Router, press and release the Wireless Gaming Adapter's WPS button as pictured below: 2-2-3-1-2 PIN Number Select PIN Number, then follow the instructions outlined below:...
  • Page 7 Obtain your Wiress Gaming Adapter's PIN number from the web-based utility as outlined below: 2-2-3-2 Web Setup To perform the Web Setup connection method, click the 'Web Setup' button. You will then be prompted for a username and password, both of which are: admin...
  • Page 8 After entering the Username and Password, click 'NEXT' and follow the instructions below:...
  • Page 10 The Wireless Gaming Adapter should now be successfully connected to a wireless AP/Router. The next step is to connect the Wireless Gaming Adapter to your gaming console. Once 'FINISH' is clicked, the Congratulations! window will appear as shown below: OPTIONAL: If you want to use the Wireless Gaming Adapter to connect to a wireless AP/ Router for a computer's Internet connection, you must set that computer's Ethernet adapter to 'Obtain an IP address automatically.' Follow the steps outlined below to complete this task:...
  • Page 12 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
