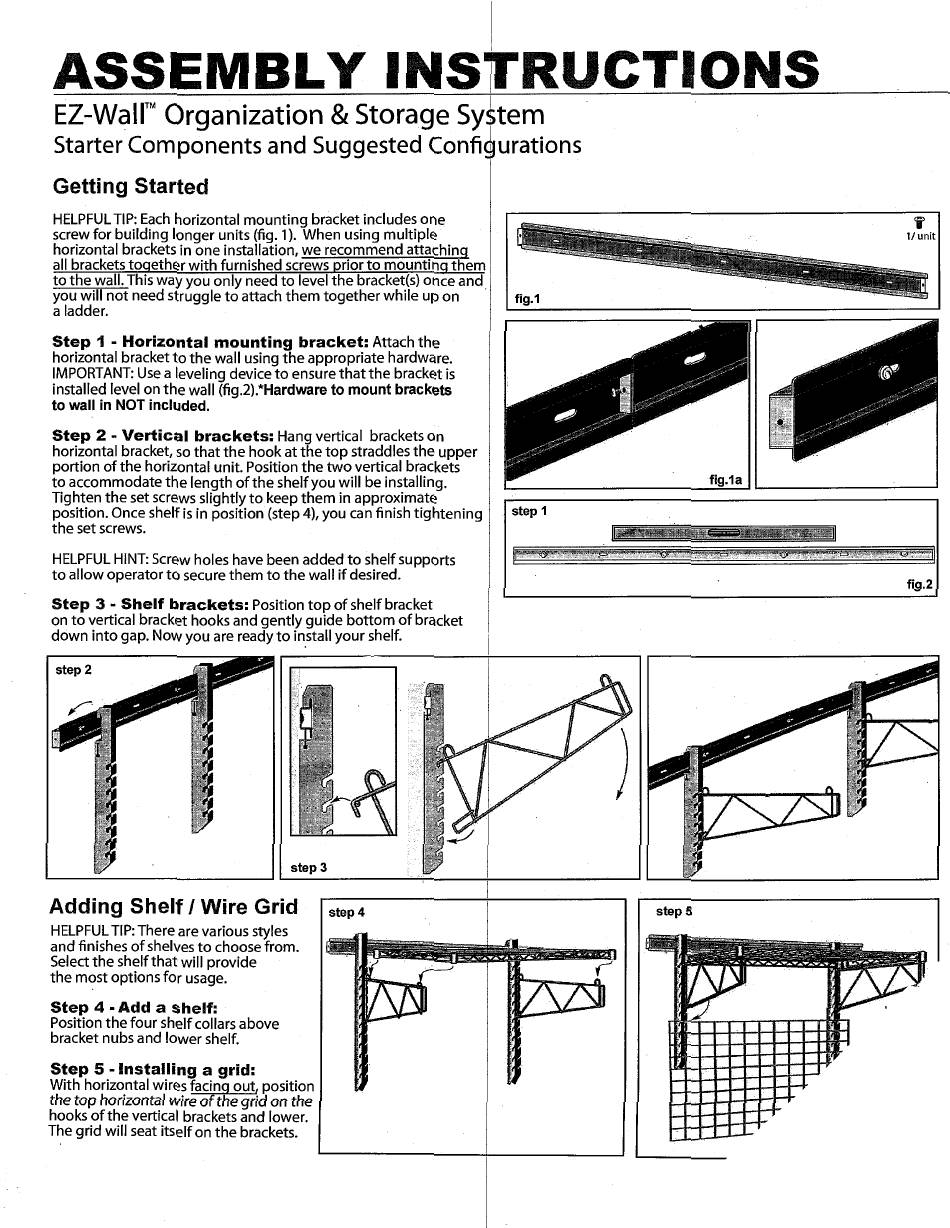

ASSEMBLY INSTRUCTIONS
EZ-Wall™ Organization & Storage
Sy~tem
Starter Components and Suggested Configurations
I
Getting Started
HELPFUL TIP: Each horizontal mounting bracket includes one
screw for building longer units (fig. 1 ). When using multiple
horizontal brackets in one installation, we recommend attaching
all brackets together with furnished screws prior to mounting them
1
to the wall. This way you only need to level the bracket(s) once and.
you will not need struggle to attach them together while up on
a ladder.
Step 1 - Horizontal mounting bracket:
Attach the
horizontal bracket to the wall using the appropriate hardware.
IMPORTANT: Use a leveling device to ensure that the bracket is
installed level on the wall (fig.2).*Hardware to mount brackets
to wall in NOT included.
Step 2 - Vertical brackets:
Hang vertical brackets on
horizontal bracket, so that the hook at the top straddles the upper
portion of the horizontal unit. Position the two vertical brackets
to accommodate the length of the shelf you will be installing.
Tighten the set screws slightly to keep them in approximate
position. Once shelf is in position (step 4), you can finish tightening
the set screws.
step 1
-
llMMI]
HELPFUL HINT: Screw holes have been added to shelf supports
to allow operator to secure them to the wall if desired.
J(:JIO
%
,J,
\J/#3,' 0
~,
,)di
.r,
f"tA<,
,,.,D:;i.;y
,-~</,'':,?*: IQJ+;: Mtjl
Step
3 •
Shelf brackets:
Position top of shelf bracket
on to vertical bracket hooks and gently guide bottom of bracket
down into gap. Now you are ready to in_ stall your shelf.
Adding Shelf I Wire Grid
HELPFUL TIP: There are various styles
and finishes of shelves to choose from.
Select the shelf that will provide
the most options for usage.
Step 4 - Add a shelf:
Position the four shelf collars above
bracket nubs and lower shelf.
Step 5 - Installing a grid:
With horizontal wires facing out, position
the top horizontal wire of the grid on the
hooks of the vertical brackets and lower.
The grid will seat itself on the brackets.
step4
fig.2
stepS
