Summary of Contents for Indu-Sol EmCheck ISMZ I

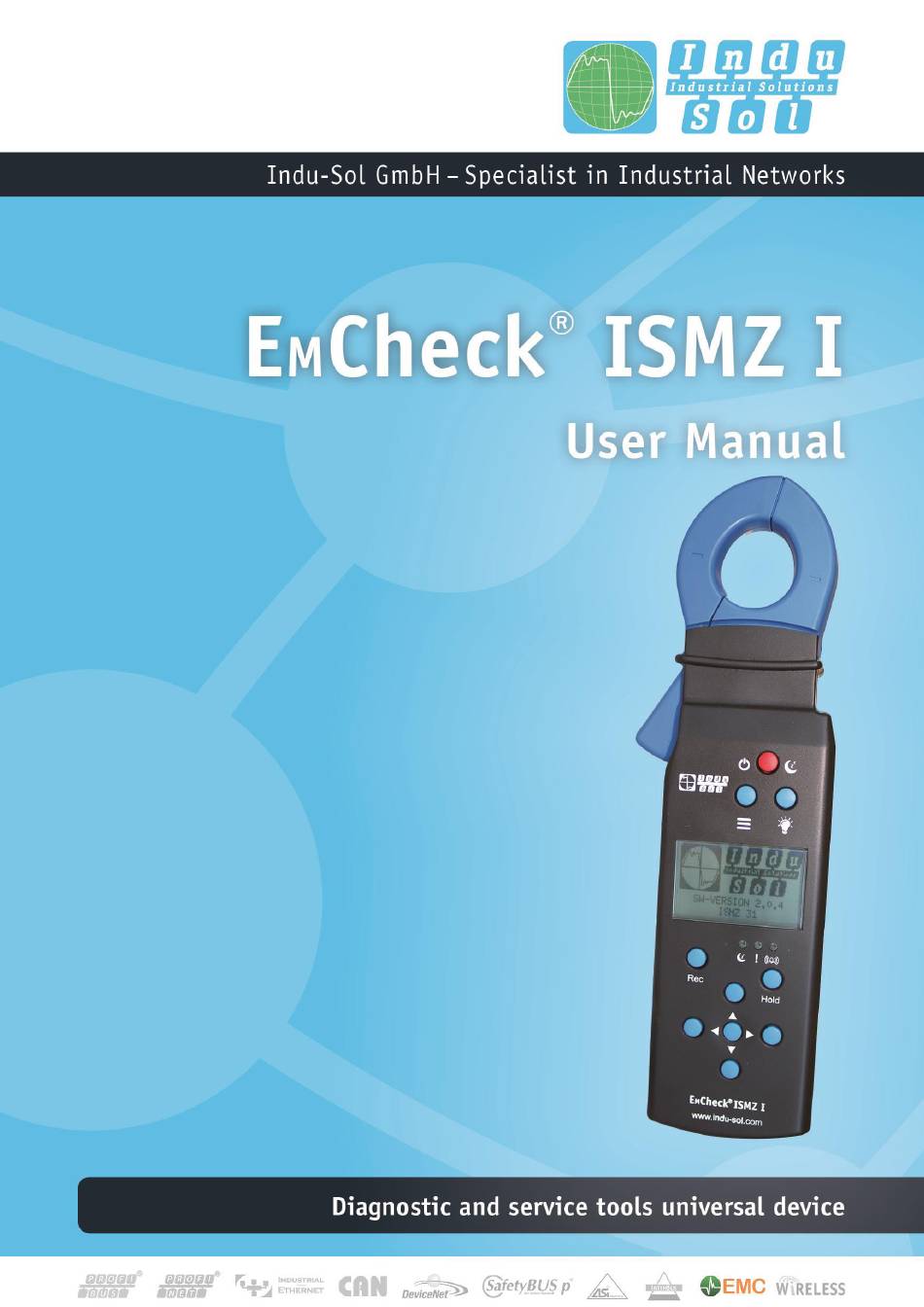

- Page 1 ä Intelligent current clamp meter ISMZ I – User Manual...
-
Page 3: Revision Overview
No claims can be derived from the specifications, illustrations or descriptions in this documentation. Any kind of reproduction, subsequent editing or translation of this document, as well as excerpts from it, requires the written consent of Indu-Sol GmbH. All rights under copyright law are expressly reserved for Indu-Sol GmbH. -
Page 4: Table Of Contents
Contents Contents Revision overview ............................3 Contents ............................... 4 General information ..........................5 Purpose of use..........................5 Technical data ..........................5 Scope of supply ..........................6 Safety information ......................... 6 Controls and display elements ......................7 Operation .............................. 8 Switching on/off ..........................8 Standby mode .......................... -
Page 5: General Information
General information General information Please read this document thoroughly from start to finish before you begin using the device for the first time. Purpose of use The Intelligent current clamp meter E Check® ISMZ I is a mobile measuring device for conductor-bound interference currents. -
Page 6: Scope Of Supply
General information Scope of supply The scope of supply comprises the following individual parts: Intelligent current clamp meter E Check ® ISMZ I USB connection cable 32GB micro SD card with ISMZ I adapter 6 x 1.5V LR6 batteries ... -
Page 7: Controls And Display Elements
Controls and display elements Controls and display elements On / Off / Standby function Mode Display light LED "Standby mode" LED "Battery warning" LED "Alarm" Start recording / Start observation Hold value right Enter left 10 down (A) Standby mode Flashing green Standby mode active (B) Battery warning... -
Page 8: Operation
Operation Operation Switching on/off Pressing the red Power button (1) switches the ISMZ I on. When the clamp is switched on, it can be set into standby mode by briefly pressing the red Power button (1). To switch off the ISMZ, the Power button (1) has to be pressed for a longer time. -
Page 9: Settings
Settings Settings Switch into the SETTINGS menu with the Mode button (2). Time and date Use the arrow buttons (6) and (10) to select TIME/DATE. Press the Enter button (8) on TIME/DATE to make settings for the time and date. ... -
Page 10: Display Function
Display function Use the arrow buttons (6) and (10) to select DISPLAY OFF. Use the arrow buttons (7) and (9) to select the time for switching the display off automatically. The following values are possible: Always on ... -
Page 11: Viewing Current Values
Viewing current values Viewing current values Once you have switched on the ISMZ I with the red Power button (1), you are in the CURRENT menu. The current effective value (RMS) is displayed. Measuring the current effective value Switch into the CURRENT menu with the Mode button (2). ... -
Page 12: Carrying Out Recordings
Carrying out recordings Carrying out recordings The ISMZ I is capable of recording current values continuously and to save these on the SD card. The recordings are either saved without interruption during a permanent recording or only during specified trigger events. Before starting a recording, choose between permanent or triggered recording by configuring the recording options. -
Page 13: 6.1.2 Triggered Recording
Carrying out recordings 6.1.2 Triggered recording During a triggered recording, current values are only registered if the set trigger thresholds are exceeded. You can specify the trigger threshold automatically by a teach-in process or configure them manually. Once you have chosen the triggered recording in the RECORD MENU, the set trigger thresholds for the current level and the current inclination appear in the display. - Page 14 Carrying out recordings Select PERIOD with the arrow buttons (6) and (10). Switch from MANUAL to a time (5 min, 10 min, 15 min, 20 min, 25 min or 30 min) to observe the current and set the trigger threshold by using the arrow buttons (7) and (9).
-
Page 15: Control Software Emcheck® View
Control software EmCheck® View ® Control software E Check View The ISMZ I saves all recordings on a micro SD card in "*.EMC" format. The directories are saved temporally in the format YYYY-MM-DD and the files in the format hh:mm:ss. Recordings can be evaluated with the included E Check ®... -
Page 16: Copying Recordings To The Pc
Control software EmCheck® View Copying recordings to the PC There are two methods for copying the recordings from the ISMZ I onto your PC. 1) Remove the micro SD card from the clamp and take it from the adapter board. You can now read the micro SD card using a removable medium reader with an adapter to USB or standard SD. -
Page 17: Data Evaluation With E M Check ® View
Control software EmCheck® View ® Data evaluation with E Check View Import of up to four EMC-files is possible by clicking the button “Add measurement data” in the top left corner. Current course / frequency specter Current course, Zoom with mouse selection Zoom Y-axis (current)
