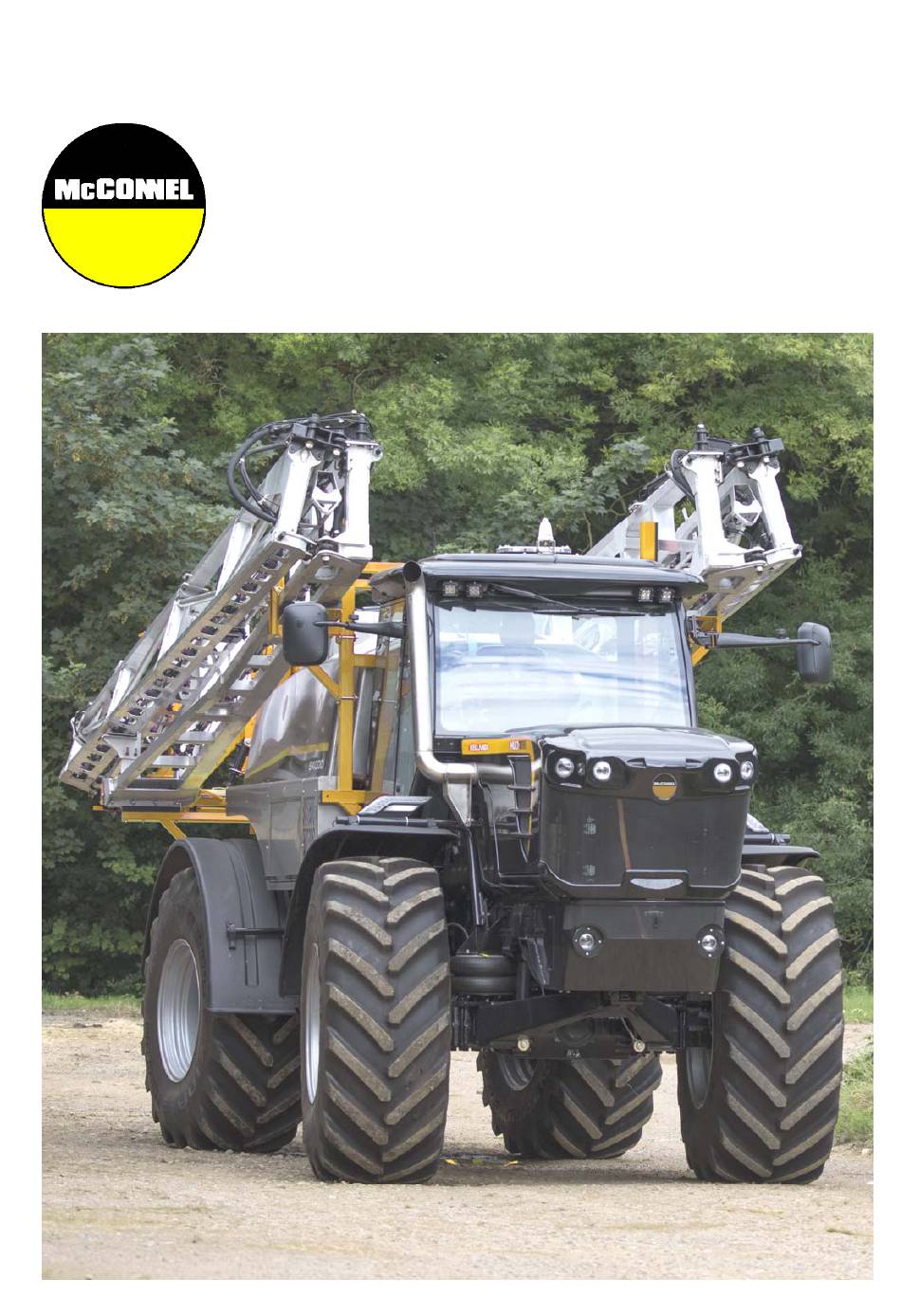

- Page 1 McCONNEL Publication 932 March 2019 Part No. 24214.32 Revision: MULTIDRIVE M380-4 & M420-4 ALL TERRAIN CARRIER VEHICLE Operator Instruction Manual...
- Page 2 McCONNEL MULTIDRIVE M380‐4 & M420‐4 MULTIDRIVE M380-4 & M420-4 All Terrain Carrier Vehicle OPERATOR INSTRUCTION MANUAL McCON NEL LIMITED Temeside Works Ludlow Shropshire England Telephone: 01584 873131 www.mcconnel.com...
- Page 3 This Multidrive M380-4 & M420-4 is a dedicated, specialist load carrier with high payload to unladen weight. Mechanically driven for efficiency and simplicity the vehicle has superb traction.
-
Page 4: Table Of Contents
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Table of Contents Warranty Policy Declaration of Conformity Safety Recognised Safety Information Operators Cab Brakes Electrical Steering Maintenance Tyres and pressures Towing and recovery of vehicle Spraying Safety Decals Operation Vehicle Controls Cab controls Right Hand side console Controls &... - Page 5 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Mirror adjustment Steering Modes 2 Wheel Steer ‘Road Mode’ 4 Wheel Steer 4 Wheel Steer Delay Crab Steer Offsets Steering Electronic Climate System Cab Ventilation General Operation of Vehicle Cruise control Vehicle Equipment Power Take Off (P.T.O) Single PTO Powersaver pump...
- Page 6 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Foot Brake Adjustment Powerbrake operation check Park brake Air System Maintenance and Operation of Air Brake System Compressor Air reservoir Hose coupling Weekly maintenance Air Suspension Cab - Composite Air Filter Installation Maintenance Changing the filter Cab Air Filters...
- Page 7 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Axle and Propshaft Lubrication Set-up Procedure of Axle Stops Front Axle Rear Axle Wheel Track Settings 4 Wheel Steering Calibration Axle & Wheel Specification Details Wide Floatation Tyres Tyre Data Vehicle Identification Serial Numbers Type Plates Tractor Identification Number...
-
Page 8: Warranty Policy
All Self Propelled Machines supplied by McConnel Ltd are warranted to be free from defects in material and workmanship from the date of sale to the original purchaser for a period of 12 months or 1500 hours. Engine warranty will be specific to the Manufacturer of that unit. 1.02. All spare parts supplied by McConnel Ltd and purchased by the end user are warranted to be free from defects in material and workmanship from the date of sale to the original purchaser for a period of 6 months. All parts warranty claims must be supported by a copy of the failed part invoice to the end user. We cannot consider claims for which sales invoices are not available. ... - Page 9 2.04. All claims must be submitted, by an authorised McConnel Ltd Service Dealer, within 30 days of the date of repair. 2.05. Following examination of the claim and parts, McConnel Ltd will pay, at their discretion, for any valid ...
- Page 10 McCONNEL MULTIDRIVE M380‐4 & M420‐4 3.03. Except as provided herein, McConnel Ltd shall have no liability or responsibility to the purchaser or any other person or entity with respect to any liability, loss, or damage caused or alleged to be caused directly or indirectly by the goods including, but not limited to, any indirect, special, consequential, or incidental damages resulting from the use or operation of the goods or any breach of this warranty. Notwithstanding the above limitations and warranties, the manufacturer’s liability hereunder for damages incurred by the purchaser or others shall not exceed the price of the goods. 3.04. No action arising out of any claimed breach of this warranty or transactions under this warranty may be brought more than one (1) year after the cause of the action has occurred. MISCELLANEOUS ...
-
Page 11: Declaration Of Conformity
BS EN ISO 4254-1:2015. Agricultural machinery. Safety. General requirements. BS EN ISO 4254-6:2009. Agricultural machinery. Safety. Sprayers and liquid fertilizer distributors. BS EN 15695-1:2017 Agricultural tractors and self-propelled sprayers. Signed …………………………… General Manager Date: February 2019 CHRISTIAN DAVIES on behalf of McCONNEL LIMITED. -
Page 12: Recognised Safety Information
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Recognised Safety Information THIS IS THE SAFETY ALERT SYMBOL. WHEN YOU SEE THIS SYMBOL IN THIS MANUAL BE ALERT TO THE POTENTIAL FOR PERSONAL INJURY AND / OR DAMAGE TO THE MACHINE. MAKE SURE WHEN READING THROUGH THIS MANUAL YOU OBSERVE ALL SPECIAL NOTES and WARNINGS TO AVOID EITHER PERSONAL INJURY OR MACHINE DAMAGE. -
Page 13: Operators Cab
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Operators Cab 1. Do not jumping in and out of the cab, getting into or out of the cab without care and attention may result in injury. Use steps provided, use grab handles to assist, not the steering wheel 2. -
Page 14: Electrical
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Drain the compressed air tanks regularly; not doing so will affect the performance of an air braked trailer. Electrical Disconnect main battery leads before working on the electrical circuit, disconnect (-) terminal first. Isolate controls to prevent actions by others causing dangerous movement and possible injury. - Page 15 McCONNEL MULTIDRIVE M380‐4 & M420‐4 areas with water, for excessive skin or eye contact, seek medical attention immediately. 10. Avoid fluids under pressure coming into contact with the skin. Relieve system pressures first before working on high pressure pipes, fittings, etc. be aware that the machine has hydraulic accumulators for the braking circuit.
- Page 16 18. Under no circumstances must the chassis be welded as structural failure could well follow. Use the designated attaching points for mounting implements etc. Contact McConnel Limited for a copy of the body builder’s instructions drawing for implements or attachments to be carried on the machine chassis.
-
Page 17: Tyres And Pressures
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Tyres and Pressures Always follow correct safety procedures when fitting tyres and/or inflating them. Ensure any tyres fitted are capable of carrying the required load. Consult your tyre dealer for advice. Never over inflate a tyre (see page 108). -
Page 18: Towing And Recovery Of Vehicle
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Towing and Recovery of Vehicle 1. Trailer towing - use only the Multidrive pick-up hitch or drawbar to tow trailers. Under no circumstances whatsoever must any downward force be applied to the rear of the linkage frame mounted on the rear axle. -
Page 19: Spraying
McCONNEL MULTIDRIVE M380‐4 & M420‐4 CAUTION Spraying The cab cannot fully protect against inhaling vapour, aerosol or dust, when operating in an environment where pesticides are present, wear appropriate clothing and if pesticides instructions call for it, a respirator in and outside the cab. -
Page 20: Safety Decals
These warnings should be considered so that the risk of personal injury is minimised. If the decals become worn or defaced they should be replaced immediately with identical items; these are available through your local McConnel dealer, using the parts codes stated. Speed Caution Part number MD63333Z10C Located on the right-hand side off the dashboard near the steering column. - Page 21 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Crush Zone Located on either side of the rear axle suspension hanger X member. Keep clear of the rear wheel area at all times when engine is running Check Transmission oil Level Located on the outward face of the battery box lid.
- Page 22 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Trailer Air Brake Emergency Line Part Number MD52907L20P Located on the offside of the rear services carrier. The decal illustrates the position of the emergency airline. Trailer Air Brake Services Line Part Number MD52906L20P. Located on the off side of the rear services carrier. The decal illustrates...
- Page 23 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Tecalan nylon Pipes Part number MD52908L20P Located on the off side chassis rail above the battery box. The decal alerts the operator to the danger of welding too close to the hydraulic pipes. Air Tank Drain Daily Decal Part number MD52908L20P Located on the off side off chassis on the air tank behind the hydraulic tank.
-
Page 24: Operation
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Operation The Cummins engine installed in this machine does not require a ‘’ break-in’’ procedure. However, do not treat it harshly during the first fifty hours running. Avoid consistently high speeds, but do not let the engine labour. There should always be a positive response from the throttle. -
Page 25: Vehicle Controls
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Cab Controls, Instruments and Warning Lights Right hand control console 1 Ancillary equipment controller (Sprayer) 6 Hazard warning light switch 2 MCU (Machine control unit) 7 Switch panel 3 Sprayer section switches 8 Ignition key switch 4 Mirror adjust controls... -
Page 26: Controls & Switches
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Cab Controls and Switches 1 Multifunction Switch 3 Steering Column Adjustment 2 Cup Holder 4 Brake Pedal 5 Accelerator Pedal... -
Page 27: Stalk Mounted Controls
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Stalk mounted controls Switches on the side instrument panel control the main side/rear lights and headlights. (See Cab Controls and Switches previous page). The headlight main beam/dip is controlled by the stalk (1) mounted on the steering column (see Figure 19). -
Page 28: Machine Control Unit (Mcu)
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Joystick Control The multifunction joystick has six function buttons on the face and two on the reverse. For transmission control the stick has movements fore and aft and side to side and a button on the stem (see transmission control section). The functions are as shown on the decal immediately in front of the joystick. -
Page 29: Main Display
McCONNEL MULTIDRIVE M380‐4 & M420‐4 The main functions of the MCU are as follows: Monitoring engine functions and errors. Monitoring transmission functions & errors. Monitoring and control of the gearshift system and interlocks. Monitoring machine sensors, fluid levels and warning systems. Monitoring of functions, errors, controlling & set-up of rear steer system in conjunction with the Plus1 controller and joystick. -
Page 30: Warning Lamps
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Warning lamps 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1/ Cruise standby, engine mode 1/ Cruise Standby, speed limit mode 1/ Cruise active – engine speed mode 1/ Cruise active – speed limit mode 1/ Headland mode active 1/ Road speed limiter active 3/ Side lamps 2/ Flashing beacon 3/ Headlamps (Dipped beam) 3/ Headlamps (Main beam) 4/Work lamps – front cab 5/ Work lamps – rear cab 7/ Sprayer / implement on/off 6/ Reverse/sprayer lamps (If fitted) 8/ Wait to start 9/ Direction indicators 11/ Trailer direction indicators 10/ hazard warning flashers 12/ (Optional )Power Step (down position) 13/ Diff lock engaged 13/ Front diff lock engaged 13/ Rear diff lock engaged 14/ Four wheel drive engaged 15/ GPS speed sensor active 15/ Ground speed sensor active 16/ Service due ... -
Page 31: Error Warnings
“Hide” key. The hide key will then be replaced by a “Recall” key which allows you to recall the message(s) at any time. If you require any further assistance regarding errors and need to call McConnel please record the following codes from the bottom of the screen:... -
Page 32: Rear Steer Information
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Device ID – identifies which ECU is sending the error – e.g. engine, transmission or steering controller SPN – The error code number – may allow further to be found information FMI – A code that may indicate the nature of the error. -
Page 33: Pto Information
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Requested gear indicator Forwards, Neutral, Reverse (Forwards, 3 shown) Indicator (Neutral shown) Neutral handbrack on Neutrol required PTO information area Please see the appropriate section in the manual for the power take off operating instructions PTO switched on in manual mode. -
Page 34: Menus
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Most of the screen options are self- explanatory and purely show additional information – e.g. transmission, engine, GPS and video cameras. To return to the main display at any time press the “Home” button. For information on the PTO screen and operating the PTO please see the appropriate section in the manual. -
Page 35: Diagnostics
MULTIDRIVE M380‐4 & M420‐4 The “Technician” & “Factory” menus are both locked and can only be accessed by McConnel staff. Press the “Gauge Display” key to return to the home page. The other menus that can be accessed are as follows. Service & diagnostics Can-Bus inputs –... - Page 36 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Engine diagnostics. The Engine diagnostics screen will show any errors that are stored in the engine ECU and how many times they have occurred. It can only be cleared by running the Cummins engine diagnostic software. Machine setup menu...
-
Page 37: Pto Setup
McCONNEL MULTIDRIVE M380‐4 & M420‐4 PTO setup To alter parameters scroll up and down using the arrow keys on the left hand side to select the parameter to be adjusted then use the right hand keys to adjust the figures up/down. Press Save & return to save the settings. - Page 38 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Power step (optional) with handbrake – Default set to on – this causes the step to lift up and go down when the handbrake is switched on/off. NB it will only lift up if the cab door is shut.
-
Page 39: Cab Interior Light
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Speed limiter For safety and legal reasons a speed limiter is fitted to the Multidrive which limits the maximum speed. An indicator is shown on the warning display to show when the limiter is active. It does not affect how you drive the machine it simply limits the maximum engine speed. - Page 40 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Gear Selection After shifting of a gear from the neutral position, the automatic mode is always selected. Automatic shifting forward gears 1 to 6. Automatic shifting reversing gears 1. For manual operation: To select manual mode, a lower or higher gear, move the gear selector to the left ) or the right ( ...
- Page 41 The approved safe solution regardless of distance would be to transport the vehicle with a low loader. In the case of irregularities on the transmission, put the vehicle out of service and contact your local service dealer or McConnel Service.
-
Page 42: Differential Lock
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Differential Lock When engaged the differential lock provides increased traction by locking each pair of wheels together. The two axles can also be locked together using the 2/4WD switch (see pages 23 & 48). To operate the differential locks depress the differential lock switch located on the right- hand console switch panel. -
Page 43: Seat Adjustment
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Driver Settings. Before starting the machine ensure that the seat, steering column and mirrors are set correctly. Driver’s seat. The driver’s seat is fully adjustable as shown. To avoid risks from whole body vibration ensure that the seat is correctly adjusted before driving the vehicle. -
Page 44: Steering Modes
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Steering Modes The rear wheel steer system on the Multidrive is controlled electronically. Signals from sensors mounted on both axles are continually monitored by the electronic control box and a varying signal is sent from the control to an electro-hydraulic proportional valve which, in turn, directs oil to the steering ram on the rear axle to ensure the rear wheels are always kept in the correct position. -
Page 45: Wheel Steer 'Road Mode
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Mode selection To select a mode use the yellow buttons to scroll up and down to select from one of the following modes: Road mode. In the Road mode position the electronics are deactivated for safety and the rear axle will be locked hydraulically. Before switching to this position, allow the rear wheels to straighten up in Two Wheel Steer. -
Page 46: Offsets Steering
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Offsets Steering modes Offset steering modes are useful when spreading in soft ground conditions, the offset enables the weight of the vehicle to be spread over four sets of tracks. These modes can also be used when operating across side sloping land, the rear steer offset can be trimmed so as to maintain directional stability. -
Page 47: Electronic Climate System
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Electronic Climate System This Multidrive is equipped with a fully automatic temperature control system that maintains the user selected interior temperature using a digital keypad. The system controls both the heating and air conditioning functions of this vehicle. - Page 48 McCONNEL MULTIDRIVE M380‐4 & M420‐4 The temperature can be adjusted by pressing the (Red) or (Blue) keys on the left side of the panel. The temperature is selectable between 16°C and 28°C. Adjusting the Blower Speeds The air conditioning blowers have three speeds and are normally controlled automatically by the temperature controller.
-
Page 49: Cab Ventilation
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Cab Ventilation Control knob The cab side windows are fitted with over centre catches, which permit opening for fresh air circulation and also act as a stay to hold them open at the desired position. When two catches are fitted, open them simultaneously or breakage of glass may occur. -
Page 50: General Operation Of Vehicle
McCONNEL MULTIDRIVE M380‐4 & M420‐4 General Operation Always operate the machine in a safe manner and in accordance with the recommendations in this manual. Enter the cab from the left hand door ensuring that the grab rail mounted on the cab is used whilst climbing the steps. - Page 51 McCONNEL MULTIDRIVE M380‐4 & M420‐4 For highway use the steering mode must be permanently in road mode. Once the vehicle is off road and in a stationary position the 4-wheel steering may be engaged. ALWAYS select 2-wheel steer (road mode) prior to travelling on the highway or at high speeds for WARNING maximum safety.
- Page 52 McCONNEL MULTIDRIVE M380‐4 & M420‐4 engaged the vehicle may operate in 4-wheel drive within normal parameters, however 4-wheel drive should not be used at high speeds or on hard surfaces where there is plenty of traction. If ignition is turned off 4-wheel drive will disengage.
-
Page 53: Cruise Control
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Cruise control The cruise control is based on an electronic throttle control system. There are different operating modes and pre-set speeds. The same system is also utilized for the remote PTO system. It can be used either statically or whilst moving providing certain criteria are met. - Page 54 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Engine mode – This mode allows you to set the engine to either a pre-set speed or you can set it to the current engine speed by pressing the “Set” button. There are preset speeds which can be saved for field and road use. When this mode is active you can increase/override the speed by depressing the foot throttle.
- Page 55 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Speed control To change or set the speed press a yellow button (with the cruise menu off). You will then get a screen like or similar to the one below (there is a different screen depending on which preset speed mode you are using) If the cruise is inactive when the screen is pulled up simply press the orange button to set and engage the cruise at the current engine speed / throttle position.
-
Page 56: Power Take Off (P.t.o)
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Hydraulic Power Take Off (P.T.O) SAFETY WARNING - ALWAYS DISENGAGE THE PTO BEFORE DISMOUNTING FROM THE CAB. THE ENGINE MUST BE SWITCHED OFF BEFORE CONNECTING THE PTO OR MAKING ADJUSTMENTS. PTO system Single PTO Powersaver pump NEVER ENGAGE PTO ABOVE 1000 ENGINE RPM. -
Page 57: Remote Pto Switch
McCONNEL MULTIDRIVE M380‐4 & M420‐4 To change mode press the “Mode” key. The screen will change to show the outputs expressed as percentages instead of rpm. The method of adjusting the figures is the same in both cases. -
Page 58: Pto Speed Setup - Centrifugal Pump
McCONNEL MULTIDRIVE M380‐4 & M420‐4 The remote PTO has to be switched from the driver’s seat with the handbrake on (this also selects the transmission park mode) and the foot brake depressed. To operate lift the red safety cover and switch the inner toggle switch up, the PTO will then run at the pre-programmed speed. -
Page 59: Pto Safety Information
McCONNEL MULTIDRIVE M380‐4 & M420‐4 P.T.O. Safety Information Instruction for Operators when coupling P.T.O. driven machines to Hydraulic P.T.O. drive. If you are coupling a particular implement to the machine for the first time (even if another operator has previously connected it) carry out the following checks: - Make sure the driveshaft is fitted correctly with any overload or overrun clutch fitted at the implement end. -
Page 60: Ancillary Equipment
ESSENTIAL that the proper mounting technique is used. An installation drawing is available from McConnel detailing how to effect same (see page 114). In brief, the fore and aft 80mm x 80mm box sections should be used to support the weight of the equipment being mounted and attached via the clevises and pins supplied. -
Page 61: Hydraulic Service Valves
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Hydraulic Service Valves Optional hydraulic services are available and can be specified to suit the equipment fitted and number of functions required, layouts of switches will be positioned to suit specific requirements – please refer to the equipment suppliers manual for details. -
Page 62: Optional Equipment
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Optional Equipment Hydraulic Pickup Hitch This type of hitch is operated using the double acting spool valve. 1. The hydraulic hitch is permanently plumbed into the hydraulic system. 2. To lower the hitch, actuate the switch pushing away from the operator’s seat. -
Page 63: Single Line Hydraulic Trailer Brake
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Single Line Hydraulic Trailer Brakes To fit the trailer brake hydraulic hose, Remove protective cap from the trailer brake coupling, and connect pressure hose from the trailer, make sure both connections are perfectly clean of contaminating dirt. The hydraulic trailer brakes operate when pressing the tractors brake pedal. -
Page 64: Engine Warning & Aftertreatment
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Engine - Warnings and Aftertreatment SCR System Cleaning The engine has a number indications that will if necessary be displayed on the MCU: Warning – check the engine Stop – Stop the engine Selective catalytic reduction (SCR) cleaning ... - Page 65 McCONNEL MULTIDRIVE M380‐4 & M420‐4 SRC SYSTEM CLEANING The SRC SYSTEM CLEANING indication is for the status of the aftertreatment SCR system cleaning events. When the SCR System cleaning indication appears on the MCU the aftertreatment SCR system required to be cleaned at the next opportunity.
- Page 66 McCONNEL MULTIDRIVE M380‐4 & M420‐4 NOTE: This high exhaust temperature warning does not indicate that there is anything wrong it is just a warning to safeguard against causing damage of injury do to the exhaust outlet being too close to objects that could be damaged or burnt by it.
- Page 67 McCONNEL MULTIDRIVE M380‐4 & M420‐4 NOTE it is unlawful to tamper with, modify, or remove any components of the SCR system. It is also mandatory to use DEF that meets the correct specification and the machine must not be run without DEF. Selective Catalytic Reduction (SCR) The SCR (Selective Catalytic Reduction) system reduces the amount of Mono -Nitrogen Oxide N0x from the engine exhaust.
- Page 68 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Make sure there are no gases or vapors nearby that could burn, explode, or contribute to a fire. Park the vehicle securely with the transmission in park, handbrake on and wheel choke at front and rear.
- Page 69 McCONNEL MULTIDRIVE M380‐4 & M420‐4 After-treatment Derates The engine is required to meet Stage 4 Final regulations and to ensure it continues to meet the emission regulation limits, the ECM continuously monitors the after-treatment system to detect malfunctions that adversely affect emissions. When a malfunction is detected, the operator is alerted by messages / warnings sent to the MCU.
-
Page 70: Access To Engine And Radiator
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Access to Engine and Cooling Pack ENSURE THAT ENGINE IS SWITCHED OFF AND IGNITION KEY REMOVED BEFORE OPENING THE BONNET. BEWARE OF HOT SURFACES, IN PARTICULAR THE EXHAUST AFTER TREATMENT AND PIPEWOK To open the bonnet / engine cover take the key from the cab and standing in front of the tractor, insert the key in the bonnet grille (as per figure) and turn clockwise to release, lift the bonnet and gas struts will fully open it. -
Page 71: Engine Air Cleaner
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Engine Air Cleaner If the air filter /pre filter intake restriction warning indicates, remove the primary and safety filter elements and replace as necessary. To access the air cleaner, open the bonnet, the air cleaner is mounted on top of the cooling pack... -
Page 72: Screen Wash Reservoir
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Windscreen Washer Bottle The washer bottle is located under the engine hood / bonnet forward of the cooling pack Access is obtained by lifting the engine hood / bonnet. Windscreen washer filler cap Windscreen Washer Bottle Electrical System... -
Page 73: Isolator Switch
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Isolator / Emergency Stop Switch The battery isolator switch with red knob, is located on the off-side of the cab skirt above the batteries. Press to isolate – turn clockwise to re-engage. Unless in emergency always wait for the red LED to the left hand side of the switch to cease to illuminate before pressing the isolator. -
Page 74: Distribution Board Layout
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Distribution Board Layout The distribution board is located behind the right hand emergency door. To gain access, from inside the cab, lift the emergency door catch, placed towards the rear right-hand corner of the cab. 1 Circuit board... -
Page 75: Fuse Box Layout
McCONNEL MULTIDRIVE M380‐4 & M420‐4 ... - Page 76 McCONNEL MULTIDRIVE M380‐4 & M420‐4 ...
-
Page 77: Foot Brake Adjustment
McConnel Service for details, or check on www.mcconnel.com technical library. For access to technical library call McConnel Service for login details. Emergency Release of Park Brake If it is necessary to tow the vehicle and in the event of loss of hydraulic pressure in the braking system, the park brake can be released mechanically. - Page 78 McCONNEL MULTIDRIVE M380‐4 & M420‐4 1. Secure the vehicle from rolling away. 2. Unscrew the cap the cap – counter clockwise. 3. Release the locknut ‘1’ and unscrew it to the end of the setting screw ‘2’. 4. Rotate the setting screw ‘2’ clockwise until the brake disc is completely free. A minimum torque 70 Nm is required on the setting screw.
-
Page 79: Air System
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Air Brake System for Trailers The air brakes are a single system. Trailers with single line brakes may be connected at connection (A) and (B) as illustrated below. Ensure that the connections on the tractor are clean and dirt free before joining the trailer air hoses. -
Page 80: Maintenance And Operation Of Air Brake System
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Maintenance and Operation of Air Brake System Compressor Check for oil and air leaks, repair if necessary. Air reservoir Drain condensation water from reservoir daily. Air Reservoir Hoses and coupling Check all pies and hoses for damage. When driving the vehicle without a trailer the cover on the hose coupling must be kept closed. -
Page 81: Air Suspension
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Air Suspension The suspension consists of an air bag at each side of each axle. Air is supplied to the air bag from the pneumatic system via a chassis mounted levelling valves, the valves control the height of the suspension. -
Page 82: Cab - Composite Air Filter
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Cab Air Filter As a standard option dust filters are fitted. The filters are housed in the cab roof above the doors. Regular servicing of these cab filters should be carried out, particularly when working in dusty conditions. Remove grills and two filters to clean. Clean them with compressed air directed from the clean side (this applies to the standard dust filter only). -
Page 83: Lubrication And Periodic Service
Any parts replaced must be returned to us for assessment. If McConnel service engineers are called out at any time, to work on the machine or if the machine has to be returned to their works for repair, it must be thoroughly cleaned to remove all chemical and fertiliser residues to enable the work to be carried out safely and effectively. - Page 84 McCONNEL MULTIDRIVE M380‐4 & M420‐4 After treatment Exhaust Piping Check Diesel Exhaust Fluid (DEF) Level Check Transmission Check oil level Brakes Check operation Air System Drain moisture from air tanks Hydraulic Tank Check oil level at sight glass Lights, wipers etc. Check all are functioning correctly...
-
Page 85: First 100 Hours Of Operation
McCONNEL MULTIDRIVE M380‐4 & M420‐4 FIRST 100 HOURS OF OPERATION 1. Check all oil levels regularly. 2. Tighten wheel and rim nuts regularly ESPECIALLY after changing wheels and during first 20 hours of operation. 3. Do not over rev the engine when lightly loaded. -
Page 86: Every 250 Hours
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Unscrew filter head cap to change element. Replace 'O' ring on cap if damaged. Hydraulic Tank Filter Housing EVERY 250 HOURS Component Description Air intake Piping Check Charge Air Pipework Check Charge Air Cooler Check Radiator Check coolant level... -
Page 87: Every 500 Hours
McCONNEL MULTIDRIVE M380‐4 & M420‐4 EVERY 500 HOURS (Additional to 100 and 250 hours of service) Component Description Engine Lubricating Change Engine Oil Filter Change Fuel Filters Replace filter elements Front Axle Drain and refill with fresh oil Differential Front Axle Hubs Drain and refill with fresh oil... -
Page 88: Every 1000 / 2000 Hours
McCONNEL MULTIDRIVE M380‐4 & M420‐4 EVERY 1000 HOURS OR ANNUALLY (whichever is 1 (Carry out all 250 hours and 500 hours services) Component Description Engine Check drive belt Engine Check belt tensioner Aftertreatment Inspect DEF tank filter Transmission Drain and refill with fresh oil... -
Page 89: Lubrication Schedule Check Sheet
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Multidrive M380/420 Lubrication/Service Schedule (illustrates requirements up to 2000 hours and additions for the 4500 and 5000 hour services) 1000 4500 5000 Daily 1500 hours Hours / hours 2000 hours / hours / Service Periods or 10 hours /... -
Page 90: Capacities
McCONNEL MULTIDRIVE M380‐4 & M420‐4 monthly monthly yearly yearly yearly Engine crankcase vent filter Change Engine overhead set Adjust Air compressor Hoses Check Air System replace desiccant cartridge Transmission oil Check level ... -
Page 91: Engine
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Capacities Capacities are approximate and all quoted in litres Model M380/420 Engine Crankcase 16.7 Cooling System Automatic transmission 223 Front Axle 12.5 Differential Epicyclical hubs 223 1.75 axle 213 Rear Axle Differential Epicyclical hubs 213 1.75 axle Air Reservoir Tank... -
Page 92: Fuel Filters
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Ultra-low sulphur content diesel fuel is required for the correct operation of the after- treatment system. If ultra-low sulphur fuel is not used the aftertreament system could be damaged. DO NOT use diesel fuel with a sulphur content greater than 10 ppm. -
Page 93: Lubrication Oil
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Lubricating Oils Specification as below are required: CES 20081 It is essential that the oil meets CES API CJ-4/SL (Cummins Engineering Standard) For operating temperatures above – 15 Oil Viscosity 15W-40 CAUTION Never run the engine with the oil level below or above the level shown on the dipstick. -
Page 94: Def
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Diesel Exhaust Fluid (DEF) Only DEF conforming to standard ISO 22241-1 / DIN 70070 should be used. Any other fluid could seriously damage the after-treatment system. WARNING Do not get DEF in your eyes or ingest it. The DEF tank is located on the right hand side of the... -
Page 95: Coolant
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Coolant Only coolant meeting Cummins Engineering Standard, CES 14603 should be used. Antifreeze is required regardless of the climate, it broadens the operating temperature by lowering the freezing point and by raising the boiling point. The corrosion inhibitors also protect the cooling system. -
Page 96: Transmission Lubrication And Maintenance
The permitted oil grade for the power-shift transmission is oils in the ZF list of recommended lubricants T E- ML03. This list of lubricants will be updated periodically and a copy can be requested from the McConnel Service Department. Factory fill of oil in the transmission is: - TOTAL RUBIA 10W Oil Level Check:... - Page 97 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Legend: 1 = Oil filler tube with oil dipstick. 2 = Oil drain plug M38 x 1,5 3 = Removable canister filter (ZF-fine filter) Figure 67, ZF gearbox Oil Change and Filter Replacement Interval: The oil must be changed after the first 100 operating hours of work.
-
Page 98: Oil Change And Filter Replacement Interval
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Oil Change and Oil Filling Capacity: It is imperative to pay attention to the absolute cleanliness of oil and filter The oil change must be carried out as follows: 1. Transmission must be at operating temperature and vehicle parked on level ground, open the oil drain plug and drain the used oil into a container capable of holding the transmission oil capacity. -
Page 99: Transmission Calibration
McCONNEL MULTIDRIVE M380‐4 & M420‐4 The mounting of the filter must be carried out as follows: 1. Lubricate the face of the sealing ring on the new filter with a small amount of clean oil prior to fitting to the transmission. 2. Screw the filter into the filter housing until contact with the sealing surface is obtained, then tighten by hand about 1/3 to 1/2 turn. - Page 100 McCONNEL MULTIDRIVE M380‐4 & M420‐4 11. Switch off the engine to complete the cycle. The operation is now complete. 12. Remove the block from the wheels and take the tractor for a test, run through all gears to check that all gear changes are effected smoothly.
-
Page 101: Axles
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Axles SAE85W90 (API GL4-MIL L-2105) with additives for oil-bath brakes, ‘Anti – Squawk’. Factory fill is Total Dynatrans FR Axle Hubs Drain oil from axle hubs by rotating plug to six o'clock position. Remove plug using a 12mm hexagonal drive Allen key. -
Page 102: Axle Differential
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Axle Differentials Front and Rear Axles Axles 1. Oil filling plug 2. Oil draining plug 3. Check level plug Drain oil from differential housing as per diagram. Oil level and filler plug are at different positions in axle case. For axle oil capacities see page 88. -
Page 103: Axle And Propshaft Lubrication
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Axle and Propshaft Lubrication Grease here only multi-purpose grease EP2 for steering joints. Grease here Steering Joints Lubricate prop shaft universal joints with high-pressure grease Universal prop shaft... - Page 104 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Rear Axle Propshaft Propshaft greasing points Two grease points are located either end of the propshaft, in the cross joint; the exception to this is on the 3.8 metre and 4.2m wheelbase, where a grease nipple is provided to...
-
Page 105: Set-Up Procedure Of Axle Stops
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Set-up Procedure of Axle Stops It is of great importance that the steering stops are set correctly. When changing from large diameter wheels to small and vice-versa. Front Axle Select 2-wheel steer mode; turn the wheels to full right hand steering angle without the tyres fouling the chassis, or brackets etc. -
Page 106: Wheel Track Settings
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Wheel Track Settings The maximum recommended wheel centre width 80" (2050mm) on MAXIMUM 750mm width wheels at which the full stated axle load can be carried. It is recommended you do NOT exceed these widths. Note axle loads MUST be reduced when large diameter rowcrop wheels are fitted. -
Page 107: Wheel Steering Calibration
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Multidrive Plus+1 Steering Controller Calibration Process 4 Wheel Steer Rear steering setup If any adjustments to the steering are made or system components replaced it may be necessary to reset the steering center points so the system knows where the straight ahead positions are on both axles. - Page 108 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Switch the ignition back on and go to the steering setup page. Storing midpoints The sensors may need adjusting to ensure that the electrical position is within the correct range. You can see on the setup page what the stored sensor midpoints are set at in the steering controller and what the current actual readings are.
- Page 109 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Sensor adjustment Should the current midpoints be out of the range of 2400 and 2600mv it is necessary to adjust the sensor position to bring it within range. It is easier with an assistant to do this so one person can watch the display whilst the other adjusts the sensor.
-
Page 110: Axle & Wheel Specification Details
See overleaf for the carrying capacities. Various sizes of tyres are quoted for fitment to the various Multidrive models. RESPECT MUST BE PAID BY USERS TO THE CARRYING AND SPEED CAPACITY OF THE VARIOUS TYRE OPTIONS AVAILABLE. FOR ADVICE ON TYRE DATA NOT SHOWN, CONSULT McCONNEL SERVICE DEPARTMENT OR YOUR LOCAL TYRE DISTRIBUTOR. -
Page 111: Tyre Data
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Tyre Data The following information is provided as a guide only; tyre manufactures amend specifications from time to time. It is essential that when changing tyres notice of the manufactures current data on pressures, speeds and loads is complied with. - Page 112 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Michelin MACHXBIB 600/65 R 28 154 D TL Nominal Overall Loaded Rolling Capacity Section in mm Diameter Radius circumference in Litres in mm in mm in mm 75% max 1502 4449 Speed in Km/h PRESSURE (bar & psi) – Load per tyre in kg p.s.i...
- Page 113 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Michelin IF620/75 R30 164D TL AXIOBIB Nominal Overall Loaded Rolling Capacity Section Diameter Radius in circumference In Litres in mm in mm in mm 75% max 1670 4927 Speed in Km/h PRESSURE (bar & psi) – Load per tyre in (kg) p.s.i...
- Page 114 McCONNEL MULTIDRIVE M380‐4 & M420‐4 Speed in PRESSURE (bar & psi) – Load per tyre in (kg) Km/h p.s.i 10 Cyc 2780 3020 3265 3510 3750 3975 4340 4540 4730 2490 2600 2715 2830 2940 3150 3500 3610 3720 2400 2510 2620 2730...
-
Page 115: Vehicle Identification
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Serial Numbers Type Plates The letters and numbers on the plates must be quoted when making warranty claims or ordering spare parts. Tractor Identification Number The plate bearing the identification number is located on the right hand side of the main chassis frame. -
Page 116: Serial Number Plate
McCONNEL MULTIDRIVE M380‐4 & M420‐4 Serial Number Plate... -
Page 117: Mounting Instructions
To suit some larger equipment additional mounts are provided at a mid-point on the chassis. The above drawing shows the mountings on a 4.2meter wheelbase machine, the distance between the mounting points varies according to the wheelbase. Details are available from McConnel Limited. - Page 118 McConnel Limited, Temeside Works, Ludlow, Shropshire SY8 1JL. England. Telephone: 01584 873131. Facsimile: 01584 876463. www.mcconnel.com...
