Summary of Contents for LightSymphony iTimer

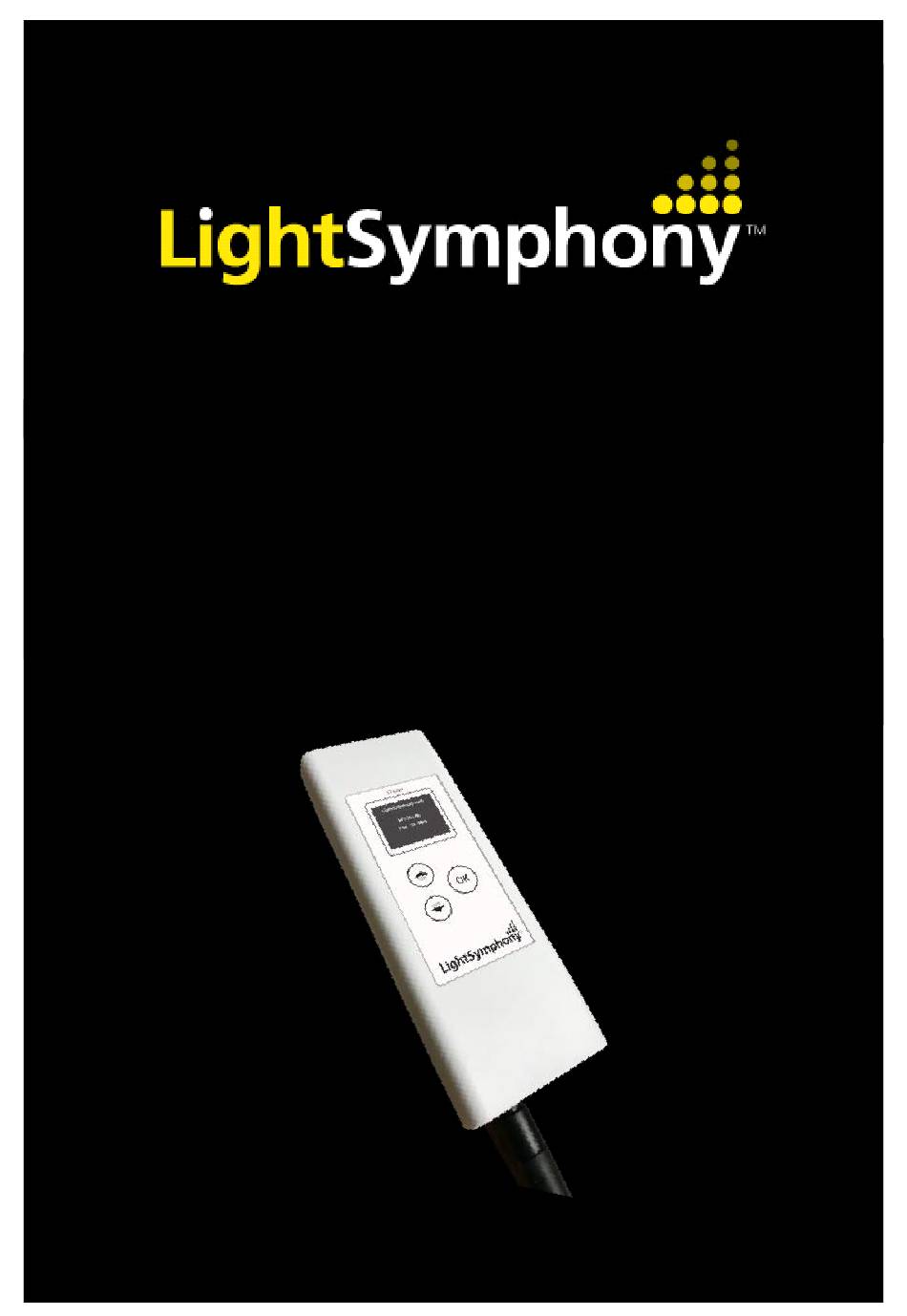

- Page 1 Operating Manual & Installation Guide MODELS: LS30951iTIM Create A Scene Outdoors !
-
Page 2: Table Of Contents
Index SECTION 1 – Installation Installation Location SECTION 2 - Initial Setup Front Panel Navigating The Menus Setting Time / Date Setting Dusk/Dawn location Setting Dusk / Dawn Time SECTION 3 –Timer Setup Introduction Setting Timers (1-9) PIR Timer All-Off Timer SECTION 4 –Colour Light Show Colour Light Show Light Show Setup... - Page 3 Index NOTE: Available in iTIMER+ Version Only.. SECTION 5 – App / Cloud setup 15-17 SECTION 6 – Interacing - API 19-20 SECTION 7 – Security System Code Signal Repeaters SECTION 7 – How it works SECTION 8 – Trouble Shooting SECTION 9 –...
-
Page 4: Installation
Section 1 Installation Installation The Light Symphony iTimer is a wireless device. This means it receives commands from the remote control and is able to send control ’messages’ to the light- ing control modules in the garden using its antenna only. -
Page 5: Location
The iTimer does not need day-to-day attention, so it can be fitted in a discrete loca- tion. An example is a loft-space, since the roof usually gives a good radio-view of the front and back garden. -
Page 6: Front Panel
Section 2 Initial Setup Front Panel LCD Display UP key (ALL Area’s ON) MENU DOWN key (ALL Area’s OFF) -
Page 7: Navigating The Menus
Section 2 Initial Setup Navigating The Menu The iTimer has many functions but all are easily configured from the simple key-pad. The list below shows all the configurable options in the order in which they are dis- played; Set Time / Date... -
Page 8: Setting Time / Date
Section 2 Initial Setup Setting the Time / Date If the iTimer is connected to the internet the clock will auto-set. If not, it can be set manually as follows; SETTINGS… Display the config menu by pressing the Time / Date “OK”... - Page 9 (dusk), in the winter months, is a few minutes earlier in the north of the country than in the South. Therefore the iTimer can be tailored to a specific location to ensure the dusk and dawn times are calculated as accurately as possible.
-
Page 10: Setting Dusk / Dawn Time
Initial Setup Setting Dusk / Dawn Time Although the iTimer calculates the precise dusk and dawn times for your location, you may prefer your lighting to come on slightly before sunset (dusk) or slightly after. Similarly, you may prefer the lights to go off just after sunrise (dawn) or just before. -
Page 11: Introduction
Timer Setup Introduction The iTimer contains 9 powerful and independent timers. Each timer may be config- ured separately to control different aspects of your garden. The timers can be used to control an individual ‘Area’ of your garden or the whole garden together (ALL). - Page 12 Section 3 Timer Setup Setting Timer 1 (to 9) ...continued First decide if this timer should control the lights ‘Everyday’ or only on ‘Weekdays’ or only on TIMER 1: Everyday ‘Weekend’ days. AREA: 1 ON at 00:00 Next set the ‘AREA’ code this timer controls. e.g. OFF at 00:00 Area 1 is the first button on the App or keyfob.
-
Page 13: Pir Timer
Section 3 Timer Setup PIR Timer The PIR (motion sensor) Timer is a special timer to be used only in conjunction with Light Symphony’s wireless PIRs. When the sensors are configured to use it, this timer will create a ‘window’ when the they are disabled, where only motion outside this window triggers the lighting. -
Page 14: Colour Light Show
LEDs are off then press the Area key). Next, set the iTimer’s Light Show to the same Area. e.g. no. 8 (see page 14). The Light Show will run whenever Area 8 (or your chosen Area) is switched on. The light show will also be started by the remote control’s ‘Garden On’... -
Page 15: Light Show Setup
Section 4 Light Show Colour Light Show set up To configure the Light Show to your preference, navigate to the ‘Set Light Show’ menu by pressing the “OK” key then pressing the DOWN key seven times. Press “OK” to select show set-up page; SET LIGHT SHOW Zone :NONE Speed: 5 sec... -
Page 16: Section 5 – App / Cloud Setup
App / Cloud Setup App / Cloud setup The iTimer also acts as a gateway between the iSymphony App and the lighting con- trollers in your garden. Usually no setup is required, this aspect should be plug & play. Where non-standard network configurations or security the inhibit the plug&play system, the iTimer and... - Page 17 App / Cloud Setup App / Cloud setup (cont..) The App should also be setup free but if the iTimer’s network settings have been manually adjusted then the App may also need configuring to suit. For Apple phones and tablets, the App’s settings are reached from devices settings page. For Android devices it’s from within the App.
-
Page 18: Section 5 – App / Cloud Setup
App / Cloud Setup App / Cloud setup (cont..) Cloud Connection If an internet connection is available the iTimer will automatically attempt to connect to Light Symphony’s cloud service. The status of this connection is shown on the clock/ status page;... - Page 19 Section 5 App / Cloud Setup...
- Page 20 The iTimer’s interface is via a ‘listening’ UDP socket at it’s IP address on port 10001. Multiple devices can be interfaced through one iTimer device provided the socket is not kept ‘open’.
- Page 21 Section 6 Interfacing – API Interface API continued The port expects simple lower-case ASCII messages in the format detailed below; all_on Whole garden ON all_off Whole garden OFF area_on x Switch ON an ‘area’, zone or scene, depending on what was stored in the receiver area_off x Switch ON an ‘area’, zone or scene, depending on what was stored in the receiver...
-
Page 22: System Code
If the Remote-Control and therefore Lighting Control Module’s System-Code has been changed then the iTimer must be configured to match. Press the “OK” key to enter the ‘Set System code’ menu. The display will change;... -
Page 23: Signal Repeaters
Switch, PIRs etc. This ensures commands reliably reach all the Lighting Control Modules. The iTimer includes a repeater and is usually the first repeater in the system (repeater #1). Where more repeaters are added, each must be assigned its own unique number (2 to 5). -
Page 24: Section 7 – How It Works
Section 7 How it works How it works Sometimes an understanding of how a system works can greatly assist in learning its abilities. Light Symphony is a radio (wireless) lighting system. The remote control transmits a wire- less signal when a button is pressed, which the outdoor Lighting Control Module receives and in turn switches the lighting circuit. -
Page 25: Section 8 – Trouble Shooting
*NOTE The remote control can be tested by watching the iTimer display while any button is pressed on the remote control. If the remote ‘command’ is received, the iTimer will dis- play a message briefly. With two people, the remote’s ‘range’ can be determined using... -
Page 26: Section 9 – Electrical Safety
Section 9 Safety Safety Warnings • The Light Symphony system is a 230 Volt system and should be installed by a quali- fied electrician with up-to-date knowledge of current electrical safety legislation and safe working practices. • Installation work must be carried out to national electrical wiring regulations. •... - Page 27 Section 10 Specifications All Models ( LS30951iTIM & LS30951iTIM+ ) Supply Voltage 9VDC (regulated) 250mA via adaptor Power Consumption 2W (250mA) Individual Control Unlimited lights, power permitting Control Method RF Low-power FM radio Radio 434.075MHz, 25mW, Narrow Band FM Protocol Light Symphony RF Range 1000Meters, line-of-sight...
- Page 28 Environmental Information for Customers in the European Union European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or packaging must disposed with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities.
