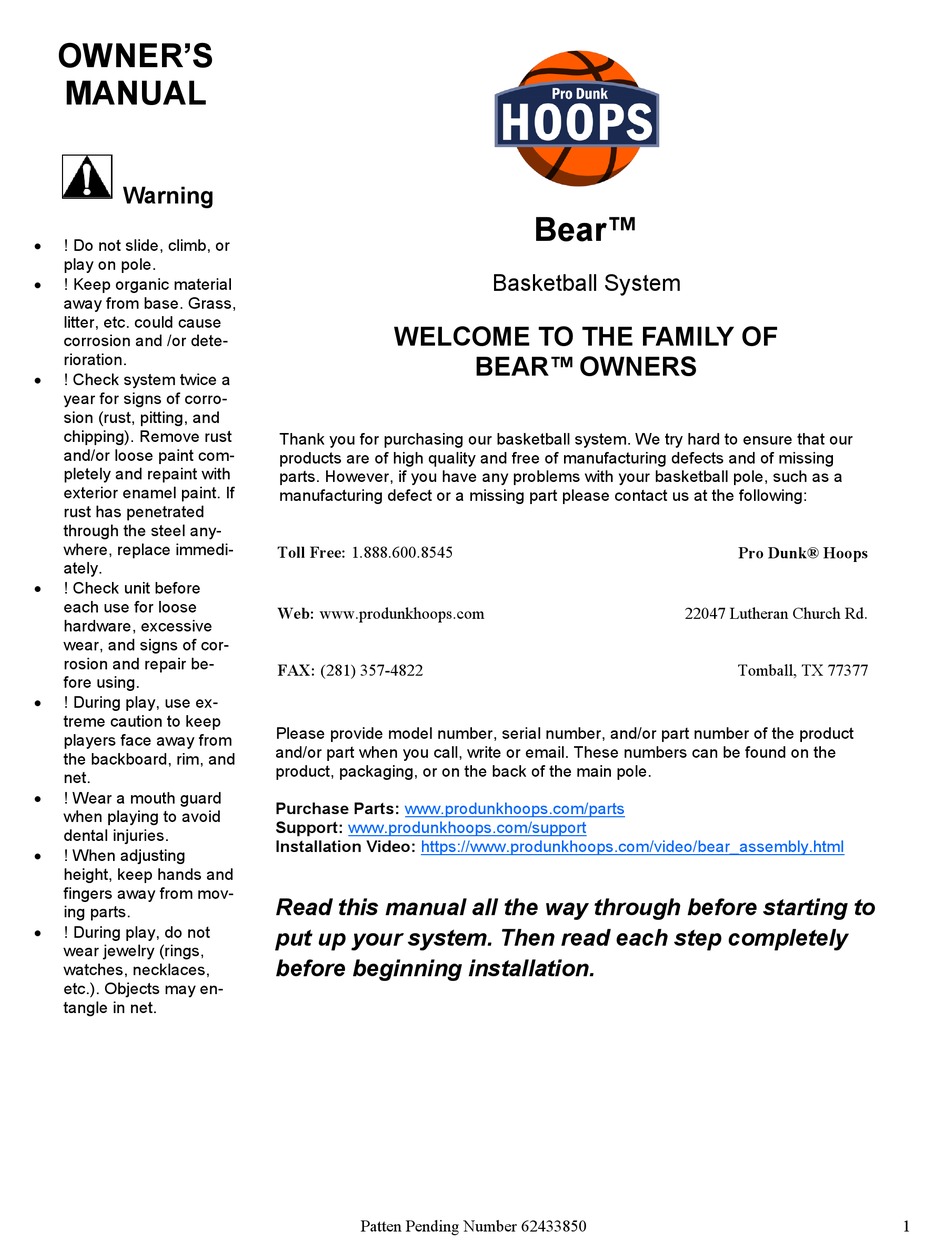

OWNER'S
MANUAL
Warning
! Do not slide, climb, or
play on pole.
! Keep organic material
away from base. Grass,
litter, etc. could cause
corrosion and /or dete-
rioration.
! Check system twice a
year for signs of corro-
sion (rust, pitting, and
chipping). Remove rust
and/or loose paint com-
pletely and repaint with
exterior enamel paint. If
rust has penetrated
through the steel any-
where, replace immedi-
ately.
! Check unit before
each use for loose
hardware, excessive
wear, and signs of cor-
rosion and repair be-
fore using.
! During play, use ex-
treme caution to keep
players face away from
the backboard, rim, and
net.
! Wear a mouth guard
when playing to avoid
dental injuries.
! When adjusting
height, keep hands and
fingers away from mov-
ing parts.
! During play, do not
wear jewelry (rings,
watches, necklaces,
etc.). Objects may en-
tangle in net.
WELCOME TO THE FAMILY OF
Thank you for purchasing our basketball system. We try hard to ensure that our
products are of high quality and free of manufacturing defects and of missing
parts. However, if you have any problems with your basketball pole, such as a
manufacturing defect or a missing part please contact us at the following:
Toll Free: 1.888.600.8545
Web: www.produnkhoops.com
FAX: (281) 357-4822
Please provide model number, serial number, and/or part number of the product
and/or part when you call, write or email. These numbers can be found on the
product, packaging, or on the back of the main pole.
Purchase Parts:
www.produnkhoops.com/parts
Support:
www.produnkhoops.com/support
Installation Video:
https://www.produnkhoops.com/video/bear_assembly.html
Read this manual all the way through before starting to
put up your system. Then read each step completely
before beginning installation.
Patten Pending Number 62433850
Bear™
Basketball System
BEAR™ OWNERS
Pro Dunk® Hoops
22047 Lutheran Church Rd.
Tomball, TX 77377
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bear and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pro Dunk Hoops Bear

  • Page 1 ! Keep organic material away from base. Grass, litter, etc. could cause WELCOME TO THE FAMILY OF corrosion and /or dete- rioration. BEAR™ OWNERS  ! Check system twice a year for signs of corro- sion (rust, pitting, and chipping). Remove rust Thank you for purchasing our basketball system.
  • Page 2 Bill Of Materials Ref. Qty. Description Vertical Post Base Main Extension Arm Backboard Assembly Upper Parallel Linkage Arm Weight Box Cover Weight Box Back Wall Weight Box Front Wall Weight Box Side Wall Leveler Feet Weight Divider Turf Wheel Main Pole Support Brace Weight Box Lock Pole Pad Bottom Pole Pad Top...
  • Page 3 Ref. Qty. Description Axle Hex Nut (Axle Assembly) Axle Spacer 6mm x 1.5cm Allen Bolts (Weight Box Assembly) 6mm Hex Nuts (Weight Box Assembly) Cotter Pin (Axle Assembly) 8mm x 3cm Hex Bolt (Padding Assembly) 8mm Flat Washer (Padding Assembly) 8mm Lock Washer (Padding Assembly) 10mm x 4cm Hex Bolt (Front Leveler Assembly) 10mm Flat Washer (Front Leveler Assembly)
  • Page 4 Patten Pending Number 62433850...

  • Page 5: Hardware Diagrams

    Hardware Diagrams Tear this page out for reference during assembly Patten Pending Number 62433850...

  • Page 6: Safety Instructions

    Safety Instructions  Do not use the basketball system as a lift or to IMPORTANT hoist anything. It is the responsibility of purchaser to ensure that  Players should wear protective mouth guard all installers and players fully comply with the de- during play to avoid any time of dental injury.

  • Page 7: Installation Overview

    Installation Overview In order to have the safest, fun and longest use of your Pro Dunk® system, please note and heed the following: 1) Immediately unpack all components and cross check against bill of materials. Report any shortages to Hoops Inc. customer ser- vice at 1.888.600.8545.

  • Page 8: Required Tools And Materials

    Required Tools and Materials Bolt/Nut Sizes 30 Solid Concrete Blocks (Common: 4x8x16 inch)  (Actual: 3.625x7.625x15.625 inch) Socket/Wrench Sizes Recommended Level  24mm  Tape Measure  22mm Box Cutter   (2) Large Crescent Wrenches  19mm  (1) 4mm Allen Key ...
  • Page 9 Storing Your Bear Patten Pending Number 62433850...
  • Page 10 Navigate to be below URL to watch our installation video. https://www.produnkhoops.com/video/bear_assembly.html Installation of a Pro Dunk® Bear basketball goal system by experienced professional assembly crew. It shows the entire assembly process from start to finish and in- cludes tips and explanation by the experts at www.produnkhoops.com.
  • Page 11 Pro Dunk Accessories https://www.produnkhoops.com/basketball_goals/accessories/ Why stop playing in the evening. You don’t have to! Order the Pro Dunk Goal Light LED. It easily lights up the entire 3-point line with 2 powerful LED lamps extending play into the night. There’s always time for one more game! [patent pending 62458721] Comes with Free Shipping! Goal Light LED!

  • Page 12: Assembly Instructions

    Assembly Instructions 1) Wheel and Axle Assembly Place 1 flat washer (QQQ) on bolt (PPP). Insert bolt (PPP) into welded tab then place steel spacer (RRR) on bolt (PPP). Then place wheel (TTT) into place sliding bolt (PPP) through the center. Then place second steel spacer (RRR) on bolt (PPP) and continue through the steel tab.
  • Page 13 Slide the Axle (LL) Through the Sleeve on the Base (B). Place each Axle Spacer (NN) on each side of the Axle (LL). Place each Turf Wheel (L) onto Axel (LL). Screw on the Axle Hex Nut (MM) and tighten down. Then loosen Axle Hex Nut (MM) to allow wheel to spin freely.
  • Page 14 2) Weight Box Assembly Attach Weight Box Front (H) and Weight Box Back (G) sides to the Base (B) by sliding into place. Attach Weight Box Sides (I) to the Weight Box Front (H) and Weight Box Back (G) using Allen Bolts (PP) and Hex Nuts (QQ).
  • Page 15 Install Weight Divider (K) using hex bolts (PP). The Weight Divider (K) Using gloves, add 18 more solid con- crete cinder blocks to the weight box. 2 across long ways, 3 deep, 2 layers high. This will total 30 cinder blocks and will fill the entire weight box.
  • Page 16 3) Main Pole Assembly Place the Main Pole (A) on the Base (B) in-between the Turf Wheels (L) so that the four holes line up. The 8 slotted welded tabs will be facing towards the court. Attach the Vertical Post (A) using hex bolt (DD), lock washers (FF), flat washers (EE), and Lock Nut (BB).
  • Page 17 4) Main Extension Arm Assembly Slide the Main Extension Arm (C) over the top of the Vertical Post (A) and attach to the lower pivot tube with a 16mm X 33cm Hex Bolt (Y) and a 16mm Lock Nut (BB). NOTE: Tighten the lock nut down and then back off a 1/4 turn to al- low the joint to pivot when adjust-...
  • Page 18 6) Spring Assist Assembly Attach Spring-Assist Cartridge (R) to the Main Extension Arm (C) using an 16mm X 33cm Hex Bolt (Y) and 16mm Lock Nut (BB). Use the 14mm X 13cm Hex Bolt (Z) and 14mm Lock Nut (CC) to attach them to the welded tabs.
  • Page 19 8) Backboard Assembly CAUTION: ATTACHING THE BACKBOARD REQUIRES AT LEAST FOUR CAPABLE ADULTS. Mount the H-Frame Backboard Mount (D) and Backboard assembly lower pivot tube first to the Main Extension Arm (C) using one 16mm X 33cm Hex Bolt (Y) and one 16mm Lock Nut (BB).
  • Page 20 10) Rim Assembly Mount the rim to the H-Frame Backboard Mount and Backboard assembly using the hardware supplied in the rim box. Install Rim produnkhoops.com/video/install_rim.html NOTE: Use a level to make sure rim is level side to side before tightening nuts OPTIONAL: If desired, you can level the rim front to back using shim washers...
  • Page 21 11) Leveler Assembly Attach both front levelers (FFF) to the Base (B) using hex bolts (VV), flat washers (WW), lock washers (XX), and hex nuts (YY). Attach both back levelers (GGG) to the Base (B) using hex bolts (ZZ), flat washers (AAA), and locking hex nuts (BBB).
  • Page 22 With the help of 3 adults push down on the end of the rim to lift the back wheels off the ground to pivot in any direction and proceed to move your Bear to the desired location. Patten Pending Number 62433850...
  • Page 23 Using the levelers, raise your Bear so that all four wheel are clearly off the ground and your backboard is level front to back and left to right. Then place the 18 blocks back into the weight box and place the cover back on and lock it.
  • Page 24 If you are on concrete us the provided concrete wedge anchors. To install use a hammer drill and 5/8” concrete drill bit. Drill 2 holes where the back feet would sit and insert wedge anchors sleeve. Using a punch hammer the wedge on the in- side of the sleeve down to wedge the sleeve into place.
  • Page 25 14) Height Meter and Sticker Assembly To apply the Rim Height Sticker (U) and Steel Rim Height Indicator (V), first use a tape measure to crank rim up to exactly 10' from the playing surface. This is measured from the top of the rim to the playing area. Install Height Meter produnkhoops.com/video/height_meter_installation.html Attach the Steel Rim Height...
  • Page 26 15) Maintenance Like any piece of hardware proper maintenance is required. Several factors such as the environment, organic materials, herbicides, pesticides, excessive use or misuse can eventually cause the basketball system to require maintenance. Failure to do so could result in system failure, property damage, or even personal injury. 1) All organic materials should be kept away from the system at all times.
  • Page 27 Hoops Inc. Pro Dunk® Limited 5 Year Warranty Hoops Pro Dunk® basketball structural components are warranted to the original purchaser to be free from defects in material or workmanship for the duration of ownership by the original retail purchaser. The word “defects” is defined as imperfections that impair the use of the product.
