Foresight CCTV SP006P User Manual

POE (Power over Ethernet) Surge Protector
ITEM NO.:
SP006P designed to protect Power-Over-Ethernet (POE) data/communication lines in local
and wide area networks up to 100 Base-T transmission speeds.
SP006P POE Surge Protector
Performs a different function than grounding requirements.
l
Protects equipment from high voltage surges from nearby lightning strikes.
l
RJ45 Jack to RJ45 Jack
l
Power and signal line protection.
l
10/100 Base-T CAT5/CAT5e compatible.
l
Support Mid-Span POE and End Span POE.
l
802.3af POE (Power over Ethernet) compatible.
l
Application for POE (Power over Ethernet) protection.
l

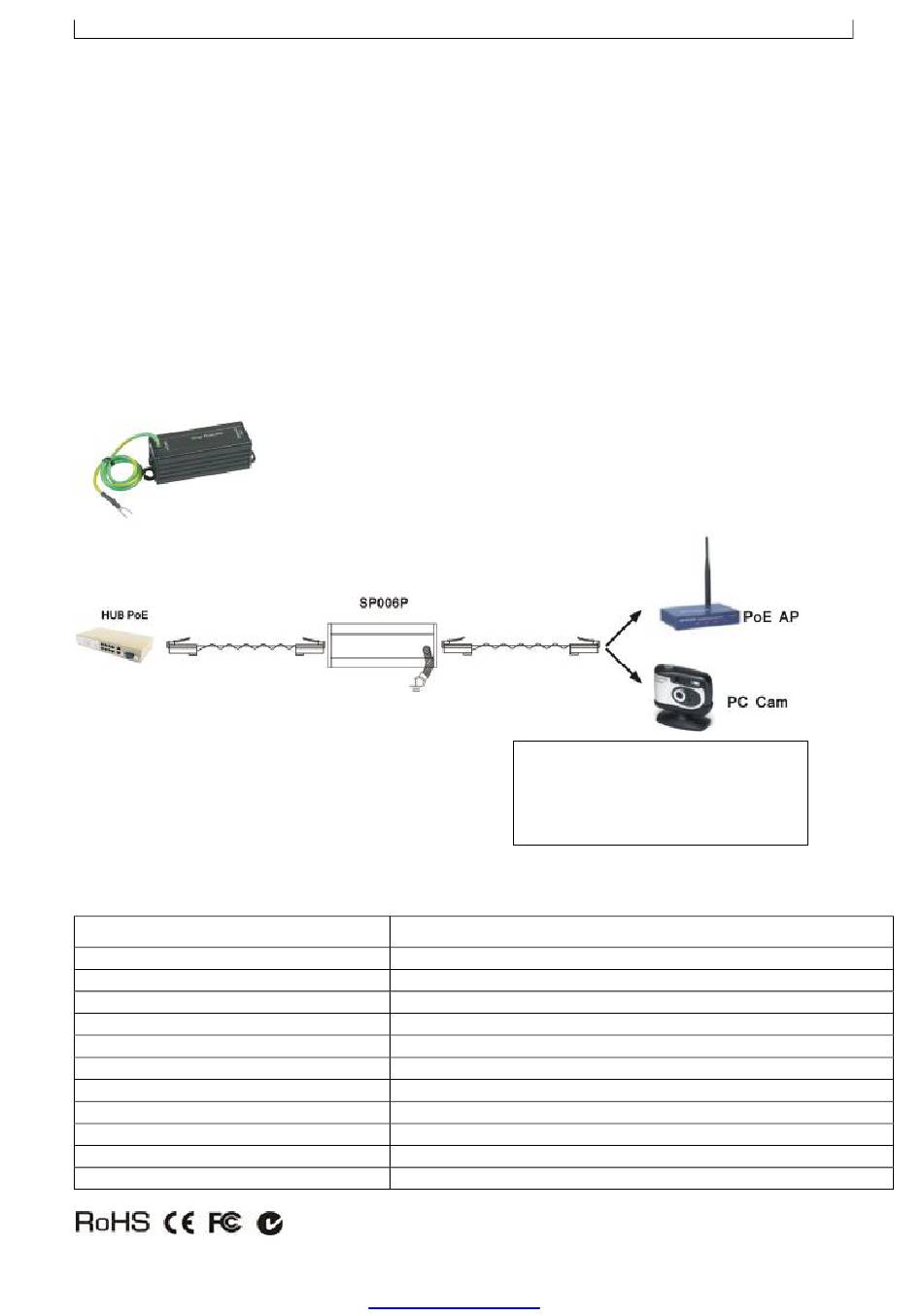

Installation View:
Application
Computer Control Rooms
l
Educational Institutions
l
Server Farms
l
Commercial Offices
l
Manufacturing Facilities
l
Transmitter and Receiver Stations
l
Specification
Item No.
Surge Protection Attack Time
Maximum Surge Voltage
Surge Life
Normal Resistance Across Coax
Surge Resistance
BAND PASS
Insertion Loss
Return Loss (75 ohms)
Connectors
Dimensions
WEIGHT
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV 416-512-6288
PDF created with pdfFactory trial version
SP006P
mm
g
www.pdffactory.com
Note:
For ensuring the unit can
protect equipments, the cable
must be connected to ground.
SP006P
1 nanoseconds
4 KV
300 surges of 100Amps
10,000 MΩ
Approx. 0Ω
0~1 GHZ
Less than 0.2 dB
16dB
RJ45
85x25.4x25.4 mm
80
1
