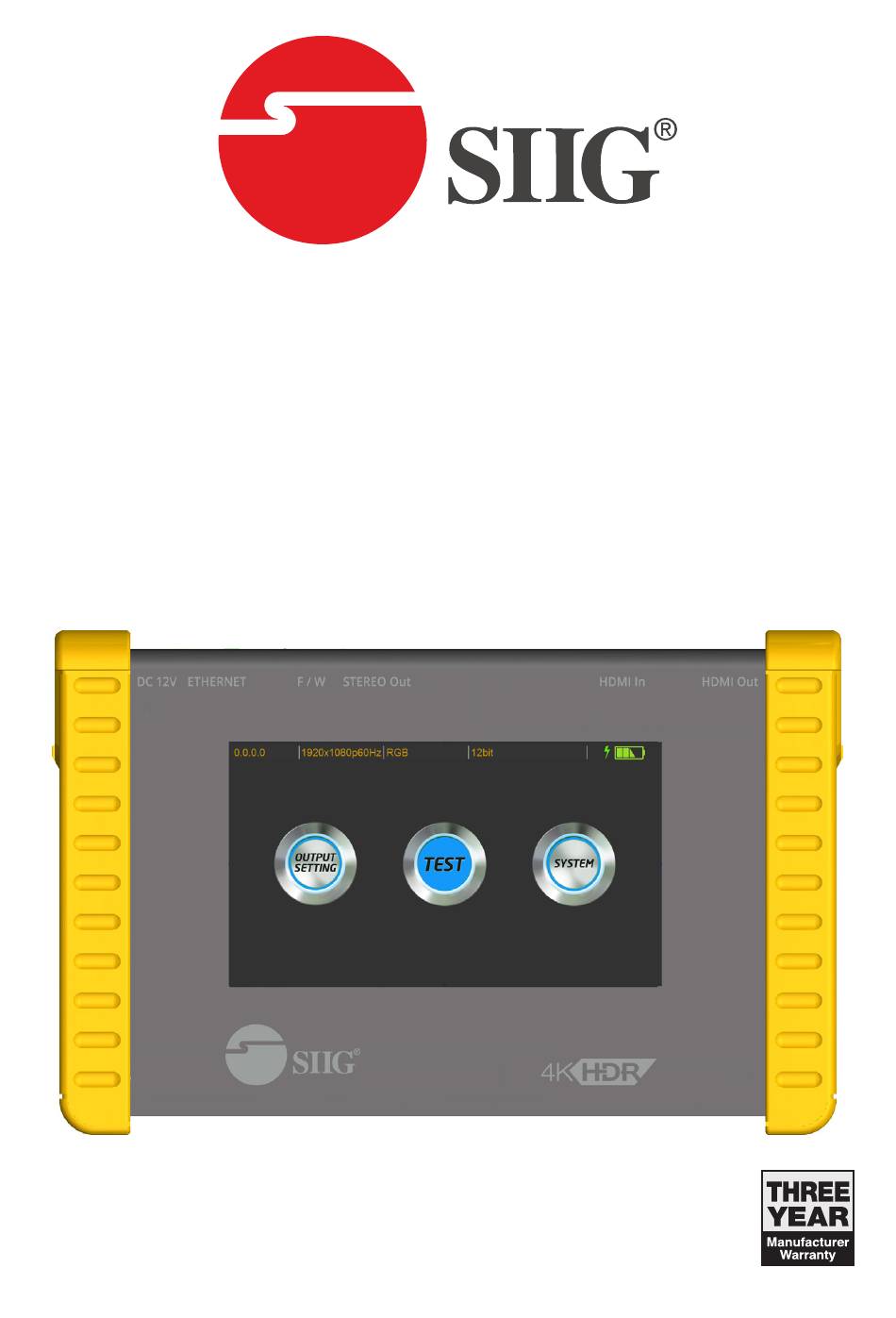

- Page 1 HDMI 2.0 4K HDR Pattern Generator/Analyzer User Manual 04-1145A P/N: CE-H23N11-S1...
-
Page 2: Safety And Notice
Safety and Notice Please read all of these instructions carefully before you use the device. Save this manual for future reference. The HDMI 2.0 Pattern Generator / Analyzer has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the should be used with care. -
Page 3: Package Contents
• Battery powered for portability, it can extend operation time with full load up to 4 hours • Rechargeable battery design with short charging time about 2 hours. Package contents • HDMI 2.0 4K HDR Pattern Generator/Analyzer • Power adapter DC 12V / 5A • User Manual... - Page 4 Layout OUTPUT: HDMI output INPUT: HDMI input Stereo Out: Analog audio output USB: Connect to USB device for control or firmware update Ethernet: Ethernet control +12V DC: 12V 5A DC power jack Power Switch: Power ON/OFF switch Touch Panel: Touch screen for control...
-
Page 5: Menu Operation
Menu Operation The major functions of the device are listed below • HDMI Generator • HDMI Receiver • HDCP Test • EDID Test • Loop Test Please refer the table below and the following section to know how to oper- ate these functions. - Page 6 Test Setting Description Format read format information from source provide small screen for user to check the Video video information and also provide video pass through to the display Source Audio read audio information Packet read packet HDCP enable HDCP function (1.4/2.0) EDID EDID analyzer or learn EDID from RX Sink...
- Page 7 Generator After making the physical connections between Generator and the display device. User can select different generator function to display on the sink device under test. Selecting the Signal Format Generator provides different signal resolution and signal types for user to select. User can touch the Signal Format Tab to select the signal type (HDMI / DVI) and signal resolution (HDTV / PC).The HDTV resolution is up to 4K2K 60Hz and PC resolution is up to 1920x1200 60Hz...
- Page 8 Testing Digital Audio on an HDTV or A/V Receiver The PCM Audio Tone menu provides user for test audio on HDTV or other A/ V receivers. In the PCM SINE WAVE menu, user can set up the bits per sample, sample rate, level and audio channel.
-
Page 9: Edid Analysis
HDCP Test • HDCP Receiver When device set as receiver, it can verify HDCP of video player or other DUT. It provides three options (HDCP 1.4 / HDCP 2.2 / no HDCP) for users to select and confirm the HDCP authentication of DUT. •... - Page 10 • Procedure of EDID Analyze: Make sure the connections between the device HDMI output port and the device. Select EDID Analyze from the Sink Test Menu. Touch the Read button to get the EDID information of DUT. • Procedure of learning EDID from RX: Make sure the connections between the device HDMI output port and the device.
- Page 11 Procedure of Loop Test: *only support 1080p@60, 4K2K 30Hz and 4K2K 60Hz resolution Make sure the connection between the PRO-HDMI2Gen and the DUT or cables. Select Loop Test from the Loop Test Menu. Set the test time and touch the START button. The device will capture the signal from its transmitter through the loop and evaluate the transmission quality.
- Page 12 Command Set: * Bold word part please refer to corresponding table COMMAND ACTION RAMARK Hexadeci- 0x4d 0x53 0x5 0x0 0x0 0x5 0x1 Res Set output resolution 0x4d 0x53 0x5 0x0 0x0 0x5 0x2 Set output resolution 0x4d 0x53 0x5 0x0 0x0 0x5 0x3 Mode Set output mode 0x4d 0x53 0x5 0x0 0x0 0x5 0x4 Set output mode...
- Page 13 Resolution: Index Resolution Index Resolution 720x480i@60 0x1c 1280x1024p@75 720x576i@50 0x1d 1360x768p@60 720x480p@60 0x1e 1366x768p@60 720x576p@50 0x1f 1400x1050p@60 1280x720p@60 0x20 1600x1200p@60 1280x720p@59.94 0x21 1440x900p@60 1280x720p@50 0x22 1440x900p@75 1280x720p@30 0x23 1680x1050p@60 1280x720p@29.97 0x24 1680x1050pRB 1280x720p@25 0x25 1920x1080pRB 1920x1080i@60 0x26 1920x1200pRB 1920x1080i@59.94 0x27 3840x2160p@60 1920x1080i@50 0x28...
- Page 14 Mode: Index Depth: Index Default Pattern: Index Default Pattern Index Default Pattern SMPTE BAR 0x18 Stair White 1 TV Bar 100% 0x19 Stair White 2 TV Bar 75% 0x1a Red 100 Checkfield 0x1b Green 100 0x1c Blue 100 0x1d White 100 Ramp Red H 1 0x1e Gray 70...
- Page 15 User Pattern: Index Default Pattern Index Default Pattern Philips Graybar32 R-2 Checker 3x3 0x10 Graybar32 G-2 Checker 6x6-1 0x11 Graybar32 B-2 Checker 6x6-2 0x12 Graybar32 W-2 White 75 0x13 Graybar64 R-1 White 50 0x14 Graybar64 G-1 White 25 0x15 Graybar64 B-1 Ramp W-1 0x16 Graybar64 W-1...
-
Page 16: Upgrade Device
Number: Index TX HDCP: Index RX HDCP: Index Upgrade Device User can upgrade the firmware and pattern on the device through the USB interface. If user encounters a problem with the upgrade, please contact the supplier. Procedure of Firmware Upgrade: * B e fo re u p d a t i n g t h e f i r mw a re, p l e a s e e n s u re t h e f i l e o f n e w firmware files are in the root directory of USB Flash Drive. - Page 17 After completing the firmware update, please reboot the device Select Firmware from the system Menu and choose the System button. Touch the Update button to do firmware update. The process of firmware update will take about 3~5 seconds. While updating, please do not remove the USB Flash Drive.
- Page 18 Pattern Create a folder (folder name is usr_pic) on USB Flash Drive. Ensure the file of pattern which user desire to update on the device is in the usr_pic directory of USB Flash Drive. The file suffix is .jpg. Before updating the user defined pattern, please confirm the capacity of the PRO-HDMI2Gen.
- Page 20 Support For more info or tech support http://www.siig.com/support Augest, 2018 Copyright © 2018 by SIIG, Inc. All rights reserved.
