1. Theory
The pH value is an electric value that is a parameter for the acidity of water. In the aquarium, the
pH value together with the carbonate buffer system is of special interest.
- In a fresh water aquarium, the pH value is responsible for the percentage of free CO
used by green plants for photosynthesis. Fertilization with CO
fresh water aquaria as base for a good plant growth. With the pH controller, the pH value can
be adjusted to a given set point and kept constant by adding CO
- In a saltwater aquarium, the pH value and CO
reactor. The addition of CO
addition, also Kalkwasser can be dispensed to increase the pH value after switching the control
range (No. 9).
2. Delivery
The Aqua Medic pH controller needs a separate pH electrode and corresponding calibration liquids
to start work. The regulating unit (solenoid valve, dosing pump) can be connected to the adaptor
plug.

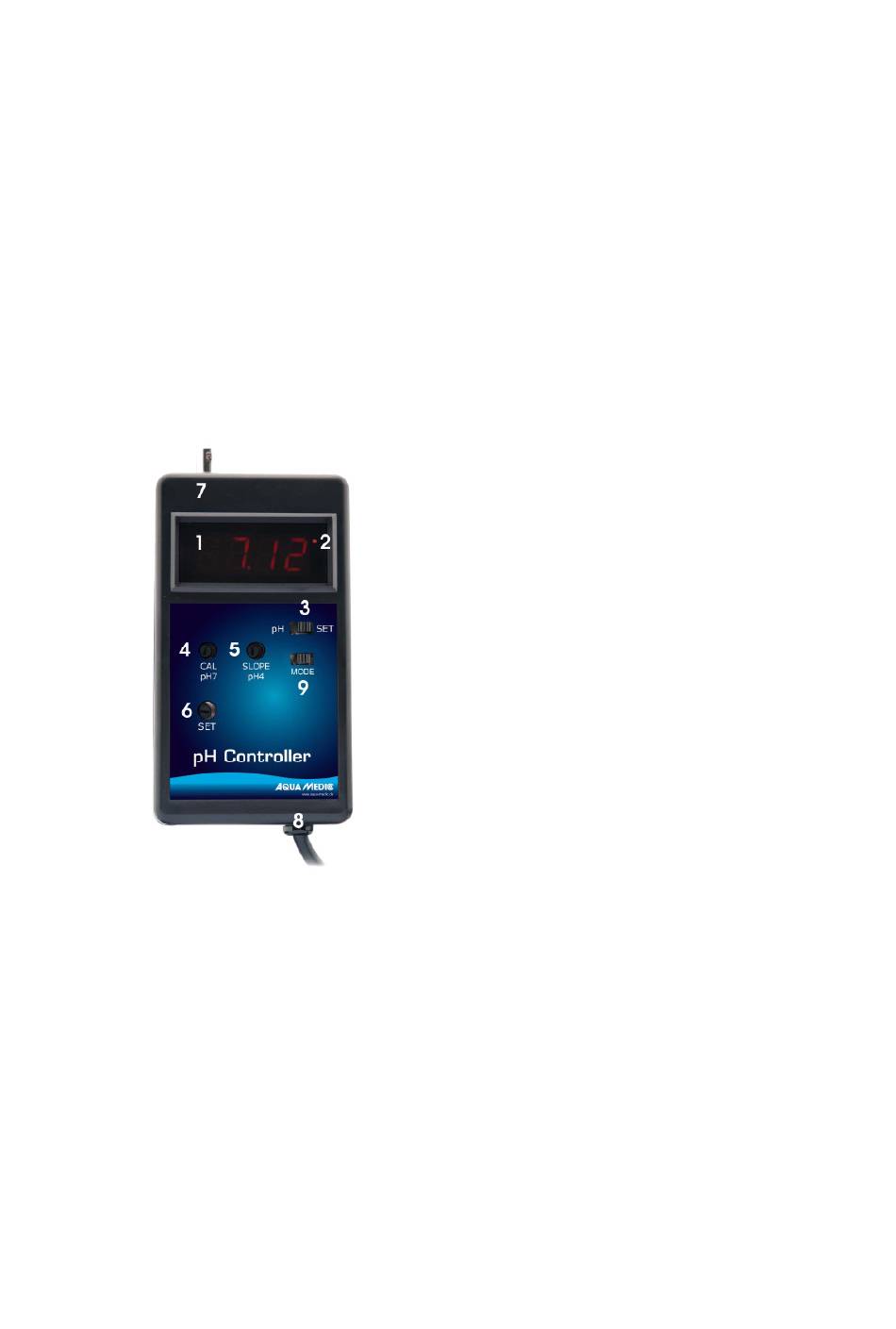

Description of front panel:
1. Display
2. Display/relay on/off
3. Set/measuring switch
4. Calibration knob, pH 7
5. Calibration knob, pH 4
3. Starting and calibration
1. Connect to 100 – 240 V.
2. Connect the pH-electrode (No. 7).
3. Set switch (3) to „pH" (measuring).
4. Insert the electrode into the buffering solution pH 7. After 3 minutes, turn knob 4 (CAL pH7)
until the display shows pH 7 (use a small screw driver).
5. Flush electrode with distilled water.
6. Insert electrode in buffer solution pH 4 (or pH 9, depending on the desired range). After 3
minutes, turn the knob (5) until the display shows pH 4 or 9.
7. Adjust control range (MODE No. 9). Left switch for pH decrease, right switch for pH increase.
During operation, the point (No. 2) will flash.
-addition are used in combination with a calcium
2
into the calcium reactor is controlled by the pH-controller. In
2
6. Set point adjustion
7. Connection for electrode (BNC-plug)
8. 220 V-plug / socket for regulating unit
9. Control range (turn left – pH decreases,
turn right – pH increases)
has been well-established for
2
automatically.
2
that is
2
