Beacon BSSK-1 Owner's Manual

BEACON INDUSTRIES, INC.
12300 Old Tesson Rd.
St. Louis, MO 63128-2247 USA
OFFICE: 314-487-7600 FAX: 314-487-0100
Ergonomic Solutions
Contents
Safety Precautions ........................................... 1
Receiving Instructions ...................................... 1
SAFETY PRECAUTIONS
Read owner's manual completely before operating unit!
• Keep hands, feet and foreign objects out from
underneath lift
• Never crawl under lift
RECEIVING INSTRUCTIONS
Every unit is thoroughly tested and inspected prior to
shipment. However, it is possible that the unit may incur
damage during transit. If damage is noticed when unloading,
make a note of it on the BILL OF LADING. Remove all
packing and strapping material, then inspect the unit again for
damage. IF DAMAGE IS EVIDENT, FILE A CLAIM WITH
THE CARRIER IMMEDIATELY! Finally, check the design
specifications to ensure they match those as requested (i.e.
table size, control type, motor voltage, etc...)
INSTALLATION INSTRUCTIONS
STEP 1 - Unpack accordion skirt kit carefully. Avoid bending
the aluminum extrusions and rods.
STEP 2 - Refer to Figure 2 at the right. Thread the rope top
of the accordion skirt (1) into the aluminum extrusions (2).
STEP 3 - Place the accordion skirt, with the extrusions
installed, over the deck of the scissor table as shown in
Figure 1.
STEP 4 - Attach aluminum extrusions to sides of Lift Table.
Carefully line up holes in aluminum extrusion with holes in
side of Lift Table. Secure extrusion to table using 5/16" self-
tapping screws (3).
STEP 5 - Insert stiffener rods into accordion skirt. Locate ¼"
holes in ends of BLACK convolutions of accordion skirt.
Carefully insert stiffener rod into hole, taking care not to rip or
damage the skirt.
Revised 06-99
OWNER'S
MANUAL
ACCORDION SKIRT KIT
Model BSSK-1, BSSK-, BSSK-3
Installation Instructions .................................. 1-2
Warranty ............................................................1
WARRANTY
This product is warranted for one year from date of
purchase to be free of manufacturing defects in material and
workmanship. The manufacturer's obligation hereunder is
limited to repairing such products during the warranty period,
provided the product is sent prepaid back to the factory.
This warranty does not cover normal wear of parts or
damage resulting from any of the following: negligent use or
misuse of the product, use or application contrary to installa-
tion instructions, or disassembly, repair or alteration by any
person prior to authorization from a factory representative.

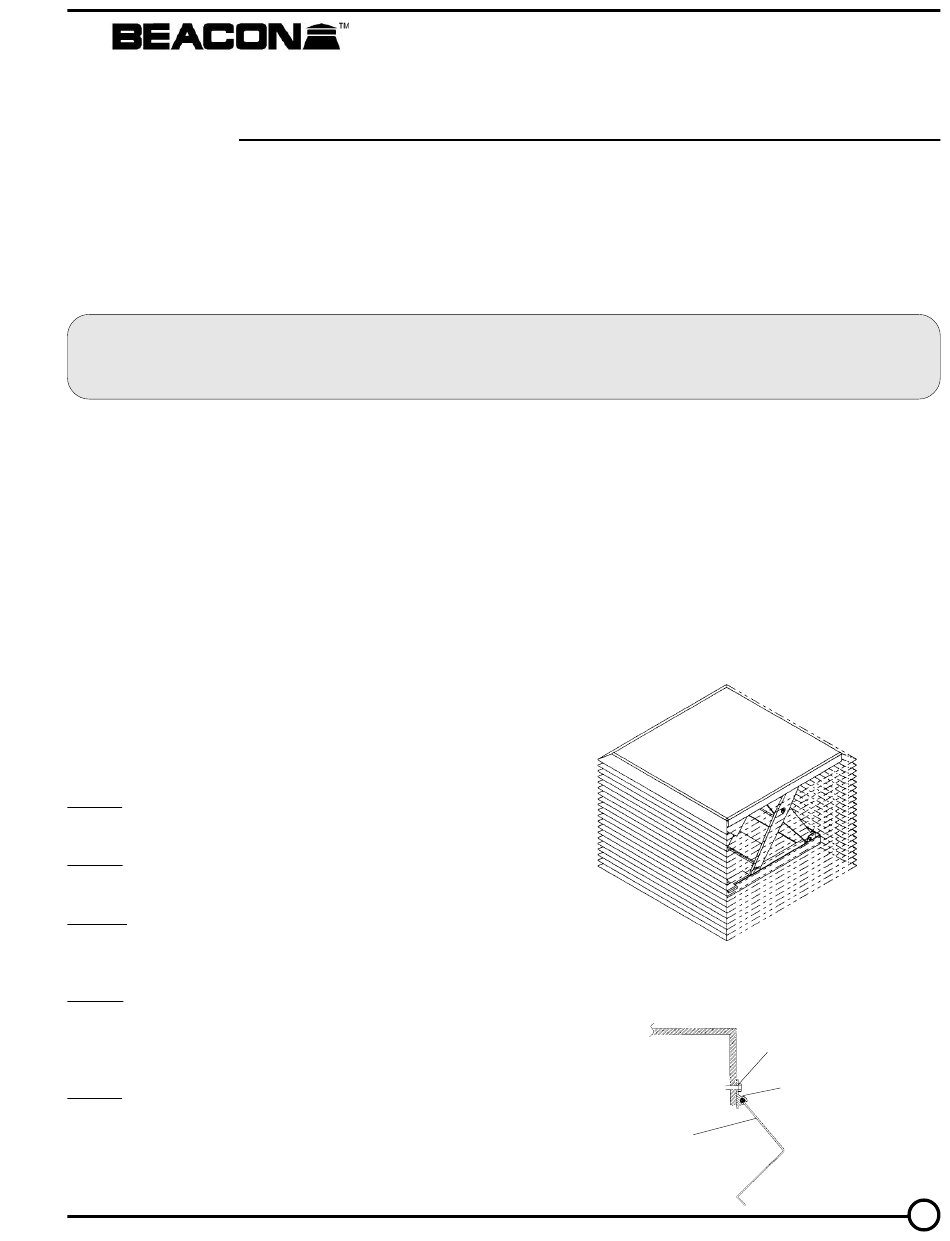

FIGURE 1
