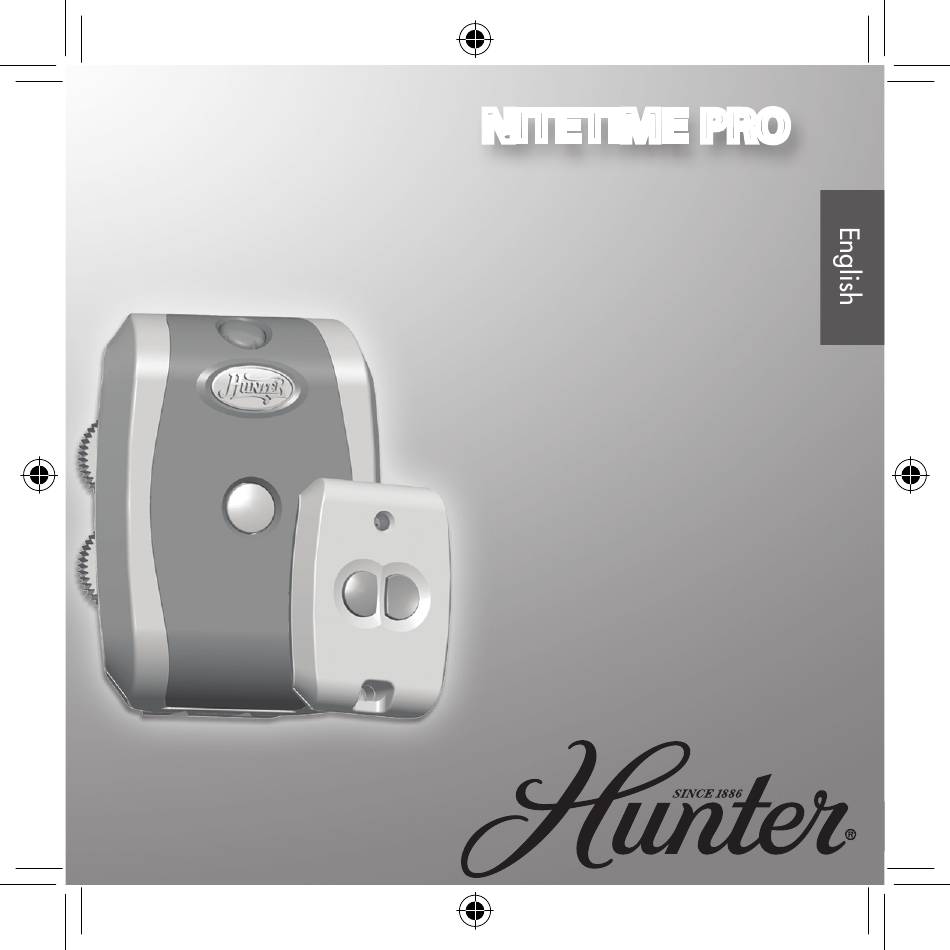

- Page 1 NITETIME PRO NITETIME PRO NITETIME PRO Wireless Timer Owner’s Guide and Installation Manual Model 45043 Form# 43073-01 20080905 43073-01 20080827 ©2008 Hunter Fan Co.
- Page 2 ©2008 Hunter Fan Company...
-
Page 3: Table Of Contents
Table of ConTenTs Description4 Features 6 Features 6 Limitations / Warnings 7 Program the NITETIME Pro™ 9 Setup the NITETIME Pro™ 12 KeyChain Operation 18 Battery Replacement 20 Troubleshooting 22 Technical Support 24 The Hunter Product Family25 43073-01 20080827... -
Page 4: Description4
A built-in photocell automatically adjusts the timer to Daylight Savings Time changes so no resetting is required – even after power outages The convenient Keychain Remote allows temporary override of programming for use of a lamp or small appliance ©2008 Hunter Fan Company... - Page 5 Remote Photocell Program Dial House Code Dial Plug Figure 1: NiteTime Pro™ Components 43073-01 20080827...
-
Page 6: Features 6
• Built-in photocell automatically adjusts timer for Daylight Savings Time changes • Timer requires no resetting – even after power outages. • Timer can be used with incandescent (standard bulb), compact fluorescent (CFL), or halogen-based bulb lamps • Timer can be used with small appliances under 500 watts or four Amps such as a radio or television • RF signal with up to 60 FT. open air range (Range may vary between installations.Refer to Limitations/Warnings for more information.) • 3 Year Warranty ©2008 Hunter Fan Company... -
Page 7: Limitations / Warnings 7
limiTaTions / Warnings • For indoor use only • Not recommended for devices over 500 watts or four Amps • When used on a device controlled by a wall switch, the wall switch must remain on at all times for the NiteTime Pro™ to function properly • Power must remain on to the device using the NiteTime Pro • Obstructions between Remote and Receiver module including walls and doors will reduce signal range • To reduce the risk of electrical shock, this equipment has a polarized plug (one blade is wider then the other). - Page 8 / Warnings • This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation ©2008 Hunter Fan Company...
-
Page 9: Program The Nitetime Pro
program The niTeTime pro™ Choose the Timer Setting Before plugging the timer into a wall outlet, choose the desired time program using the Program dial These instructions apply to both lamps and small electronics Once set, the program never needs resetting for Daylight Savings Time or power outages If a timed program is not needed, set the Program dial to 1, Power On. To revert back to a timed program, change the... - Page 10 The niTeTime pro™ 1 - Power On 2 – Dusk +2hr turns power On at dusk, turns power off 2 hours later 3 – Dusk +4hr turns power On at dusk, turns power off 4 hours later 4 – Dusk +6hr turns power On at dusk, turns power off 6 hours later 5 – Dusk +8hr turns power On at dusk, turns power off 8 hours later 6 – Dusk +2hr Randomly powers On / off for 30 minutes within each hour after dusk for 2 hours. 7 – Dusk +4hr Randomly powers On / off for 30 minutes within each hour after dusk for 4 hours. 8 – Dusk +6hr Randomly powers On / off for 30 minutes within each hour after dusk for 6 hours. ©2008 Hunter Fan Company...
- Page 11 Menu of Timer Settings Figure 2: NiteTime Pro™ Programs 43073-01 20080827...
-
Page 12: Setup The Nitetime Pro
The niTeTime pro™ 1. Slide the battery cover off the back of the remote. 2 Pull out the battery from the battery compartment 3. Remove the protective film from between the battery and battery compartment (Refer to Figure 3) ©2008 Hunter Fan Company... - Page 13 eychain Rotective atteRy emote oveR atteRy eceiveR Figure 3 - Keychain Components 43073-01 20080827...
- Page 14 5 Ensure that the house code switches on both the Remote and Receiver match. (refer to Figure 4) 6 Turn power off to your lamp or appliance and unplug it from your wall outlet ©2008 Hunter Fan Company...
- Page 15 Figure 4 - House Code 43073-01 20080827...
- Page 16 The niTeTime pro™ 7 Plug your lamp or applaince into the NiteTime Pro™ Receiver. (refer to Figure 5) 8 Plug your NiteTime Pro™ Receiver into the wall outlet 9. Turn power back on to your lamp. ©2008 Hunter Fan Company...
- Page 17 Wall outlet NiteTime Lamp or Appliance Cord Figure 5 - Installation 43073-01 20080827...
-
Page 18: Keychain Operation 18
Press the resessed button once to power the lamp or appliance on and the raised button once to power the lamp or appliance off. (refer to Figure 6) The NiteTime Pro™ will automatically revert to it's programming during the next time program sequence ©2008 Hunter Fan Company... - Page 19 Figure 6 - Remote Operation 43073-01 20080827...
-
Page 20: Battery Replacement 20
Battery replacement 1 To replace the battery in the NiteTime Pro Remote, remove the battery cover and take out the battery. (refer to Figure 7) 2 Place the new battery, positive side up, inside the Remote and slide the battery cover back on. nOte: Only replace with MAXELL CR2032, 3V battery or equivalent ©2008 Hunter Fan Company... - Page 21 CR2032 Figure 7 - Battery Replacement 43073-01 20080827...
-
Page 22: Troubleshooting 22
Ensure the lamp you are trying to activate with the NiteTimer is turned on. Check your house code setting to ensure they are set the same 4 I receive erratic behavior from the NiteTimer Pro™ product It may be necessary to change the house code your product is set to ©2008 Hunter Fan Company... - Page 23 1 Slide the battery cover from your Remote Control and remove the battery 2 Change the House code Switch to another house code number. (Figure 4) 3. Replace the battery and slide the Battery Cover back on the Remote. 4 Turn off your lamp and unplug from the NiteTimer Pro™ Receiver 5 Unplug the Receiver and change the dial to the same number you set your Remote Control too (Figure 3) 6 Plug your lamp into the NiteTimer Pro receiver and...
-
Page 24: Technical Support 24
TeChniCal supporT If you have any additional questions or problems with your Hunter Air Purifier, please call: USA: 1-888-830-1326 Canada: 1-866-268-1936 Hours of operation are from 7:00 am to 7:00 pm Monday - Friday and 8:00 am to 5:00 pm on Saturday, Central Time You may also contact us over the Internet at: www.hunterfan.COm... -
Page 25: The Hunter Product Family25
The hunTer proDuCT family Bath Fans Humidifiers Air Purifiers Ceiling Fans Thermostats 43073-01 20080827...
