www.ahlborn.com

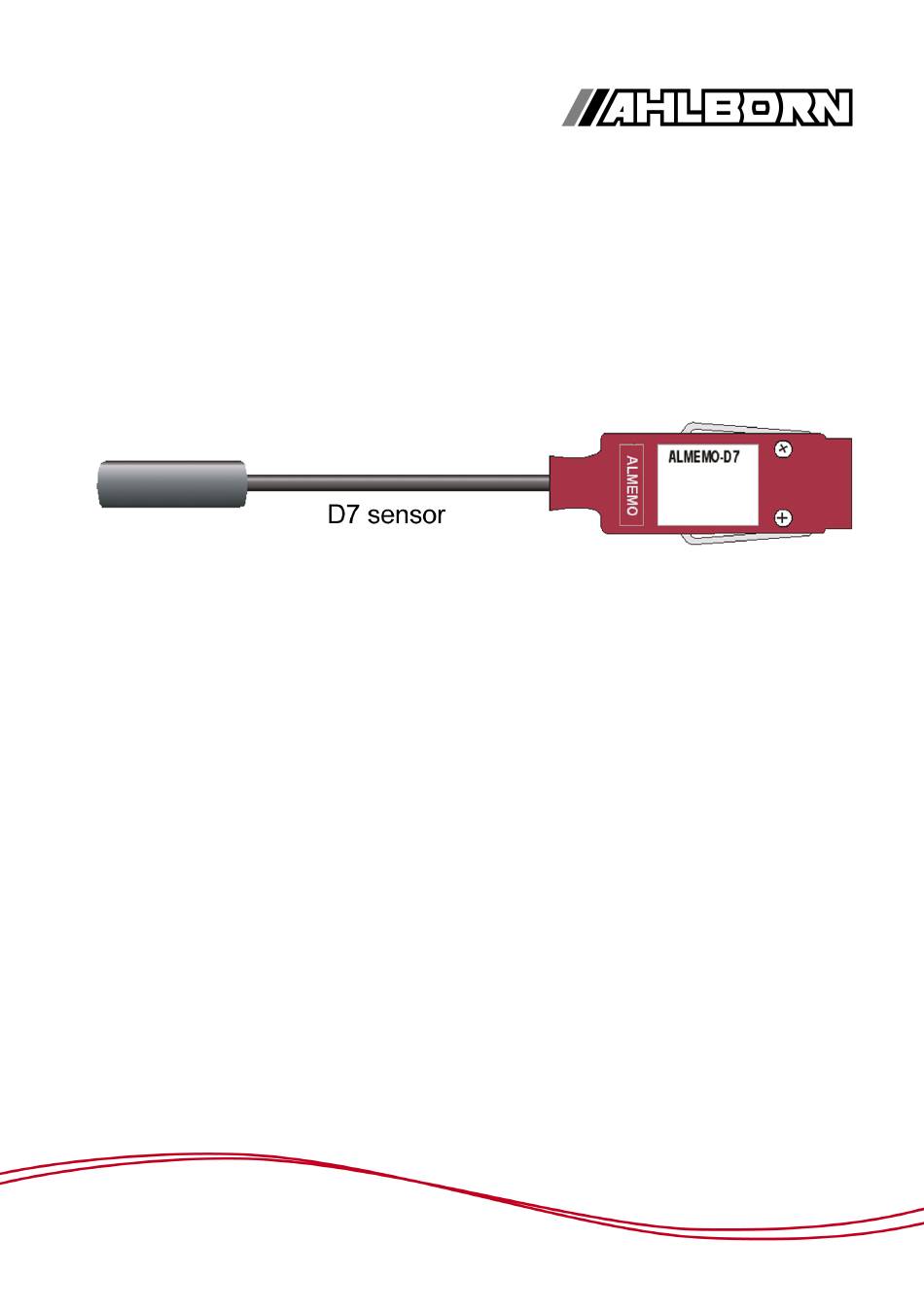

Operating instructions
V7
ALMEMO
D7 digital sensors
®
Measuring connector ±64 mV, ±250 mV, ±2 V, ±20 V, 20 mA ZED700/1/2-FS(2)
Pt100 connector ZPD70x-FS
Potentiometer connector ZWD700-FS
Bridge connector ZKD700-FS
Tensile and compressive force sensors FK0xx+ ZKD712-FS
Precision pressure transducer FD8214xx+ ZDD714-AK
Pressure transducer FD0602Lxx+ ZDD702-AKL
Conductivity sensor FYD741-LF
Meteo Multi sensor FMD760
GPS transducer FGD701
D7 thermocouple plug ZTD700-FS
D7-Pt1000-plug ZPD710-FS
V2.15
28.08.2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALMEMO D7 and is the answer not in the manual?

Questions and answers

Related Manuals for Ahlborn ALMEMO D7

Summary of Contents for Ahlborn ALMEMO D7

  • Page 1 Operating instructions ALMEMO D7 digital sensors ® Measuring connector ±64 mV, ±250 mV, ±2 V, ±20 V, 20 mA ZED700/1/2-FS(2) Pt100 connector ZPD70x-FS Potentiometer connector ZWD700-FS Bridge connector ZKD700-FS Tensile and compressive force sensors FK0xx+ ZKD712-FS Precision pressure transducer FD8214xx+ ZDD714-AK...

  • Page 2: Table Of Contents

    ALMEMO ® D7 digital sensors Operation as sensor on ALMEMO ® V7 measuring instruments. .4 1.1. Atmospheric pressure measurement and compensation........4 1.2. Correction of measured values................5 1.3. Sensor menu....................5 1.4. Configuration on PC via USB adapter cable...........5 D7 UI connectors ZED700-FS, ZED701-FS, ZED702-FS....7 2.1.
  • Page 3 9.12. Operating modes of fan.................24 9.13. Energy saving mode 1...................25 9.14. Technical data....................25 D7 GPS positioning sensor FGD701..........27 10.1. Configuration via the sensor menu..............27 D7 thermocouple plug ZTD700-FS..........29 11.1. Pin assignment....................29 D7-Pt1000-plug ZPD710-FS............31 12.1. Pin assignment....................31 Your contact partner..............32 - 3 -...

  • Page 4: Almemo ® D7 Digital Sensors

    ALMEMO D7 digital sensors ® The latest ALMEMO D7 digital sensors have been designed to overcome all the limita- ® tions experienced with earlier sensors regarding measurable variables, speed, range of measured values, and number of channels per sensor. It is also possible to perform effi - cient measuring operations simultaneously using high-speed and low-speed sensors with any range of measured values.

  • Page 5: Correction Of Measured Values

    errors. To ensure the highest possible level of accuracy these D6 sensors are fitted as standard with an atmospheric pressure sensor; this is always used automatically for atmo- spheric pressure compensation (PC) - even if the particular channel is not activated. The atmospheric pressure is programmed by default as a climate variable and can thus be configured as reference function (s.6.3.6);...
  • Page 6 Batt, Mess, Alrm, Diff, Max, Min, M(t), n(t), M(n), Flow, Time However, if connected directly to the PC, these are not available. The advisory note '! unusable' will be displayed in the comments text. Further parameters, depending on sensor type, can be set (e.g. setpoint adjustment, tem- perature / atmospheric pressure compensation).

  • Page 7: D7 Ui Connectors Zed700-Fs, Zed701-Fs, Zed702-Fs

    2.D7 UI connectors ZED700-FS, ZED701-FS, ZED702-FS D7 connectors are used, depending on connector type, to record voltages and currents in three different variants and each of these at two rates; they do so by means of an integrated 24-bit delta-sigma A/D converter. At five measuring operations per second (mops) 200,000 digits can be acquired or at 500 mops, 20,000 digits.

  • Page 8: D7 Pt100 Connector Zpd70X-Fs

    Technical data Input resistance 110 kΩ (ZED700/702) 100 + 30 Ω (ZED701) Overload approx. 50% A/D converter Delta-sigma Accuracy (5mops) 0.02 % ±2 digits Temperature drift maximum 30 ppm/K Nominal temperature +22 °C ±2 K Refresh rate 200 ms (5 mops), 2 ms (500 mops) Power supply 6 / 9 /12 V from the ALMEMO measuring instrument...

  • Page 9: D7-Potentiometer Connector Zwd700-Fs

    Technical data Uses Temperature (depending on sensor type) Temperature sensor ZPD700-FS Pt100, 4-wire ZPD703-FS Pt100, 3-wire Measuring quantities and ranges Temperature -200.00 to +850.00 °C A/D converter Delta-sigma System accuracy 0.07 K ±2 digits Temperature drift maximum 30 ppm/K Nominal temperature +22 °C ±2 K Refresh rate 0.1 seconds...

  • Page 10: D7 Bridge Connector Zkd700-Fs

    5.D7 bridge connector ZKD700-FS D7 bridge connector ZKD700-FS is used to record the output voltage of a 4-wire full bridge with a 5V supply (5V, Gnd); it does so by means of an integrated high-speed 24- bit A/D converter. It is thus possible to record dynamic changes in force by means of wire strain gauges at two different conversion rates, namely 10 or 1000 measuring opera- tions per second.

  • Page 11: Sensor Adjustment And Scaling

    5.2.Sensor adjustment and scaling These two quantities offer two different conversion rates and thus also different measuring ranges and resolutions. It is important to strictly adhere to each of the maximum final valu- es including the decimal point. For the purpose of zero adjustment the 'ZERO' key is provided. For configuring the sensor's individual gain and scaling there are two possible procedures.

  • Page 12: D7 Tensile And Compressive Force Sensors Fk0Xx

    6.D7 tensile and compressive force sensors FK0xx D7 tensile and compressive force sensors FK0xx incorporate wire strain gauges in the form of a 4-wire full bridge; these are fed via the electronics in the plug on connecting cable ZKD712FS with a 5V bridge supply and are evaluated via a high-speed 24-bit A/D converter.

  • Page 13: Technical Data Zkd712-Fs

    6.3.Technical data ZKD712-FS s. page 11 7.D7 pressure sensors FD0602Lxx Pressure sensors FD0602Lxx are used to record output voltage (0.2 to 2.2 V) in two possi- ble resolutions and conversion rates; they do so by means of an integrated 24-bit delta-sig- ma A/D converter incorporated in the connector of adapter cable ZDD702AKLxx.

  • Page 14: D7 Conductivity Probe Fyd741Lf

    8.D7 conductivity probe FYD741LF 8.1.Basic principles The conductivity (unit S/m = Siemens/meter) is a measure for the ion concentration in a measuring solution. Conductivity is proportio- nal to the amount of salt, acid, or base alkaline content measured in the solution, High-purity water has a conductivity of approx.

  • Page 15: Measuring Principle

    8.2.Measuring principle The conductivity in electrolytes is obtained via an electro-chemical resistance measure- ment using a 4-electrode measuring cell. An AC voltage with a frequency of approx. 1 kHz is applied to the electrodes. The current flowing through the test object is conver - ted into a voltage.

  • Page 16: Cell Constant

    Designation Quantity Measuring range Units Resolution DLF1 1. Conductivity LF1 500 uS B-01 0...500.00 uS 0.01 uS DLF2 2. * Conductivity LF2 50 mS B-02 0...50.000 mS 0.001 mS DLF3 3. Conductivity LF3 500 mS B-03 0...500.00 mS 0.01 mS Ranges can be deactivated by selecting stops '- - - - -' in the list.

  • Page 17: Routine Servicing And Care

    8.4.Routine servicing and care Minor dust and dirt can be removed using a soft brush. Cleaning on a more intensive scale, as required if the electrodes are very dirty, may result in the distances between electrodes being slightly altered; this may have an adverse effect on results. Checking In the following circumstances it makes good sense to check the probe : ●...
  • Page 18 κ [mS/cm] κ [mS/cm] κ [mS/cm] κ [mS/cm] t [°C] 0,001 mol/l 0,01 mol/l 0,02 mol/l 1,00 mol/l 0,776 1,521 65,41 0,800 1,566 67,13 0,896 1,752 74,14 1,020 1,994 83,19 1,147 2,243 92,52 1,173 2,294 94,41 1,199 2,345 96,31 0,127 1,225 2,397 98,24...
  • Page 19 Technical data Probe FYD741LFE01 FYD741LFP 4-contact conductivity probe Laboratory electrode Process electrode Measuring range 10 μS to 500 mS 10 μS to 200 mS Conductivity Accuracy ±2% of measured value ±3% of measured value under nominal conditions ±0.2% of final value ±0.2% of final value Temperature sensor NTC sensor 30 kΩ...

  • Page 20: D7 Meteo-Multi Fmd760

    9.D7 Meteo-Multi FMD760 9.1.Safety instructions Assembly, installation, and putting into service should be performed • exclusively by appropriately trained and qualified specialist person- nel. Measuring operations should never be performed on live com- • ponents; live components should never be touched. It is important to strictly adhere to the technical data, storage conditi- •...

  • Page 21: Overview Of Intelligent Weather Sensors

    9.5.Overview of intelligent weather sensors The Figure outlines the structure of the weather sensor system. - 21 -...

  • Page 22: Putting Into Service

    9.6.Putting into service To put the weather station into service the following steps must be taken. A connection overview is shown in the Figure on page 21. • Cabling between ALMEMO ® connector and the sensor • Feeding the necessary supply for heating and fan via external mains unit (via mains unit plug or WAGO terminal strip) •...
  • Page 23 Designation Quantity Measuring Units Resolution range nent B-01 D Davg 0...+359 ° 1 ° 1. Wind direction, minimum 2. * Wind direction, averaged B-02 D Dvavg 0.5... 60.0 m/s 0.1 m/s B-03 D Dvmax 0.5... 60.0 m/s 0.1 m/s 3. ind direction, maximum B-04 D p 600...1100.0 mbar 0.1 mbar...

  • Page 24: Sensor Functions

    9.9.Sensor functions The wind velocities is output from 0 m/s. The response threshold is 0.3 m/s. With wind velocities under 0.5 m/s the measured values wind direction are not output. The maximum, minimum, and average values for the individual variables are calcula- ted continuously by means of function channels Xmax, Xmin, Xavg, and the sensor-in- ternal cycle of 2 seconds.

  • Page 25: Energy Saving Mode 1

    9.13.Energy saving mode 1 Energy saving mode 1 initiates the following measures : Ventilation of the temperature / humidity unit is deactivated. • All heating is deactivated. • The RADAR rainfall sensor does not operate continuously; the sensor is acti- •...
  • Page 26 Power supply Heating Rainfall RADAR 24/1 24 V via mains unit Setting AUTO Setting AUTO Function Factory setting Function Heating active Function Fan active Continuous operation 24/2 24 V via mains unit Setting OFF Setting AUTO Function Function Function Fan active Continuous operation Heating deactivated 24/3 24 V via mains unit...

  • Page 27: D7 Gps Positioning Sensor Fgd701

    10.D7 GPS positioning sensor FGD701 D7 GPS positioning sensor FGD701 records the user's position with longitude and latitude (compatible with GPRMC and Google), altitude in meters, speed of movement (in km/h, m/ s, mph, kn), direction of movement in degrees or abbreviated compass reading, and coordi- nated universal time (UTC) (without one-second increments) Output also includes the num- ber of satellites used and the age of the data.
  • Page 28 Configurable measuring quantities and ranges Combinations for the measuring channels can be configured from a list of 14 possible mea- suring quantities and ranges. (* factory default settings) Designation Quantity abbre- Measuring Units Resolution viation range 1. Longitude (Google) B-01 D LG_G 0 to E179.999999 D LG_N...

  • Page 29: D7 Thermocouple Plug Ztd700-Fs

    11.D7 thermocouple plug ZTD700-FS The D7 thermocouple plug ZTD700-FS acquires by means of its own 24bit A/D converter the temperature of a thermocouple with maximum precision in 4 selectable speeds. Regar- ding the measuring range, a selection of nine noble metal and base metal thermocouples is available..
  • Page 30 Technical data Operating range: temperature depending on sensor typel Temperature sensor: ZTD700-FS Measuring range: Temperature type K: -200.0 to 1370.0 °C type N: -200.0 to 1300.0 °C type J: -210.0 to 1100.0 °C type E: -270.0 to 800.0 °C type T: -200.0 to 400.0 °C type S: -50.0 to 1760.0 °C...

  • Page 31: D7-Pt1000-Plug Zpd710-Fs

    12.D7-Pt1000-plug ZPD710-FS Thanks to its 24bit A/D converter, the D7-Pt1000 plug ZPD710-FS measures the tempera- ture of the sensor with the highest possible precision in the entire range of -200.00 to +850.00°C without linearization errors. Since the overall accuracy of the sensor does not depend on the evaluation unit, the sensor can be calibrated individually and can even be multi-point adjusted.

  • Page 32: Your Contact Partner

    13.Your contact partner Ahlborn Mess- und Regelungstechnik GmbH, Eichenfeldstraße 1, 83607 Holzkirchen, GERMANY Tel. +49(0)8024/3007-0, Fax +49(0)8024/300710 Internet: http://www.ahlborn.com, email: amr@ahlborn.com We take every possible care but the risk of inaccuracy can never be altogether excluded. We reserve the right to make technical changes without advance notice!
